Whirlpool
Top-Mount Refrigerator

Model # 8ET17NKXBW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 8ET17NKXBW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

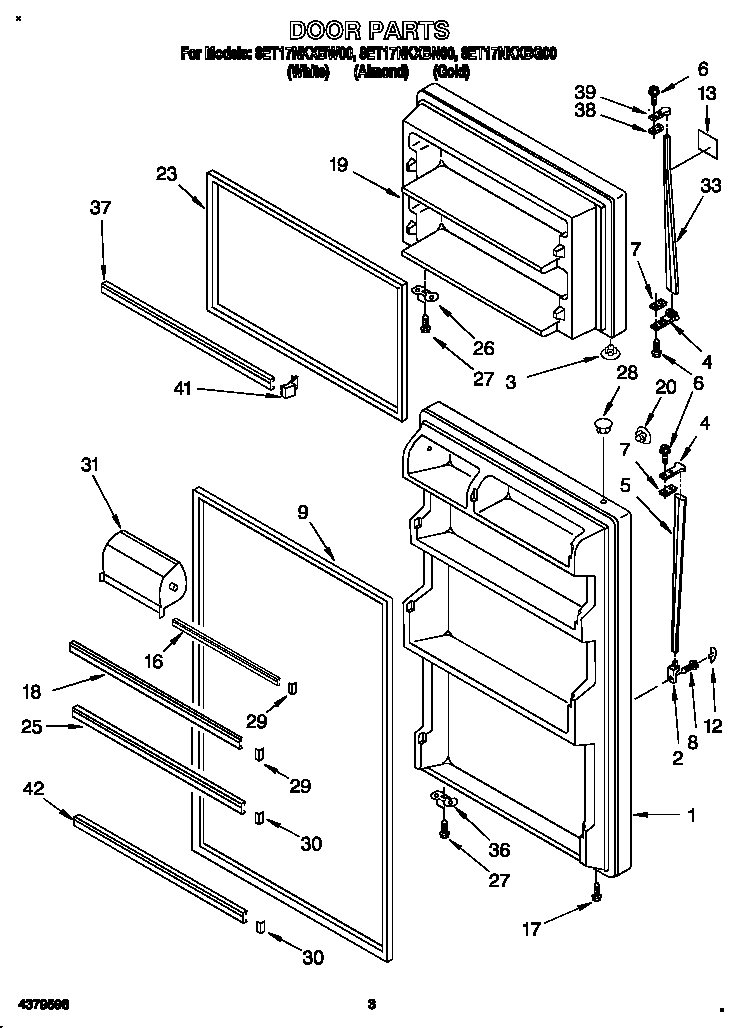

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |
Light Bulb 946059
#17

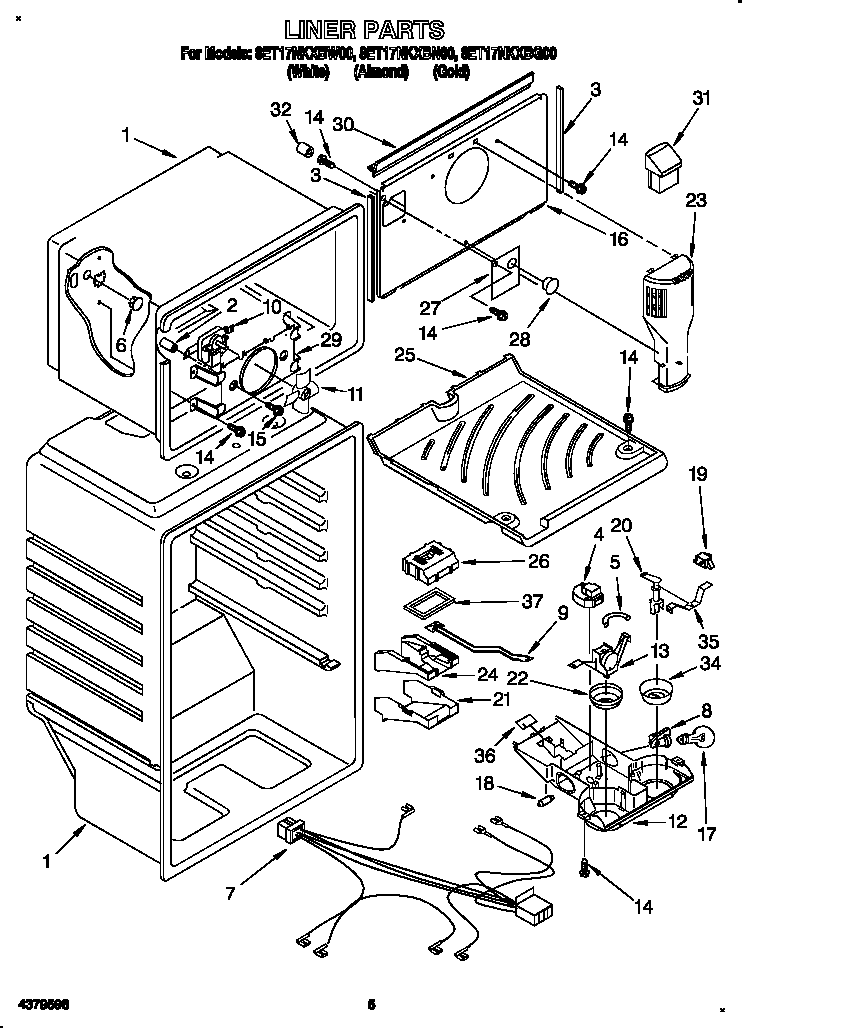

Liner diagram

Light bulb

Part #946059

Replaced by #40A15

?
Manufacturer substitution
This part replaces 946059. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Switch 1108112
#19

Liner diagram

Switch

Part #1108112

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1108112. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Defrost Timer 2172691
#4

Liner diagram

Refrigerator defrost timer

Part #2172691

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 2172691. Substitute parts can look different from the original.
BEST SELLER
$27.82 |
18% OFF Phone Price : $33.82
In Stock
Drier Tube 2164409
#29

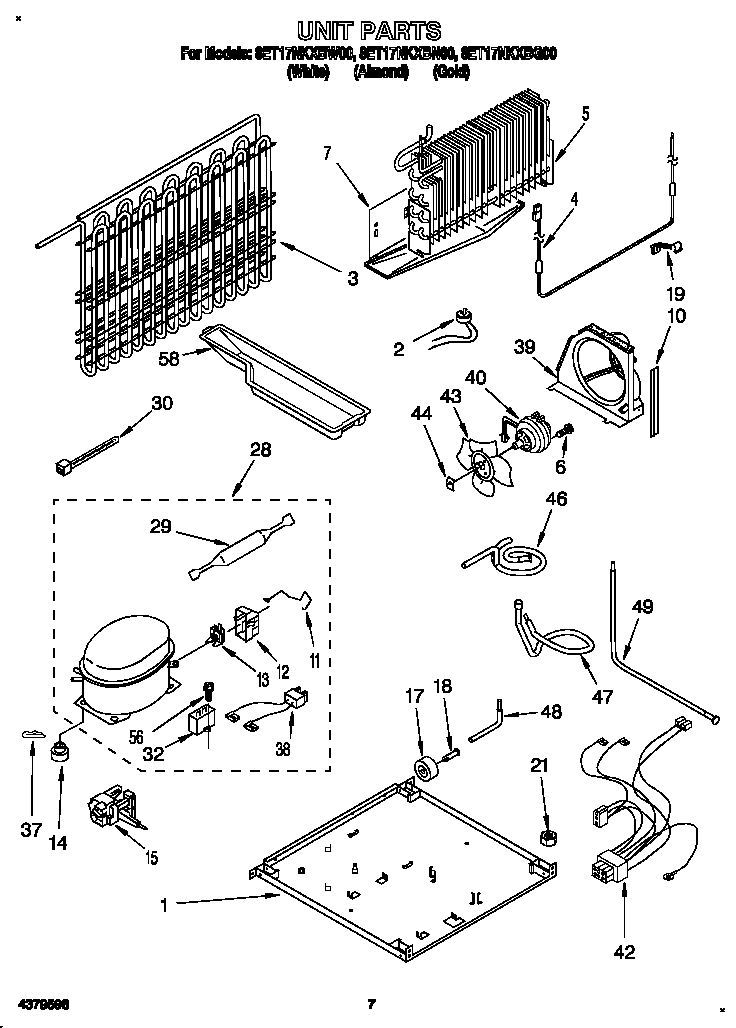

Unit diagram

Drier tube

Part #2164409

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2164409. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Crisper Pan 2170954
#4

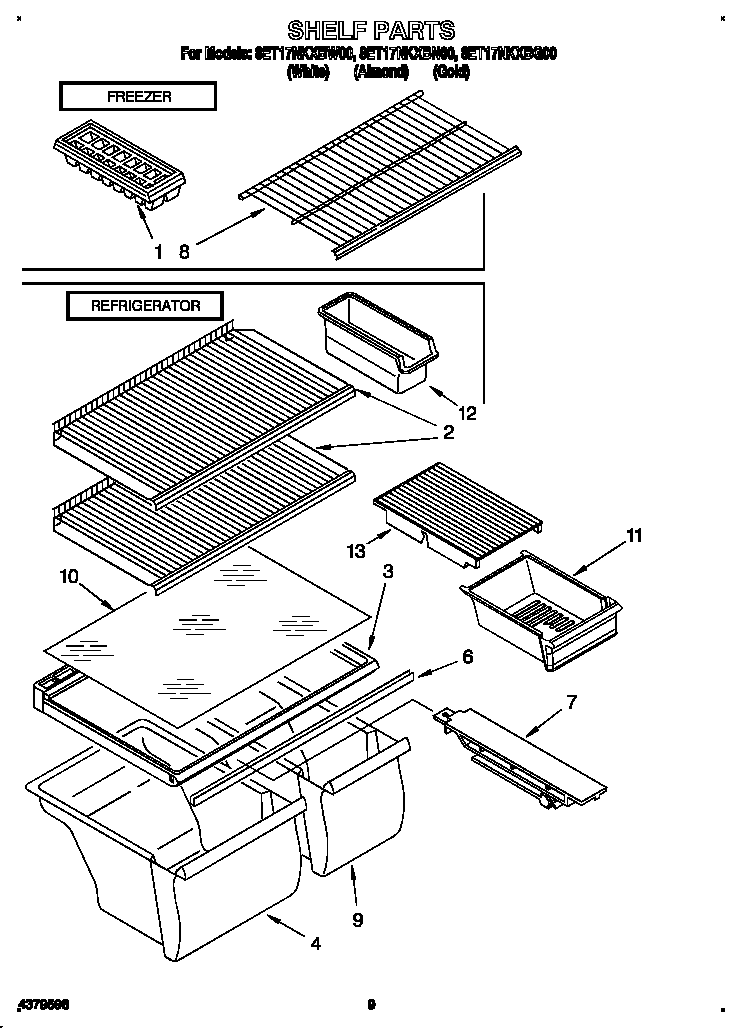

Shelf diagram

Refrigerator crisper pan

Part #2170954

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2170954. Substitute parts can look different from the original.
BEST SELLER
$82.04 |
7% OFF Phone Price : $88.04
Back Order
Refrigerator Compressor 2162352
#28

Unit diagram

Refrigerator compressor

Part #2162352

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 2162352. Substitute parts can look different from the original.
BEST SELLER
$282.03 |
$12.00 OFF Phone Price : $294.03
In Stock
Refrigerator Defrost Bi-metal 2163894
#2

Unit diagram

Refrigerator defrost bi-metal

Part #2163894

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2163894. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Refrigerator Ice Maker ECKMF94

#NI

All parts diagram

Refrigerator ice maker

Part #ECKMF94

Replaced by #W11510803

?
Manufacturer substitution
This part replaces ECKMF94. Substitute parts can look different from the original.
BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
In Stock
Refrigerator Evaporator Fan Blade 2163777
#11

Liner diagram

Refrigerator evaporator fan blade

Part #2163777

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Refrigerator Washer 487576
#38

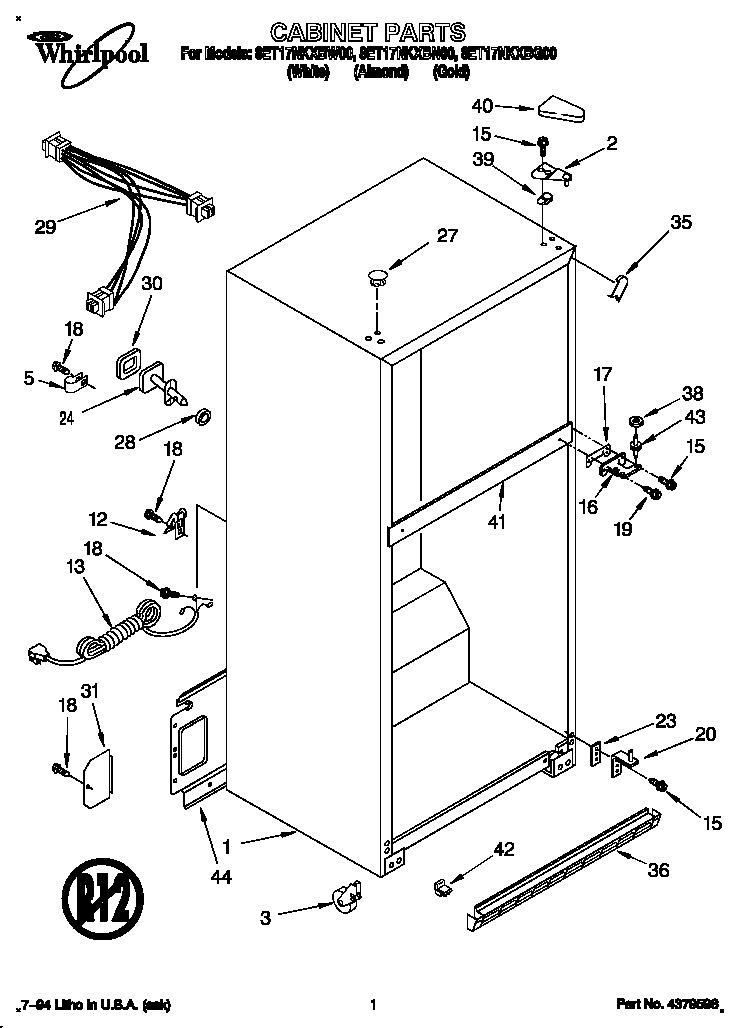

Cabinet diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
