Model # 593843520 Official Kenmore freestanding pedestal design wood stove

Here are the diagrams and repair parts for Official Kenmore 593843520 freestanding pedestal design wood stove, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
593843520 Freestanding Pedestal Design Wood Stove
Screw HW-106
#2

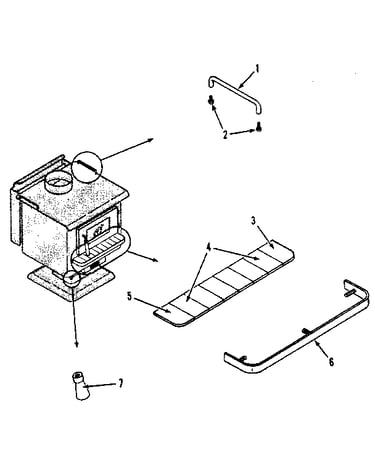

Stove exterior diagram

Screw

Part #HW-106

The manufacturer no longer makes this part, and there's no substitute part

Therm Handle 77-119-W
#7

Stove exterior diagram

Therm handle

Part #77-119-W

The manufacturer no longer makes this part, and there's no substitute part

Retainer 800-22-2
#6

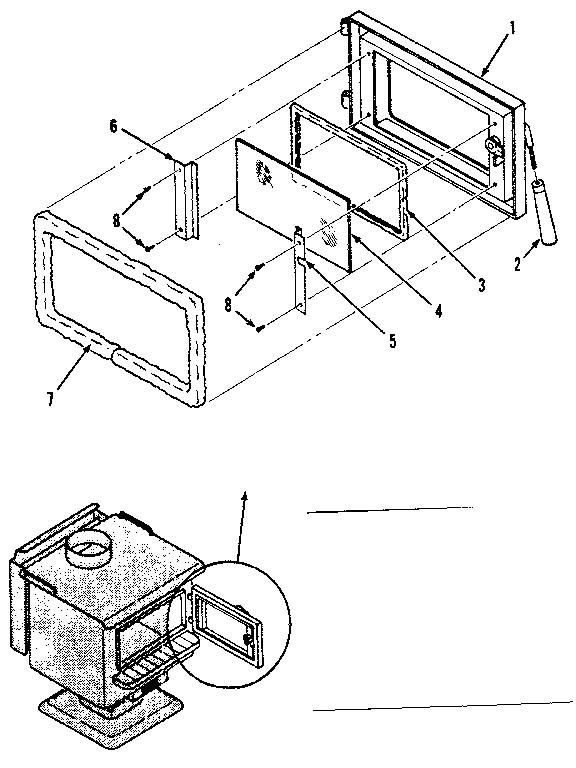

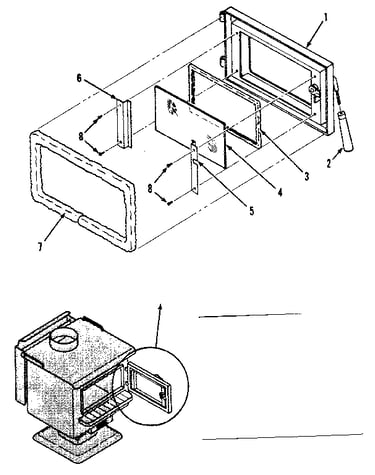

Door diagram

Retainer

Part #800-22-2

The manufacturer no longer makes this part, and there's no substitute part

Retainer 800-22-1
#5

Door diagram

Retainer

Part #800-22-1

The manufacturer no longer makes this part, and there's no substitute part

Complete Door G-828
#1

Door diagram

Complete door

Part #G-828

The manufacturer no longer makes this part, and there's no substitute part

Owners Manual F642-11983 N/P

#NI

All parts diagram

Owners manual f642-11983

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Firebrick FB-1B
#4

Stove interior diagram

Firebrick

Part #FB-1B

The manufacturer no longer makes this part, and there's no substitute part

Complete Door G-706
#1A

Door diagram

Complete door

Part #G-706

The manufacturer no longer makes this part, and there's no substitute part

Firebrick FB-1A
#3

Stove interior diagram

Firebrick

Part #FB-1A

The manufacturer no longer makes this part, and there's no substitute part

Fire Brick FB-1C
#5

Stove interior diagram

Fire brick

Part #FB-1C

The manufacturer no longer makes this part, and there's no substitute part
