Model # FFU17C4CW3 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFU17C4CW3 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Freezer Door Gasket 216522309
#1

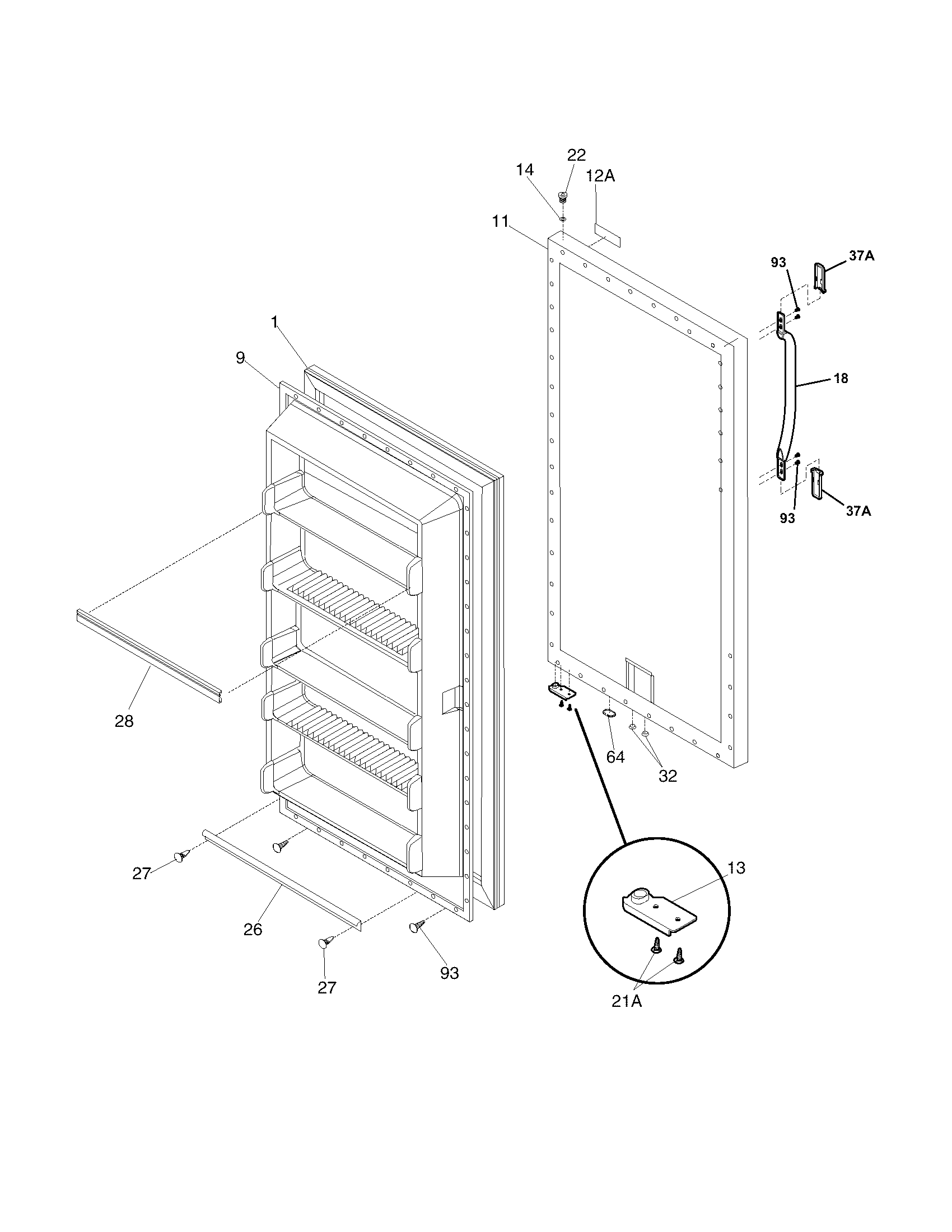

Door diagram

Freezer door gasket

Part #216522309

Replaced by #5304507200

?
Manufacturer substitution
This part replaces 216522309. Substitute parts can look different from the original.
BEST SELLER
$116.27 |
9% OFF Phone Price : $128.27
In Stock
Compressor 216941800
#29

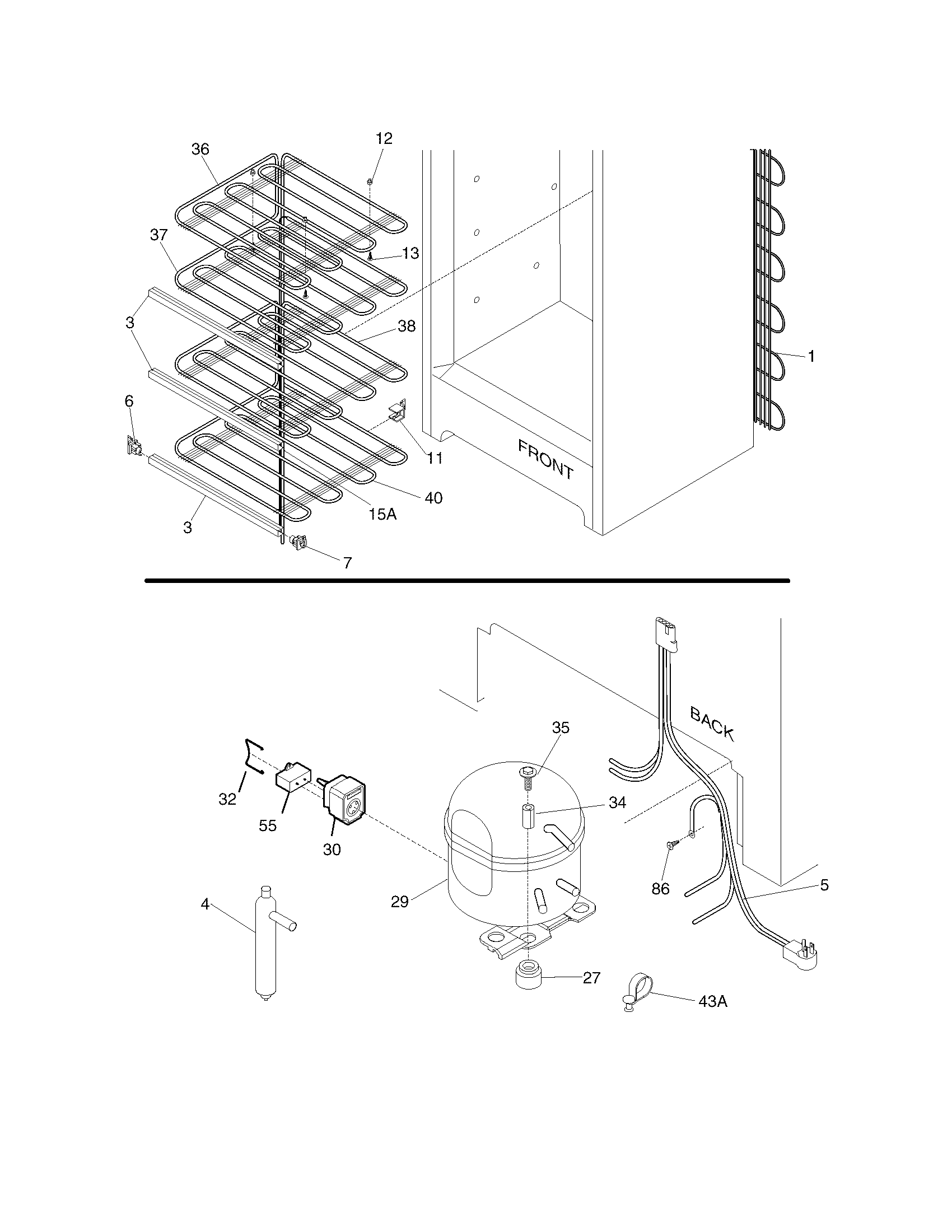

System diagram

Compressor

Part #216941800

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 216941800. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Chest Freezer Run Capacitor 218909913
#55

System diagram

Chest freezer run capacitor

Part #218909913

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909913. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

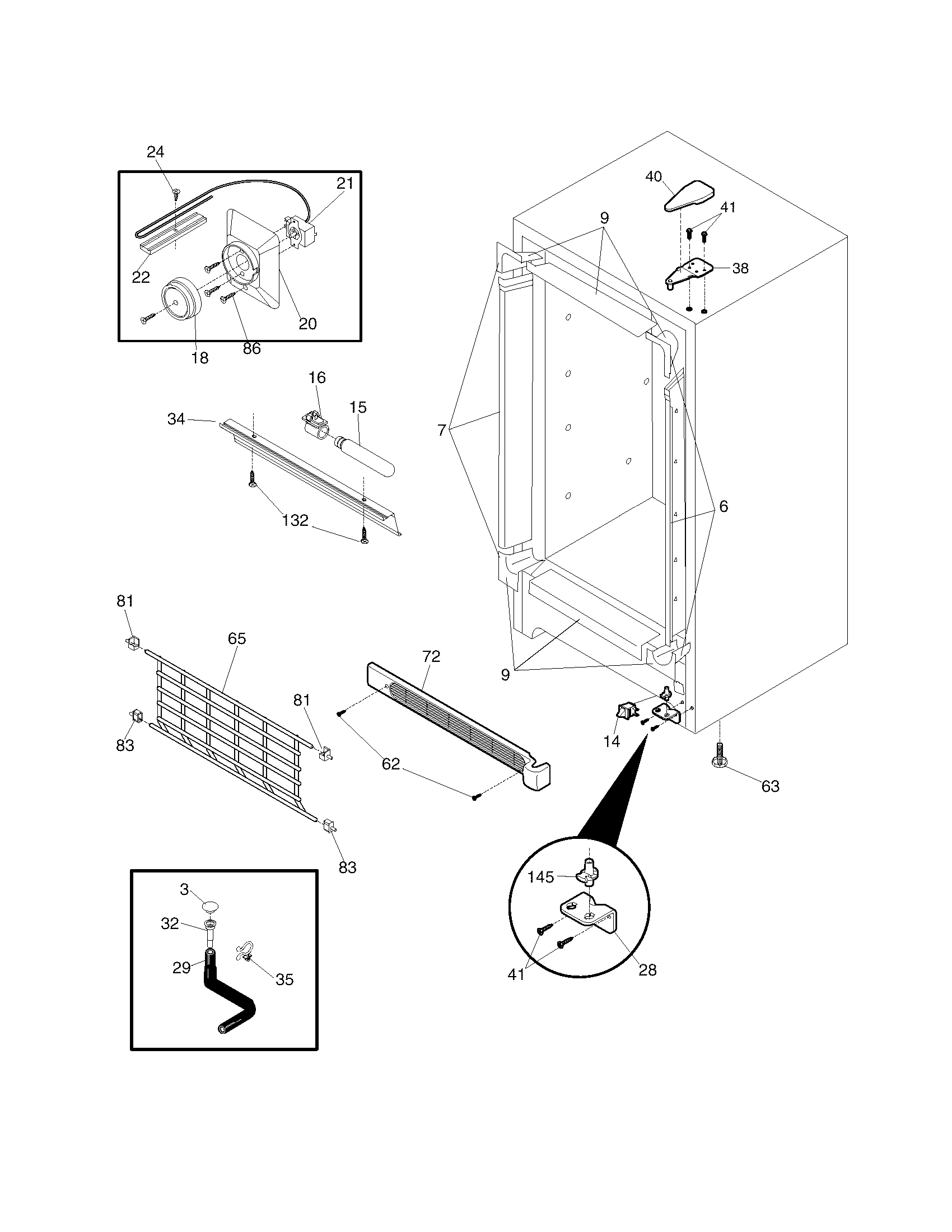

Cabinet diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$51.35 |
10% OFF Phone Price : $57.35
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Freezer Condenser Coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, F000300847, F000900204, F112069, F118630, F83339, F83727, F83897) 5300083897
#1

System diagram

Freezer condenser coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, f000300847, f000900204, f112069, f118630, f83339, f83727, f83897)

Part #5300083897

This item is not returnable
$417.18 |
$12.00 OFF Phone Price : $429.18
In Stock
Upright Freezer Start Relay 216649315
#30

System diagram

Upright freezer start relay

Part #216649315

Replaced by #5304491585

?
Manufacturer substitution
This part replaces 216649315. Substitute parts can look different from the original.
$62.87 |
9% OFF Phone Price : $68.87
In Stock
Sec, Gasket 216524200
#26

Door diagram

Sec, gasket

Part #216524200

Replaced by #216524201

?
Manufacturer substitution
This part replaces 216524200. Substitute parts can look different from the original.
This item is not returnable
$36.81 |
14% OFF Phone Price : $42.81
In Stock
Freezer Light Bulb (replaces 216222700, 240588001) 216846400
#15

Cabinet diagram

Freezer light bulb (replaces 216222700, 240588001)

Part #216846400

$40.15 |
13% OFF Phone Price : $46.15
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
