Model # 502472550 Official Sears 27" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502472550 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

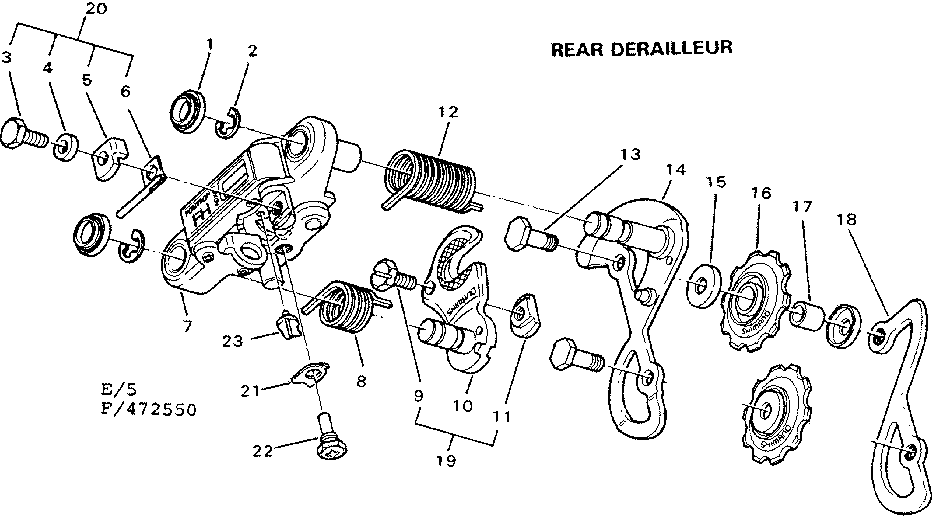

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
F Axle Set 303518
#11

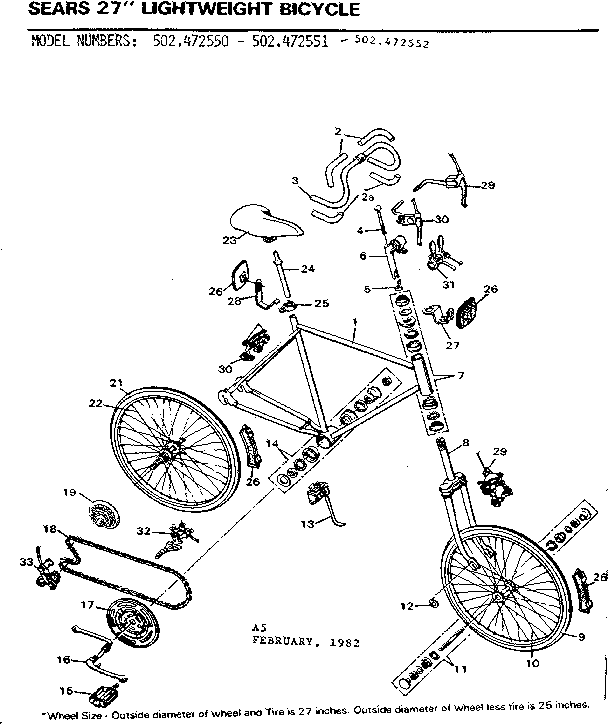

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302336
#13

Unit parts diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

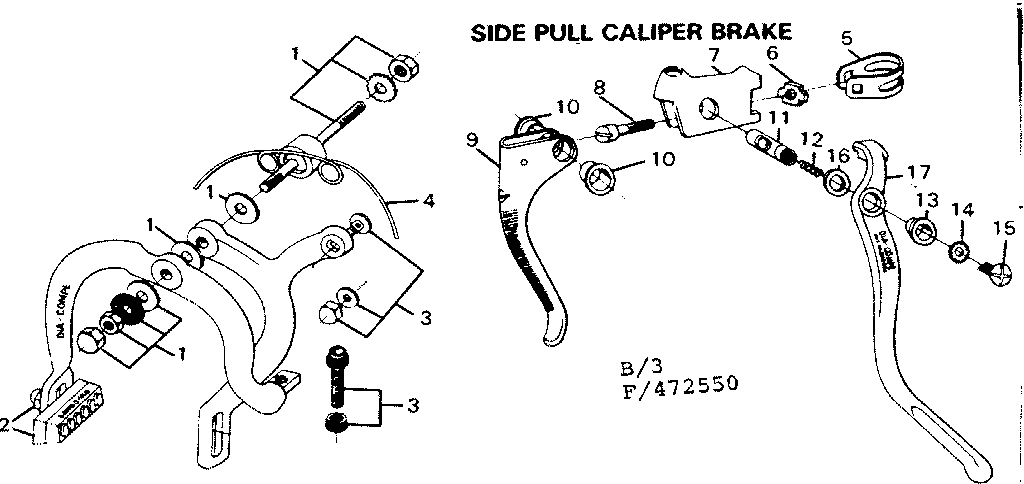

Brake Shoe 308697
Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Spkt. Asm 36265PA
#19

Unit parts diagram

Spkt. asm

Part #36265PA

The manufacturer no longer makes this part, and there's no substitute part

Adj. Barrel 301186
Adj. barrel

Part #301186

The manufacturer no longer makes this part, and there's no substitute part

Nut 304230
Nut

Part #304230

The manufacturer no longer makes this part, and there's no substitute part

Cone Lh 308496
#6

Rear hub diagram

Cone lh

Part #308496

The manufacturer no longer makes this part, and there's no substitute part

Race 308501
#10

Rear hub diagram

Race

Part #308501

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 32941Z
#24

Unit parts diagram

Seat post

Part #32941Z

The manufacturer no longer makes this part, and there's no substitute part

Washer 304207
#6

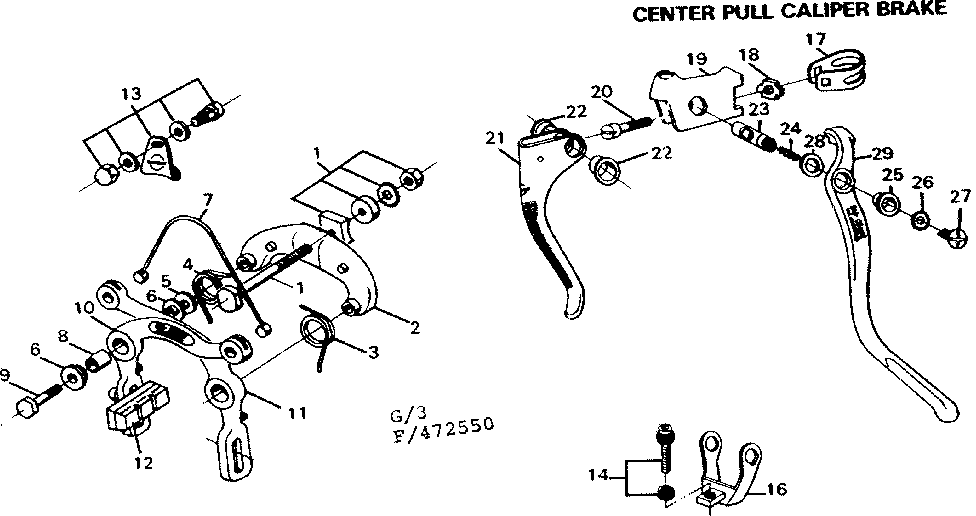

Center pull caliper brake diagram

Washer

Part #304207

The manufacturer no longer makes this part, and there's no substitute part
