Model # 706650240 Official Craftsman roller cabinet

Here are the diagrams and repair parts for Official Craftsman 706650240 roller cabinet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

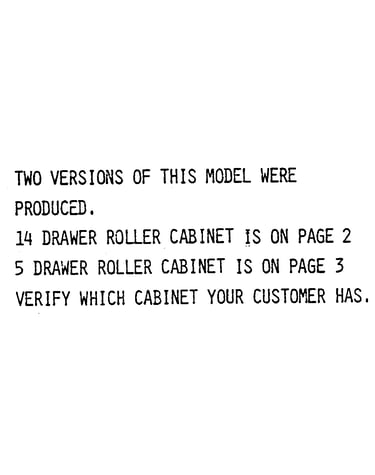

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |

Slide Spring M-3163
#13

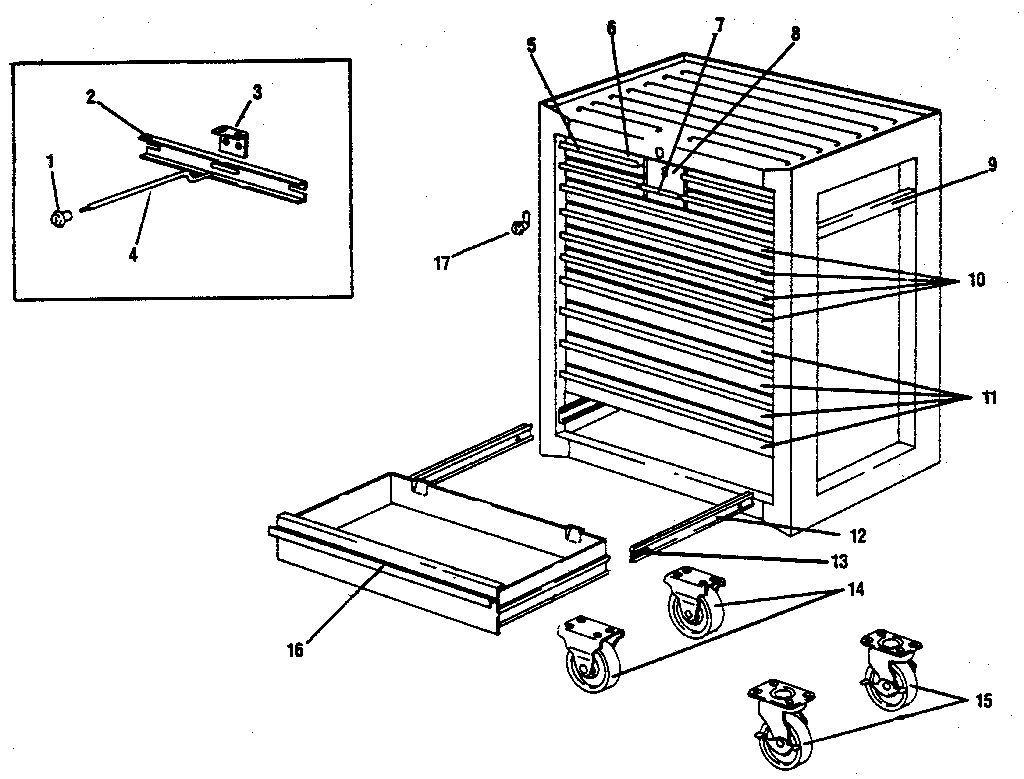

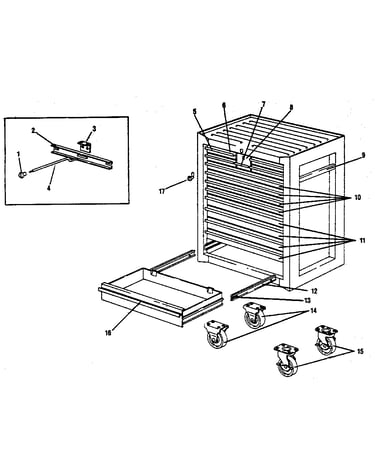

14-drawer roller cabinet diagram

Slide spring

Part #M-3163

The manufacturer no longer makes this part, and there's no substitute part

Act Rod T13493
#3

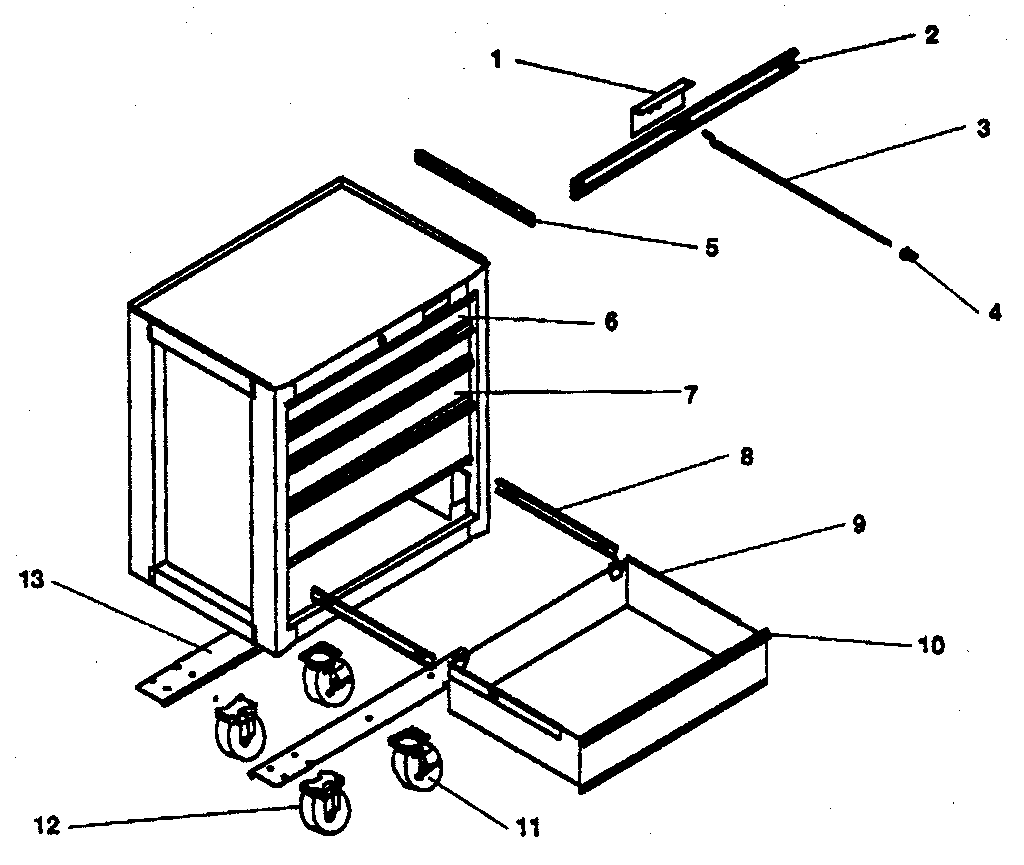

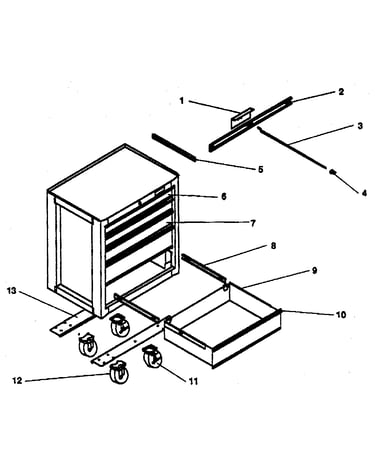

5-drawer roller cabinet diagram

Act rod

Part #T13493

The manufacturer no longer makes this part, and there's no substitute part

Caster 4in A-7415
#15

14-drawer roller cabinet diagram

Caster 4in

Part #A-7415

The manufacturer no longer makes this part, and there's no substitute part

Caster 4in A-5549
#14

14-drawer roller cabinet diagram

Caster 4in

Part #A-5549

The manufacturer no longer makes this part, and there's no substitute part

Caster M7410A1
#12

5-drawer roller cabinet diagram

Caster

Part #M7410A1

The manufacturer no longer makes this part, and there's no substitute part

Actuatr Brkt T-12396
#3

14-drawer roller cabinet diagram

Actuatr brkt

Part #T-12396

The manufacturer no longer makes this part, and there's no substitute part

Handle M-6910
#9

14-drawer roller cabinet diagram

Handle

Part #M-6910

The manufacturer no longer makes this part, and there's no substitute part

Lock Kit M4566
#4

5-drawer roller cabinet diagram

Lock kit

Part #M4566

The manufacturer no longer makes this part, and there's no substitute part

Actuatr Chnl T-13494
#2

14-drawer roller cabinet diagram

Actuatr chnl

Part #T-13494

The manufacturer no longer makes this part, and there's no substitute part

Act Rod T-13493
#4

14-drawer roller cabinet diagram

Act rod

Part #T-13493

The manufacturer no longer makes this part, and there's no substitute part
