Model # SF385PEYQ3 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF385PEYQ3 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Light Bulb 4371303
#5

Oven diagram

Light bulb

Part #4371303

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4371303. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw 4371061
#25

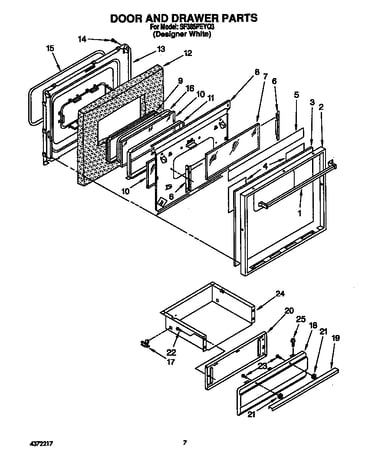

Door and drawer diagram

Screw

Part #4371061

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 4371061. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Light Socket 816668
#4

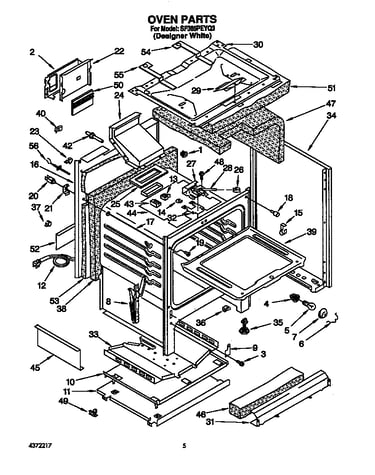

Oven diagram

Light socket

Part #816668

Replaced by #W10856866

?
Manufacturer substitution
This part replaces 816668. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Oven Igniter 816625
#6

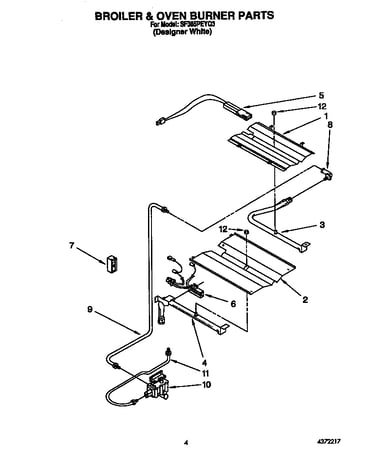

Broiler & oven burner diagram

Oven igniter

Part #816625

Replaced by #814269

?
Manufacturer substitution
This part replaces 816625. Substitute parts can look different from the original.
$98.19 |
11% OFF Phone Price : $110.19
In Stock
Oven Broiler Igniter 816624
#5

Broiler & oven burner diagram

Oven broiler igniter

Part #816624

Replaced by #WP9751123

?
Manufacturer substitution
This part replaces 816624. Substitute parts can look different from the original.
$91.22 |
6% OFF Phone Price : $97.22
In Stock
Wire Tie 816633
#14

Oven diagram

Wire tie

Part #816633

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 816633. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 4371027
#14

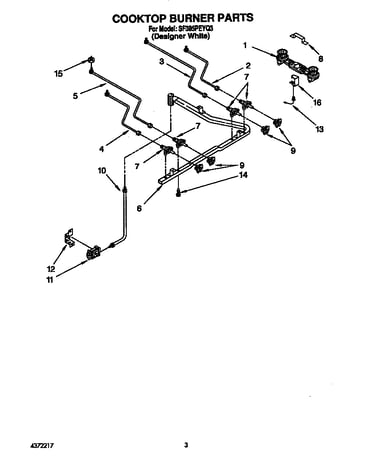

Cooktop burner diagram

Screw

Part #4371027

Replaced by #WP3186217

?
Manufacturer substitution
This part replaces 4371027. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Light Switch 4371572
#13

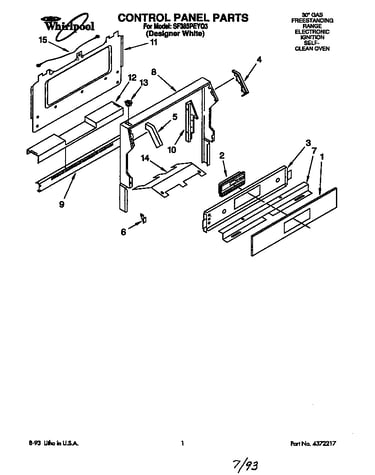

Control panel diagram

Light switch

Part #4371572

Replaced by #WP4314961

?
Manufacturer substitution
This part replaces 4371572. Substitute parts can look different from the original.
$35.52 |
14% OFF Phone Price : $41.52
In Stock
Support 816670
#36

Oven diagram

Support

Part #816670

The manufacturer no longer makes this part, and there's no substitute part

Insulation 816627
#46

Oven diagram

Insulation

Part #816627

The manufacturer no longer makes this part, and there's no substitute part
