KitchenAid
Range Hood

Model # KVWB600DSS3 Official KitchenAid range hood

Here are the diagrams and repair parts for Official KitchenAid KVWB600DSS3 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Range Hood Damper W10592040
#4

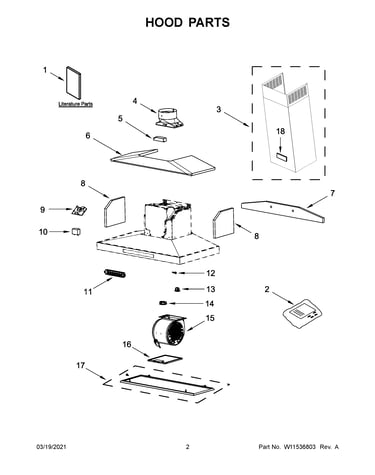

Hood parts diagram

Range hood damper

Part #W10592040

Replaced by #W10847841

?
Manufacturer substitution
This part replaces W10592040. Substitute parts can look different from the original.
$79.74 |
7% OFF Phone Price : $85.74
In Stock
Range Hood Blower Fan W10638161
#15

Hood parts diagram

Range hood blower fan

Part #W10638161

Replaced by #W11106377

?
Manufacturer substitution
This part replaces W10638161. Substitute parts can look different from the original.
$413.72 |
$12.00 OFF Phone Price : $425.72
In Stock
Range Hood Electronic Control W10716813
#11

Hood parts diagram

Range hood electronic control

Part #W10716813

Replaced by #WPW10716813

?
Manufacturer substitution
This part replaces W10716813. Substitute parts can look different from the original.
$206.38
In Stock
Range Hood Flue Insulation W10717244
#8

Hood parts diagram

Range hood flue insulation

Part #W10717244

$54.06 |
10% OFF Phone Price : $60.06
In Stock
Base Cover W10735352
#17

Hood parts diagram

Base cover

Part #W10735352

$144.07
In Stock
Led Cab 700m W11488580
#14

Hood parts diagram

Led cab 700m

Part #W11488580

Replaced by #W11493395

?
Manufacturer substitution
This part replaces W11488580. Substitute parts can look different from the original.
$63.07
In Stock
Base Cover W10735373
#17A

Hood parts diagram

Base cover

Part #W10735373

$148.09
In Stock
Thermostat Switch W10716822
#12

Hood parts diagram

Thermostat switch

Part #W10716822

$148.09
In Stock
Hardware W11321343
#2

Hood parts diagram

Hardware

Part #W11321343

$74.09
In Stock
Kitchenaid 2 W10518673
#18

Hood parts diagram

Kitchenaid 2

Part #W10518673

Replaced by #W10909682

?
Manufacturer substitution
This part replaces W10518673. Substitute parts can look different from the original.
$53.21 |
10% OFF Phone Price : $59.21
In Stock
