Model # NEX-F3K/P Official Sony digital camera

Here are the diagrams and repair parts for Official Sony NEX-F3K-P digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

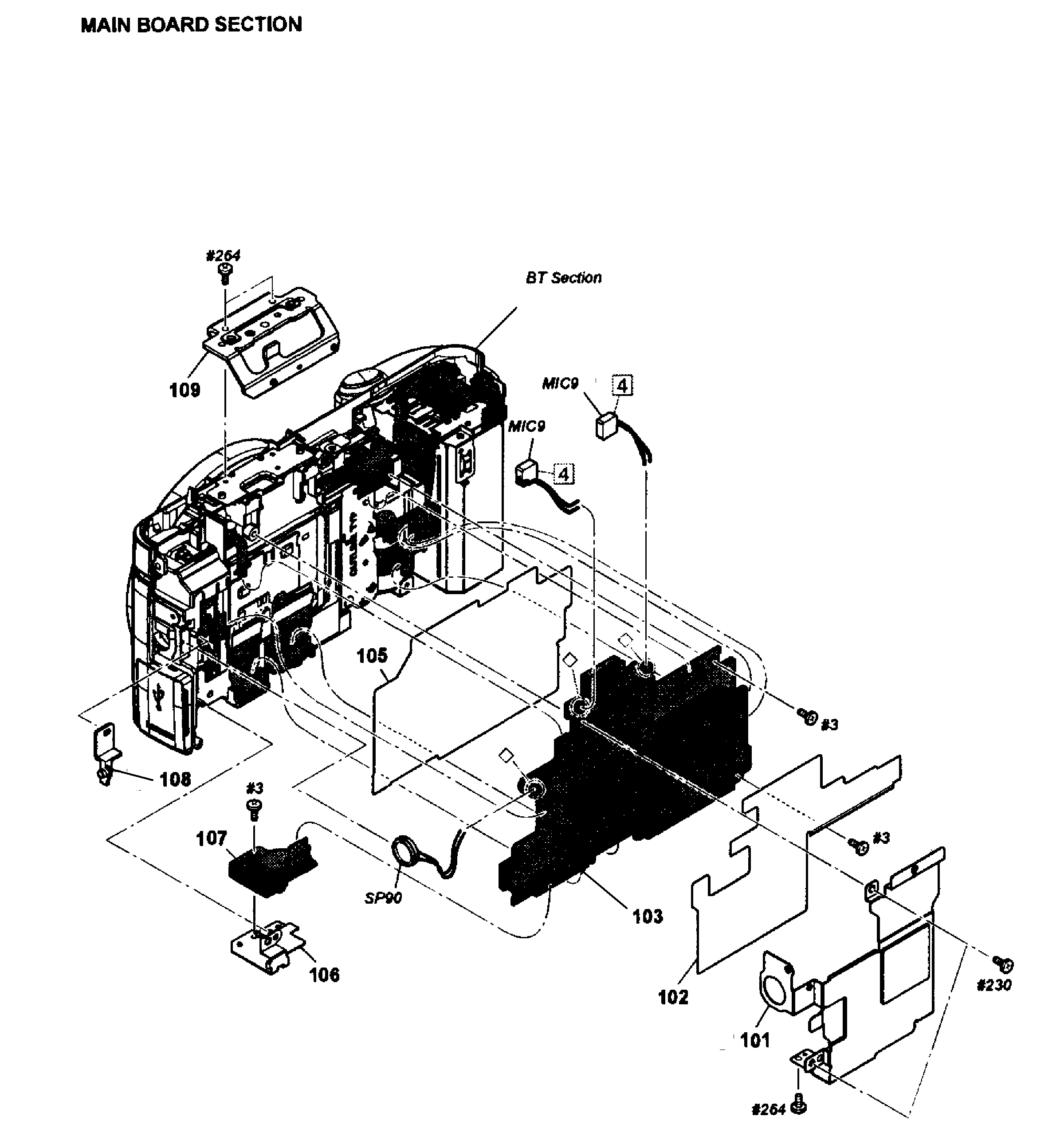

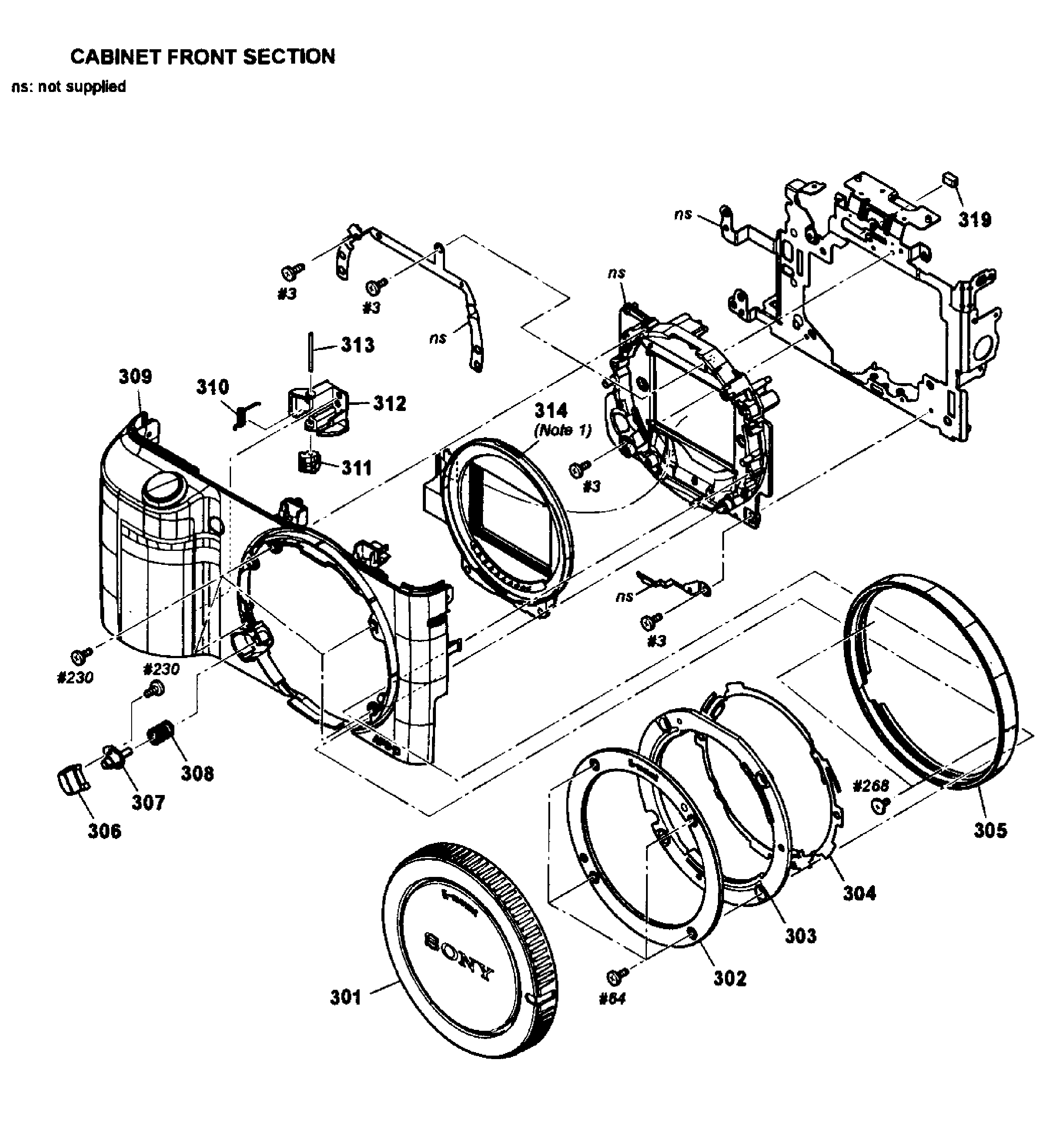

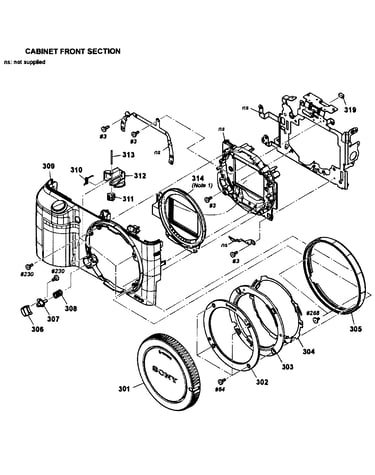

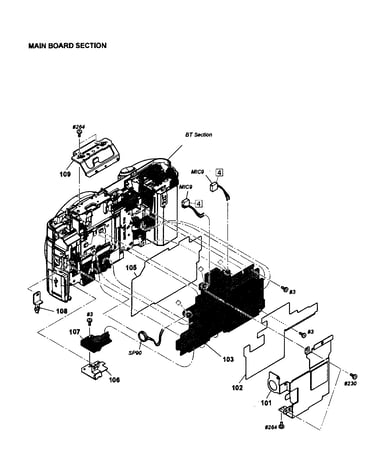

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Screw,m1.4 441276971
#265

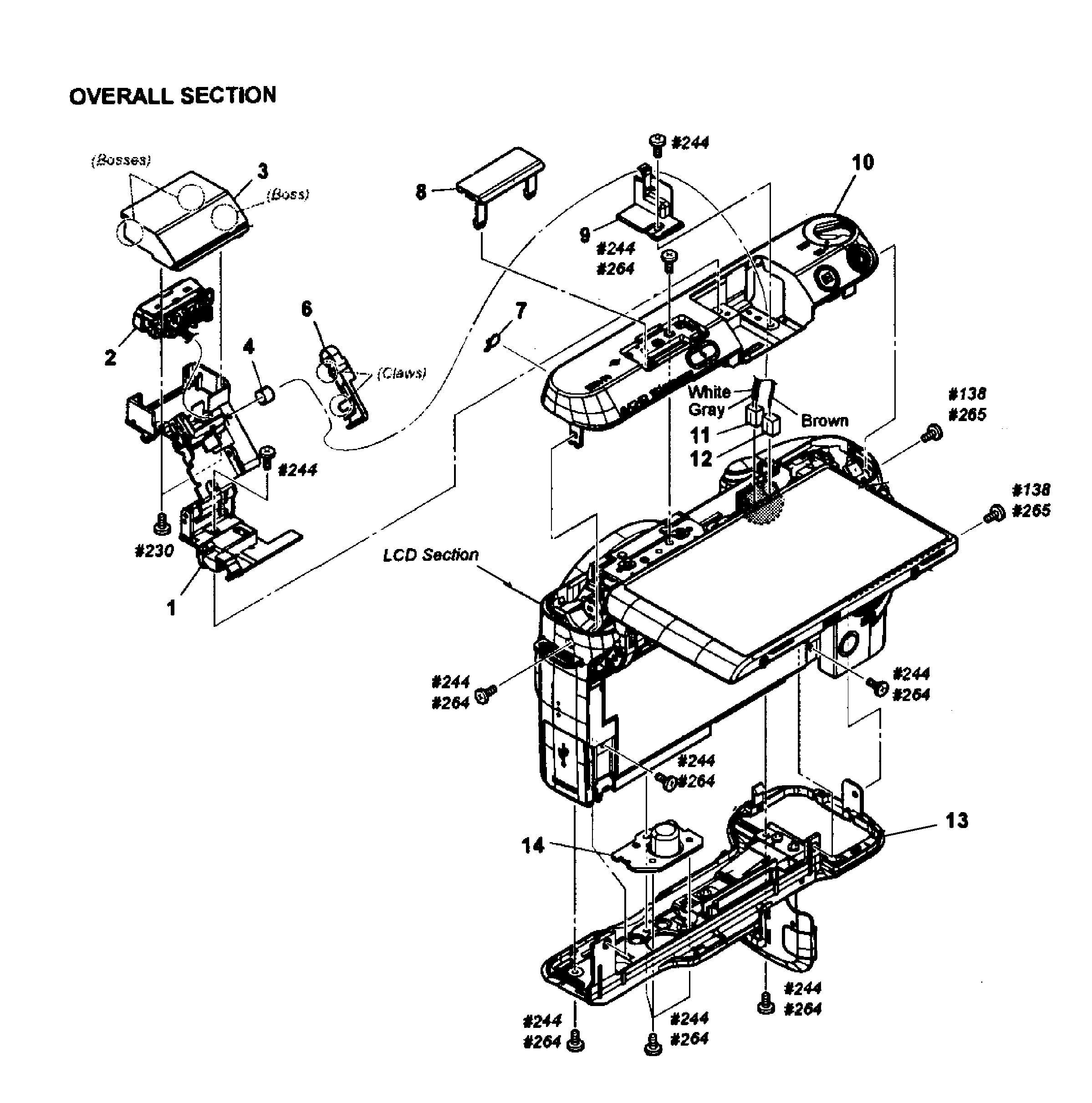

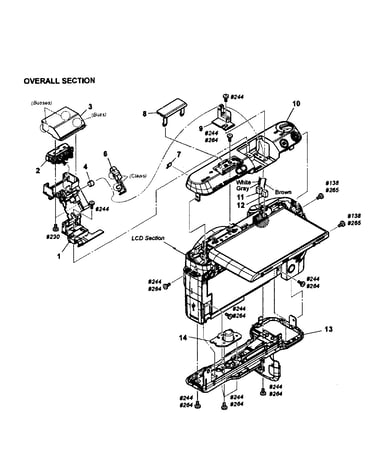

Overall assy diagram

Screw,m1.4

Part #441276971

This item is not returnable
$2.16
In Stock
Spacer 442735901
#59

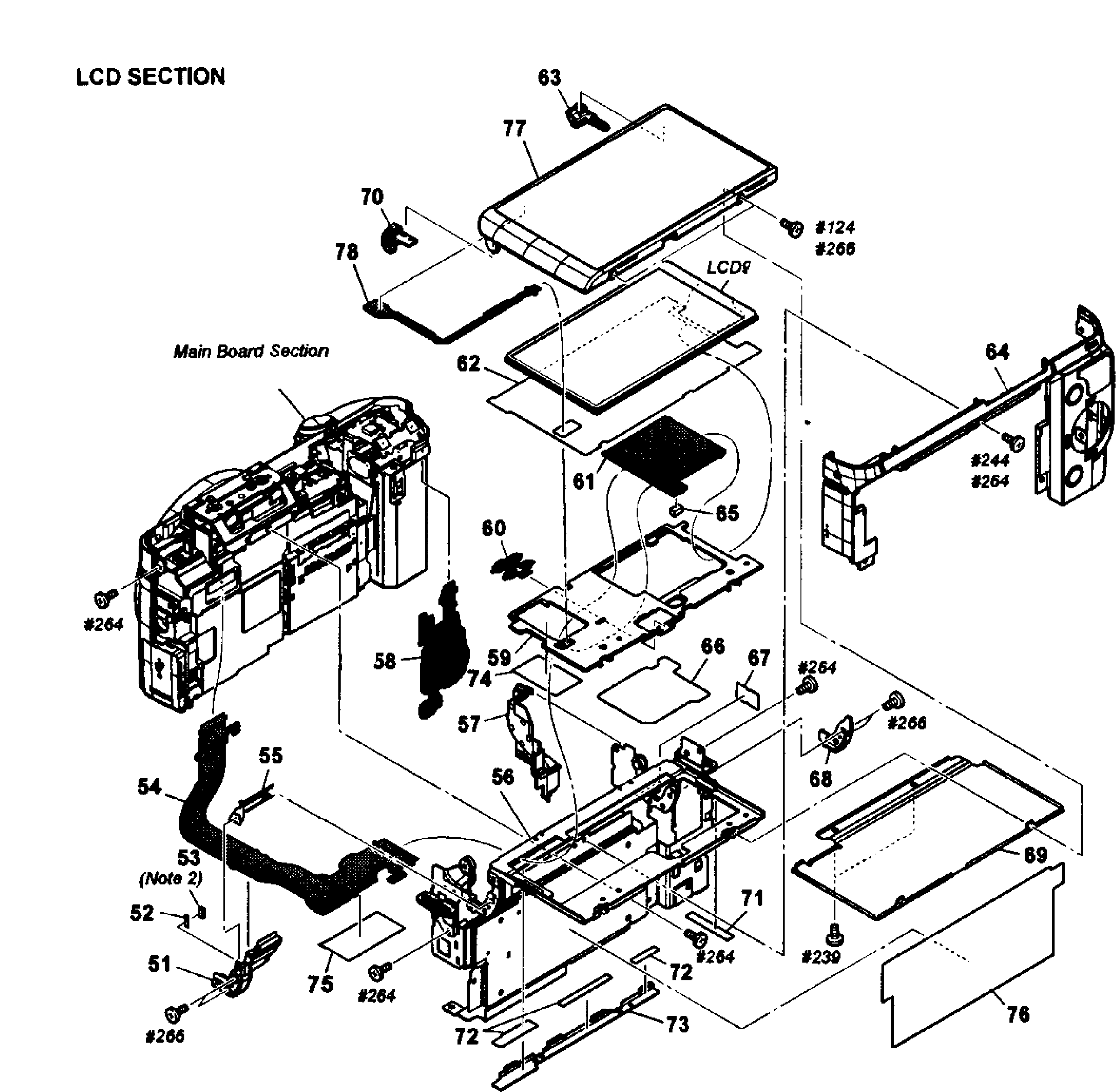

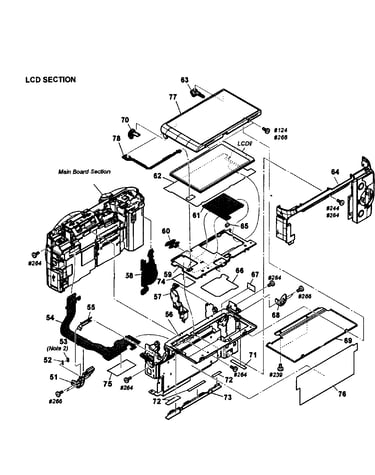

Lcd assy diagram

Spacer

Part #442735901

This item is not returnable
$5.65
In Stock
Im Plate,s 425969201
#253

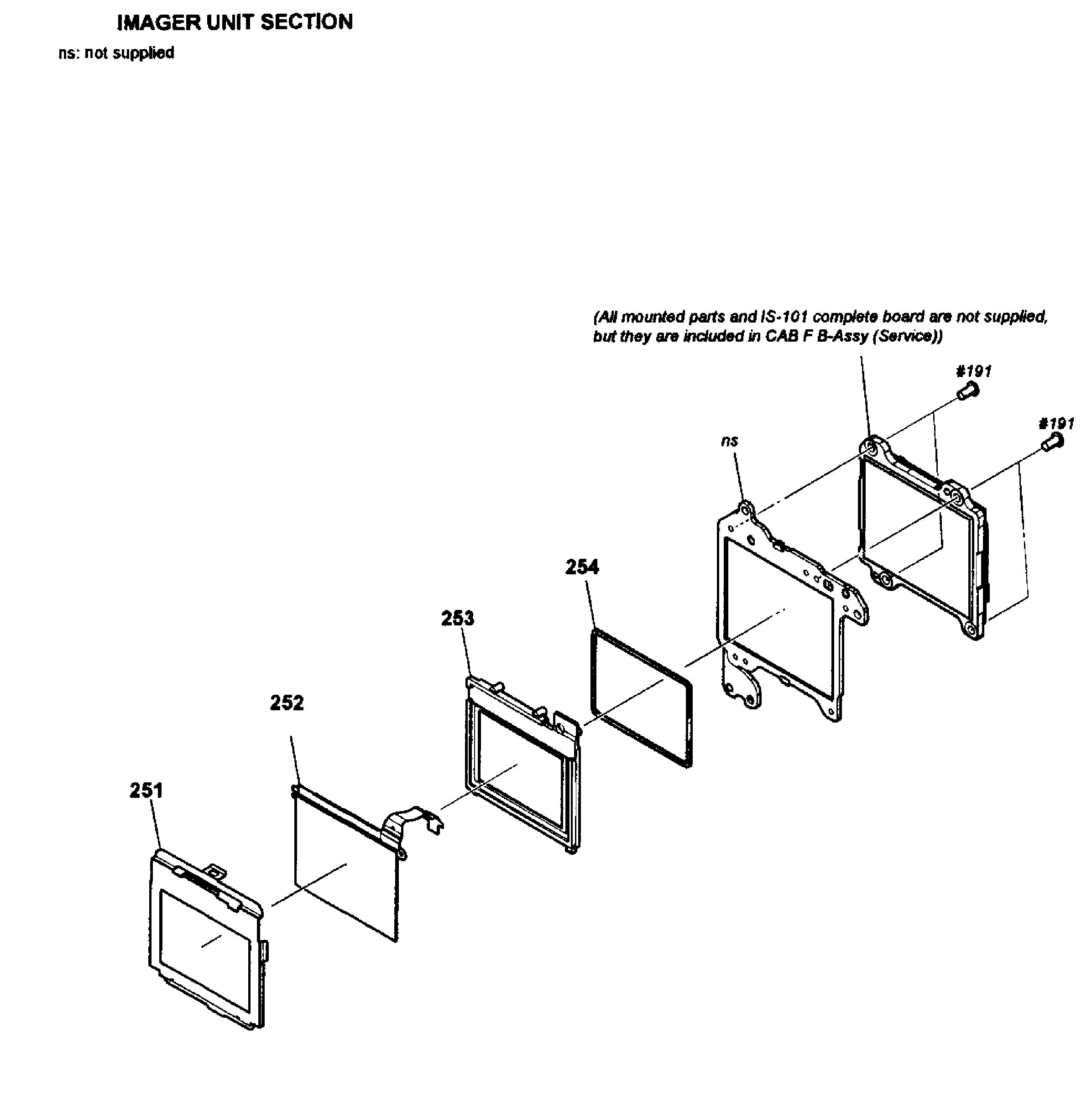

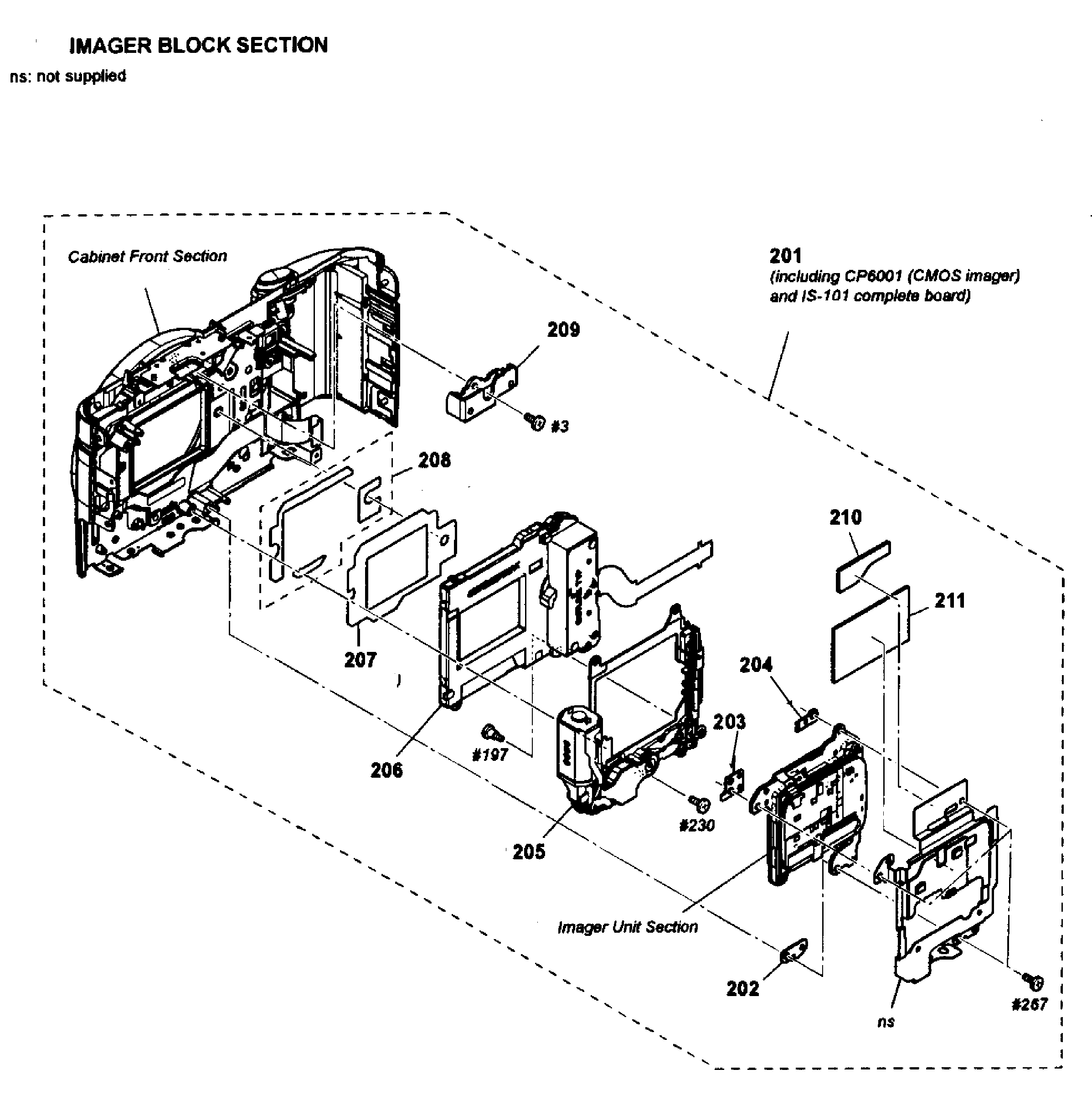

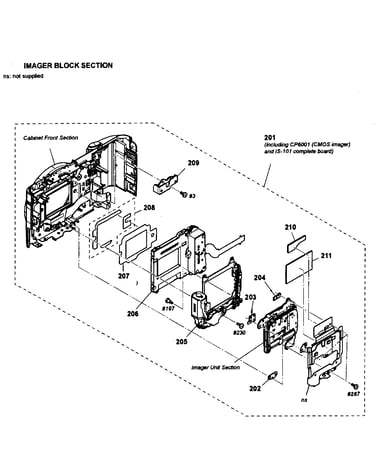

Imager unit diagram

Im plate,s

Part #425969201

This item is not returnable
$3.23
In Stock
Capacitor X25460711
#NI

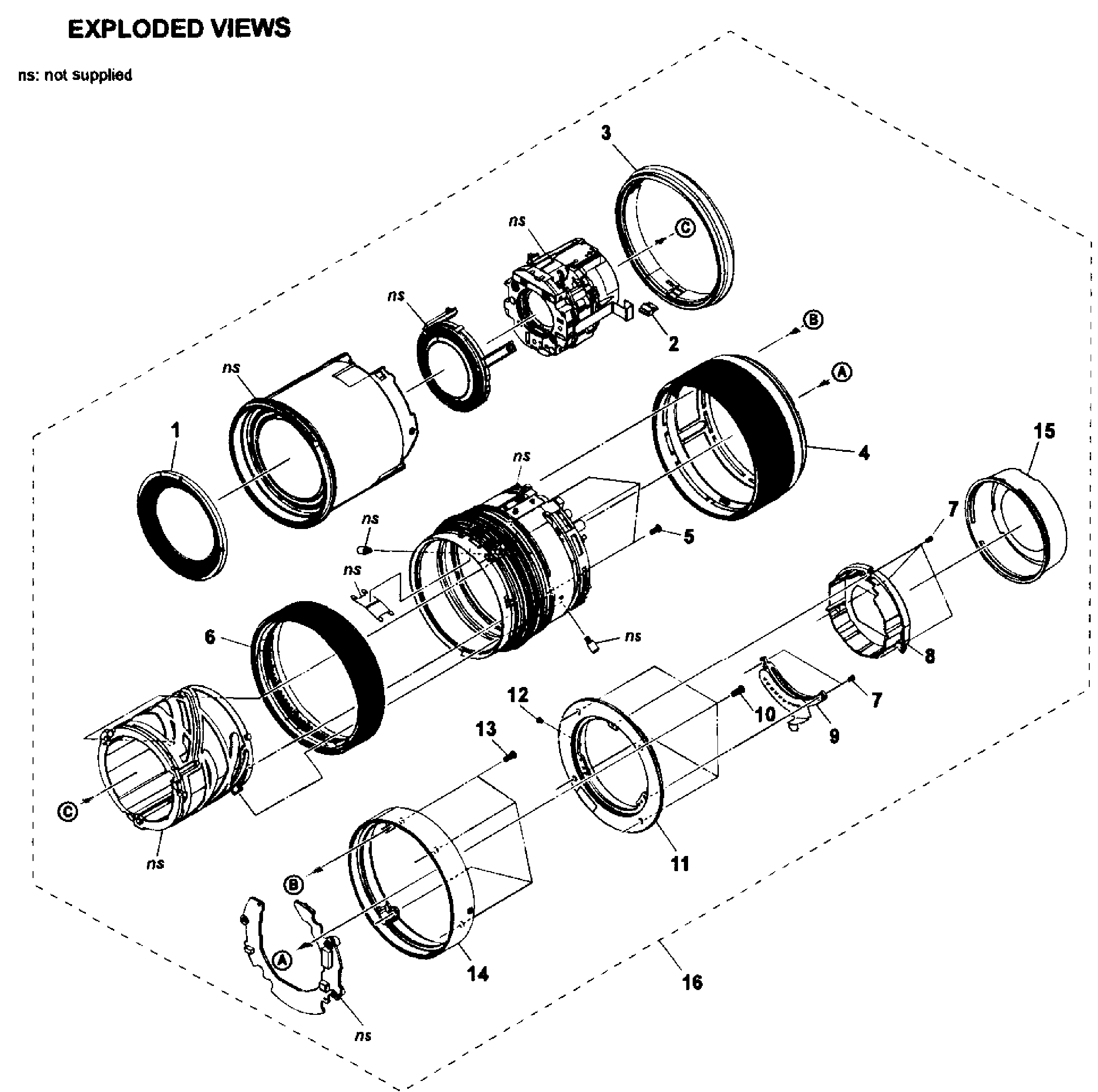

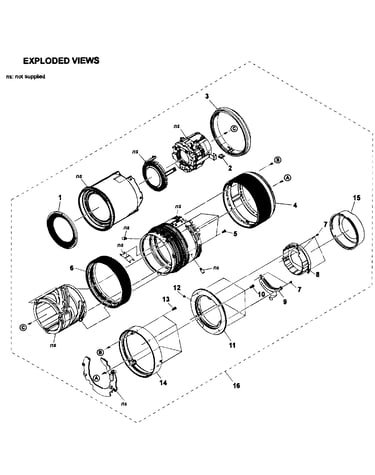

Lens,sel1855 diagram

Capacitor

Part #X25460711

$33.60
In Stock
Sheet,radi 443412501
#160

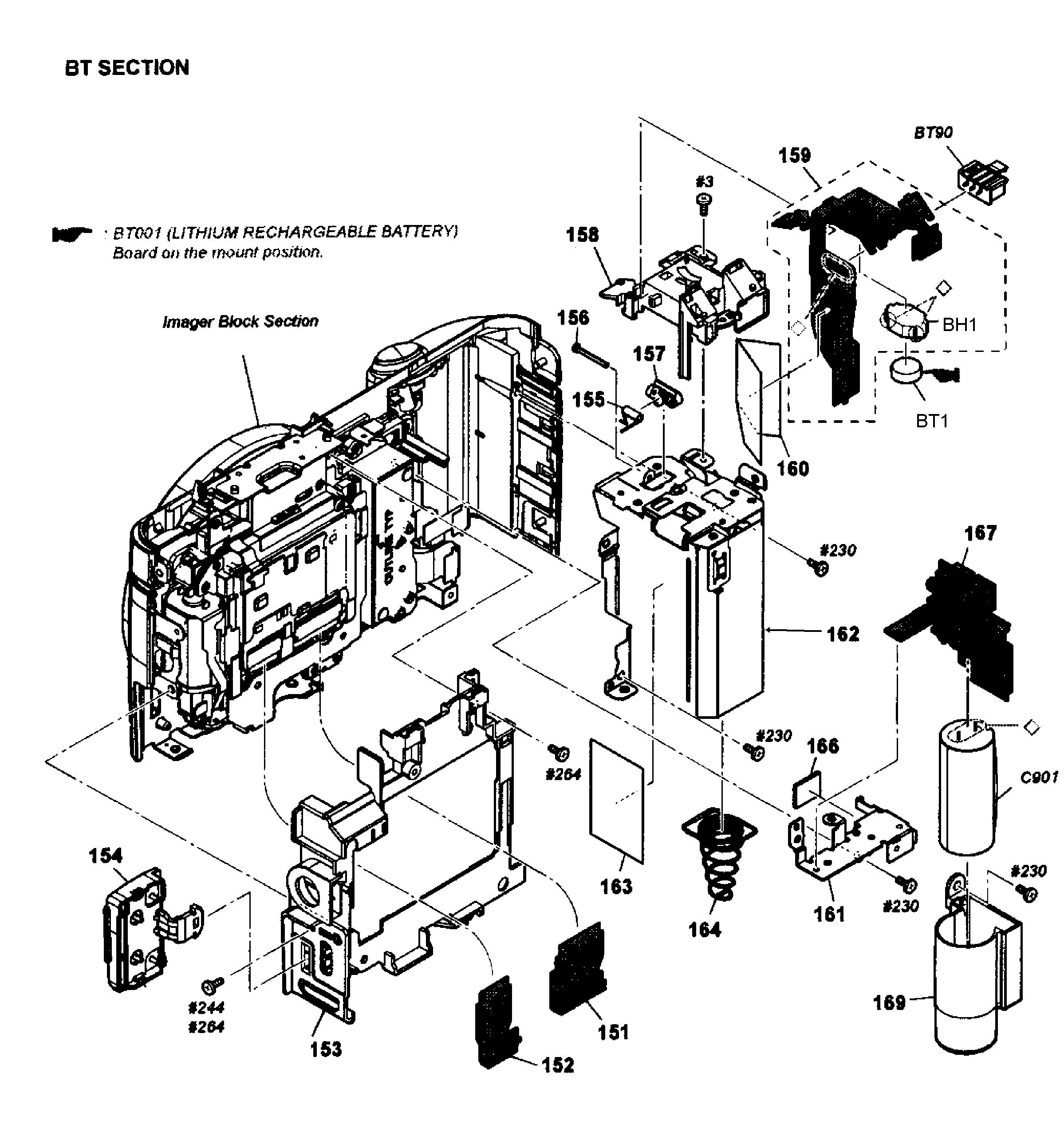

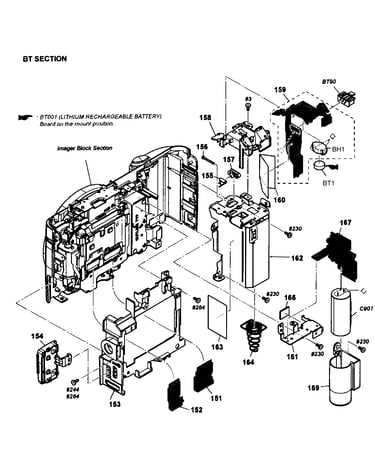

Bt assy diagram

Sheet,radi

Part #443412501

$11.75
In Stock
Lcd A1886984A
#LCD9

Lcd assy diagram

Lcd

Part #A1886984A

$135.57
In Stock
Frame Assembly X25843981
#162

Bt assy diagram

Frame assembly

Part #X25843981

$11.75
In Stock
Base,rl 442738601
#158

Bt assy diagram

Base,rl

Part #442738601

This item is not returnable
$5.57
In Stock
Usb Cable 183966611
#NI

Overall assy diagram

Usb cable

Part #183966611

$27.66
In Stock
Base Jack 442738001
#153

Bt assy diagram

Base jack

Part #442738001

This item is not returnable
$3.54
In Stock
