Kenmore
Electric Water Heater

Model # 153329660 Official Kenmore water heater

Here are the diagrams and repair parts for Official Kenmore 153329660 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Thermostat 31917
#16

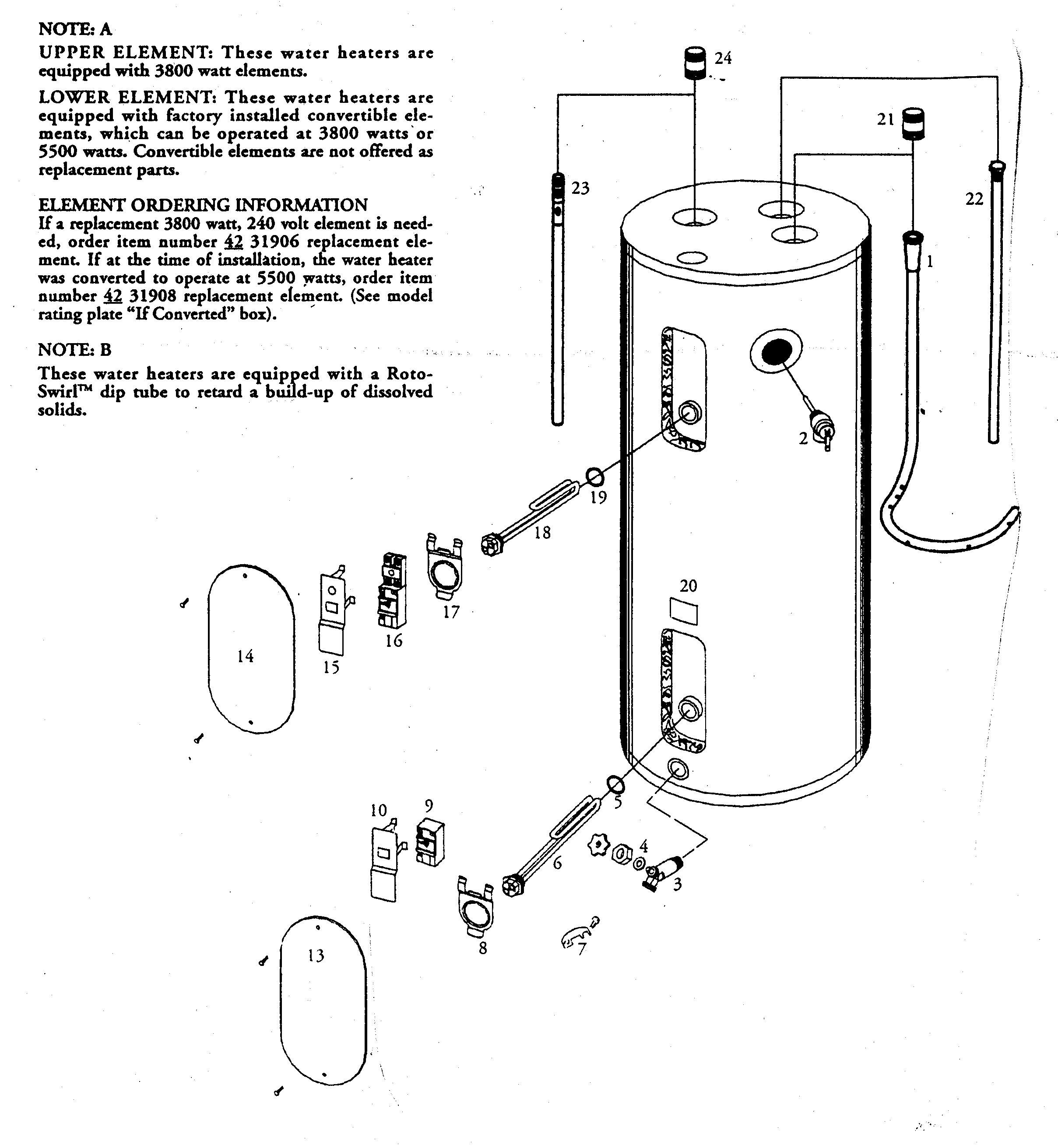

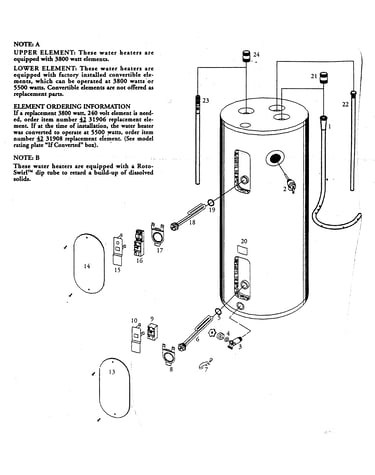

Water heater diagram

Thermostat

Part #31917

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 31917. Substitute parts can look different from the original.
BEST SELLER
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Thermostat 31919
#9

Water heater diagram

Thermostat

Part #31919

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Secondary Anode (replaces 9000947, 9001792, 9003450, 9003937, 9003967) 9003934
#23

Water heater diagram

Water heater secondary anode (replaces 9000947, 9001792, 9003450, 9003937, 9003967)

Part #9003934

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9003934. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Kenmore Elite Water Heater Thermostat Cover (replaces 183529-000) 9002276
#10

Water heater diagram

Kenmore elite water heater thermostat cover (replaces 183529-000)

Part #9002276

This item is not returnable
$17.69 |
10% OFF Phone Price : $19.69
In Stock
Nipple 9003915
Nipple

Part #9003915

Replaced by #100108409

?
Manufacturer substitution
This part replaces 9003915. Substitute parts can look different from the original.
$25.71
In Stock
Water Heater Thermostat Bracket (replaces 0110238, 0110238-01, 0110322, 9000309015) 9000309
Water heater thermostat bracket (replaces 0110238, 0110238-01, 0110322, 9000309015)

Part #9000309

Replaced by #100108380

?
Manufacturer substitution
This part replaces 9000309. Substitute parts can look different from the original.
$27.78
In Stock
Dip Tube 9003933
#1

Water heater diagram

Dip tube

Part #9003933

Replaced by #100108692

?
Manufacturer substitution
This part replaces 9003933. Substitute parts can look different from the original.
$26.67
In Stock
Anode Rod 9003729
#22

Water heater diagram

Anode rod

Part #9003729

Replaced by #100108660

?
Manufacturer substitution
This part replaces 9003729. Substitute parts can look different from the original.
$60.00
In Stock
Valve 9003911
#3

Water heater diagram

Valve

Part #9003911

Replaced by #100108605

?
Manufacturer substitution
This part replaces 9003911. Substitute parts can look different from the original.
$27.78
In Stock
Kenmore Elite Water Heater Washer (replaces 0540042) 9001584
#4

Water heater diagram

Kenmore elite water heater washer (replaces 0540042)

Part #9001584

Replaced by #100108603

?
Manufacturer substitution
This part replaces 9001584. Substitute parts can look different from the original.
$24.44
In Stock
