Electric Wall Oven

Model # KEBI271BWH3 Official KitchenAid 27" electric wall oven

Here are the diagrams and repair parts for Official KitchenAid KEBI271BWH3 27" electric wall oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

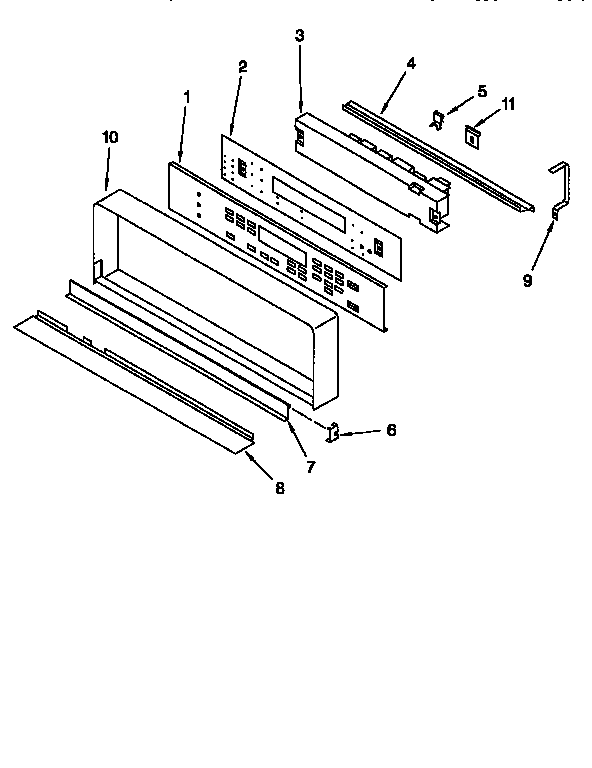

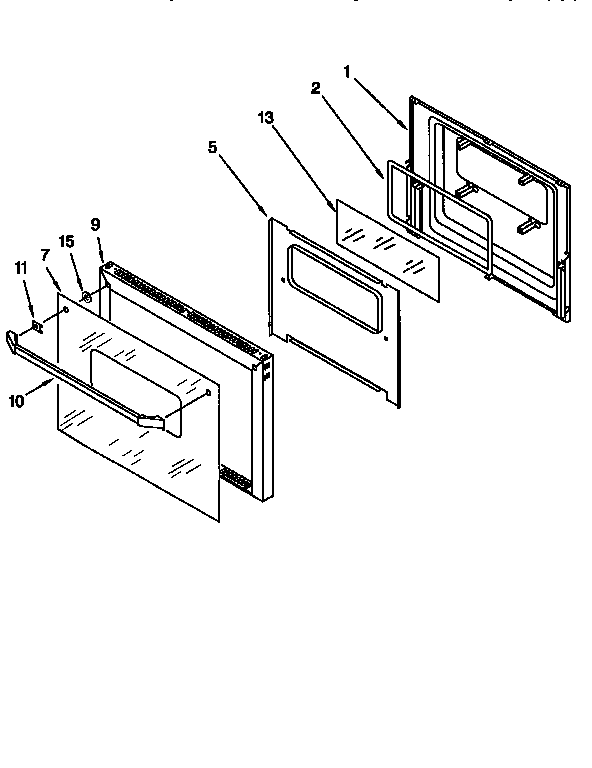

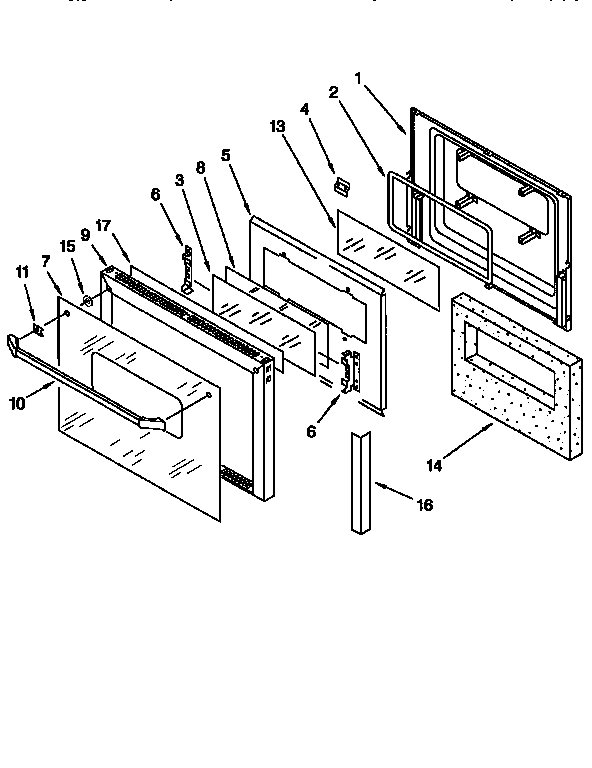

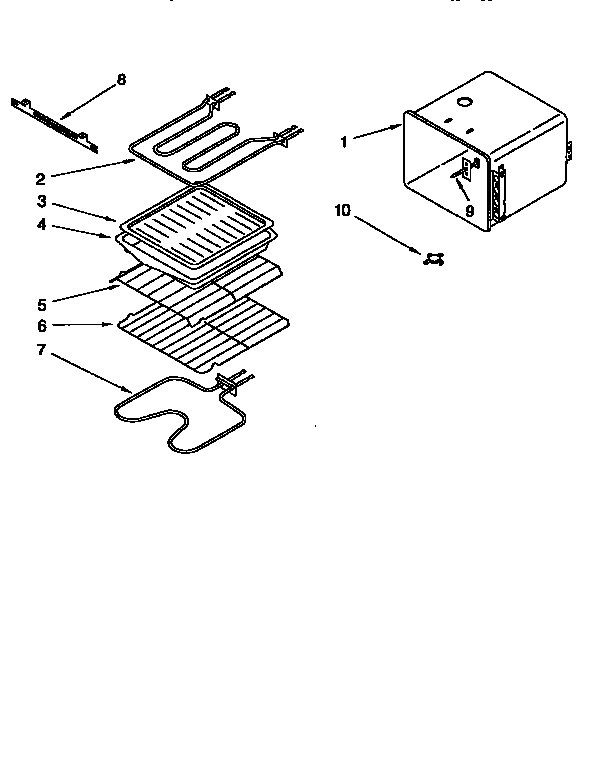

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forKEBI271BWH3 Wall Ovens

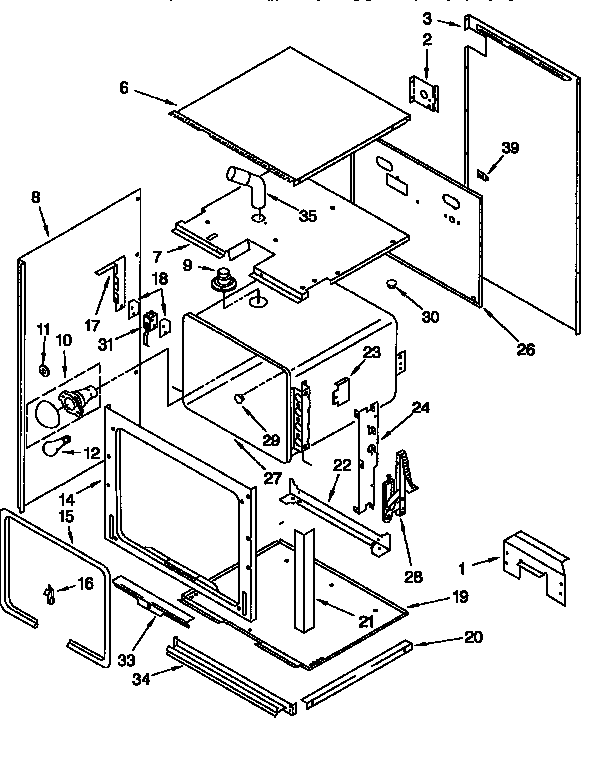

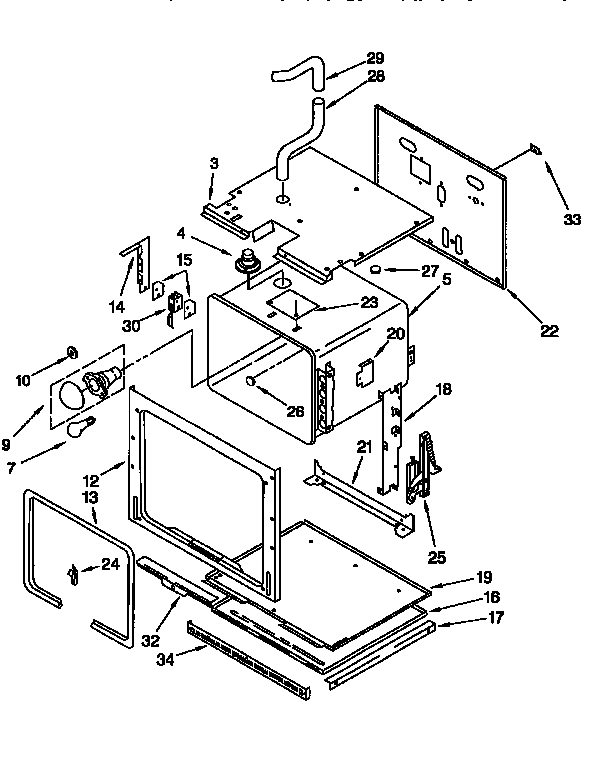

  • Light Bulb 311255
    Light bulb

    Part #311255

    Replaced by #8009

    ?
    Manufacturer substitution
    This part replaces 311255. Substitute parts can look different from the original.
    This item is not returnable
    $12.57
    14% OFF Phone Price : $14.57
    In Stock
  • Light Socket 3150505
    Light socket

    Part #3150505

    Replaced by #W11594027

    ?
    Manufacturer substitution
    This part replaces 3150505. Substitute parts can look different from the original.
    $62.81
    9% OFF Phone Price : $68.81
    In Stock
  • Gaskt-lite 3184533
    Gaskt-lite

    Part #3184533

    Replaced by #WP3184533

    ?
    Manufacturer substitution
    This part replaces 3184533. Substitute parts can look different from the original.
    This item is not returnable
    $6.60
    13% OFF Phone Price : $7.60
    In Stock
  • Touchup Al 72107

    #NI

    All parts diagram

    Touchup al

    Part #72107

    Replaced by #WP72107

    ?
    Manufacturer substitution
    This part replaces 72107. Substitute parts can look different from the original.
    This item is not returnable
    $8.07
    11% OFF Phone Price : $9.07
    In Stock
  • Touchup Pl 72113

    #NI

    All parts diagram

    Touchup pl

    Part #72113

    Replaced by #72113

    ?
    Manufacturer substitution
    This part replaces 72113. Substitute parts can look different from the original.
    $14.64
    12% OFF Phone Price : $16.64
    In Stock
  • Terminal Block 258076
    #2

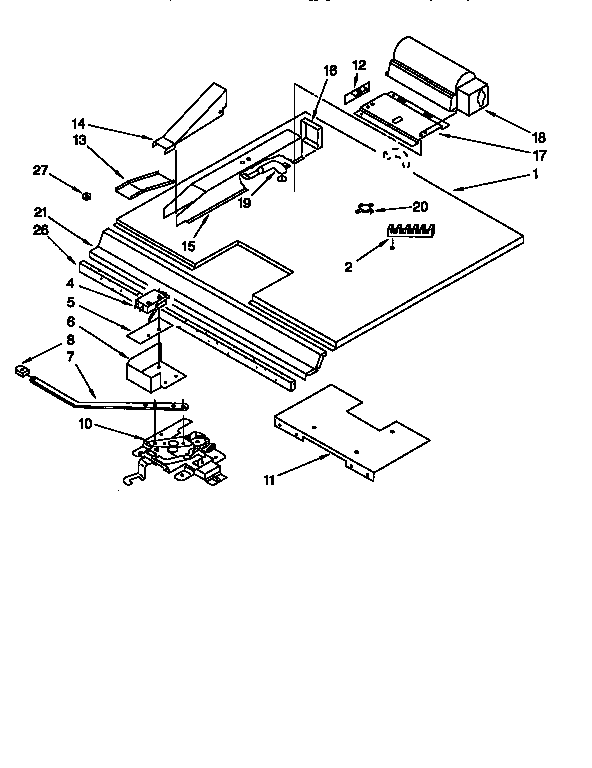

    Latch and vent diagram

    Terminal block

    Part #258076

    Replaced by #WP8203546

    ?
    Manufacturer substitution
    This part replaces 258076. Substitute parts can look different from the original.
    This item is not returnable
    $17.40
    10% OFF Phone Price : $19.40
    In Stock
  • Nut 112432
    #5A

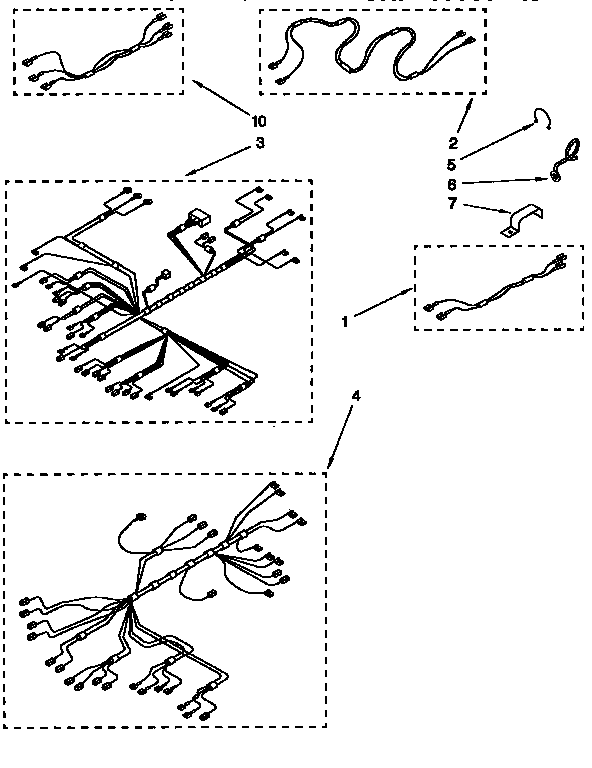

    Wiring harness diagram

    Nut

    Part #112432

    Replaced by #WP112432

    ?
    Manufacturer substitution
    This part replaces 112432. Substitute parts can look different from the original.
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Wall Oven Touch-up Paint 261869

    #NI

    All parts diagram

    Wall oven touch-up paint

    Part #261869

    Replaced by #WP261869

    ?
    Manufacturer substitution
    This part replaces 261869. Substitute parts can look different from the original.
    This item is not returnable
    $15.26
    12% OFF Phone Price : $17.26
    In Stock
  • Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

    #NI

    All parts diagram

    Cooking appliance 14-gauge splicing wire, 200-degree c (red)

    Part #242831

    In Stock
  • Spray W 350930

    #NI

    All parts diagram

    Spray w

    Part #350930

    In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
