Model # WISQ416FT8WW Official GE washer

Here are the diagrams and repair parts for Official GE WISQ416FT8WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Hub Nut WH02X1193
#325

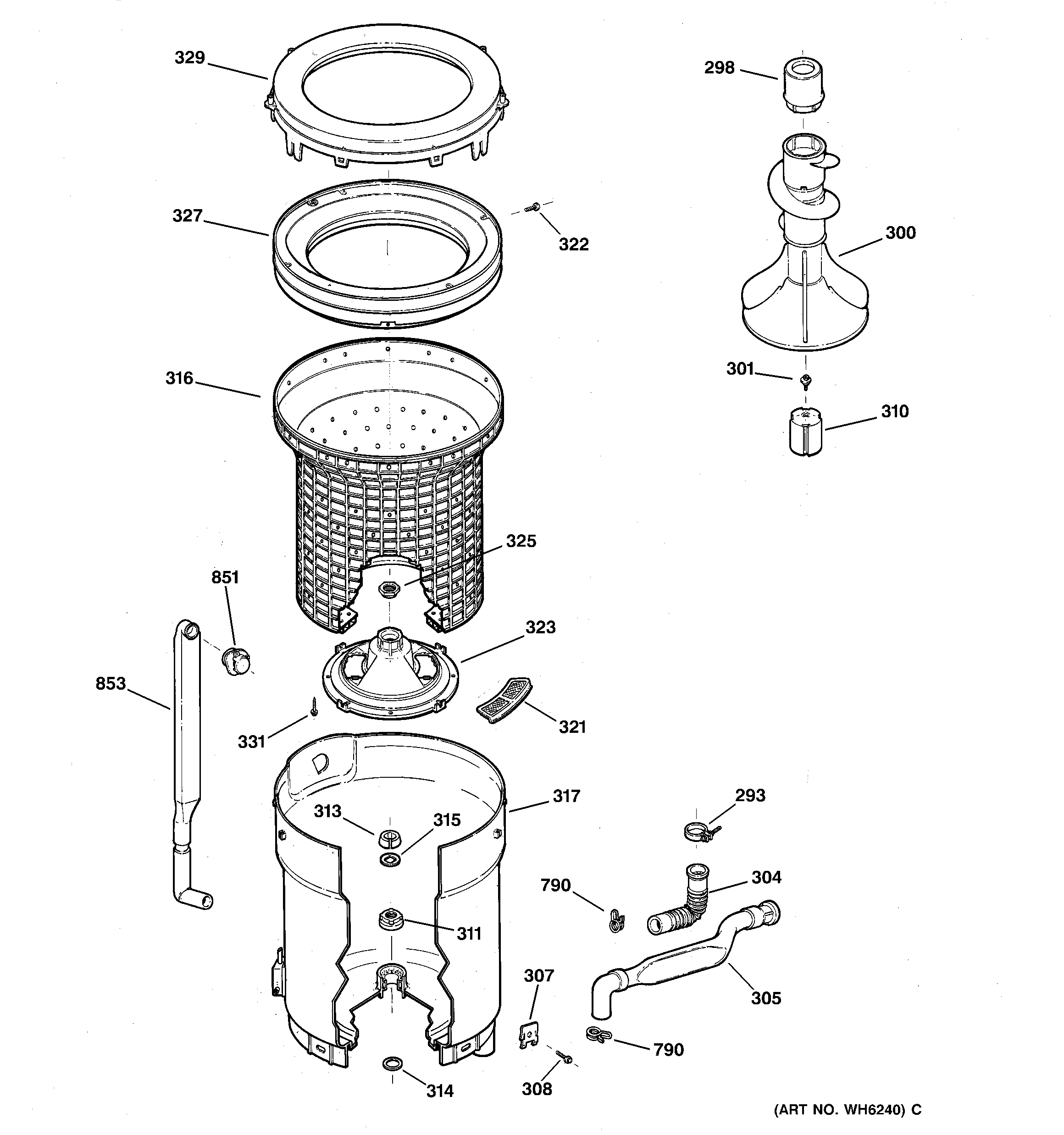

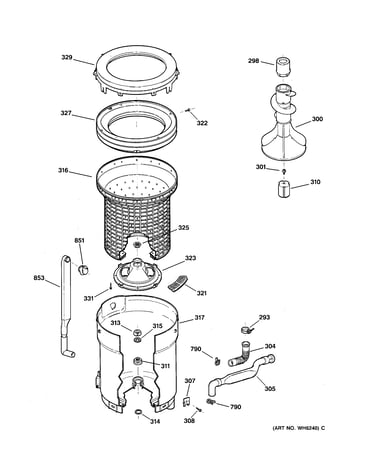

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Tub Seal WH02X1196
#311

Tub, basket & agitator diagram

Tub seal

Part #WH02X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X1196. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Extra Large Tub Assembly WH45X10024
#317

Tub, basket & agitator diagram

Extra large tub assembly

Part #WH45X10024

Replaced by #WH45X20473

?
Manufacturer substitution
This part replaces WH45X10024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$100.87 |
11% OFF Phone Price : $112.87
In Stock
Spring Clip WH01X2117
#9

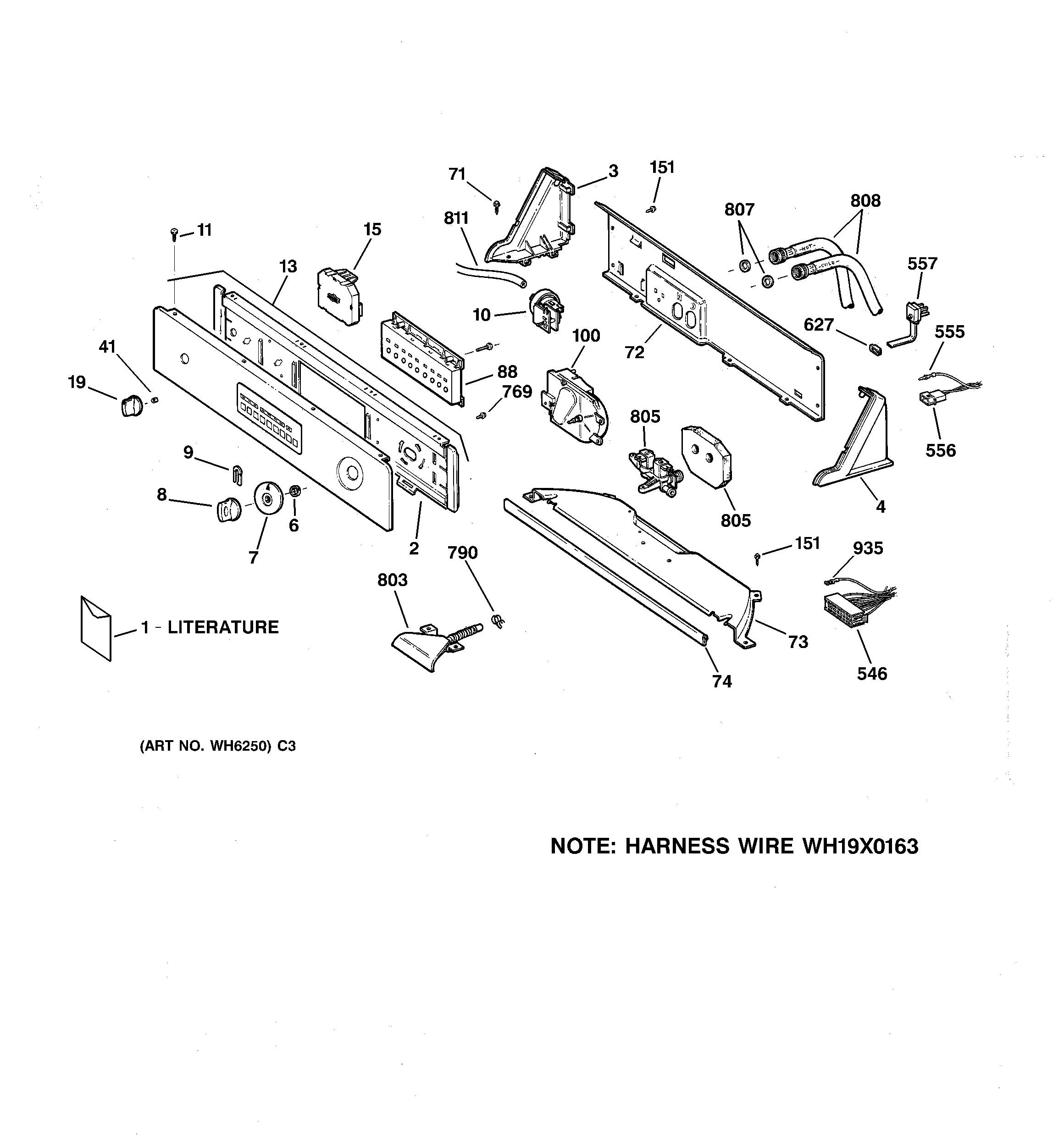

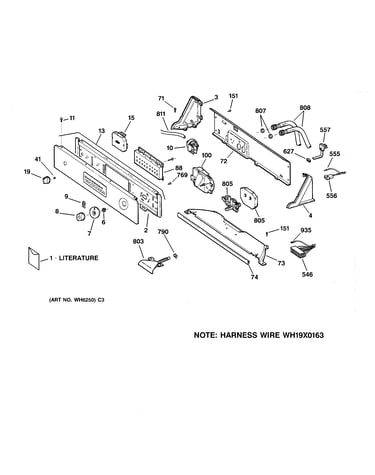

Controls & backsplash diagram

Spring clip

Part #WH01X2117

Replaced by #WH1X2117

?
Manufacturer substitution
This part replaces WH01X2117. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Rod Spring WH16X0545
#414

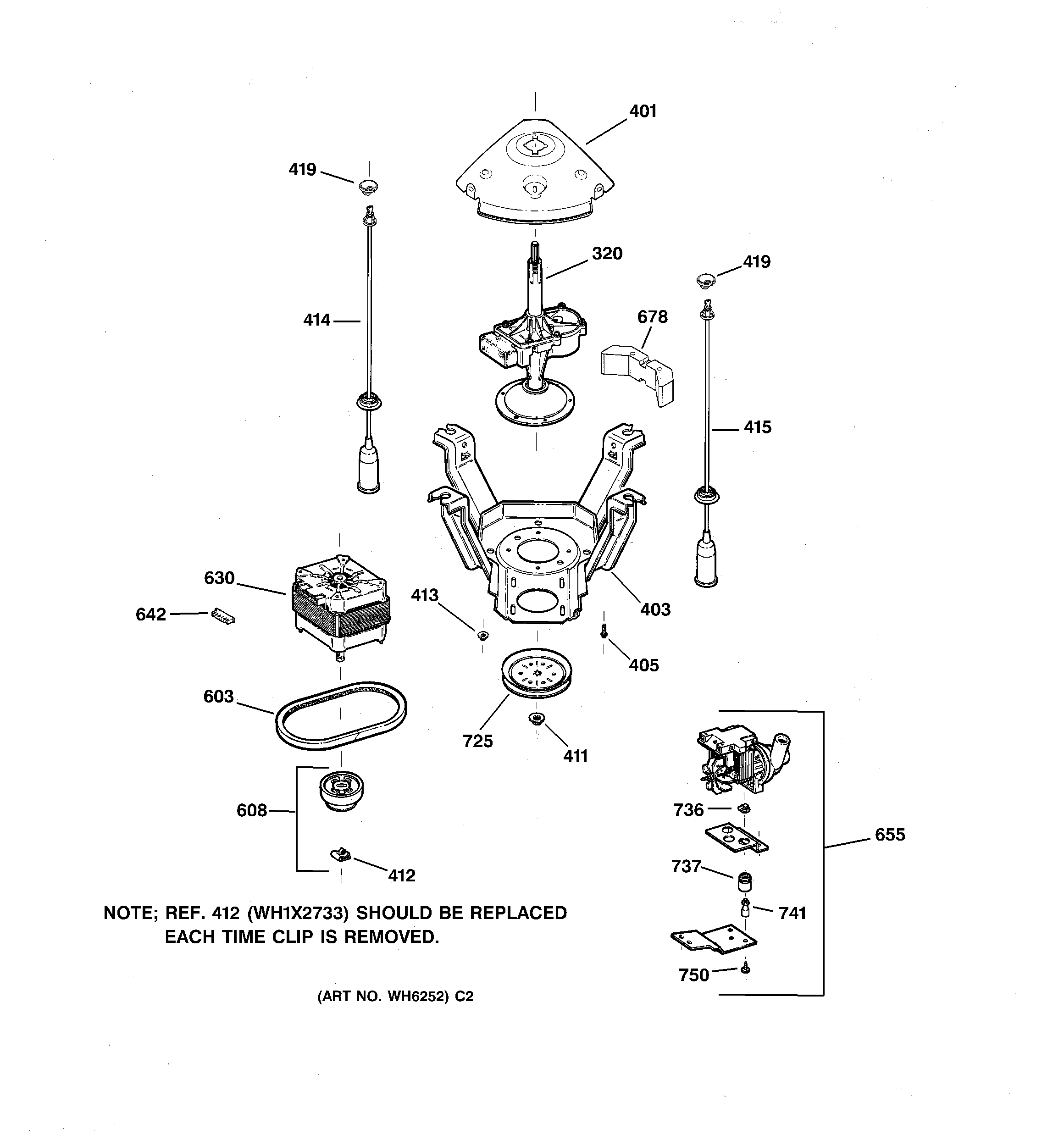

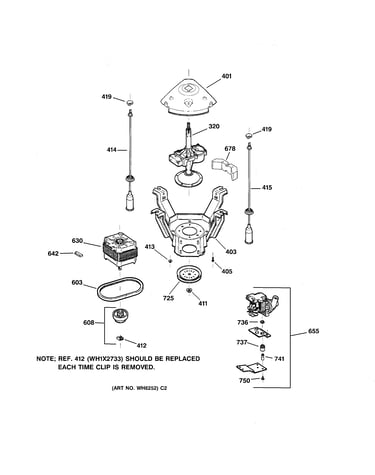

Suspension, pump & drive components diagram

Rod spring

Part #WH16X0545

Replaced by #WH16X10141

?
Manufacturer substitution
This part replaces WH16X0545. Substitute parts can look different from the original.
BEST SELLER
$30.80 |
16% OFF Phone Price : $36.80
In Stock
Washer Cover WH44X1169
#391

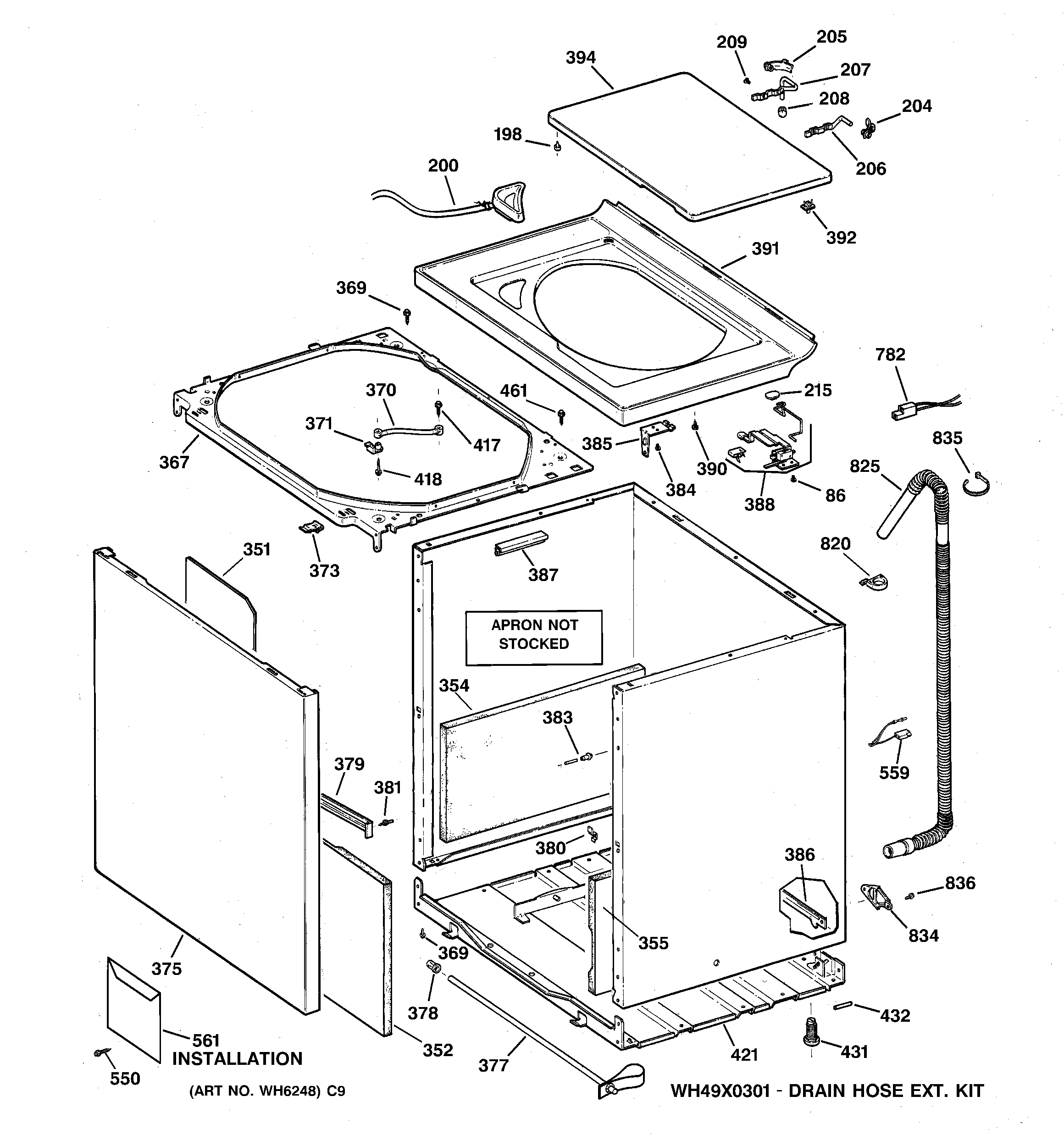

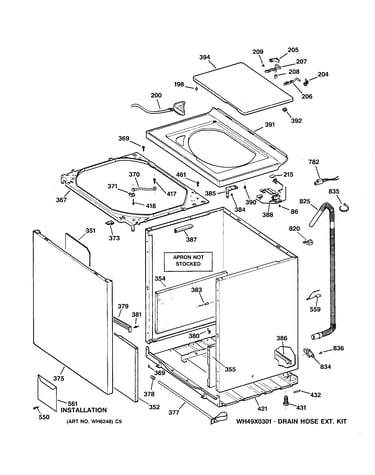

Cabinet, cover & front panel diagram

Washer cover

Part #WH44X1169

Replaced by #WH44X21834

?
Manufacturer substitution
This part replaces WH44X1169. Substitute parts can look different from the original.
BEST SELLER
$62.35 |
9% OFF Phone Price : $68.35
In Stock
Drive Extension Hose WH41X0367
#825

Cabinet, cover & front panel diagram

Drive extension hose

Part #WH41X0367

Replaced by #WH41X10096

?
Manufacturer substitution
This part replaces WH41X0367. Substitute parts can look different from the original.
BEST SELLER
$22.74 |
21% OFF Phone Price : $28.74
In Stock
Rod/spr Yllw WH16X0543
#415

Suspension, pump & drive components diagram

Rod/spr yllw

Part #WH16X0543

Replaced by #WH16X543

?
Manufacturer substitution
This part replaces WH16X0543. Substitute parts can look different from the original.
BEST SELLER
$33.98 |
15% OFF Phone Price : $39.98
In Stock
Scr 1/4-20 M WH02X10037
#301

Tub, basket & agitator diagram

Scr 1/4-20 m

Part #WH02X10037

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH02X10037. Substitute parts can look different from the original.
BEST SELLER
$21.12 |
22% OFF Phone Price : $27.12
In Stock
