Model # 8085C Official Kenmore ice maker kit
Here are the diagrams and repair parts for Official Kenmore 8085C ice maker kit, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
8085C Refrigerators
#17

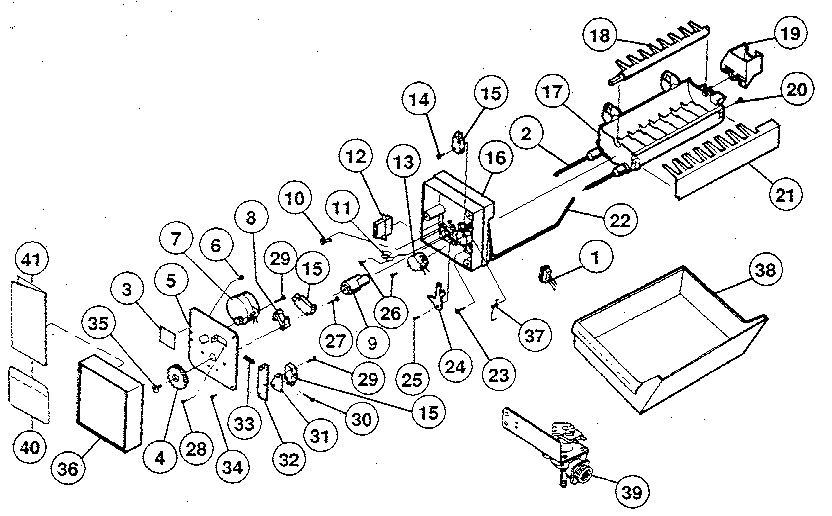

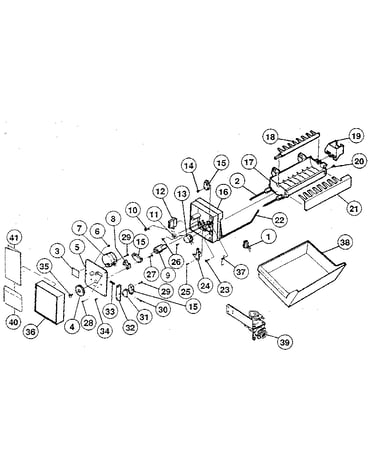

Ice maker diagram
Molo body
Part #3206327
Replaced by #241798231
?
Manufacturer substitution
This part replaces 3206327. Substitute parts can look different from the original.
$109.48 |
10% OFF Phone Price : $121.48
In Stock
#2
Ice maker diagram
Refrigerator heater
Part #3206329
Replaced by #241798231
?
Manufacturer substitution
This part replaces 3206329. Substitute parts can look different from the original.
$109.48 |
10% OFF Phone Price : $121.48
In Stock
#7
Ice maker diagram
Refrigerator ice maker assembly
Part #3206306
Replaced by #5303918277
?
Manufacturer substitution
This part replaces 3206306. Substitute parts can look different from the original.
$105.30 |
10% OFF Phone Price : $117.30
In Stock
#16

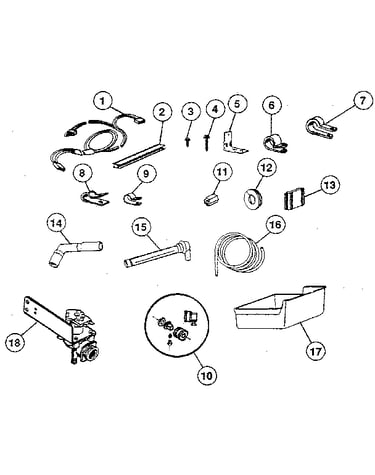

Ice maker installation - kit 8085c diagram
Refrigerator tube
Part #143688-05
Replaced by #5308010366
?
Manufacturer substitution
This part replaces 143688-05. Substitute parts can look different from the original.
$18.94 |
10% OFF Phone Price : $20.94
In Stock
#4
Ice maker installation - kit 8085c diagram
Refrigerator screw
Part #166567
Replaced by #5304455852
?
Manufacturer substitution
This part replaces 166567. Substitute parts can look different from the original.
$39.43
In Stock
#6
Ice maker diagram
Screw
Part #3206305
Replaced by #218359202
?
Manufacturer substitution
This part replaces 3206305. Substitute parts can look different from the original.
$37.81
In Stock
#1
Ice maker installation - kit 8085c diagram
Refrigerator wire harness
Part #3206358
$181.84
In Stock
#5
Ice maker installation - kit 8085c diagram
Clamp
Part #27669
Replaced by #5303001199
?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
$91.95
In Stock
#15
Ice maker installation - kit 8085c diagram
Refrigerator tube
Part #3206359
Replaced by #215456100
?
Manufacturer substitution
This part replaces 3206359. Substitute parts can look different from the original.
$95.16
In Stock
#3
Ice maker installation - kit 8085c diagram
Refrigerator screw
Part #08000039
Replaced by #5308000039
?
Manufacturer substitution
This part replaces 08000039. Substitute parts can look different from the original.
$14.01 |
12% OFF Phone Price : $16.01
In Stock
