Model # 15817510 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 15817510 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

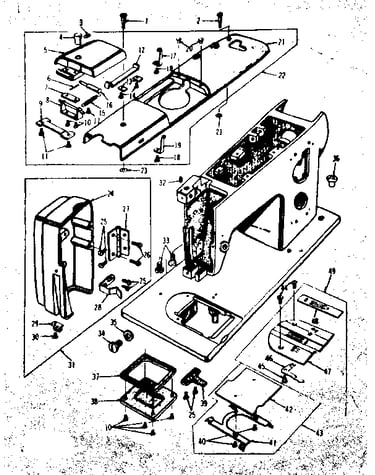

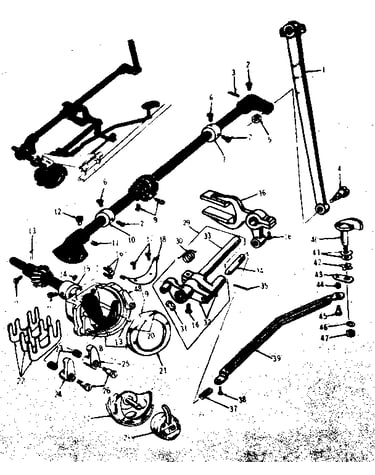

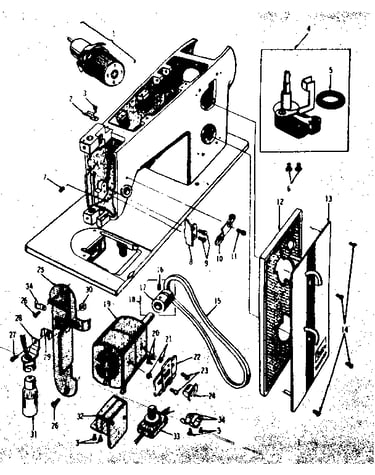

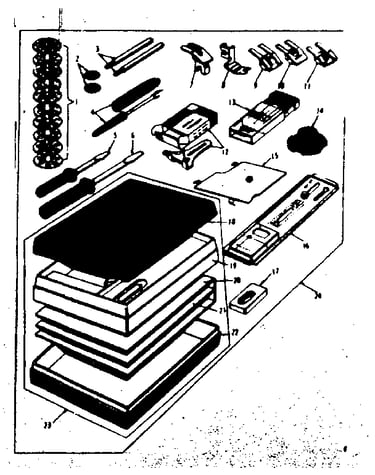

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 318 parts  |
Dial 2732
#24

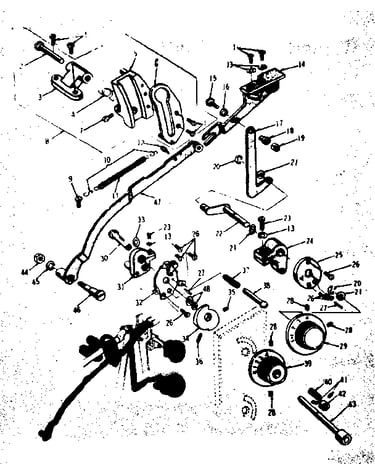

Zigzag guide assembly diagram

Dial

Part #2732

The manufacturer no longer makes this part, and there's no substitute part

Push Button 26257
#43

Zigzag guide assembly diagram

Push button

Part #26257

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Dial Base 26229
#31

Zigzag guide assembly diagram

Kenmore dial base

Part #26229

The manufacturer no longer makes this part, and there's no substitute part

Guide Bar 2384
#47

Zigzag guide assembly diagram

Guide bar

Part #2384

The manufacturer no longer makes this part, and there's no substitute part

Washer 26227
#7

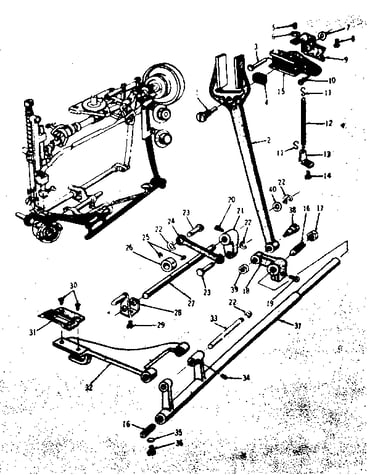

Feed regulator assembly diagram

Washer

Part #26227

The manufacturer no longer makes this part, and there's no substitute part

Base 26253
#5

Zigzag guide assembly diagram

Base

Part #26253

The manufacturer no longer makes this part, and there's no substitute part

Handwheel 26222
#45

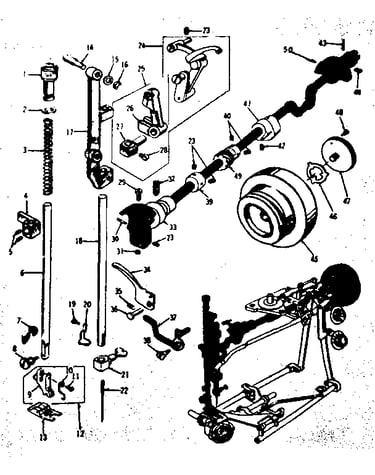

Presser bar assembly diagram

Handwheel

Part #26222

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 200
#32

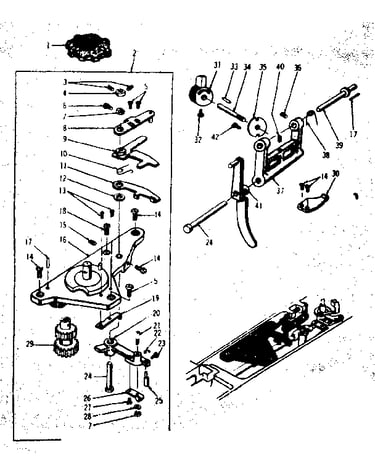

Geared cam assembly diagram

Set screw

Part #200

The manufacturer no longer makes this part, and there's no substitute part

Stud Screw 9926
#15

Zigzag guide assembly diagram

Stud screw

Part #9926

The manufacturer no longer makes this part, and there's no substitute part

Pin 26078
#25

Geared cam assembly diagram

Pin

Part #26078

The manufacturer no longer makes this part, and there's no substitute part
