Toshiba
DVD Player

Model # SD-2815 Official Toshiba dvd player

Here are the diagrams and repair parts for Official Toshiba SD-2815 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Integrated Circuit 79098748
#NI

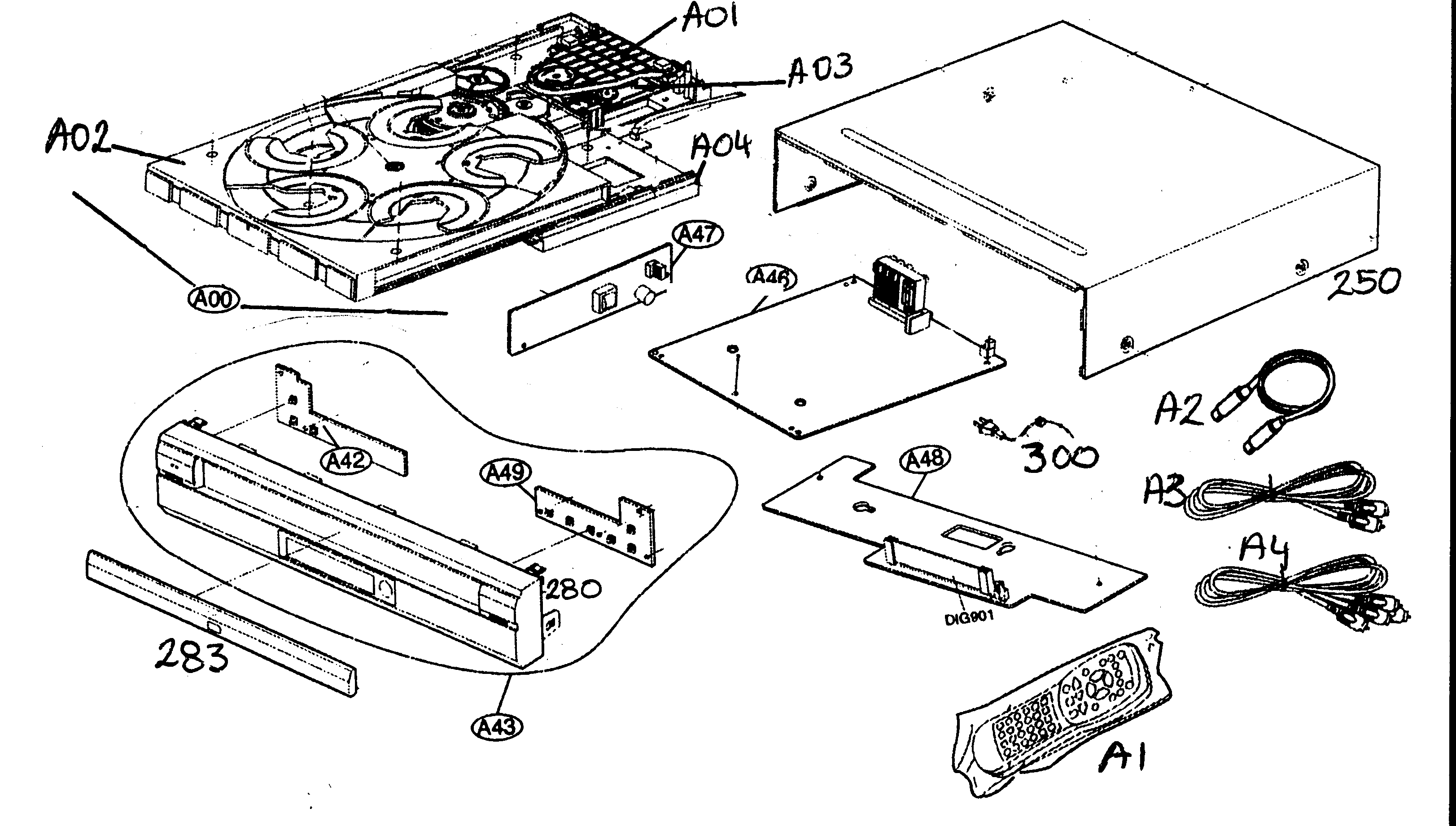

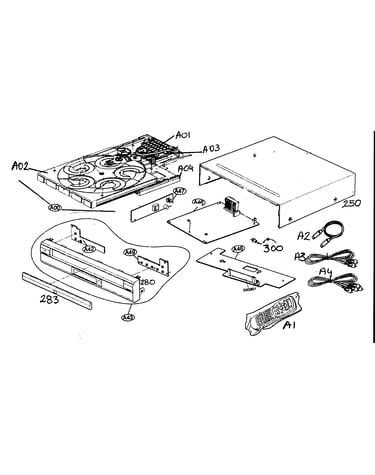

Cabinet parts diagram

Integrated circuit

Part #79098748

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 79096095
#A47

Cabinet parts diagram

Pcb assembly

Part #79096095

The manufacturer no longer makes this part, and there's no substitute part

Deck Assembly 79096089
#A00

Cabinet parts diagram

Deck assembly

Part #79096089

The manufacturer no longer makes this part, and there's no substitute part

Holder Assembly 79096060
#A01

Cabinet parts diagram

Holder assembly

Part #79096060

The manufacturer no longer makes this part, and there's no substitute part

Transformer 79096069
#NI

Cabinet parts diagram

Transformer

Part #79096069

The manufacturer no longer makes this part, and there's no substitute part

Rf Cable 79096094
#A2

Cabinet parts diagram

Rf cable

Part #79096094

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 79096098
#A49

Cabinet parts diagram

Pcb assembly

Part #79096098

The manufacturer no longer makes this part, and there's no substitute part

Gear 79097024
#NI

Cabinet parts diagram

Gear

Part #79097024

The manufacturer no longer makes this part, and there's no substitute part

Case Assembly 79096038
#250

Cabinet parts diagram

Case assembly

Part #79096038

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 79096053
#NI

Cabinet parts diagram

Motor assembly

Part #79096053

The manufacturer no longer makes this part, and there's no substitute part
