GE
Upright Freezer

Model # FUM14DXAARWH Official GE freezer - a series

Here are the diagrams and repair parts for Official GE FUM14DXAARWH freezer - a series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Refrigerator Filter Dryer WR86X96
#740

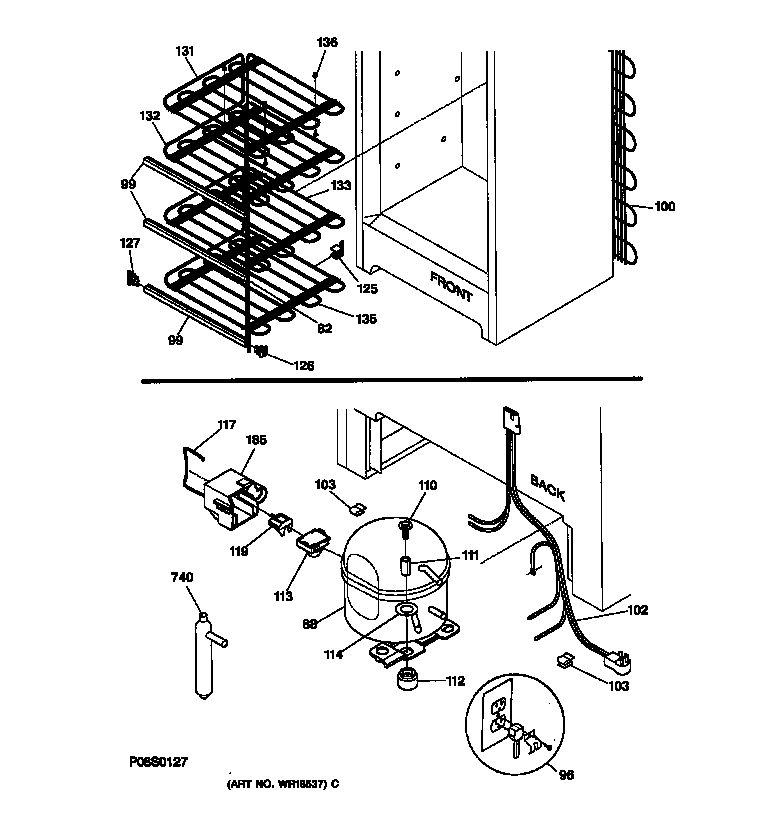

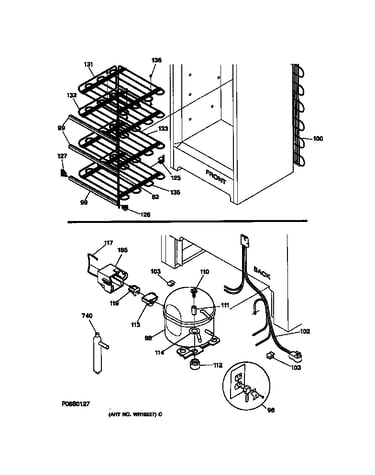

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X108
#102

Unit parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Freezer Door Gasket WR24X10011
#8

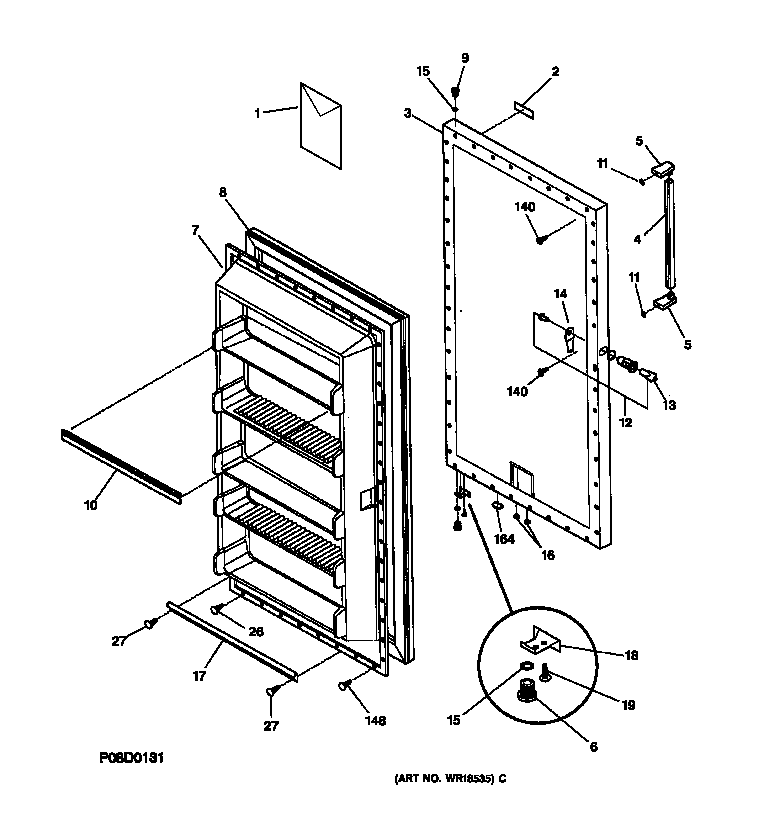

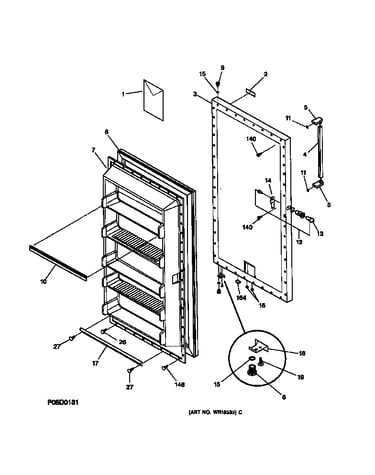

Door diagram

Freezer door gasket

Part #WR24X10011

Replaced by #WR14X27587

?
Manufacturer substitution
This part replaces WR24X10011. Substitute parts can look different from the original.
$213.14
Back Order
Complete Lock WR5X10001
#12

Door diagram

Complete lock

Part #WR5X10001

$21.99
In Stock
Grommet S WR1X2182
#136

Unit parts diagram

Grommet s

Part #WR1X2182

This item is not returnable
$4.35
In Stock
Nameplate WR4X10016
#2

Door diagram

Nameplate

Part #WR4X10016

$14.99
In Stock
Freezer Leveling Leg WR2X9485
#58

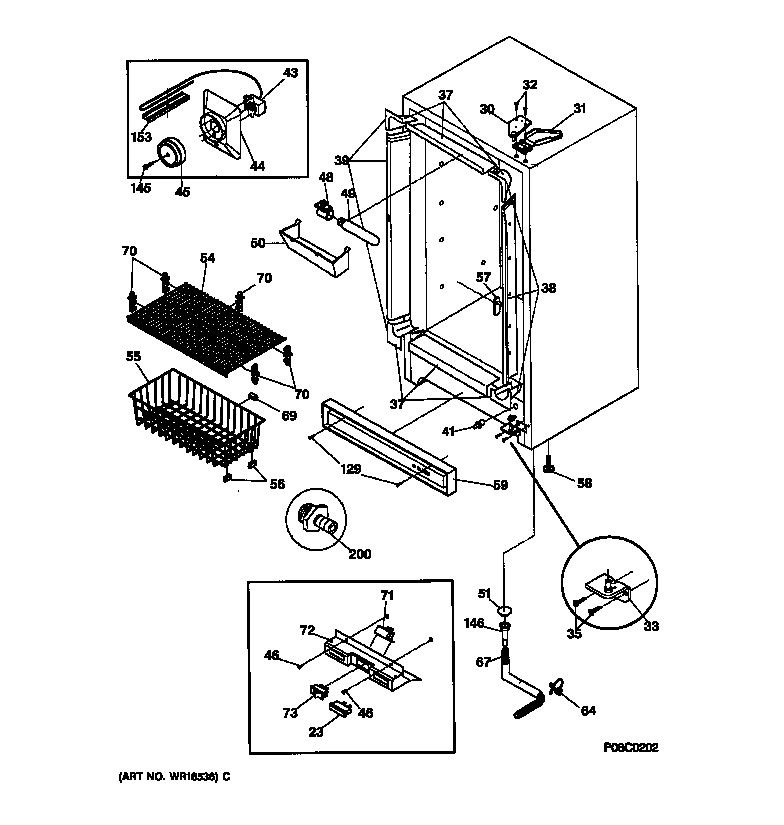

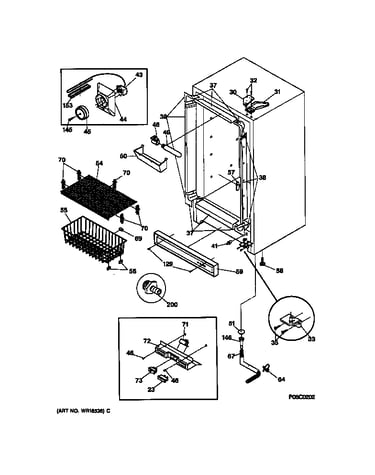

Cabinet diagram
