Model # SKW-780 Official Onkyo audio speakers

Here are the diagrams and repair parts for Official Onkyo SKW-780 audio speakers, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

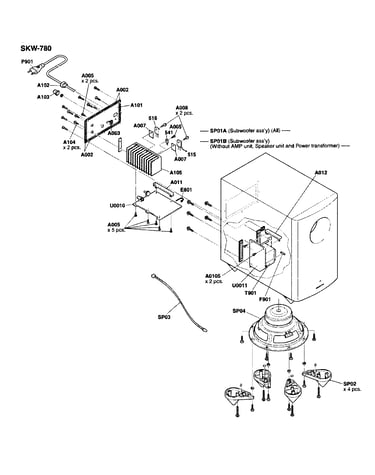

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Transf-pow 2301948
#T901

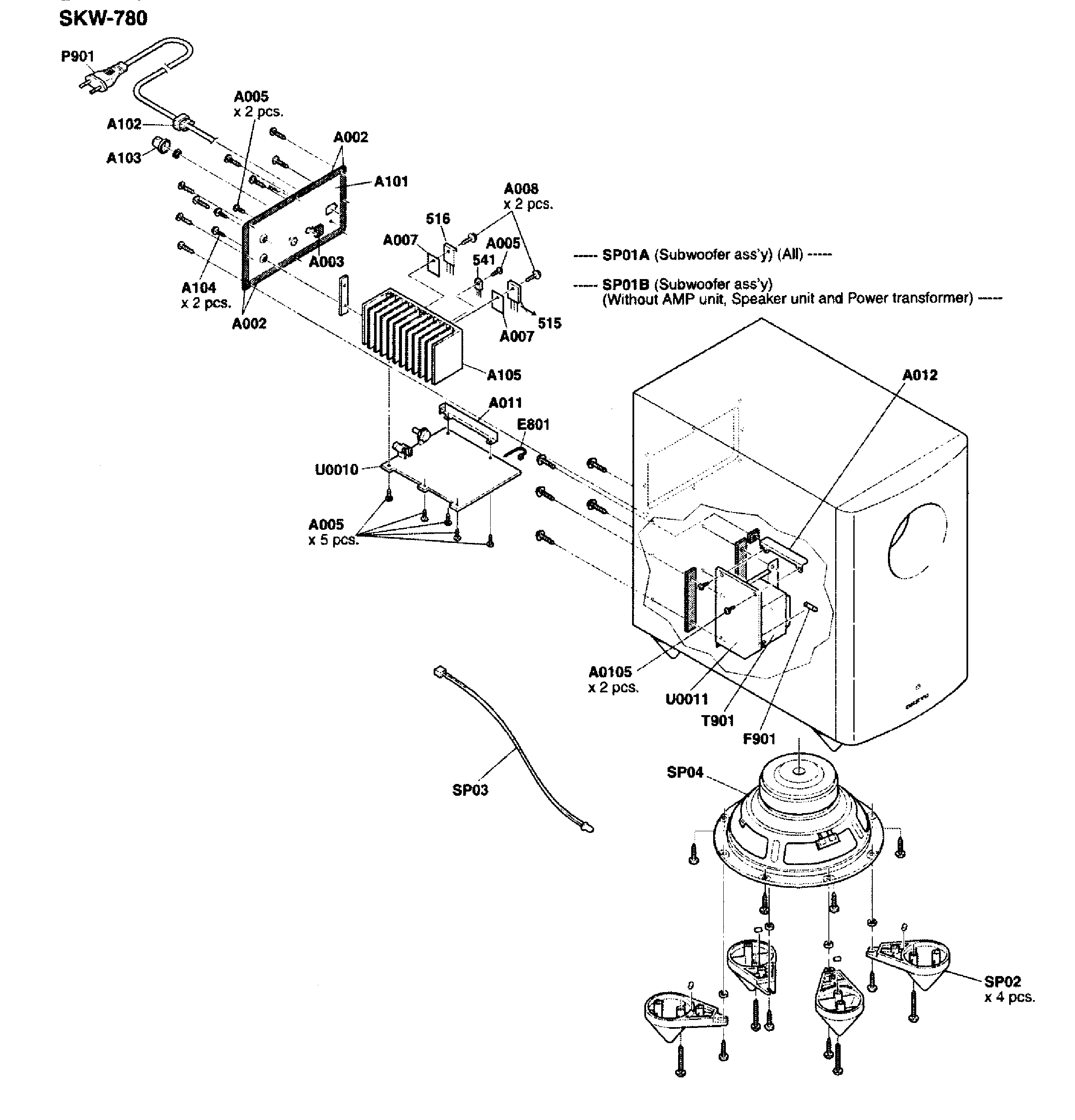

Subwoofer diagram

Transf-pow

Part #2301948

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 1B139591-2H
#U1

Subwoofer diagram

Pcb assembly

Part #1B139591-2H

The manufacturer no longer makes this part, and there's no substitute part

Tr 2sc3423 2202103
#541A

Subwoofer diagram

Tr 2sc3423

Part #2202103

The manufacturer no longer makes this part, and there's no substitute part

Home Theater System Subwoofer Speaker W2302B
#SP4

Subwoofer diagram

Home theater system subwoofer speaker

Part #W2302B

The manufacturer no longer makes this part, and there's no substitute part

Transistor 2203083
#515A

Subwoofer diagram

Transistor

Part #2203083

The manufacturer no longer makes this part, and there's no substitute part

Transistor 2203072
#516

Subwoofer diagram

Transistor

Part #2203072

The manufacturer no longer makes this part, and there's no substitute part

Tr 2sc3423 2202104
#541

Subwoofer diagram

Tr 2sc3423

Part #2202104

The manufacturer no longer makes this part, and there's no substitute part

Fuse 252326GR
#F901

Subwoofer diagram

Fuse

Part #252326GR

The manufacturer no longer makes this part, and there's no substitute part

Foot D249-W55001B-01
#SP2

Subwoofer diagram

Foot

Part #D249-W55001B-01

The manufacturer no longer makes this part, and there's no substitute part

Transistor 2203082
#515

Subwoofer diagram

Transistor

Part #2203082

The manufacturer no longer makes this part, and there's no substitute part
