Model # 14356252 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 14356252 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |

Plug 27625
#25

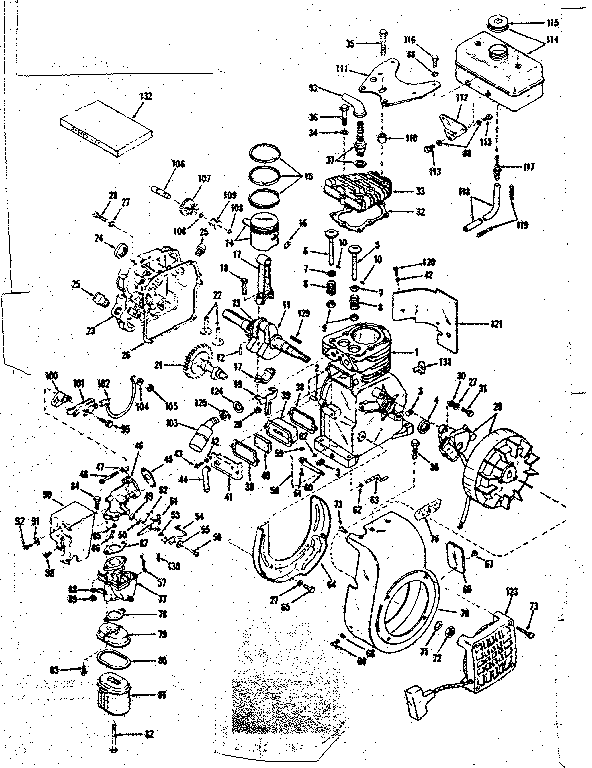

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Screw 28403
#28

Basic engine diagram

Screw

Part #28403

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#83

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Screw 28553
#48

Basic engine diagram

Screw

Part #28553

The manufacturer no longer makes this part, and there's no substitute part

Pin 27378
#12

Basic engine diagram

Pin

Part #27378

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 27276
#93

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw 29181
#9

Magneto (phelon f-3220-g) diagram

Washer screw

Part #29181

The manufacturer no longer makes this part, and there's no substitute part

Breathr Body 27666
#39

Basic engine diagram

Breathr body

Part #27666

The manufacturer no longer makes this part, and there's no substitute part

Cyl Cover 29481
#23

Basic engine diagram

Cyl cover

Part #29481

The manufacturer no longer makes this part, and there's no substitute part
