Kenmore
Central Air Conditioner

Model # 867840032 Official Kenmore 265-v packaged terminal heat pump

Here are the diagrams and repair parts for Official Kenmore 867840032 265-v packaged terminal heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Ovrld Hldr 43180001
#25

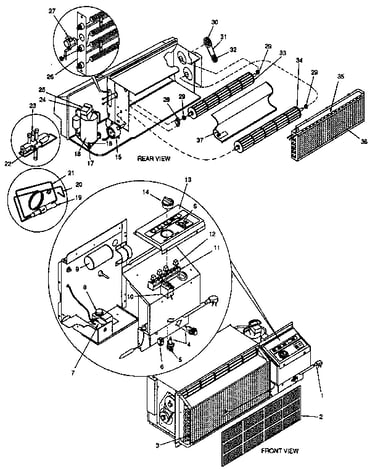

Functional diagram

Ovrld hldr

Part #43180001

The manufacturer no longer makes this part, and there's no substitute part

Control Door 1058430
#1

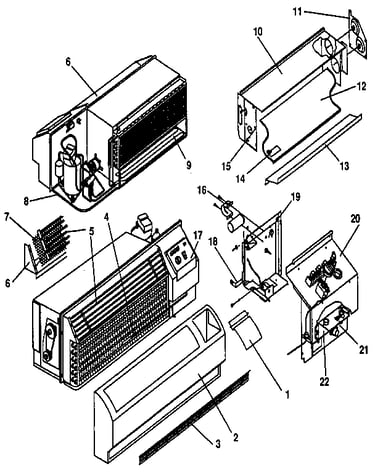

Non functional diagram

Control door

Part #1058430

The manufacturer no longer makes this part, and there's no substitute part

Blwr Husing 1058386
#10

Non functional diagram

Blwr husing

Part #1058386

The manufacturer no longer makes this part, and there's no substitute part

Plate Ctl Bo 1058427
#17

Non functional diagram

Plate ctl bo

Part #1058427

The manufacturer no longer makes this part, and there's no substitute part

Clip 1058518
#4

Non functional diagram

Clip

Part #1058518

The manufacturer no longer makes this part, and there's no substitute part

Cntl Bx Asy 1058436
#20

Non functional diagram

Cntl bx asy

Part #1058436

The manufacturer no longer makes this part, and there's no substitute part

Scroll Blwr 1058350
#12

Non functional diagram

Scroll blwr

Part #1058350

The manufacturer no longer makes this part, and there's no substitute part

Tube Capllry 1059081
#20

Functional diagram

Tube capllry

Part #1059081

The manufacturer no longer makes this part, and there's no substitute part

Isolator Bea 1058987
#29

Functional diagram

Isolator bea

Part #1058987

The manufacturer no longer makes this part, and there's no substitute part

Front Panel 1058519
#2

Non functional diagram

Front panel

Part #1058519

The manufacturer no longer makes this part, and there's no substitute part
