McCulloch
Gas Leaf Blower

Model # ASB3206 Official McCulloch blower

Here are the diagrams and repair parts for Official McCulloch ASB3206 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Poulan Leaf Blower Shoulder Strap 574594801
#16

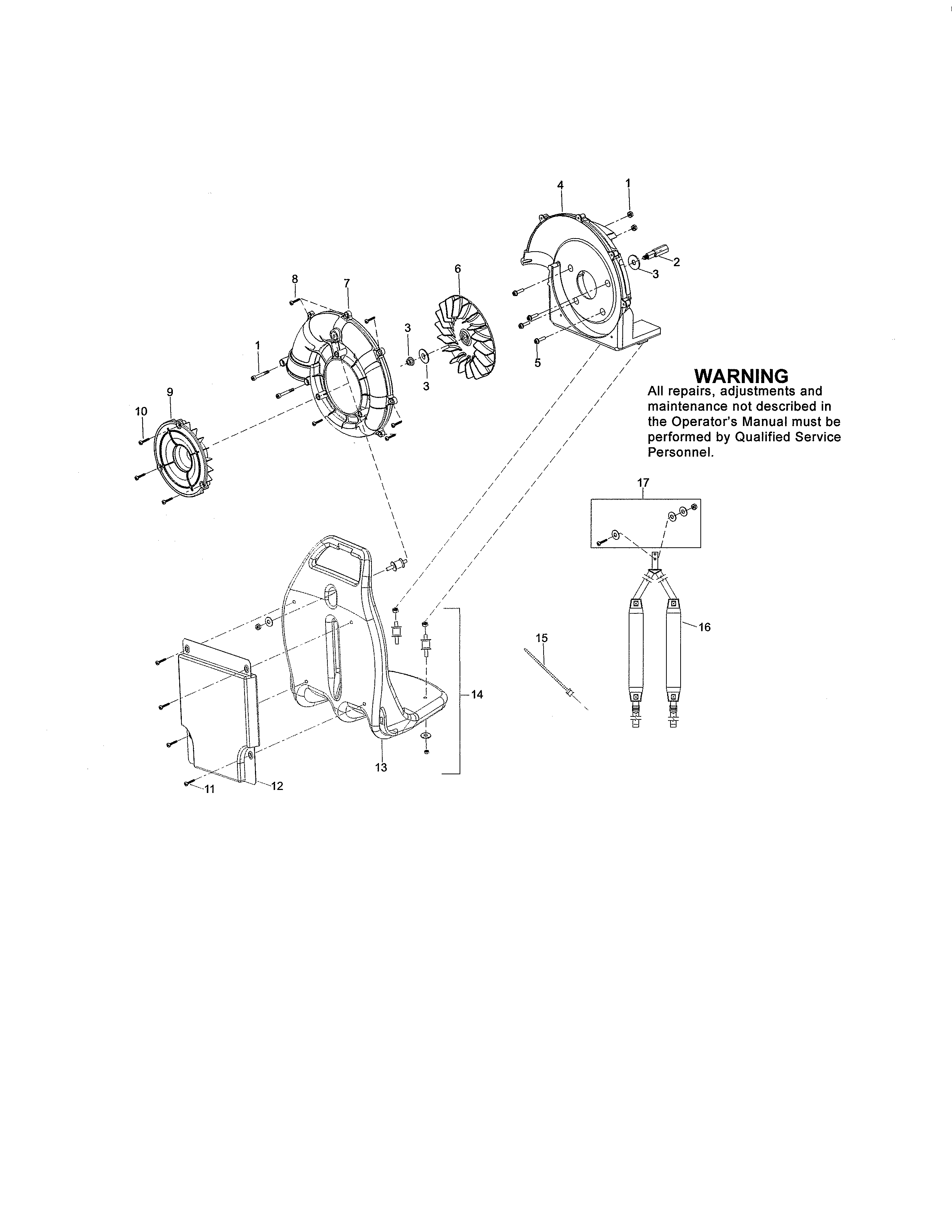

Impeller/frame/harness diagram

Poulan leaf blower shoulder strap

Part #574594801

This item is not returnable
In Stock
Mcculloch Connect Axis 574592701
#2

Impeller/frame/harness diagram

Mcculloch connect axis

Part #574592701

This item is not returnable
In Stock
Base Pipe 574595701
#6

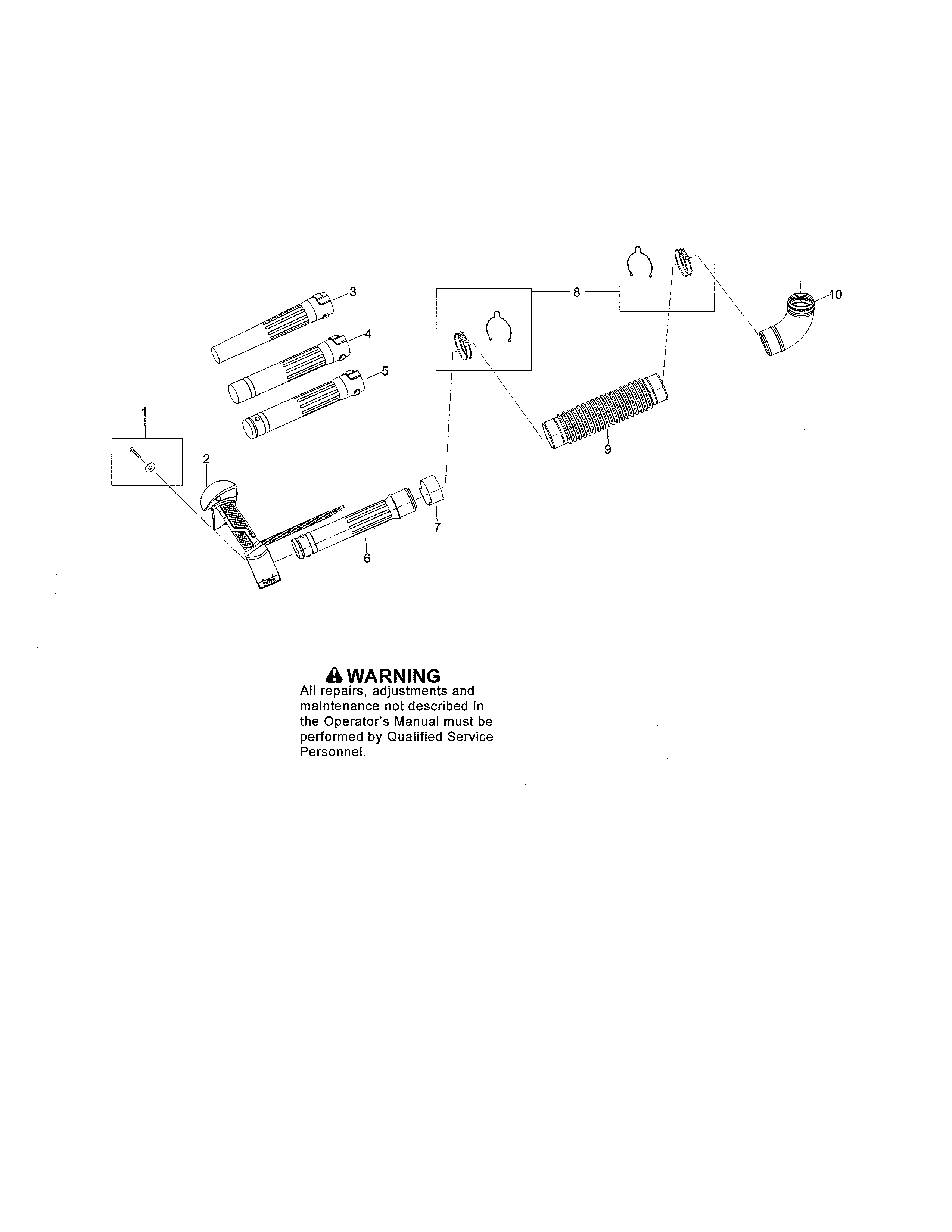

Flex pipe/pipes diagram

Base pipe

Part #574595701

In Stock
Elbow Pipe 574595201
#10

Flex pipe/pipes diagram

Elbow pipe

Part #574595201

In Stock
Mcculloch Line Trimmer Spark Plug 574587001
#3

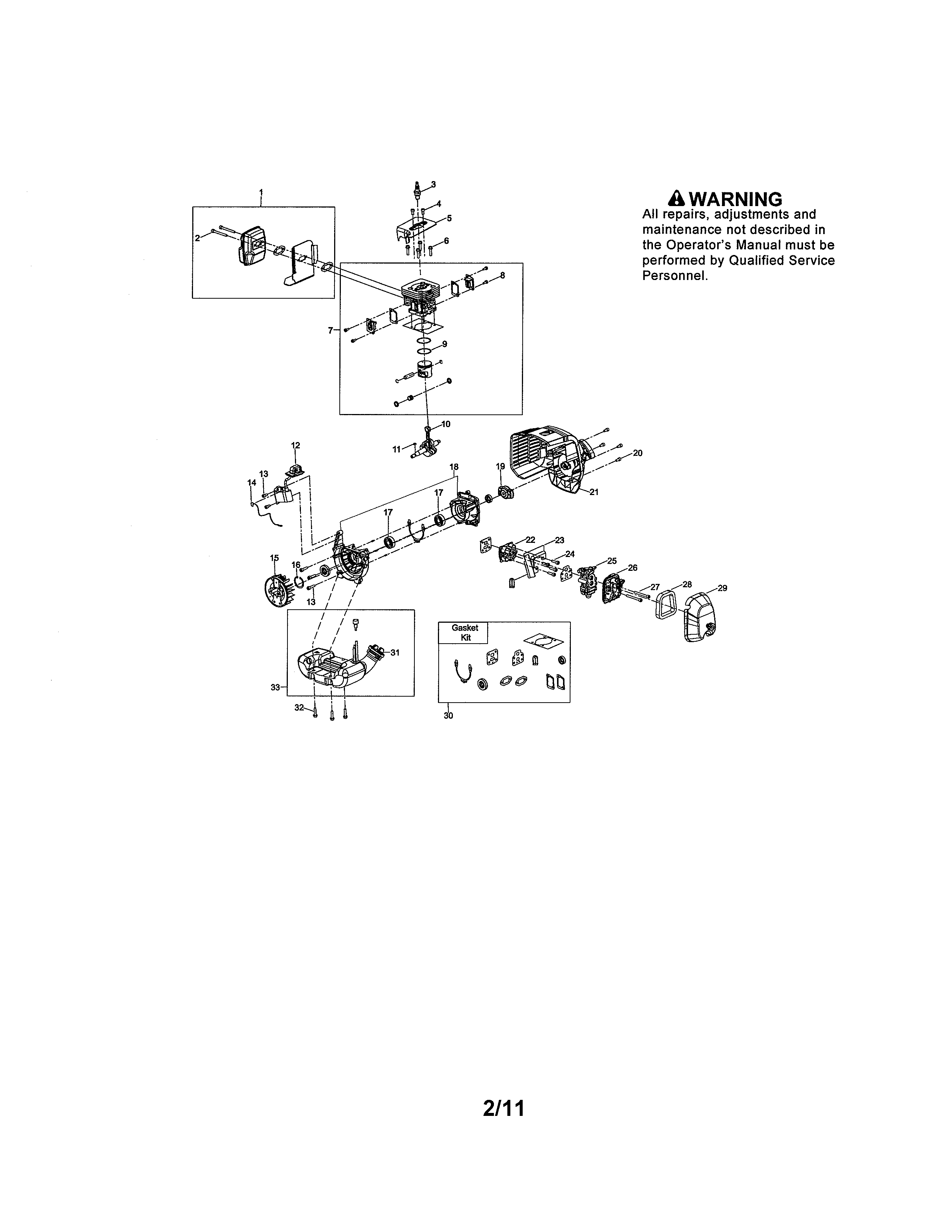

Cylinder/muffler/fuel tank diagram

Mcculloch line trimmer spark plug

Part #574587001

In Stock
Ring 574595601
#7

Flex pipe/pipes diagram

Ring

Part #574595601

This item is not returnable
In Stock
Ligate Tape 574596301
#15

Impeller/frame/harness diagram

Ligate tape

Part #574596301

The manufacturer no longer makes this part, and there's no substitute part

Screw 574588001
#8

Cylinder/muffler/fuel tank diagram

Screw

Part #574588001

The manufacturer no longer makes this part, and there's no substitute part

Throttle Kit 574860101
#1

Flex pipe/pipes diagram

Throttle kit

Part #574860101

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Throttle Grip Assembly 574596101
#2

Flex pipe/pipes diagram

Leaf blower throttle grip assembly

Part #574596101

The manufacturer no longer makes this part, and there's no substitute part
