Model # 315101820 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 315101820 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Chuck 6903336
#2

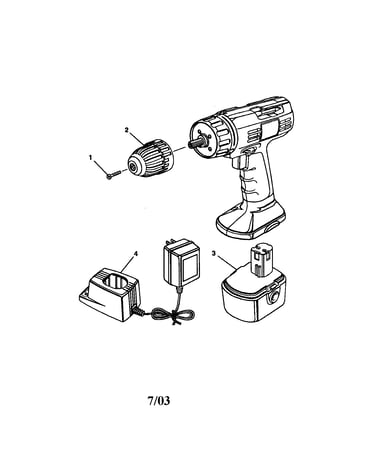

Chuck/battery/charger diagram

Chuck

Part #6903336

The manufacturer no longer makes this part, and there's no substitute part

Screw M3.5 X 16mm 6620606
#18

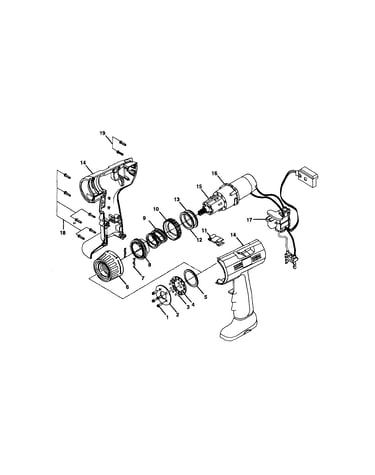

Housing/motor/gear train diagram

Screw m3.5 x 16mm

Part #6620606

The manufacturer no longer makes this part, and there's no substitute part

Battery 1312239
#3A

Chuck/battery/charger diagram

Battery

Part #1312239

The manufacturer no longer makes this part, and there's no substitute part

Ball 6722101
#3

Housing/motor/gear train diagram

Ball

Part #6722101

The manufacturer no longer makes this part, and there's no substitute part

Housing Ay 984394-001
#14A

Housing/motor/gear train diagram

Housing ay

Part #984394-001

The manufacturer no longer makes this part, and there's no substitute part

Ring 5369701
#10

Housing/motor/gear train diagram

Ring

Part #5369701

The manufacturer no longer makes this part, and there's no substitute part

Battery 1312238
#3

Chuck/battery/charger diagram

Battery

Part #1312238

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 3656302
#6

Housing/motor/gear train diagram

Clutch cap

Part #3656302

The manufacturer no longer makes this part, and there's no substitute part

Housing 984391-001
#14

Housing/motor/gear train diagram

Housing

Part #984391-001

The manufacturer no longer makes this part, and there's no substitute part

Charger 1420921
#4A

Chuck/battery/charger diagram

Charger

Part #1420921

The manufacturer no longer makes this part, and there's no substitute part
