Model # UXT5230ADQ Official Jenn-Air range hood

Here are the diagrams and repair parts for Official Jenn-Air UXT5230ADQ range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 75 parts |

#32

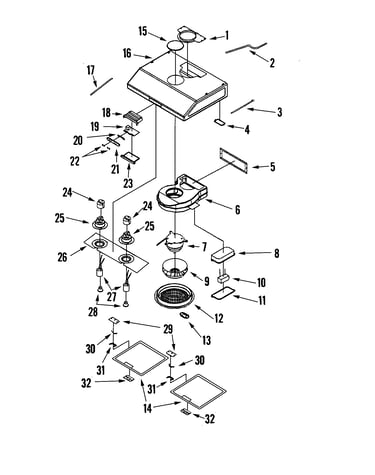

Hood components (complete) diagram

Lower latch

Part #49001086

Replaced by #W11033113

This item is not returnable

$2.49 |

29% OFF Phone Price : $3.49

In Stock

Qty

#31

Hood components (complete) diagram

Range hood filter latch

Part #49001085

$41.99

In Stock

Qty

#16B

Hood components (complete) diagram

Shell, (30"-

Part #49001123

The manufacturer no longer makes this part, and there's no substitute part

#15B

Hood components (complete) diagram

Isolator motor

Part #49001089

The manufacturer no longer makes this part, and there's no substitute part

#12

Hood components (complete) diagram

Grease pan

Part #49001067

The manufacturer no longer makes this part, and there's no substitute part

#19

Hood components (complete) diagram

Fan switch

Part #49001126

The manufacturer no longer makes this part, and there's no substitute part

#18

Hood components (complete) diagram

Spacer switch

Part #49001125

The manufacturer no longer makes this part, and there's no substitute part

#23

Hood components (complete) diagram

Stem, slide

Part #49001140

The manufacturer no longer makes this part, and there's no substitute part

#23B

Hood components (complete) diagram

Stem, slide

Part #49001143

The manufacturer no longer makes this part, and there's no substitute part

#20A

Hood components (complete) diagram

Slide gasket

Part #49001189

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your range hoods

Choose a symptom to see related range hood repairs.

View all

Why doesn't my range hood's fan work?

Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…

Why don't my range hood's lights work?

Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…

Why does my range hood's fan turn on by itself?

Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…

Why doesn't my range hood work?

Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…

Why isn't my range hood's fan pulling much air?

Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…

Why is my range hood's exhaust fan noisy?

Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…

Why don't my range hood's lights and fan work?

Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…
