Model # 79094239400 Official Kenmore electric range
Here are the diagrams and repair parts for Official Kenmore 79094239400 electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

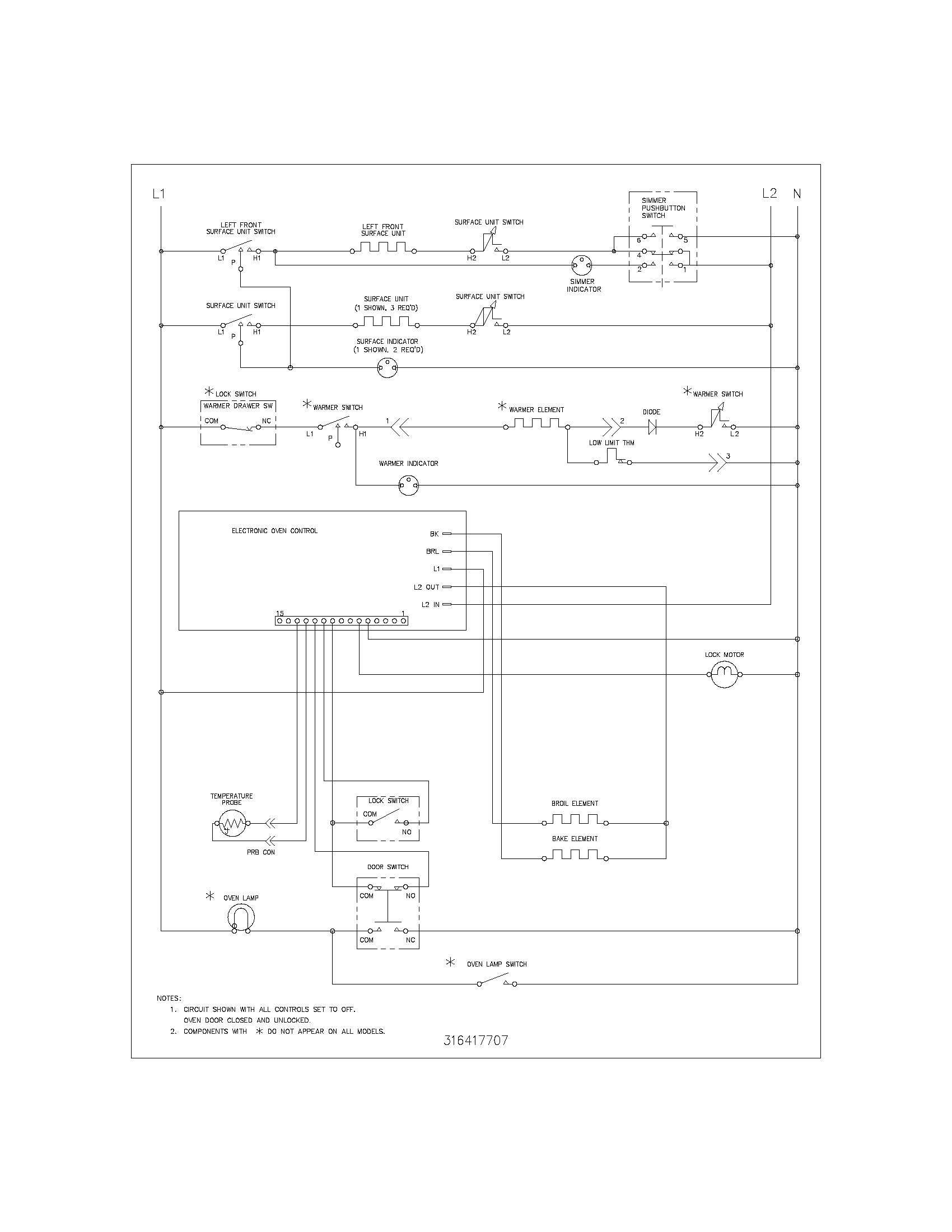

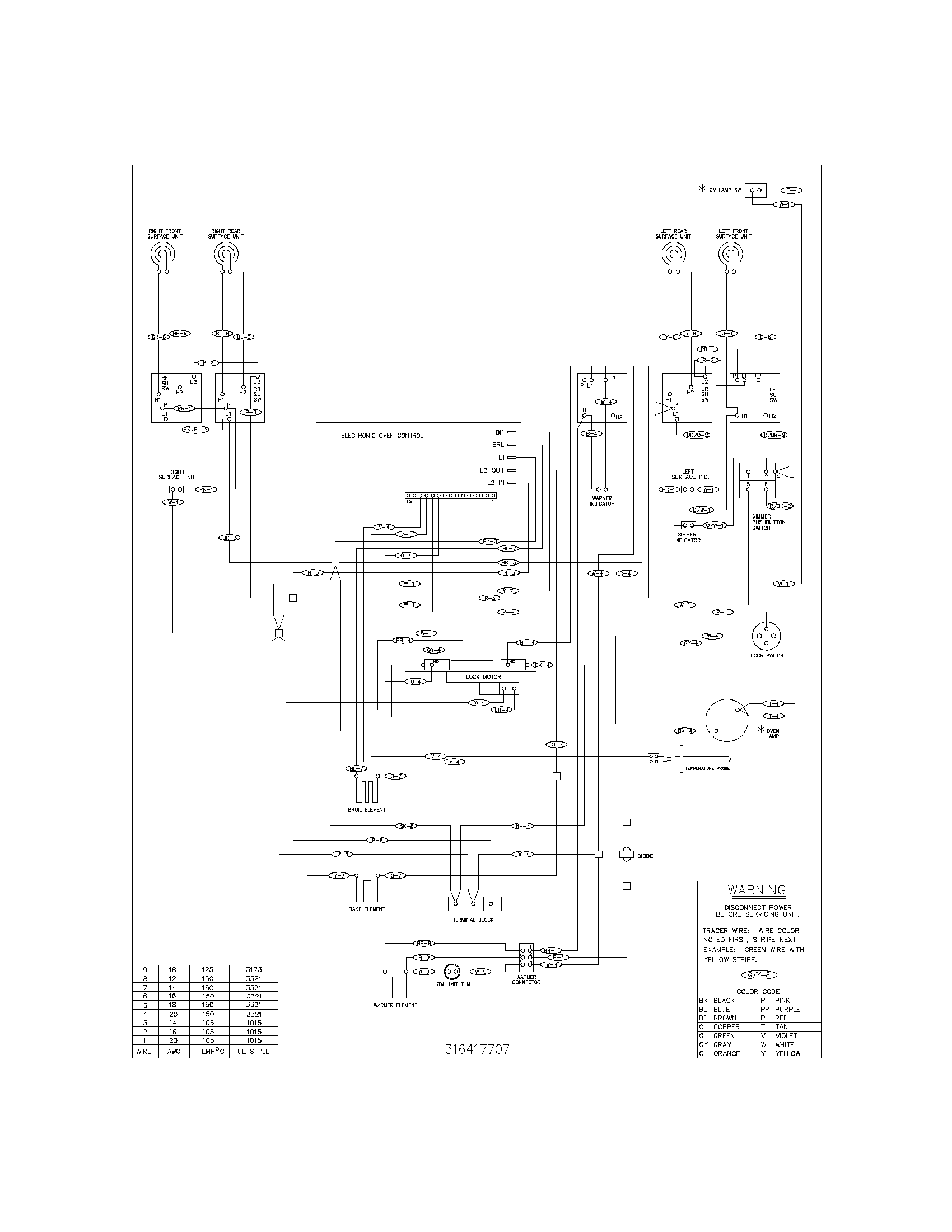

SELECT DIAGRAM
Browse Parts for79094239400 Ranges
- #54A

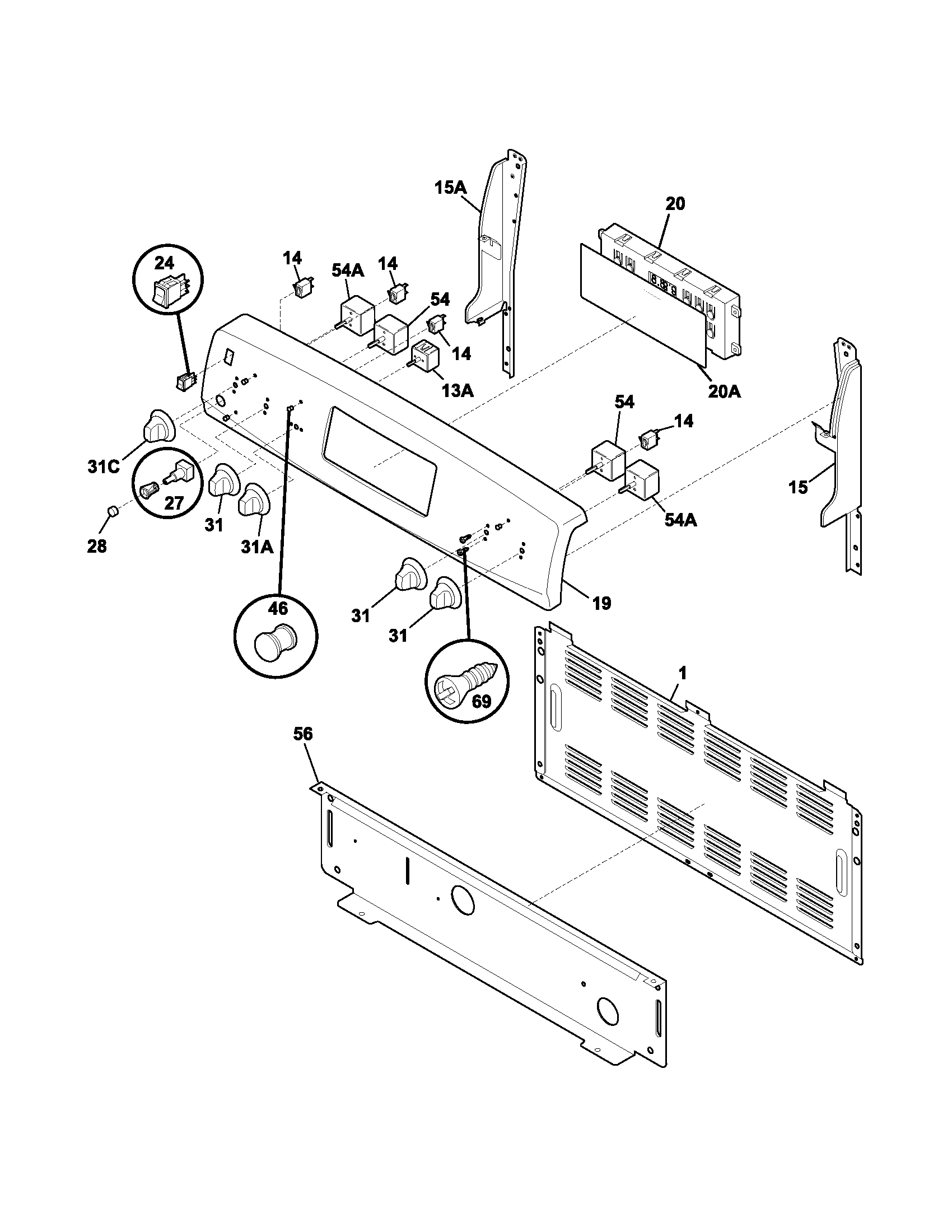

Backguard diagram
Range surface element control switchPart #316021501
Replaced by #316436001
?Manufacturer substitutionThis part replaces 316021501. Substitute parts can look different from the original.$32.36 |16% OFF Phone Price : $38.36In Stock - #54
Backguard diagram
Oven switchPart #316021500
Replaced by #316436000
?Manufacturer substitutionThis part replaces 316021500. Substitute parts can look different from the original.$53.05 |10% OFF Phone Price : $59.05In Stock - #15

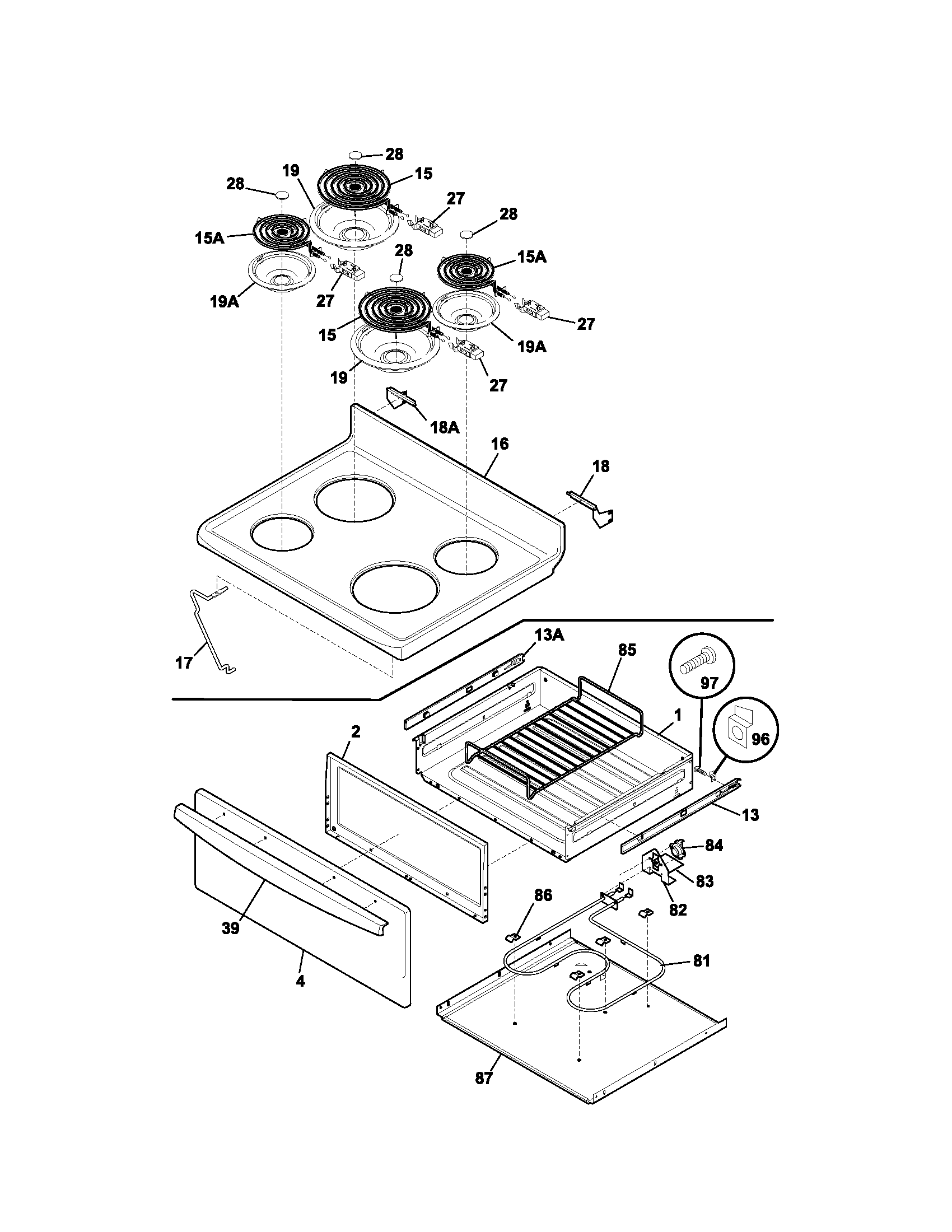

Top/drawer diagram
Range surface element, 8-inPart #5303012223
Replaced by #316442301
?Manufacturer substitutionThis part replaces 5303012223. Substitute parts can look different from the original.$68.09 |8% OFF Phone Price : $74.09In Stock - #27
Top/drawer diagram
BlockPart #5303912666
Replaced by #5303935058
?Manufacturer substitutionThis part replaces 5303912666. Substitute parts can look different from the original.$9.24 |10% OFF Phone Price : $10.24In Stock - #66

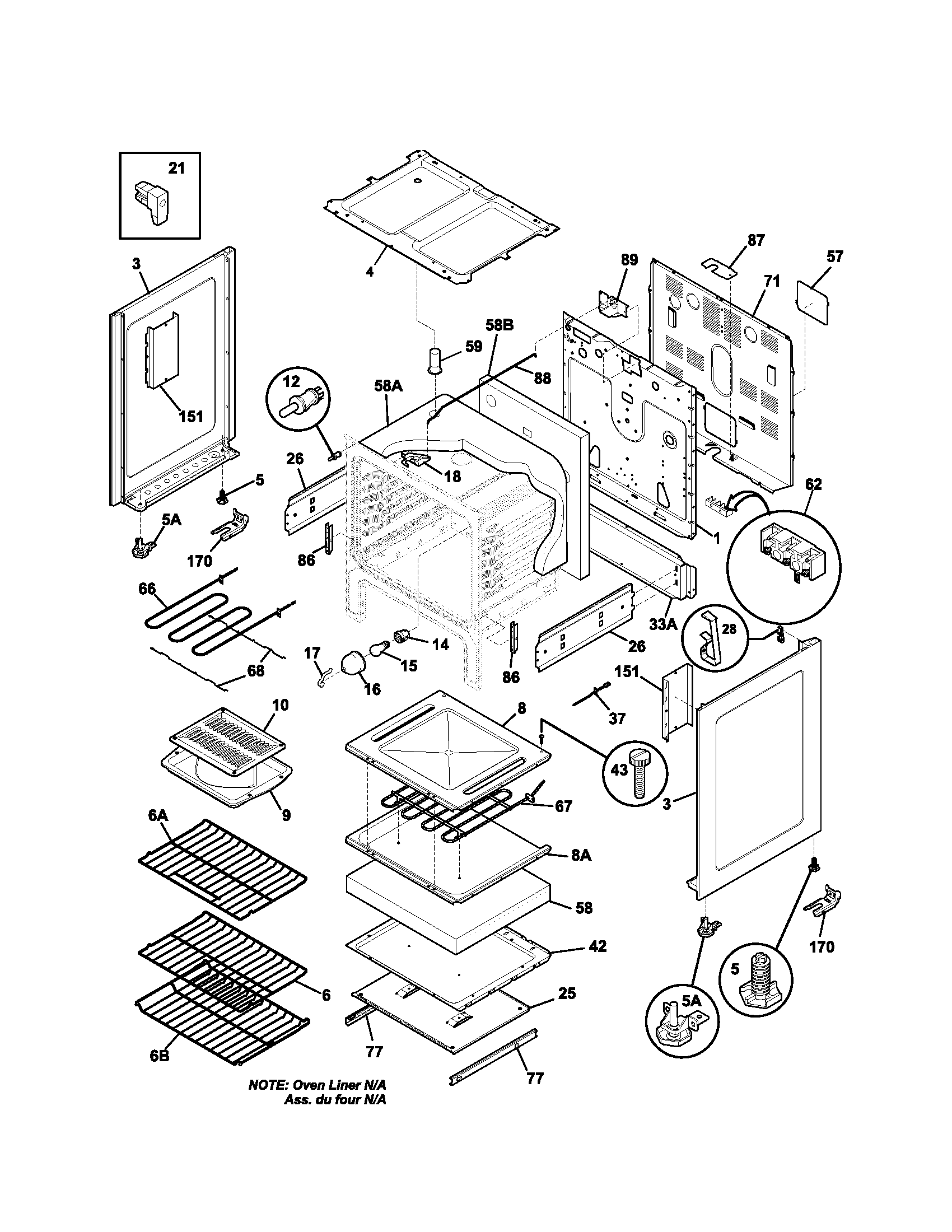

Body diagram
Frigidaire range broil elementPart #316203301
$121.81 |9% OFF Phone Price : $133.81In Stock - #8

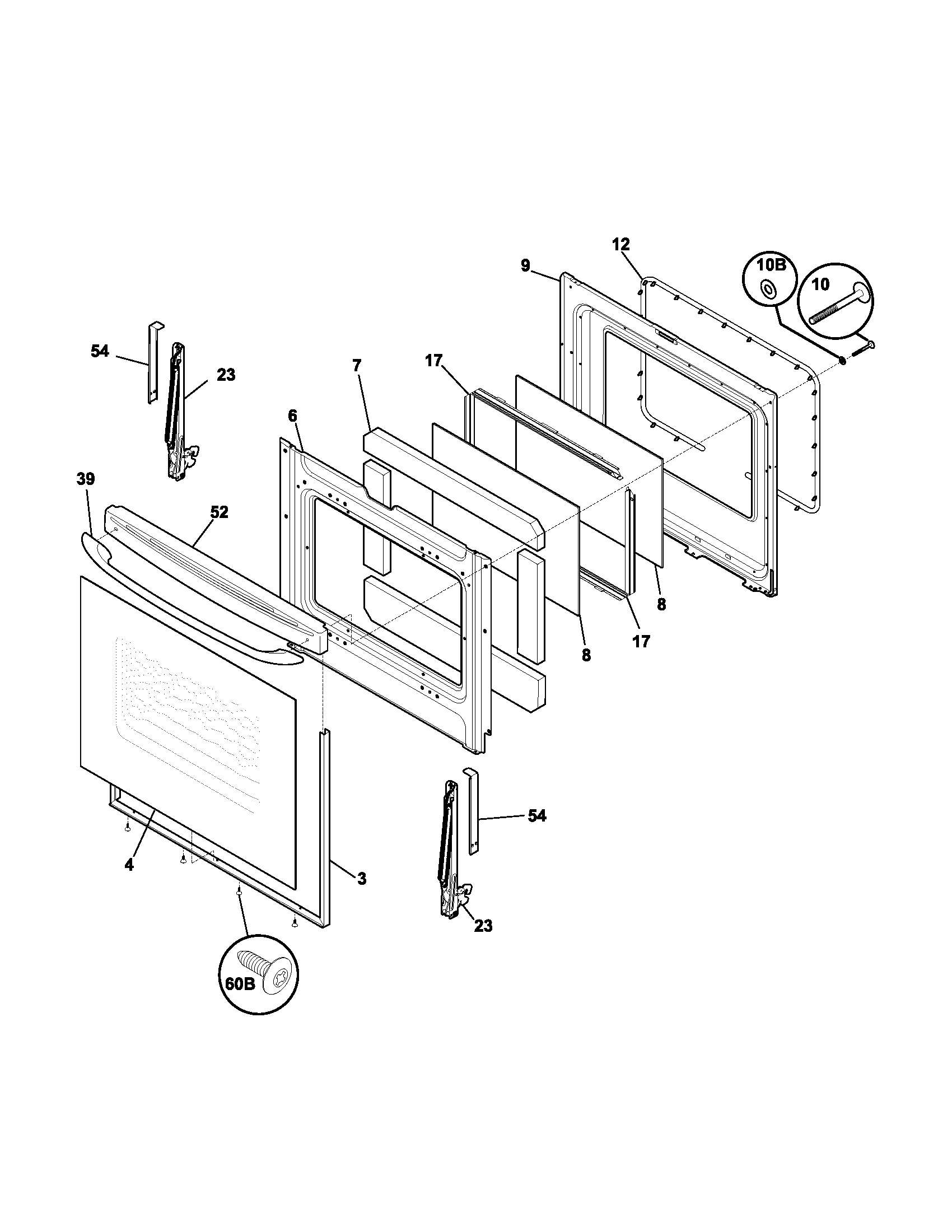

Door diagram
Range oven door inner glassPart #316117500
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117500. Substitute parts can look different from the original.$77.39 |7% OFF Phone Price : $83.39In Stock - #15A
Top/drawer diagram
Cooktop surface elementPart #08067762
Replaced by #318372211
?Manufacturer substitutionThis part replaces 08067762. Substitute parts can look different from the original.$50.22 |11% OFF Phone Price : $56.22In Stock - #20A
Backguard diagram
Range control overlayPart #316419109
Replaced by #316419141
?Manufacturer substitutionThis part replaces 316419109. Substitute parts can look different from the original.$35.38 |14% OFF Phone Price : $41.38In Stock - #19
Top/drawer diagram
Range drip panPart #5303935053
Replaced by #A316222301
?Manufacturer substitutionThis part replaces 5303935053. Substitute parts can look different from the original.$21.49 |22% OFF Phone Price : $27.49In Stock - #19A
Top/drawer diagram
Range drip panPart #5303935055
Replaced by #A316222201
?Manufacturer substitutionThis part replaces 5303935055. Substitute parts can look different from the original.$20.90 |22% OFF Phone Price : $26.90In Stock
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair difficulty
Time required
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
Learn how the self-clean cycle works in an oven.…
You might be surprised by these 4 tips for using your oven better.…
Learn how to troubleshoot problems with your range that cause an F10 error to be displayed.…
