Model # LFC20760SW/06 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFC20760SW-06 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Ice Maker Assembly (aeq72909602) - Refrigerator Ice Maker Part By Lg (replaces Aeq72909601) AEQ72909602
#600A

Water and icemaker parts diagram

Ice maker assembly (aeq72909602) - refrigerator ice maker part by lg (replaces aeq72909601)

Part #AEQ72909602

BEST SELLER
$91.54 |
6% OFF Phone Price : $97.54
In Stock
Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
#406B

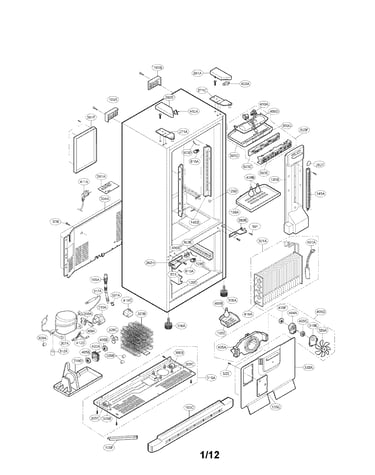

Case parts diagram

Refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Ice Maker Fill Tube AJR73342301
#616E

Water and icemaker parts diagram

Refrigerator ice maker fill tube

Part #AJR73342301

Replaced by #AJU73753101

?
Manufacturer substitution
This part replaces AJR73342301. Substitute parts can look different from the original.
BEST SELLER
$90.43 |
6% OFF Phone Price : $96.43
In Stock
Refrigerator Drawer Slide Rail 4975JJ2028C
#145C

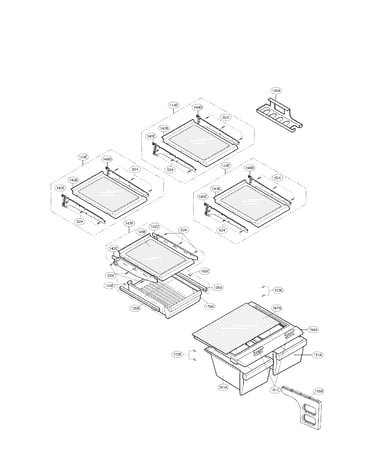

Freezer parats diagram

Refrigerator drawer slide rail

Part #4975JJ2028C

BEST SELLER
$86.64 |
6% OFF Phone Price : $92.64
In Stock
Refrigerator Compressor TCA33414101
#307A

Case parts diagram

Refrigerator compressor

Part #TCA33414101

Replaced by #TCA35931726

?
Manufacturer substitution
This part replaces TCA33414101. Substitute parts can look different from the original.
BEST SELLER
$215.36 |
5% OFF Phone Price : $227.36
In Stock
Refrigerator Water Inlet Valve Assembly (replaces Aju55759301, Aju55759302, Aju73292404) AJU55759303
#619C

Water and icemaker parts diagram

Refrigerator water inlet valve assembly (replaces aju55759301, aju55759302, aju73292404)

Part #AJU55759303

BEST SELLER
$62.67 |
9% OFF Phone Price : $68.67
In Stock
Refrigerator Door Gasket ADX52752604
#203A

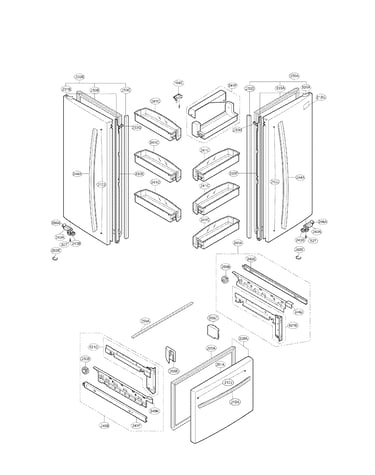

Door parts diagram

Refrigerator door gasket

Part #ADX52752604

Replaced by #ADX73350901

?
Manufacturer substitution
This part replaces ADX52752604. Substitute parts can look different from the original.
BEST SELLER
$75.80 |
9% OFF Was : $83.30
In Stock
Refrigerator Sensor 6500JK1003A
#903D

Case parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Door Cam Latch, Right 4430JJ2005A
#233H

Door parts diagram

Refrigerator door cam latch, right

Part #4430JJ2005A

BEST SELLER
$17.14 |
10% OFF Phone Price : $19.14
In Stock
Refrigerator Freezer Drawer Slide Rail, Right (replaces 5218ja1012e, 5218ja1012h) 5218JA1010E
#249E

Door parts diagram

Refrigerator freezer drawer slide rail, right (replaces 5218ja1012e, 5218ja1012h)

Part #5218JA1010E

BEST SELLER
$92.19 |
6% OFF Phone Price : $98.19
In Stock
