Model # 917880020 Official Craftsman snow thrower
Here are the diagrams and repair parts for Official Craftsman 917880020 snow thrower, as well as links to manuals and error code tables, if available.
Owner’s manual

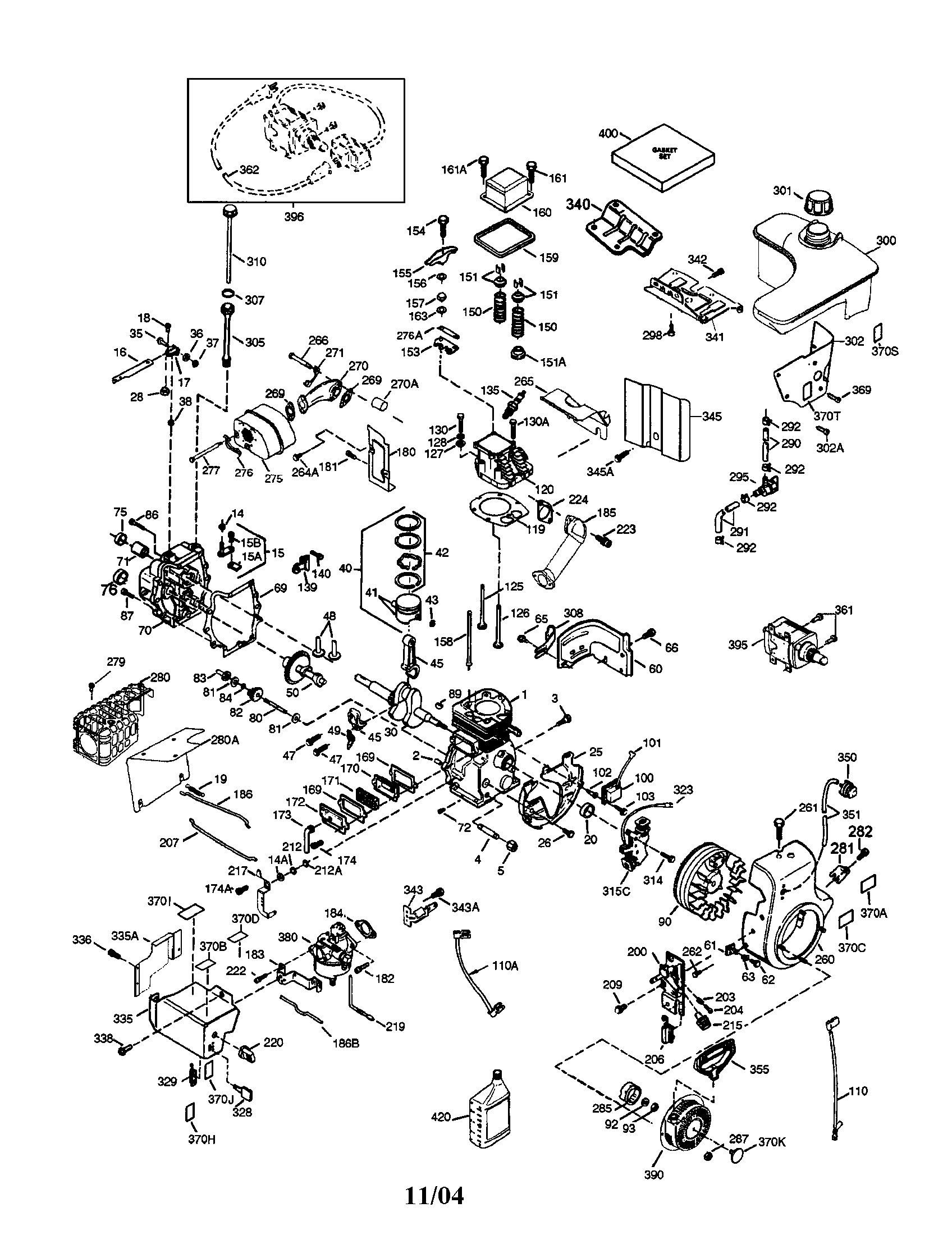

View engineBy Schematic
By Part

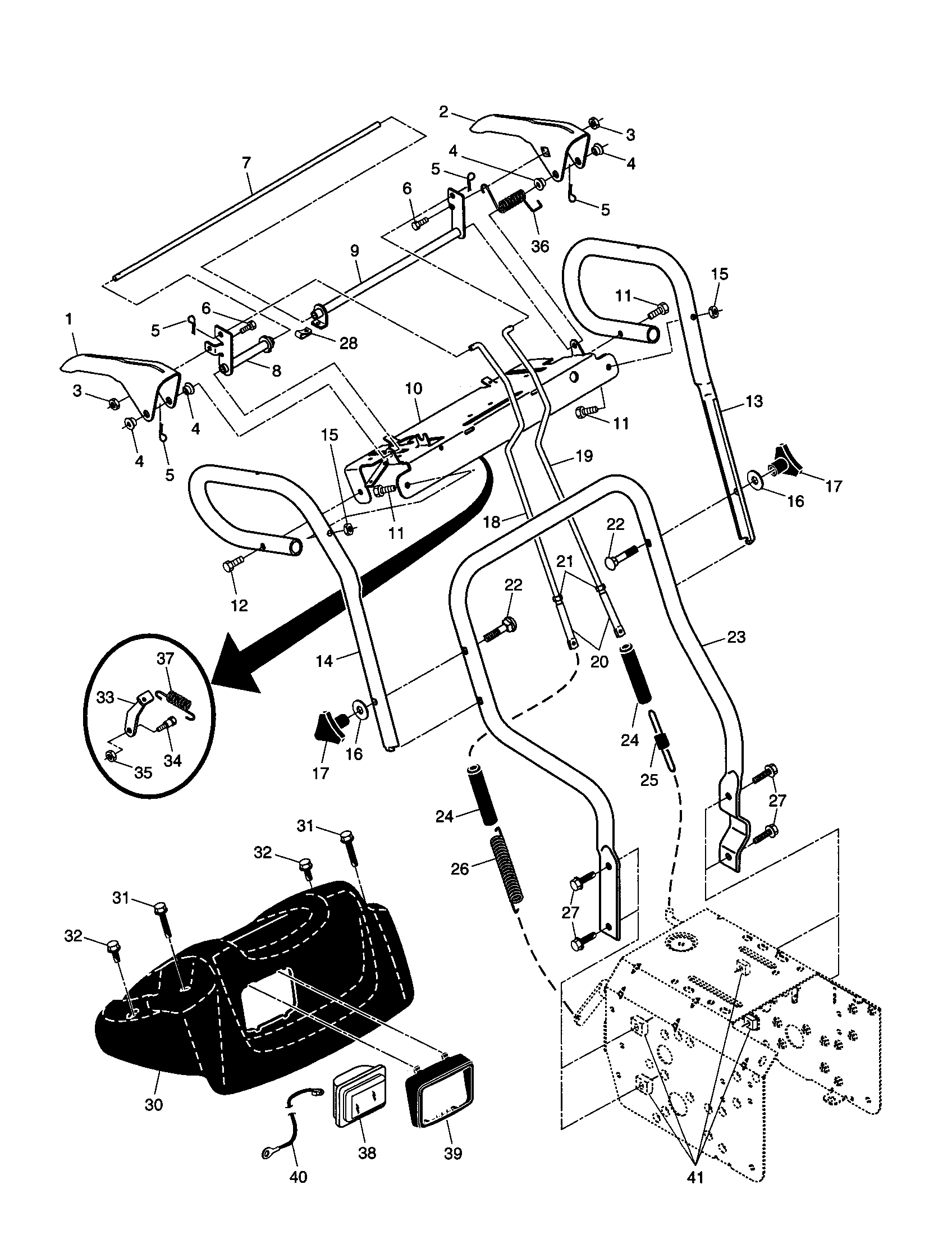

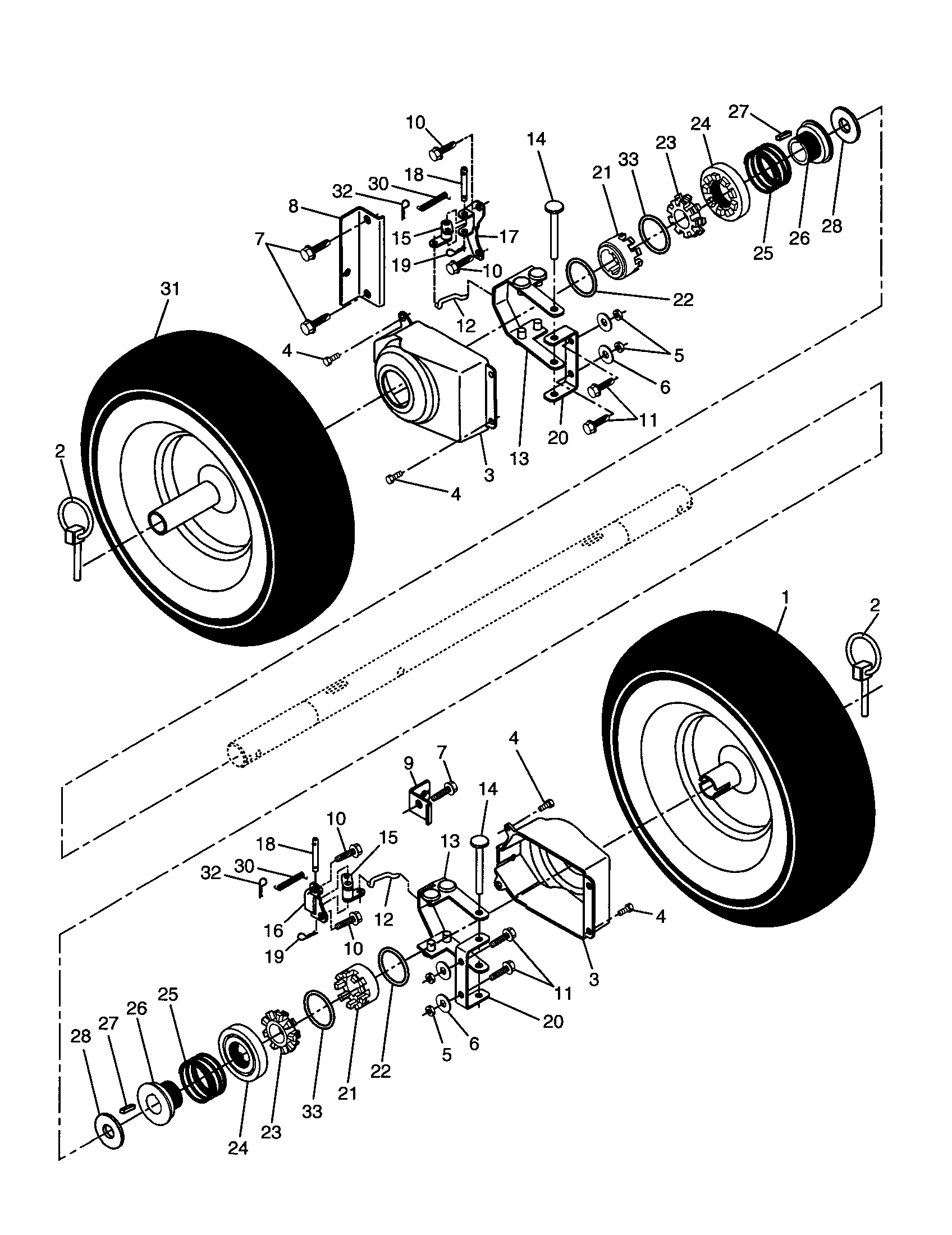

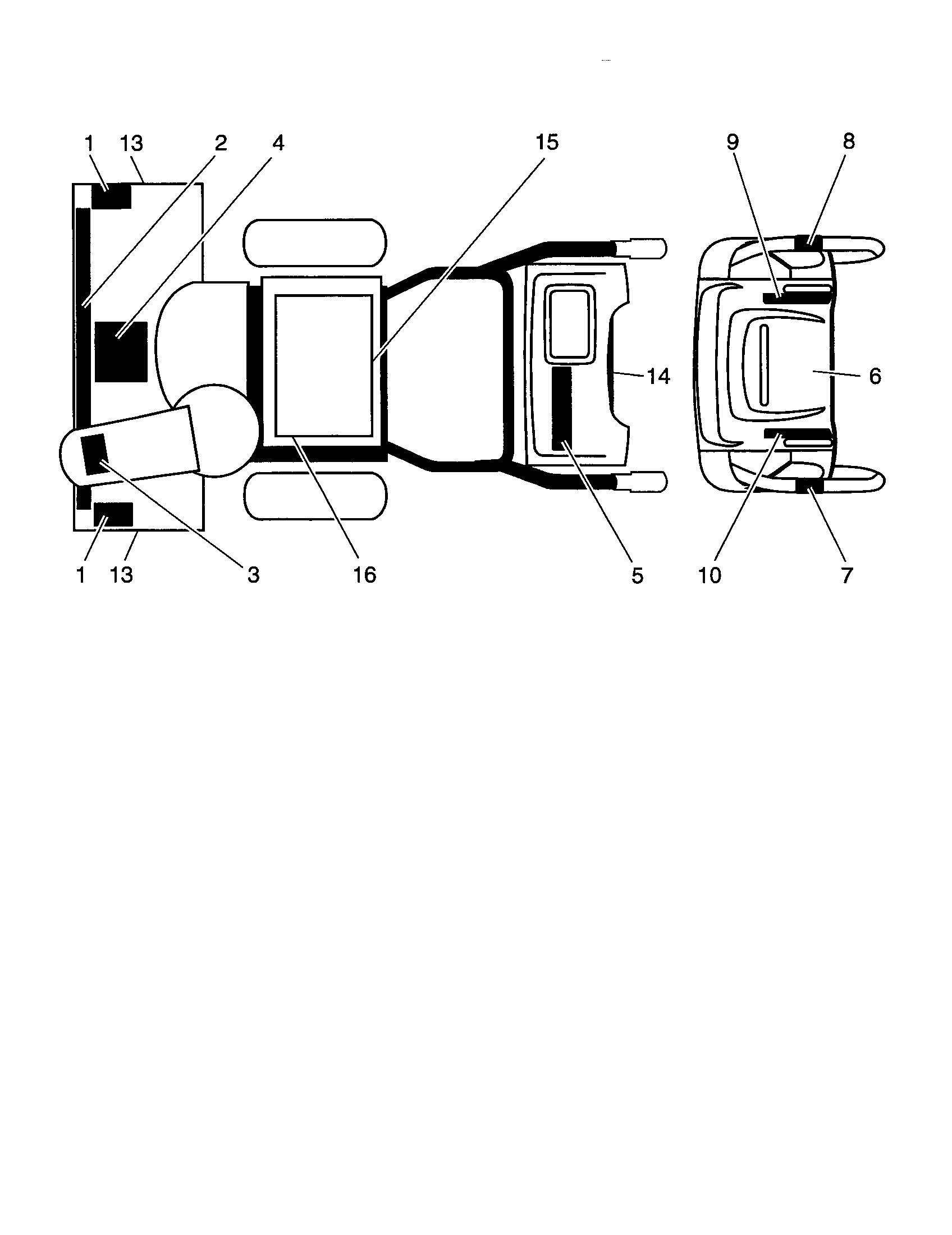

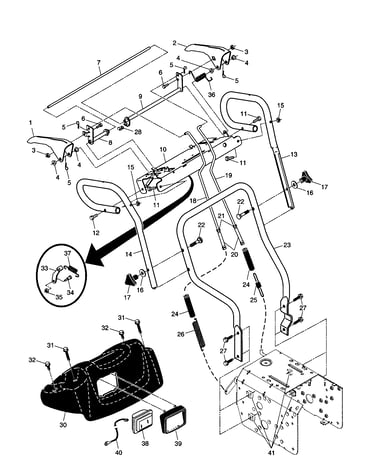

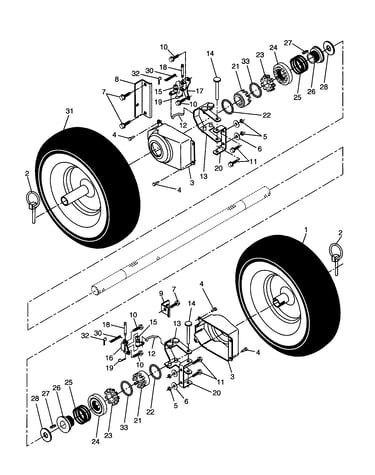

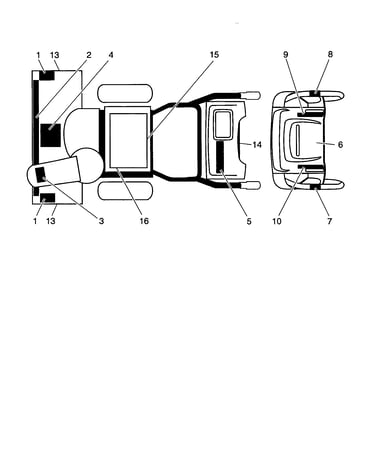

SELECT DIAGRAM
Browse Parts for
917880020 Snowblowers
#6

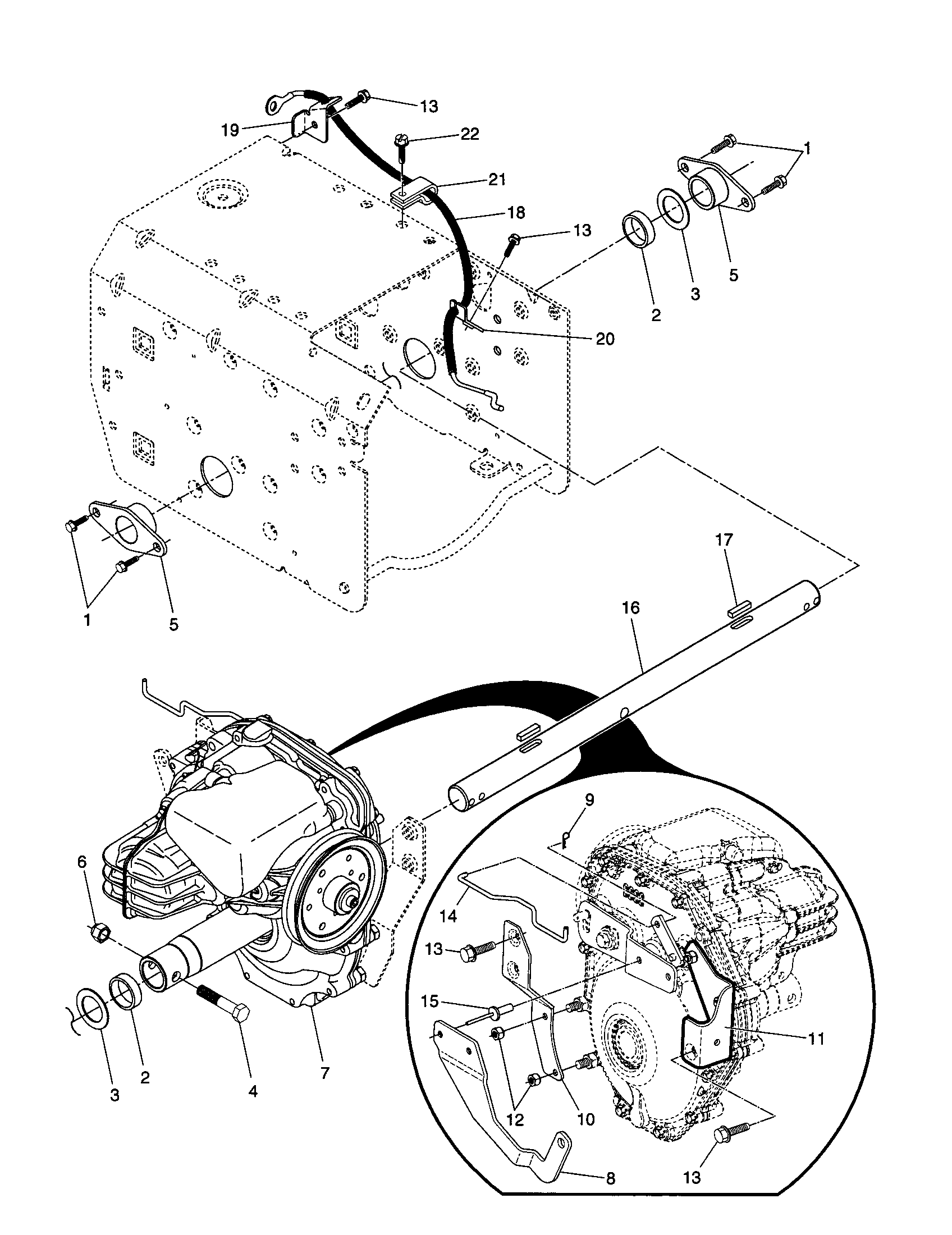

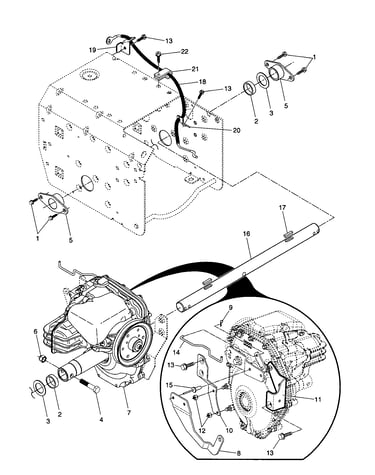

Drive diagram
Tower lawn tractor lock nut (replaces 5394h, 73750600, 751592)
Part #73930600
Replaced by #596322601
?
Manufacturer substitution
This part replaces 73930600. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
#4

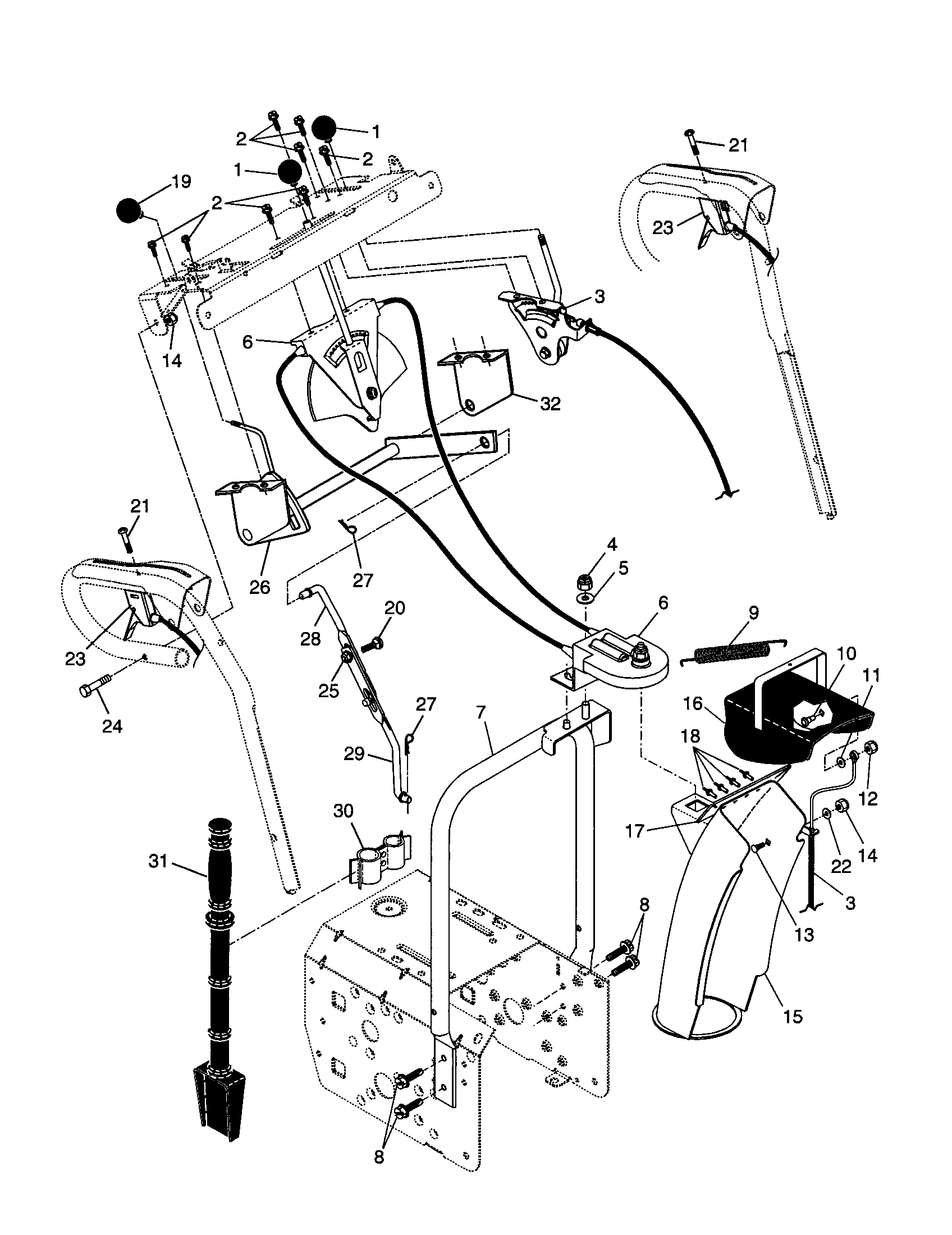

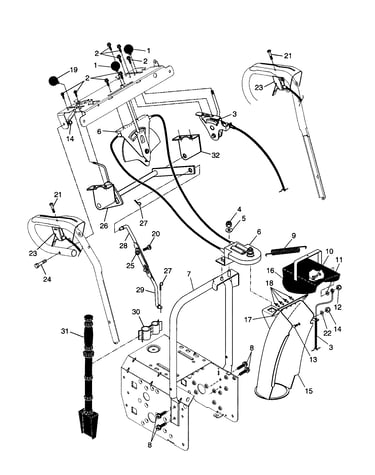

Control panel/discharge chute diagram
Lock nut
Part #73800600
Replaced by #596322601
?
Manufacturer substitution
This part replaces 73800600. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Lawn & garden equipment lock nut
Part #73800400
Replaced by #582478602
?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
This item is not returnable
$2.87 |
26% OFF Phone Price : $3.87
In Stock
#45

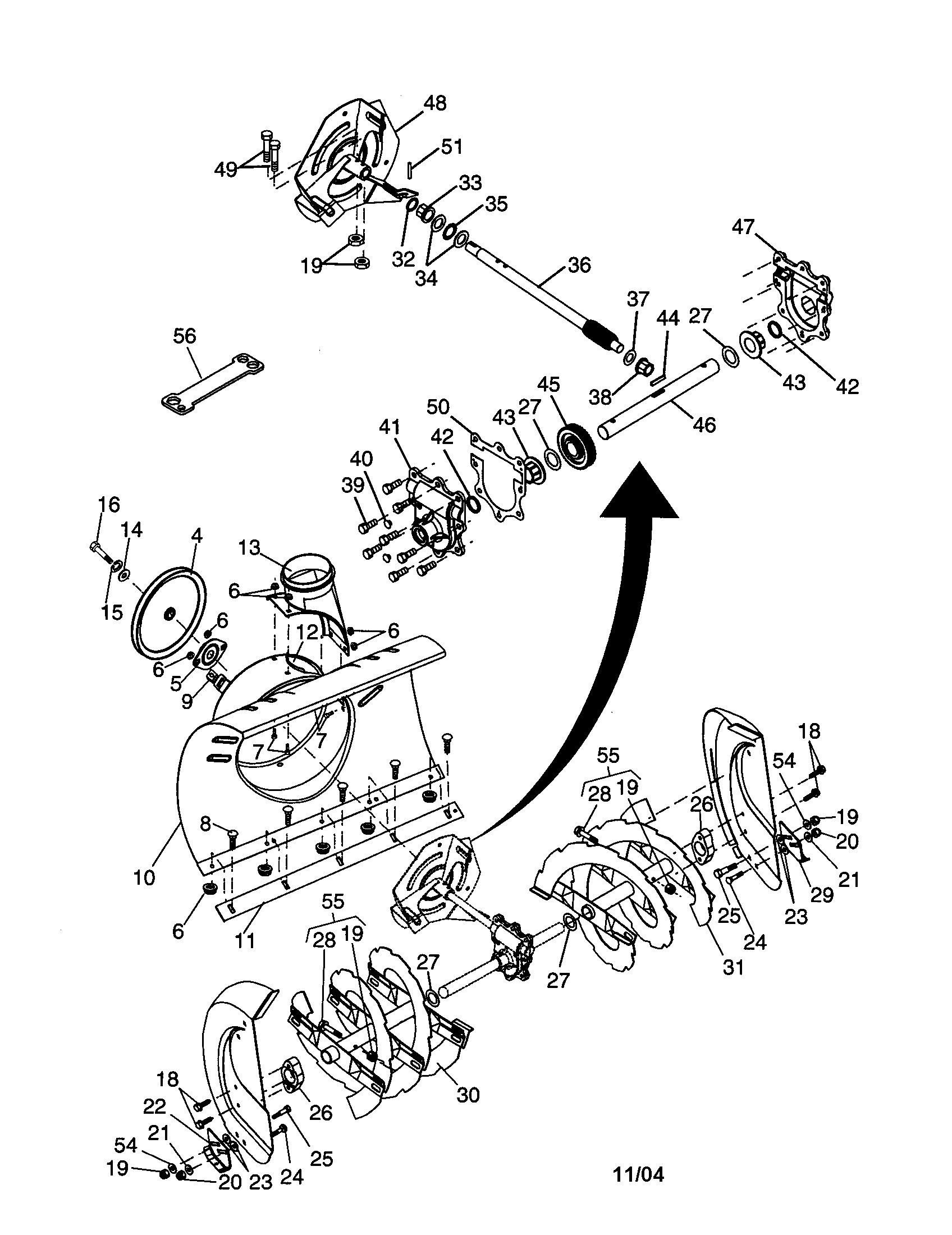

Auger housing/impeller assembly diagram
Snowblower auger worm gear
Part #174659
Replaced by #598831601
?
Manufacturer substitution
This part replaces 174659. Substitute parts can look different from the original.
$200.45 |
6% OFF Phone Price : $212.45
In Stock
#13
Auger housing/impeller assembly diagram
Discharge base
Part #175322
Replaced by #585056901
?
Manufacturer substitution
This part replaces 175322. Substitute parts can look different from the original.
This item is not returnable
$17.31 |
10% OFF Phone Price : $19.31
In Stock
#11
Auger housing/impeller assembly diagram
Bar.scapper.
Part #178691X479
Replaced by #532435830
?
Manufacturer substitution
This part replaces 178691X479. Substitute parts can look different from the original.
$25.98
In Stock
#3
Control panel/discharge chute diagram
Control assembly
Part #178674
Replaced by #587030801
?
Manufacturer substitution
This part replaces 178674. Substitute parts can look different from the original.
$73.00 |
8% OFF Phone Price : $79.00
In Stock
#14

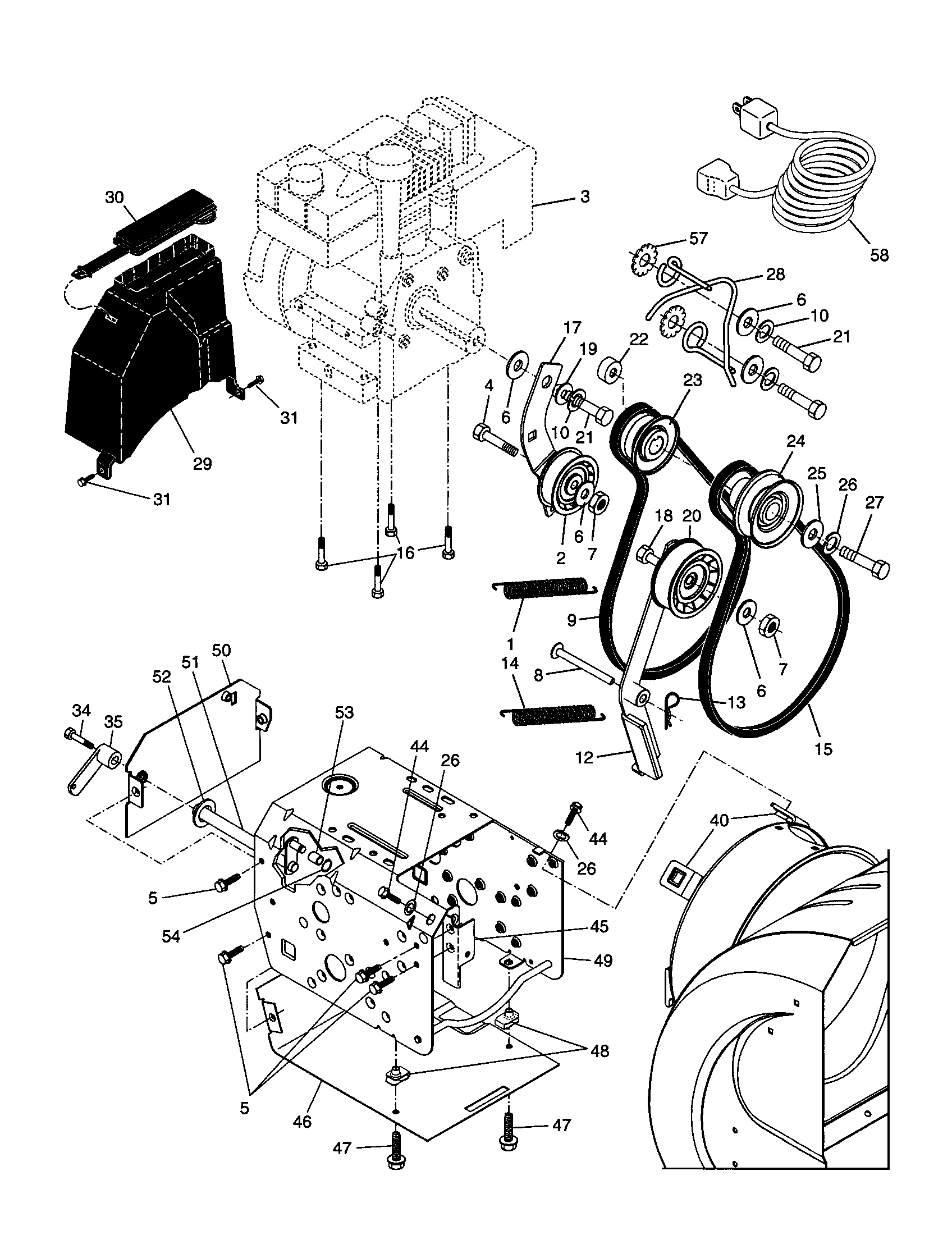

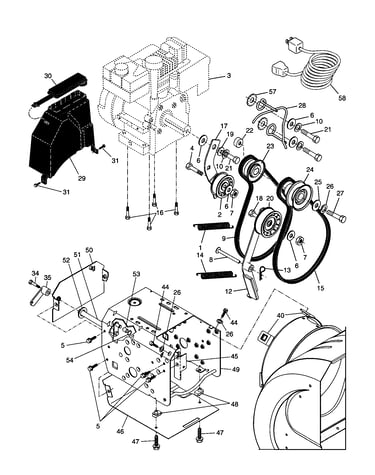

Chassis/engine/pulleys diagram
Snowblower extension spring
Part #178828
Replaced by #532178828
?
Manufacturer substitution
This part replaces 178828. Substitute parts can look different from the original.
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
#29
Auger housing/impeller assembly diagram
Snowblower skid shoe, left
Part #174762X479
Replaced by #532174762
?
Manufacturer substitution
This part replaces 174762X479. Substitute parts can look different from the original.
$14.83
In Stock
#49
Auger housing/impeller assembly diagram
Snowblower hex screw
Part #74780426
Replaced by #596322101
?
Manufacturer substitution
This part replaces 74780426. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
