Model # WDP3V Official LG pedestal kit

Here are the diagrams and repair parts for Official LG WDP3V pedestal kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 16 parts |

Laundry Appliance Pedestal Drawer Slide Rail 4276ER0002A

#A120

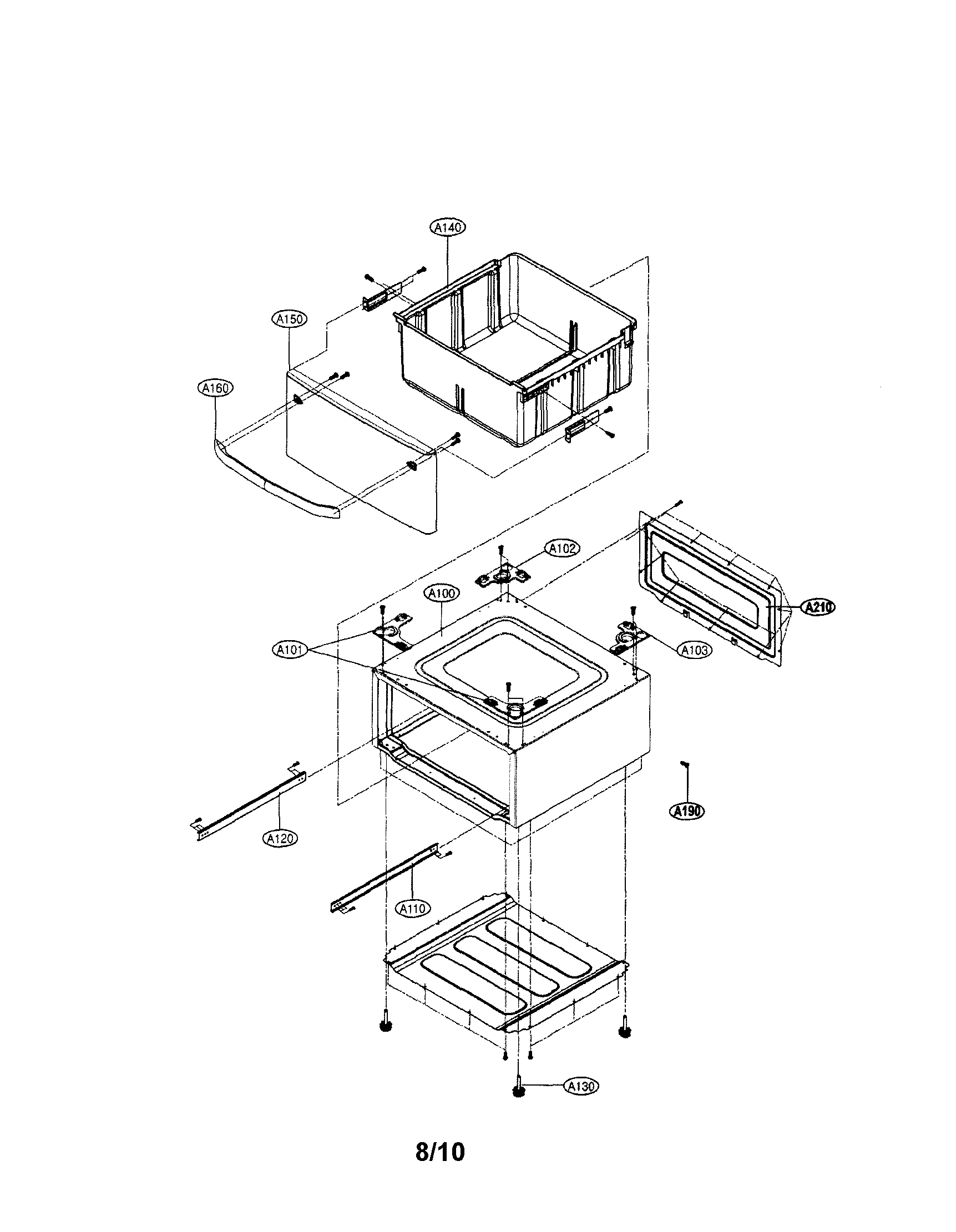

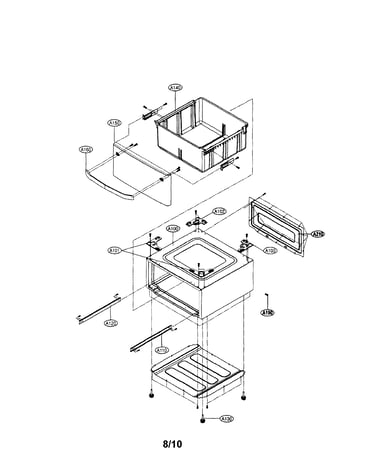

Pedestal diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0002A

$87.98 |

6% OFF Phone Price : $93.98

In Stock

Qty

Laundry Appliance Pedestal Drawer Slide Rail 4276ER0001A

#A110

Pedestal diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0001A

$87.98 |

6% OFF Phone Price : $93.98

In Stock

Qty

Laundry Appliance Pedestal Leg Guide MJH40343901

#A103

Pedestal diagram

Laundry appliance pedestal leg guide

Part #MJH40343901

This item is not returnable

$15.60 |

11% OFF Phone Price : $17.60

In Stock

Qty

#A160

Pedestal diagram

Lg handle assembly

Part #3651ER0002Q

$150.28

In Stock

Qty

Laundry Appliance Pedestal Leveling Leg Assembly AFC72755402

#A130

Pedestal diagram

Laundry appliance pedestal leveling leg assembly

Part #AFC72755402

This item is not returnable

$15.60 |

11% OFF Phone Price : $17.60

In Stock

Qty

Laundry Appliance Pedestal Leg Guide MJH40343501

#A101

Pedestal diagram

Laundry appliance pedestal leg guide

Part #MJH40343501

This item is not returnable

$15.60 |

11% OFF Phone Price : $17.60

In Stock

Qty

Laundry Appliance Pedestal Drawer 4870ER0004A

#A140

Pedestal diagram

Laundry appliance pedestal drawer

Part #4870ER0004A

$114.94 |

9% OFF Phone Price : $126.94

In Stock

Qty

Laundry Appliance Pedestal Cabinet Back Panel 3550ER0035A

#A210

Pedestal diagram

Laundry appliance pedestal cabinet back panel

Part #3550ER0035A

$51.96

In Stock

Qty

#A100

Pedestal diagram

Lg frame assembly

Part #3071ER0007R

$262.05

In Stock

Qty

#*003

Pedestal diagram

Spanner

Part #3W20018B

$10.42 |

16% OFF Phone Price : $12.42

In Stock

Qty
