Model # CMT19 SVC CODE G Official Thermador electric oven

Here are the diagrams and repair parts for Official Thermador CMT19-SVC-CODE-G electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

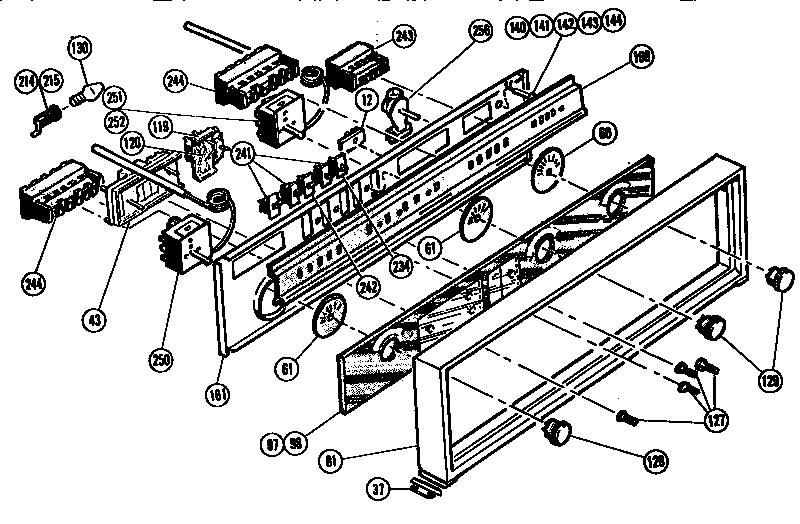

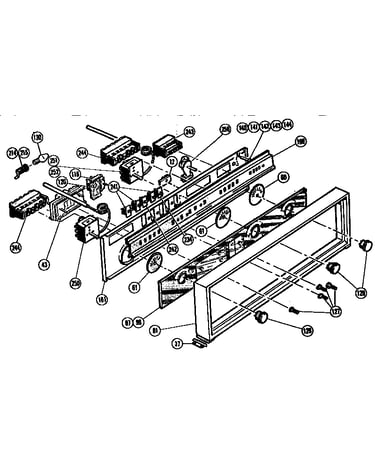

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Pilot Light 14-29-438
Pilot light

Part #14-29-438

$9.49
In Stock
Strip 14-34-613
#124

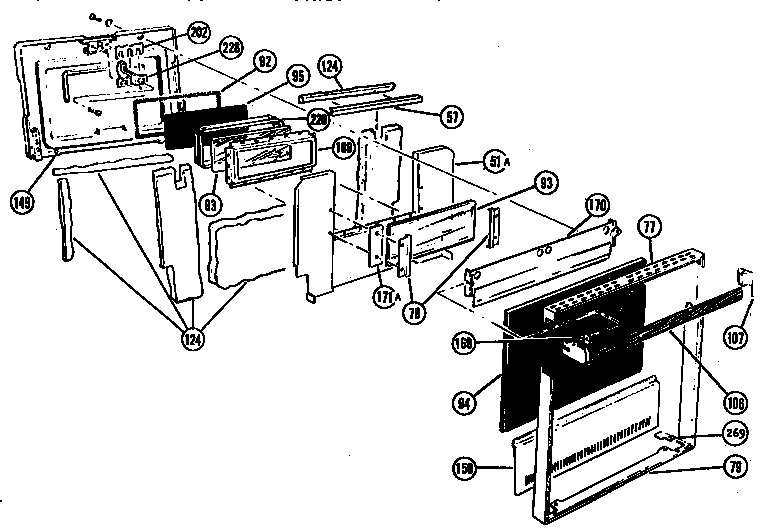

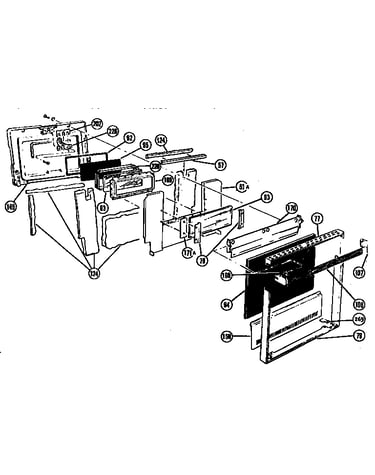

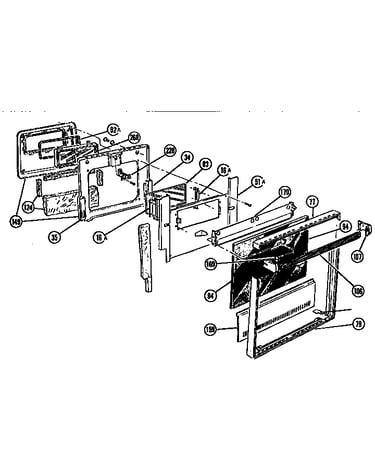

Cmt2bg-sd shutterless door for microwave oven diagram

Strip

Part #14-34-613

$60.49
In Stock
Stop 14-34-159
#227

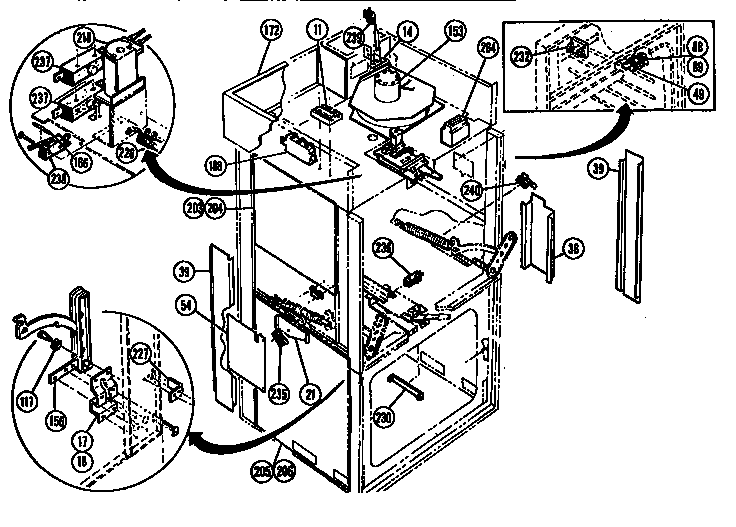

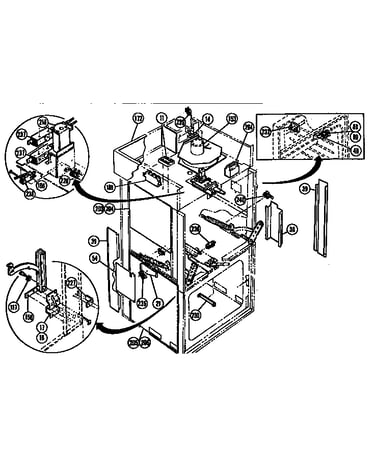

Switches and additional parts diagram

Stop

Part #14-34-159

This item is not returnable
$2.99
In Stock
Plate 14-34-198
#171

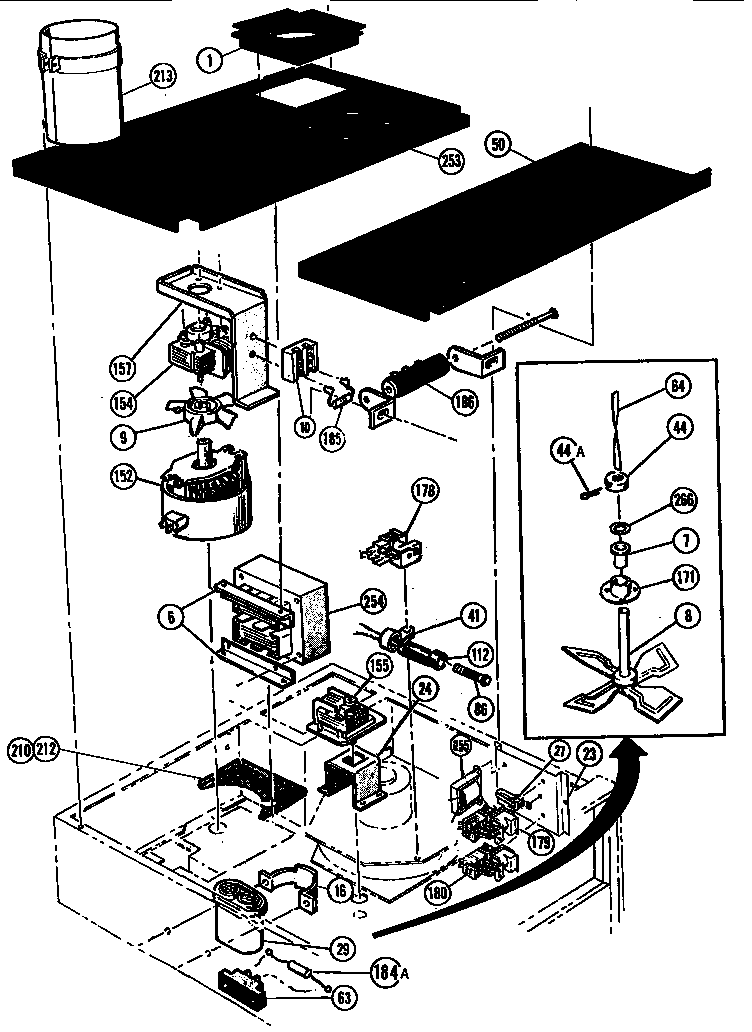

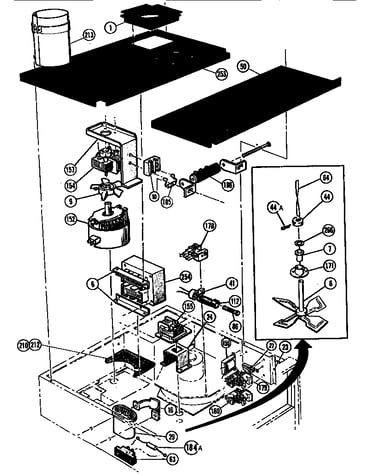

Microwave internal diagram

Plate

Part #14-34-198

$33.49
In Stock
Bracket 14-14-735
#16

Microwave internal diagram

Bracket

Part #14-14-735

This item is not returnable
$2.29
In Stock
Mounting Bracket 14-34-288-01
#21

Switches and additional parts diagram

Mounting bracket

Part #14-34-288-01

$14.49
In Stock
Spacer 13-09-261
#247D

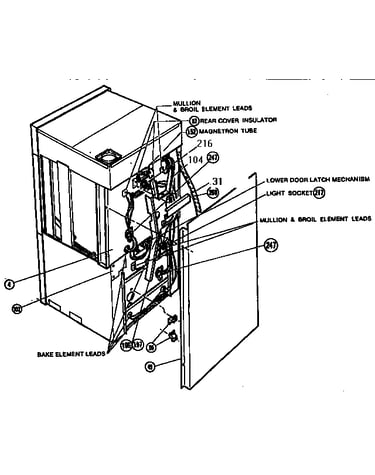

Electrical diagram

Spacer

Part #13-09-261

This item is not returnable
$2.29
In Stock
Cover 14-34-406-01
#54

Switches and additional parts diagram

Cover

Part #14-34-406-01

$8.49
In Stock
Grid 14-39-072
#103

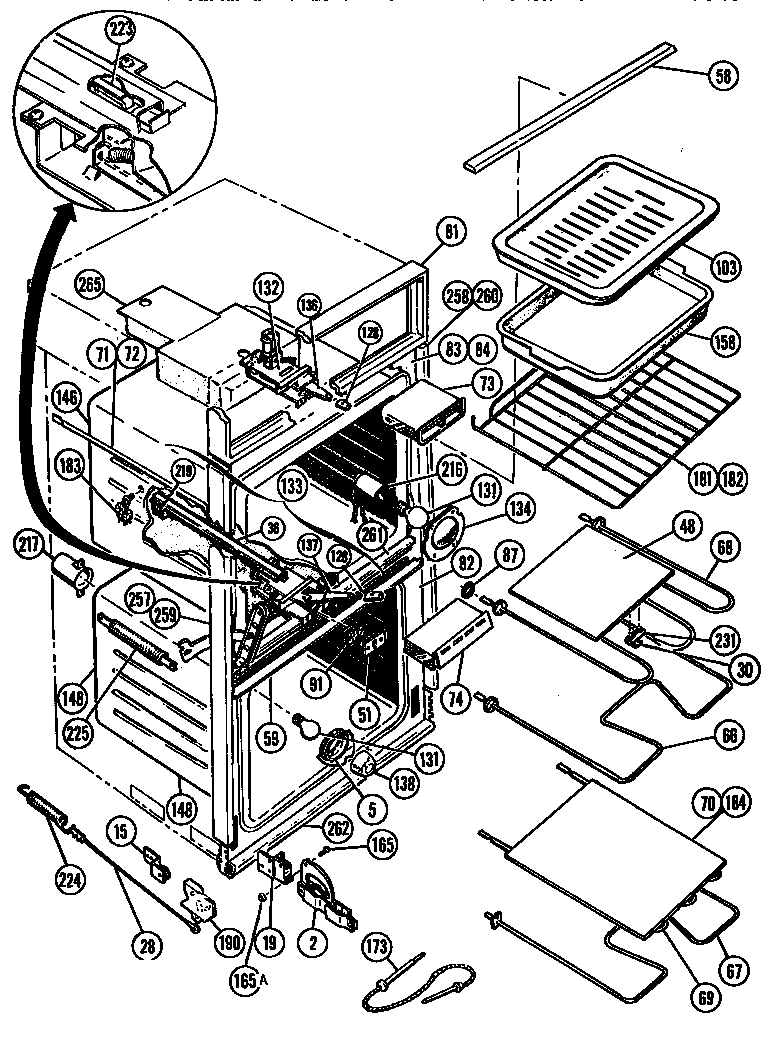

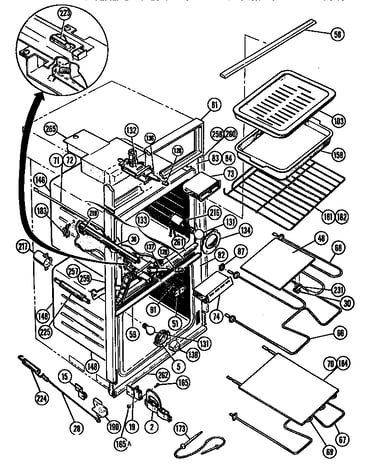

Body and accessory parts diagram

Grid

Part #14-39-072

$64.99
In Stock
Spacer 14-34-305
#220

Cmt2bg-sd shutterless door for microwave oven diagram

Spacer

Part #14-34-305

$28.49
In Stock
