Hammer Drill

Model # 315269280 Official Craftsman hammer drill

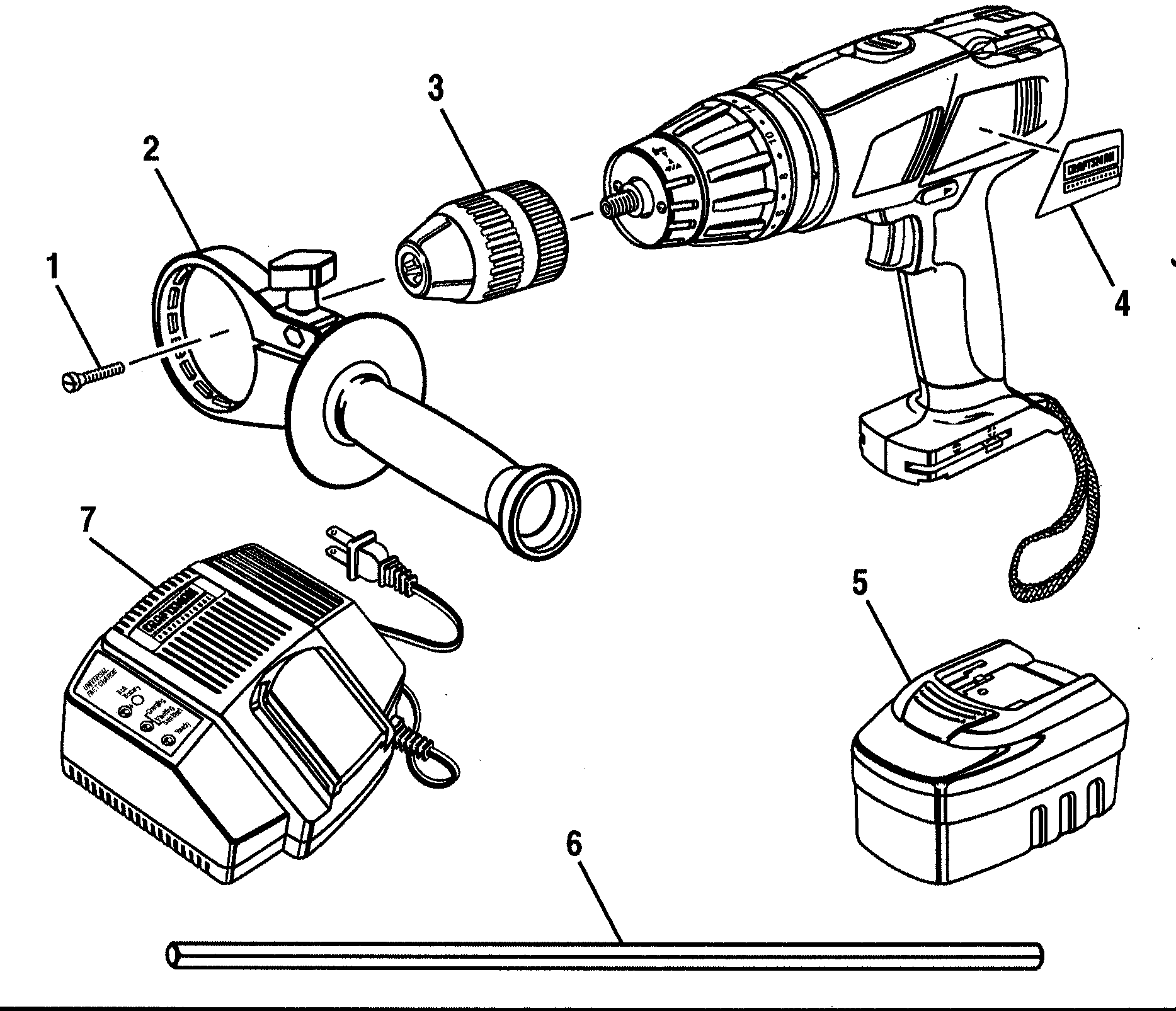

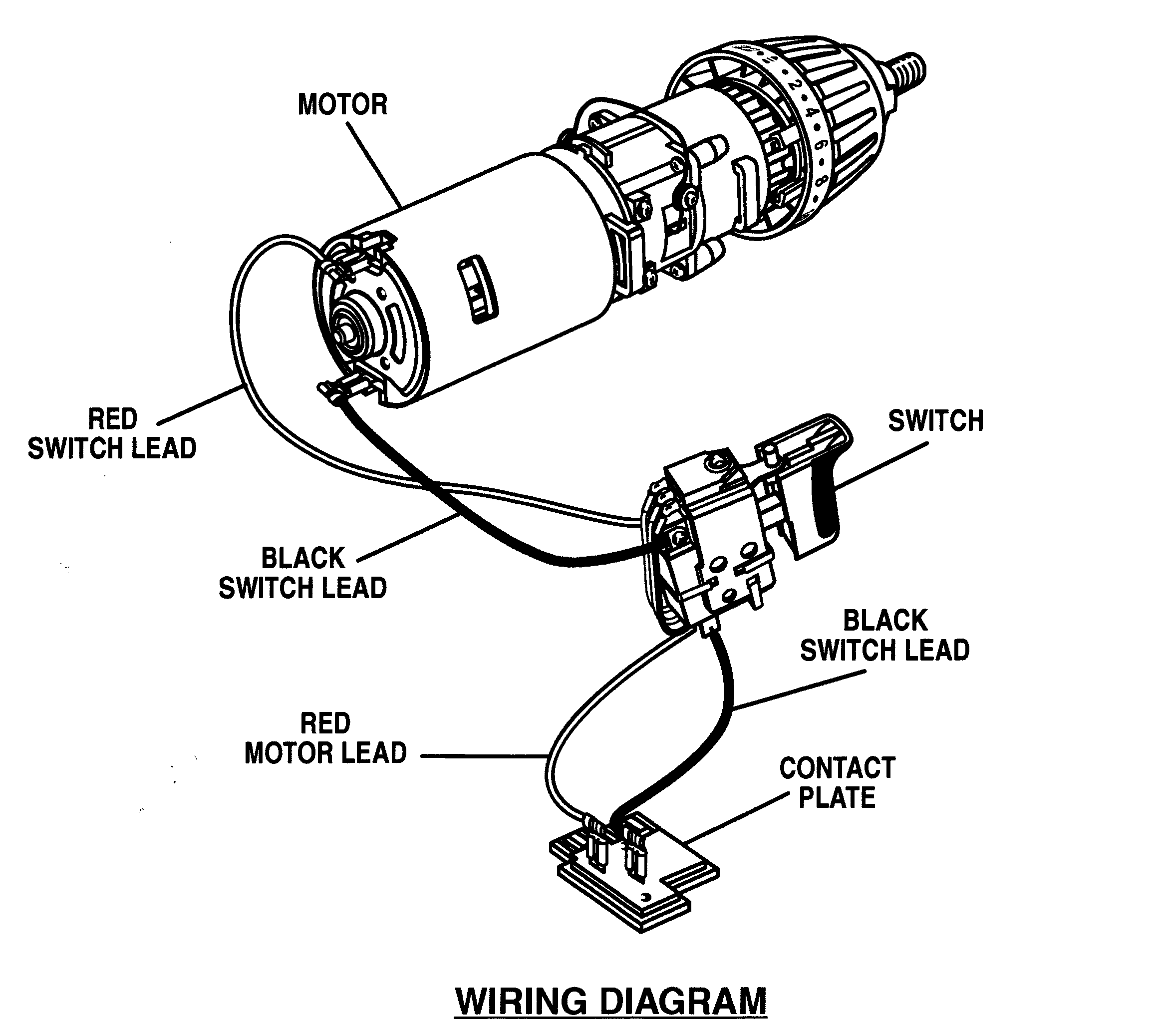

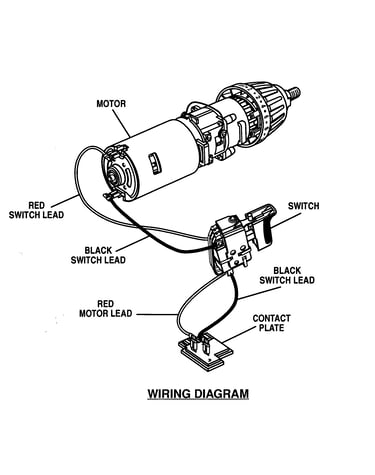

Here are the diagrams and repair parts for Official Craftsman 315269280 hammer drill, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for315269280 Power Tools

  • Sleeve 981929-001
    #4

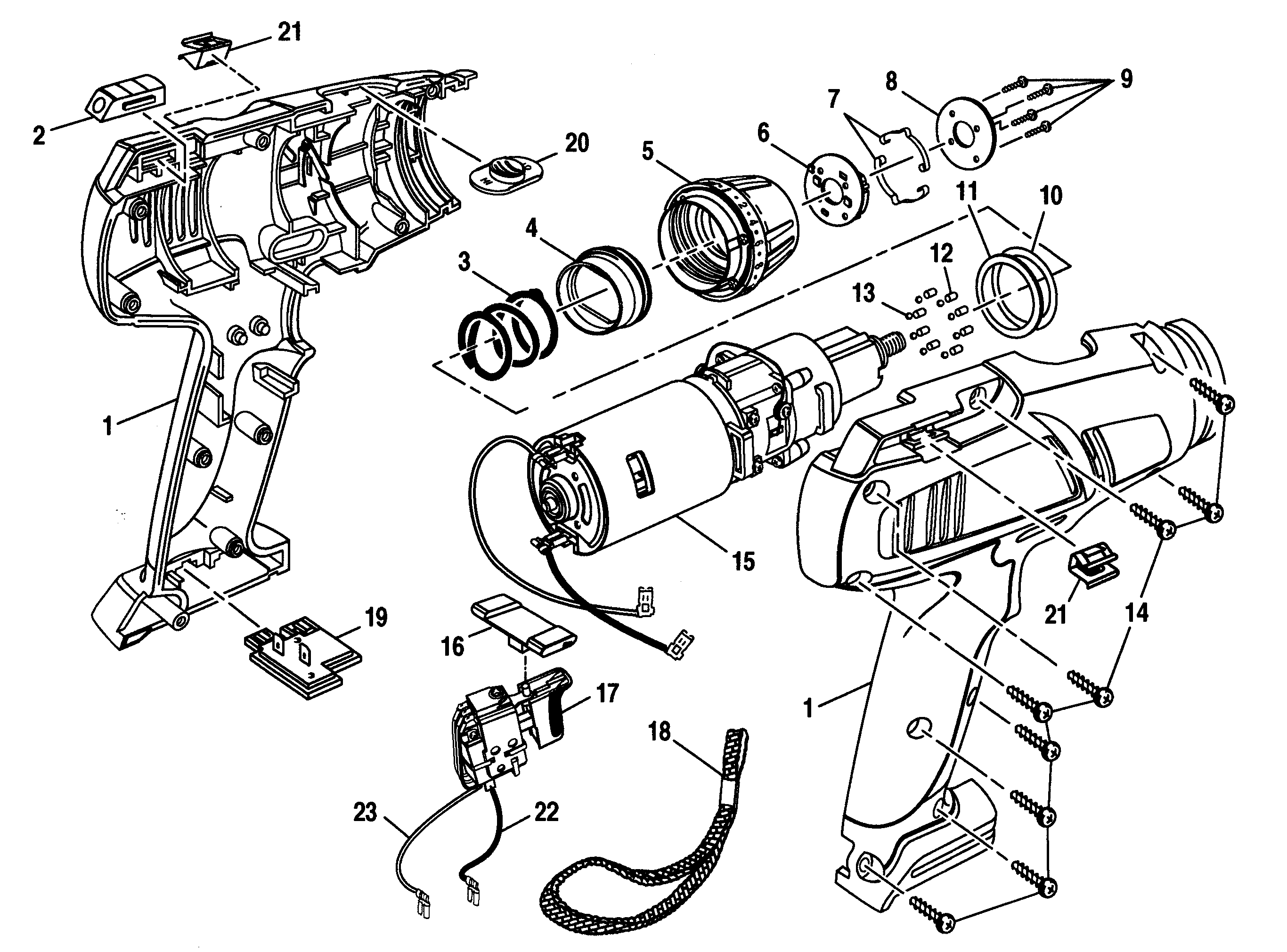

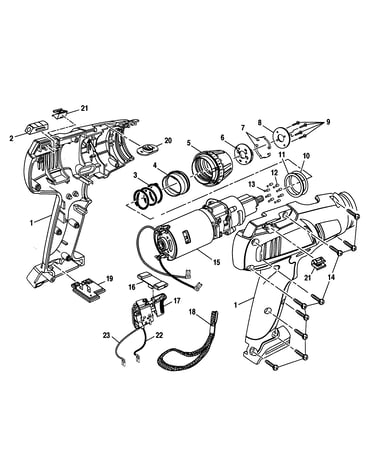

    Housing assy diagram

    Sleeve

    Part #981929-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Actuator 981941-001
    #16

    Housing assy diagram

    Actuator

    Part #981941-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor 981968-001
    #15

    Housing assy diagram

    Motor

    Part #981968-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Holder 981925-001
    #6

    Housing assy diagram

    Holder

    Part #981925-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Pin 981932-001
    #12

    Housing assy diagram

    Pin

    Part #981932-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Plate 981923-001
    #7

    Housing assy diagram

    Plate

    Part #981923-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Rod 980199-000
    #6

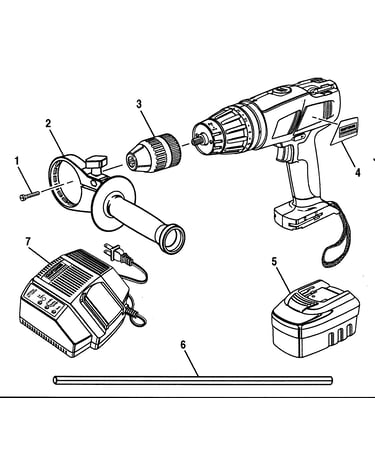

    Hammer drill diagram

    Rod

    Part #980199-000

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill/driver Gear Change Button 981746-001
    #20

    Housing assy diagram

    Drill/driver gear change button

    Part #981746-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Chuck, 1/2-in 975111-001
    #3

    Hammer drill diagram

    Chuck, 1/2-in

    Part #975111-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 981901-001
    #14

    Housing assy diagram

    Screw

    Part #981901-001

    The manufacturer no longer makes this part, and there's no substitute part
