Gas Walk-Behind Mower

Model # 247375590 Official Craftsman self-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 247375590 self-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

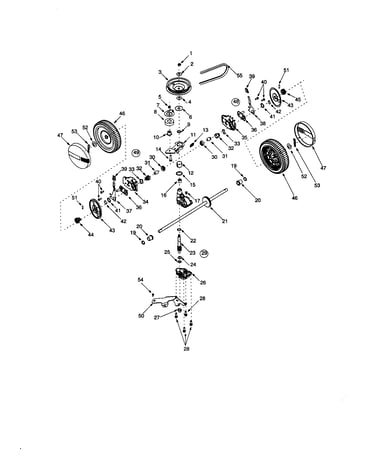

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Blade-21" Mu 742-0741
#41

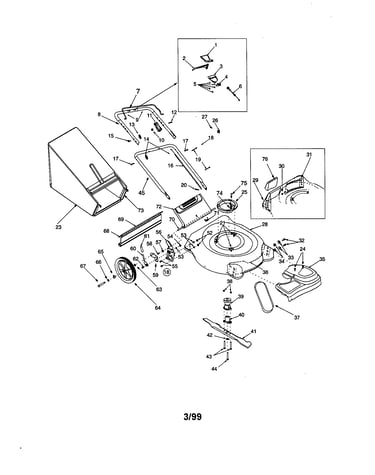

Main frame diagram

Blade-21" mu

Part #742-0741

Replaced by #942-0741A

?
Manufacturer substitution
This part replaces 742-0741. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.71 |
18% OFF Phone Price : $33.71
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#58

Main frame diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Cable Tie 726-0240
#19

Main frame diagram

Cable tie

Part #726-0240

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 726-0240. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Aircap Lawn & Garden Equipment Hex Screw 710-0896
#55

Main frame diagram

Aircap lawn & garden equipment hex screw

Part #710-0896

This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Yard Machines Lawn & Garden Equipment Cupped Washer 736-0270
#57

Main frame diagram

Yard machines lawn & garden equipment cupped washer

Part #736-0270

This item is not returnable
$5.10 |
16% OFF Phone Price : $6.10
In Stock
Yard Machines Lawn Mower Throttle Control Housing 746-0883
#11

Main frame diagram

Yard machines lawn mower throttle control housing

Part #746-0883

This item is not returnable
$21.96 |
21% OFF Phone Price : $27.96
In Stock
Lawn Tractor Hex Nut 712-0271
#74

Main frame diagram

Lawn tractor hex nut

Part #712-0271

This item is not returnable
$6.66 |
13% OFF Phone Price : $7.66
In Stock
Yard Machines Lawn Tractor Screw 710-1007
#21

Main frame diagram

Yard machines lawn tractor screw

Part #710-1007

This item is not returnable
$9.03
In Stock
Lawn & Garden Equipment Screw 710-0606
#43

Main frame diagram

Lawn & garden equipment screw

Part #710-0606

This item is not returnable
$8.21 |
11% OFF Phone Price : $9.21
In Stock
Drive Cable 746-0960
#6

Main frame diagram

Drive cable

Part #746-0960

Replaced by #946-0960

?
Manufacturer substitution
This part replaces 746-0960. Substitute parts can look different from the original.
$59.84 |
9% OFF Phone Price : $65.84
In Stock
