Model # GSD3360R15SS Official GE dishwasher
Here are the diagrams and repair parts for Official GE GSD3360R15SS dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forGSD3360R15SS Dishwasher
- #701

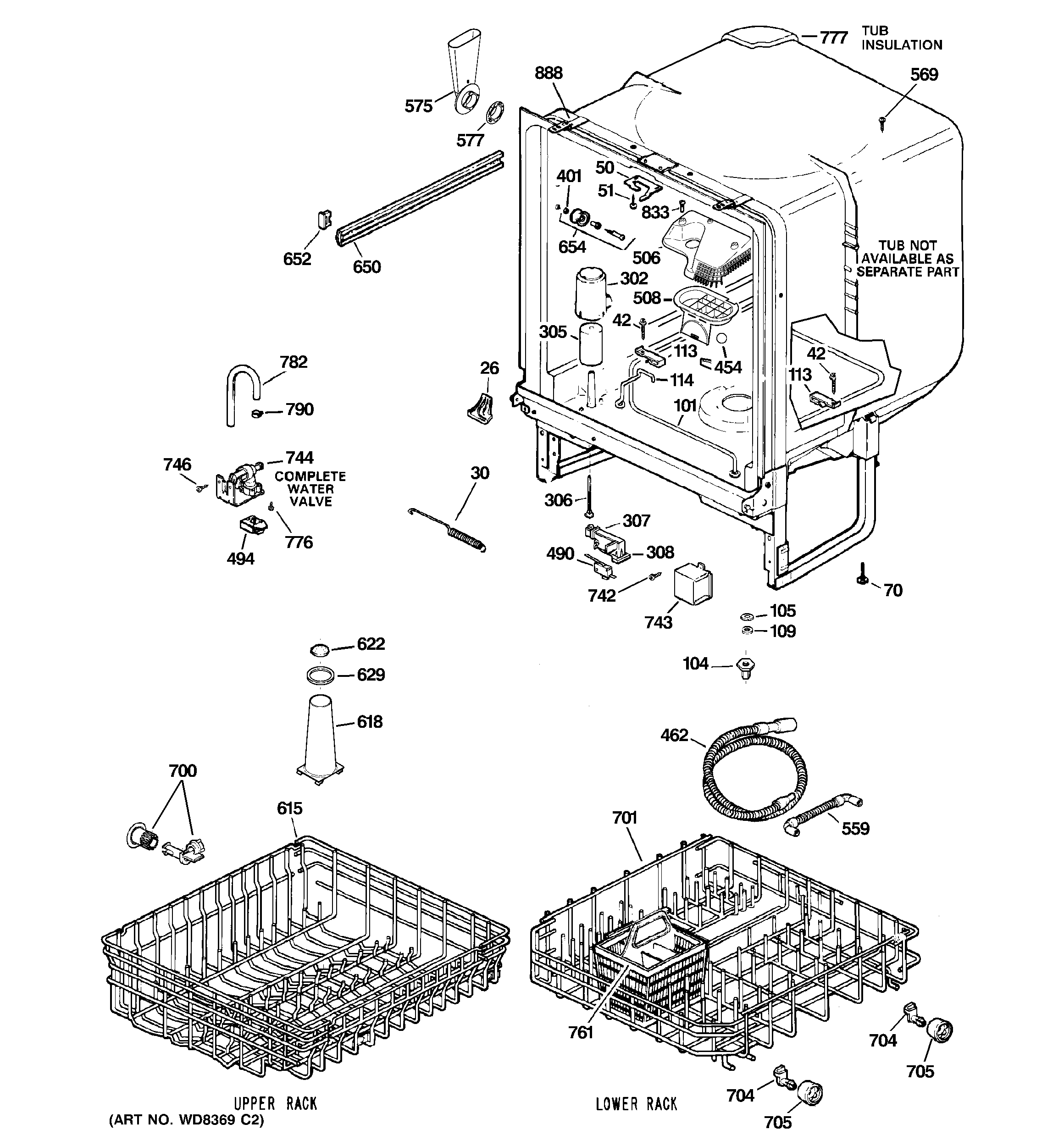

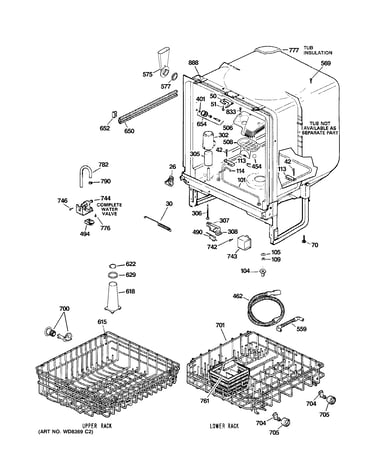

Body parts diagram
Rack asm finPart #WD28X10213
Replaced by #WD28X31819
?Manufacturer substitutionThis part replaces WD28X10213. Substitute parts can look different from the original.$144.15 |8% OFF Phone Price : $156.15In Stock - #493

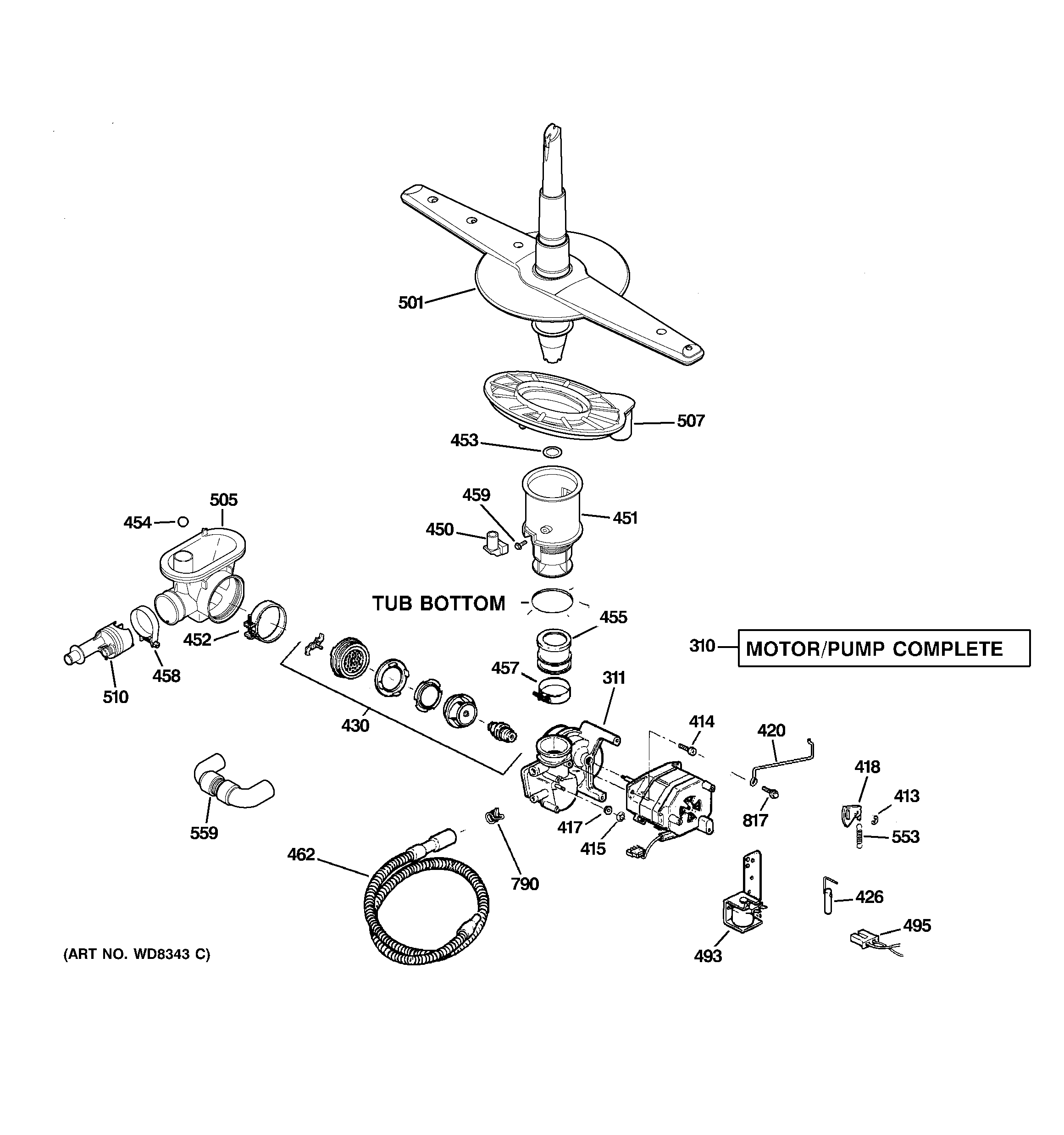

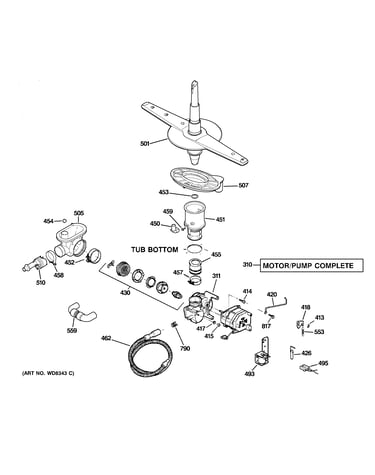

Motor-pump mechanism diagram
G.e. dishwasher drain solenoid assemblyPart #WD21X10268
$39.57 |13% OFF Phone Price : $45.57In Stock - #615
Body parts diagram
Dishwasher rackPart #WD28X10220
Replaced by #WD28X31820
?Manufacturer substitutionThis part replaces WD28X10220. Substitute parts can look different from the original.$128.43 |9% OFF Phone Price : $140.43In Stock - #26
Body parts diagram
Bafle tubcnrPart #WD08X0227
Replaced by #WD8X227
?Manufacturer substitutionThis part replaces WD08X0227. Substitute parts can look different from the original.$21.18 |22% OFF Phone Price : $27.18In Stock - #26
Body parts diagram
Bafle tubcnPart #WD08X0228
Replaced by #WD8X228
?Manufacturer substitutionThis part replaces WD08X0228. Substitute parts can look different from the original.$20.11 |23% OFF Phone Price : $26.11In Stock - #426
Motor-pump mechanism diagram
Armature&lnkPart #WD01X1316
Replaced by #WD1X1316
?Manufacturer substitutionThis part replaces WD01X1316. Substitute parts can look different from the original.$34.60 |15% OFF Phone Price : $40.60In Stock - #744
Body parts diagram
Water valvePart #WD15X10011
Replaced by #WD15X10014
?Manufacturer substitutionThis part replaces WD15X10011. Substitute parts can look different from the original.$37.64 |14% OFF Phone Price : $43.64In Stock - #829

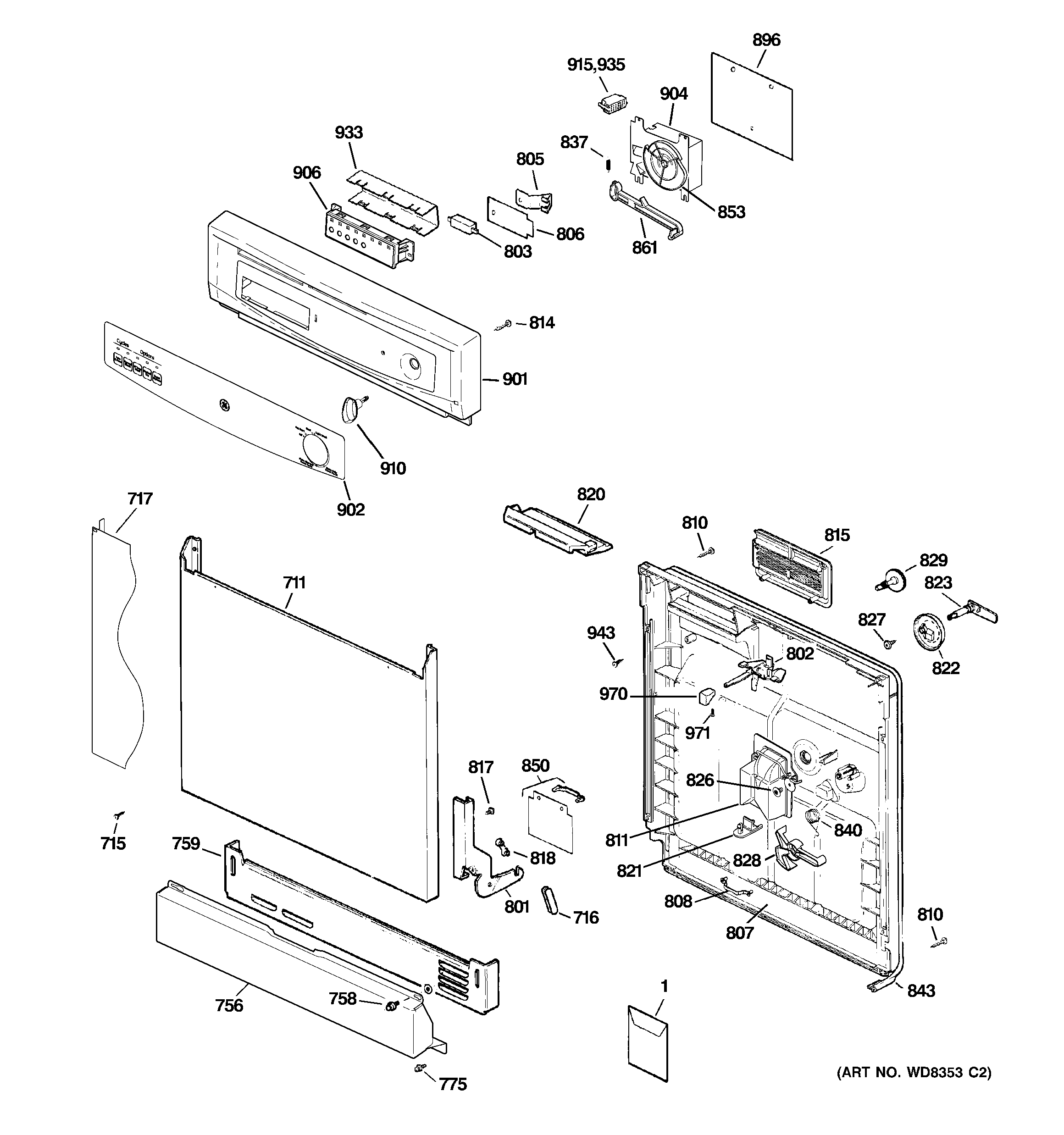

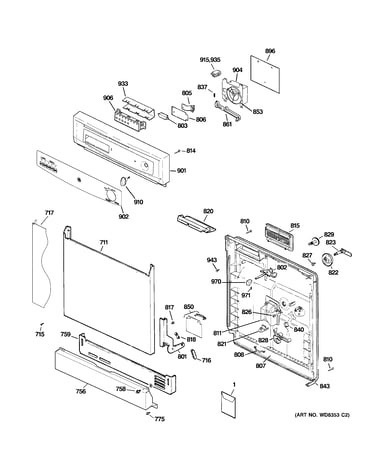

Escutcheon & door assembly diagram
Dishwasher rinse-aid dispenser capPart #WD12X10284
Replaced by #WD12X24238
?Manufacturer substitutionThis part replaces WD12X10284. Substitute parts can look different from the original.This item is not returnable$8.04 |11% OFF Phone Price : $9.04In Stock - #843
Escutcheon & door assembly diagram
Dishwasher door sealPart #WD08X10057
$99.78 |11% OFF Phone Price : $111.78In Stock - #430
Motor-pump mechanism diagram
Dishwasher pump impeller kitPart #WD19X10038
$52.52 |10% OFF Phone Price : $58.52In Stock
