Model # JGCP436WP00 Official Jenn-Air 36" professional cooktop (stainless)

Here are the diagrams and repair parts for Official Jenn-Air JGCP436WP00 36" professional cooktop (stainless), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Burner Grate W10145532
#5

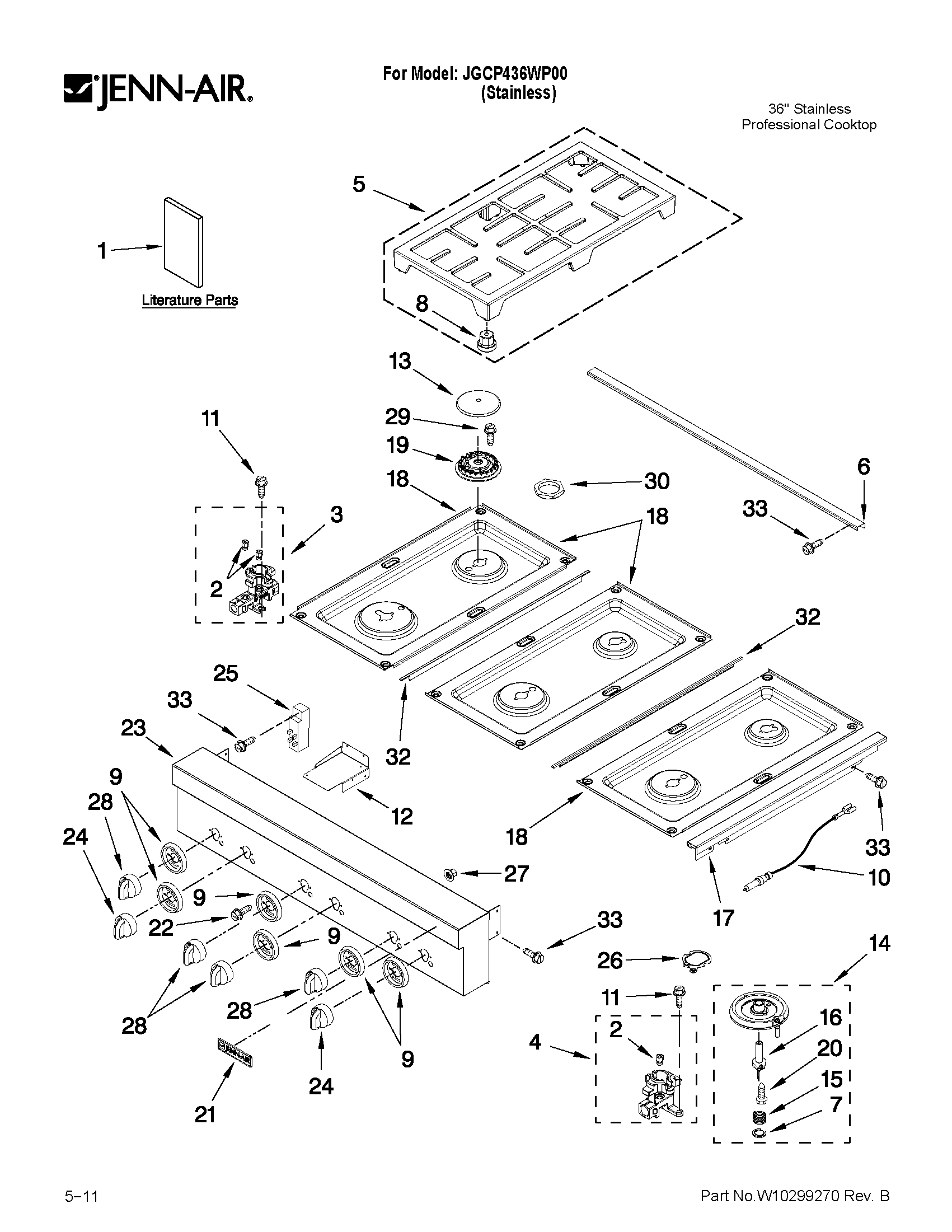

Cooktop, burner and grate parts diagram

Burner grate

Part #W10145532

Replaced by #W11344501

?
Manufacturer substitution
This part replaces W10145532. Substitute parts can look different from the original.
$86.57 |
6% OFF Phone Price : $92.57
In Stock
Grate Pad 8286695
#8

Cooktop, burner and grate parts diagram

Grate pad

Part #8286695

Replaced by #W10185266

?
Manufacturer substitution
This part replaces 8286695. Substitute parts can look different from the original.
This item is not returnable
$8.63 |
10% OFF Phone Price : $9.63
In Stock
Burner Valve W10284547
#8

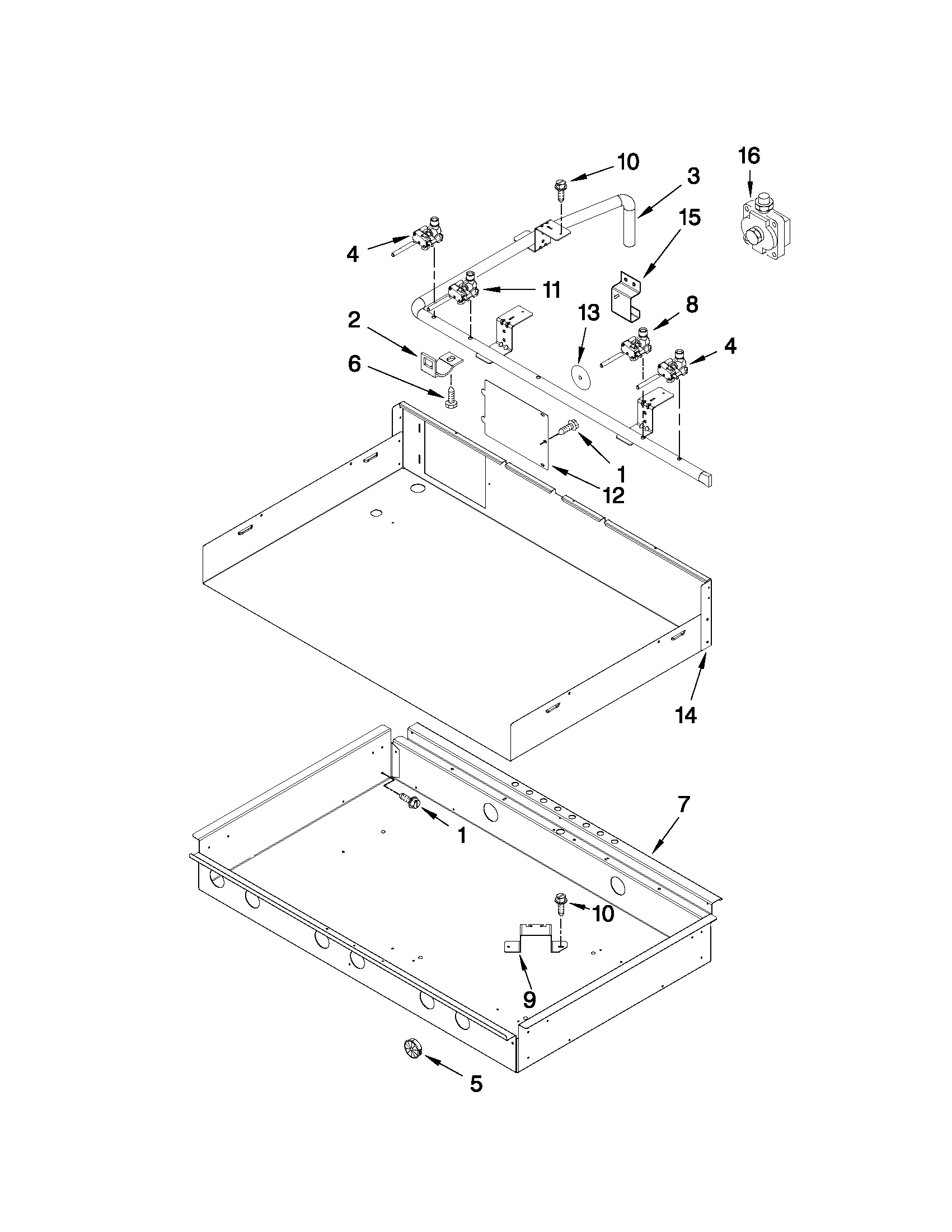

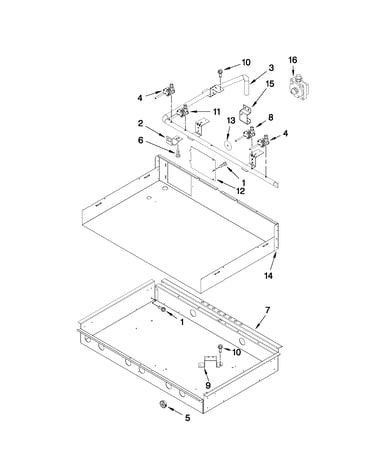

Burner box, gas valves, and switches diagram

Burner valve

Part #W10284547

Replaced by #WPW10385583

?
Manufacturer substitution
This part replaces W10284547. Substitute parts can look different from the original.
$156.24 |
7% OFF Phone Price : $168.24
In Stock
Wire Tie 4454842
#NI

Optional parts diagram

Wire tie

Part #4454842

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 4454842. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Module 7431P039-60
#25

Cooktop, burner and grate parts diagram

Module

Part #7431P039-60

Replaced by #WP71002749

?
Manufacturer substitution
This part replaces 7431P039-60. Substitute parts can look different from the original.
$176.69 |
6% OFF Phone Price : $188.69
In Stock
Burner W10250405
#14A

Cooktop, burner and grate parts diagram

Burner

Part #W10250405

Replaced by #WPW10320937

?
Manufacturer substitution
This part replaces W10250405. Substitute parts can look different from the original.
$72.49 |
8% OFF Phone Price : $78.49
In Stock
Screw 74003976
#22

Cooktop, burner and grate parts diagram

Screw

Part #74003976

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 74003976. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Surface Igniter W10250406
#16

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10250406

Replaced by #WPW10250406

?
Manufacturer substitution
This part replaces W10250406. Substitute parts can look different from the original.
$26.20 |
19% OFF Phone Price : $32.20
In Stock
Cooktop Holder Orifice W10282659
#4A

Cooktop, burner and grate parts diagram

Cooktop holder orifice

Part #W10282659

$23.11
In Stock
Palnut 7103P166-60
#27

Cooktop, burner and grate parts diagram

Palnut

Part #7103P166-60

$11.01
In Stock
