Samsung
Bottom-Mount Refrigerator

Model # RF265BEAESR/AA-01 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF265BEAESR-AA-01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 296 parts  |
Refrigerator Ice Maker Assembly DA97-15217A
#5

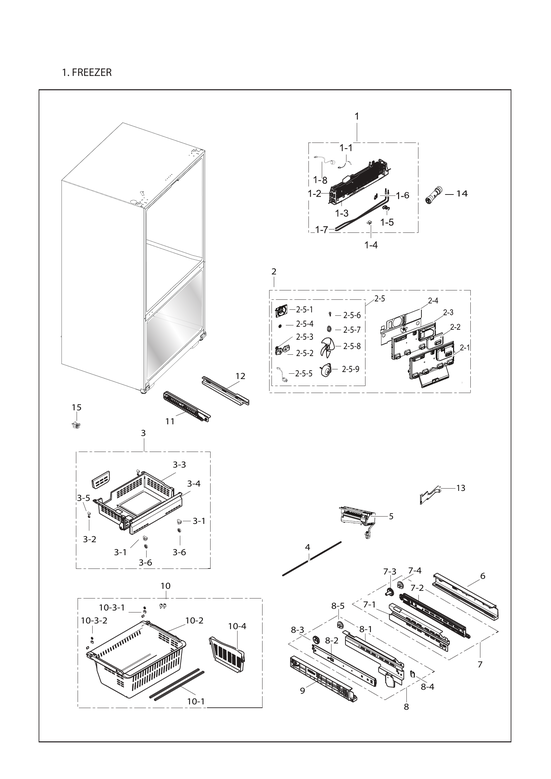

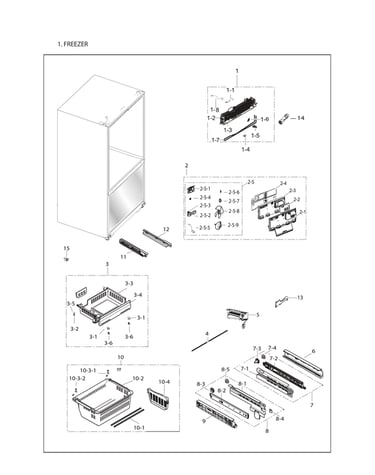

Freezer parts diagram

Refrigerator ice maker assembly

Part #DA97-15217A

Replaced by #DA97-15217D

?
Manufacturer substitution
This part replaces DA97-15217A. Substitute parts can look different from the original.
BEST SELLER
$103.20 |
10% OFF Phone Price : $115.20
In Stock
Refrigerator Auger Motor Assembly (replaces Da97-12540a) DA97-12540G
#21

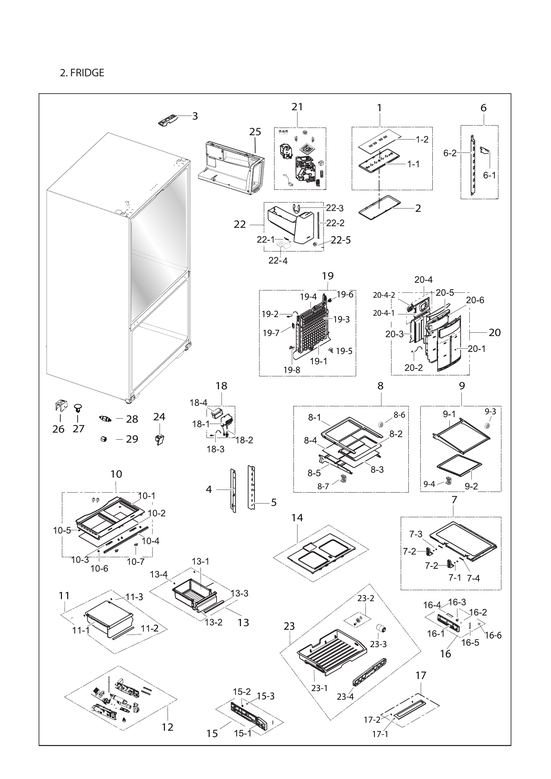

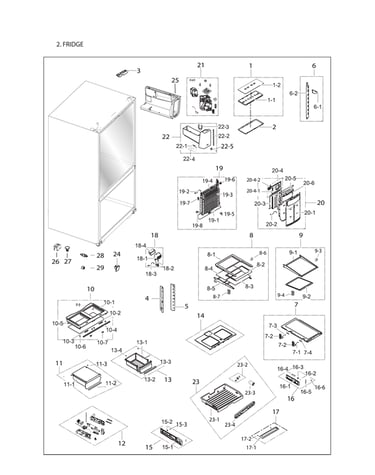

Refrigerator parts diagram

Refrigerator auger motor assembly (replaces da97-12540a)

Part #DA97-12540G

BEST SELLER
$232.17 |
8% OFF Was : $252.36
In Stock
Refrigerator Ice Container Assembly DA97-12604D
#22

Refrigerator parts diagram

Refrigerator ice container assembly

Part #DA97-12604D

Replaced by #DA97-14474C

?
Manufacturer substitution
This part replaces DA97-12604D. Substitute parts can look different from the original.
BEST SELLER
$162.88 |
7% OFF Phone Price : $174.88
In Stock
Refrigerator Evaporator Fan Assembly DA97-12609A
#20

Refrigerator parts diagram

Refrigerator evaporator fan assembly

Part #DA97-12609A

Replaced by #DA97-12609C

?
Manufacturer substitution
This part replaces DA97-12609A. Substitute parts can look different from the original.
BEST SELLER
$228.37 |
5% OFF Phone Price : $240.37
In Stock
Refrigerator Protector DA47-00243B
#1-8

Freezer parts diagram

Refrigerator protector

Part #DA47-00243B

Replaced by #DA47-00243K

?
Manufacturer substitution
This part replaces DA47-00243B. Substitute parts can look different from the original.
BEST SELLER
$42.63 |
12% OFF Phone Price : $48.63
In Stock
Refrigerator Dispenser Ice Chute Cap And Gasket Assembly DA97-12594A
#9

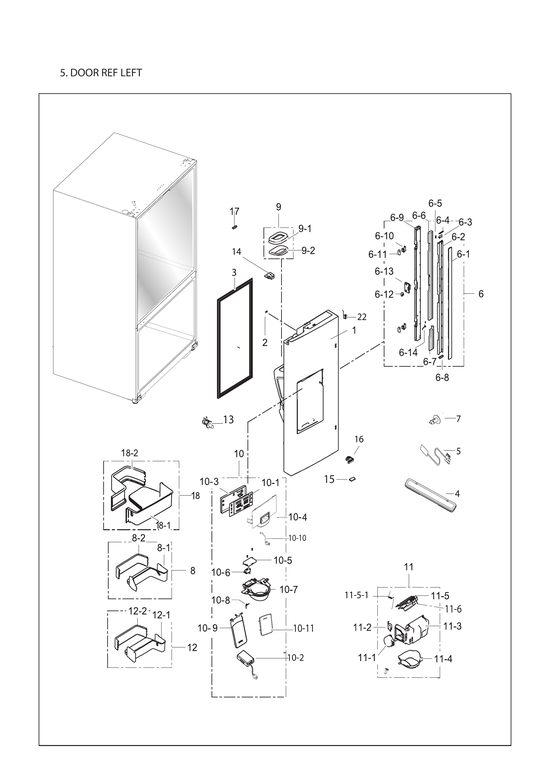

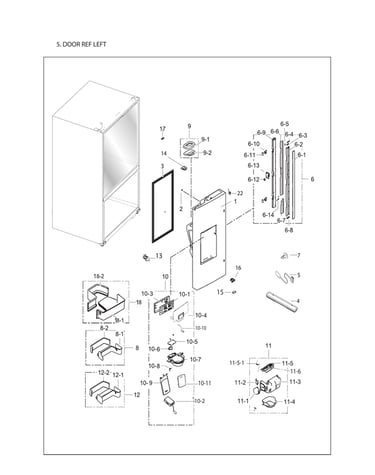

Left refrigerator door parts diagram

Refrigerator dispenser ice chute cap and gasket assembly

Part #DA97-12594A

BEST SELLER
$48.04 |
11% OFF Phone Price : $54.04
Back Order
Refrigerator Condenser Fan Motor Assembly DA97-15765C
#9-3

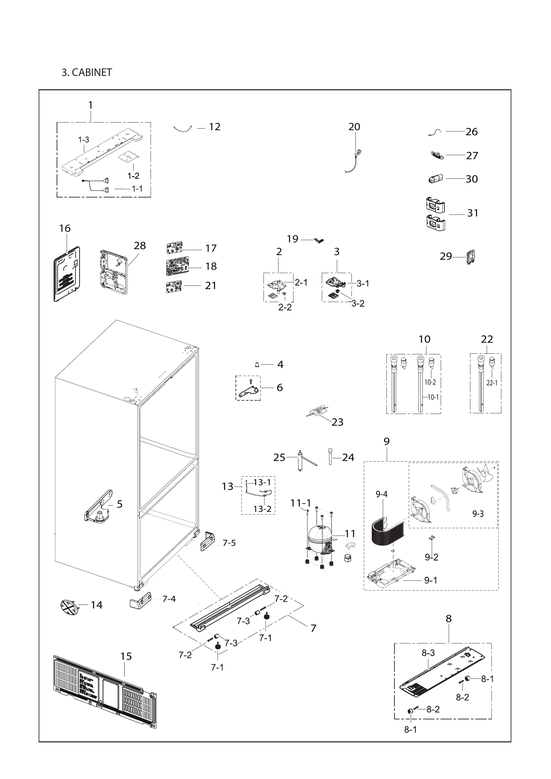

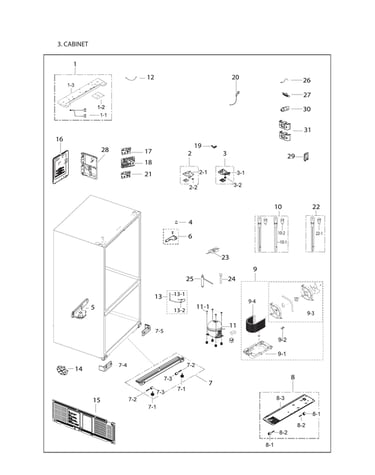

Cabinet parts diagram

Refrigerator condenser fan motor assembly

Part #DA97-15765C

BEST SELLER
$138.94 |
8% OFF Phone Price : $150.94
In Stock
Refrigerator Compressor (replaces Msv172al2j/sm1) MSV172AL2J/SM3
#11

Cabinet parts diagram

Refrigerator compressor (replaces msv172al2j/sm1)

Part #MSV172AL2J/SM3

BEST SELLER
$225.77 |
5% OFF Phone Price : $237.77
In Stock
Refrigerator Condenser Coil And Fan Motor Assembly DA97-15978A
#9

Cabinet parts diagram

Refrigerator condenser coil and fan motor assembly

Part #DA97-15978A

Replaced by #DA97-15978B

?
Manufacturer substitution
This part replaces DA97-15978A. Substitute parts can look different from the original.
BEST SELLER
$153.34 |
7% OFF Phone Price : $165.34
In Stock
Refrigerator Evaporator Cover DA97-12617A
#2

Freezer parts diagram

Refrigerator evaporator cover

Part #DA97-12617A

BEST SELLER
$176.14 |
6% OFF Phone Price : $188.14
Back Order
