Kenmore
Canister Vacuum

Model # 1162299281 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162299281 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Muskin Lock 742802
#7

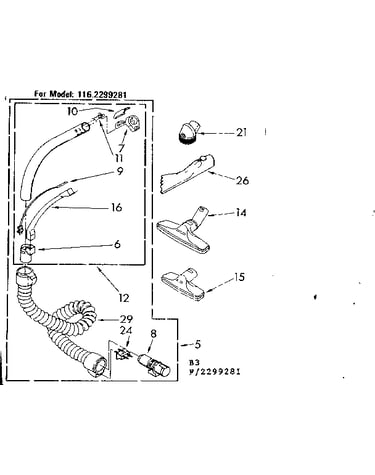

Attachment parts diagram

Muskin lock

Part #742802

The manufacturer no longer makes this part, and there's no substitute part

Handle 742907
#12

Attachment parts diagram

Handle

Part #742907

The manufacturer no longer makes this part, and there's no substitute part

Fan 588708
#20

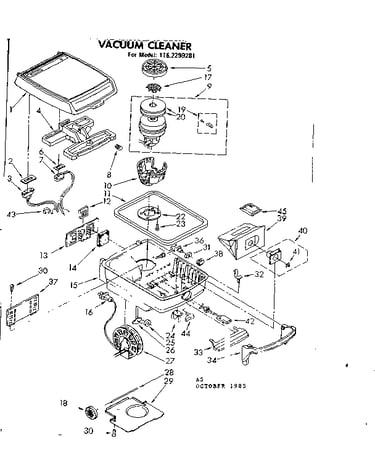

Base assembly diagram

Fan

Part #588708

The manufacturer no longer makes this part, and there's no substitute part

Catch 764182
#38

Base assembly diagram

Catch

Part #764182

The manufacturer no longer makes this part, and there's no substitute part

Support 706040
#37

Base assembly diagram

Support

Part #706040

The manufacturer no longer makes this part, and there's no substitute part

Axle 764284
#28

Base assembly diagram

Axle

Part #764284

The manufacturer no longer makes this part, and there's no substitute part

Cover 742781
#16

Attachment parts diagram

Cover

Part #742781

The manufacturer no longer makes this part, and there's no substitute part

Hood 706573
#1

Base assembly diagram

Hood

Part #706573

The manufacturer no longer makes this part, and there's no substitute part

Indicator 764267
#3

Base assembly diagram

Indicator

Part #764267

The manufacturer no longer makes this part, and there's no substitute part

Nut 596564
#8

Base assembly diagram

Nut

Part #596564

The manufacturer no longer makes this part, and there's no substitute part
