Model # 155850230 Official Kenmore vented gas heater

Here are the diagrams and repair parts for Official Kenmore 155850230 vented gas heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Thermocouple K13730
#22

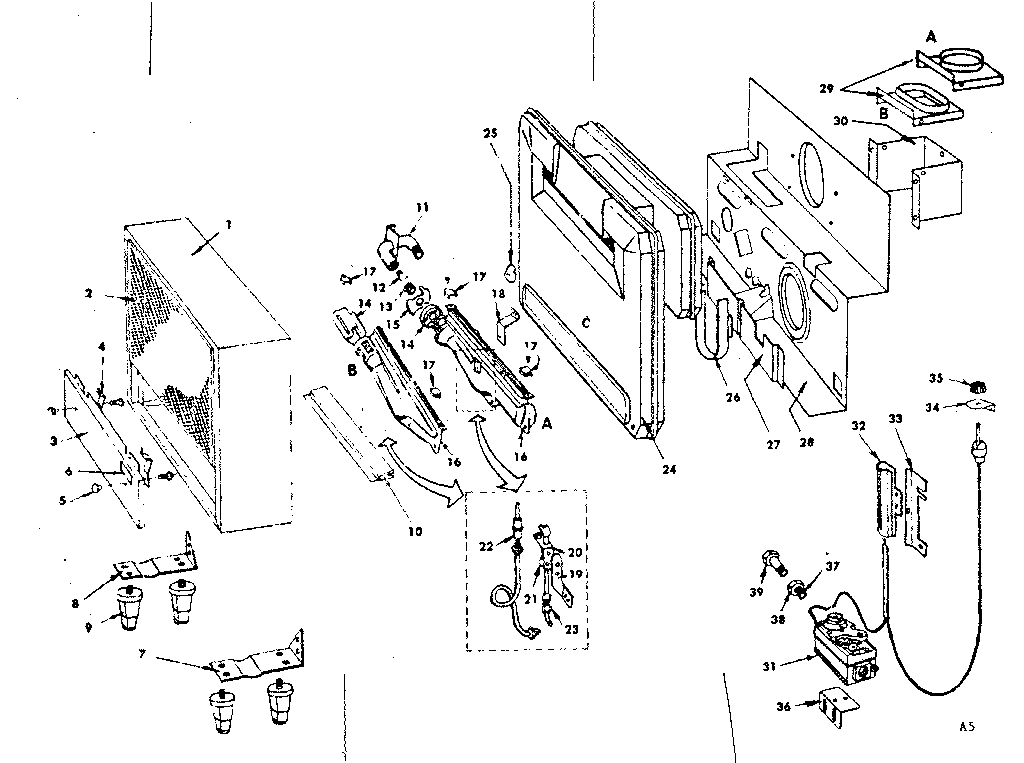

Replacement parts diagram

Thermocouple

Part #K13730

The manufacturer no longer makes this part, and there's no substitute part

U Speednut K1850

#NI

All parts diagram

U speednut

Part #K1850

The manufacturer no longer makes this part, and there's no substitute part

Space Heater Blower Wheel K10900
#12

Optional forced air blower 42-70016 diagram

Space heater blower wheel

Part #K10900

The manufacturer no longer makes this part, and there's no substitute part

Control Valve K13722
#31A

Replacement parts diagram

Control valve

Part #K13722

The manufacturer no longer makes this part, and there's no substitute part

Control Valve K13853
#31B

Replacement parts diagram

Control valve

Part #K13853

The manufacturer no longer makes this part, and there's no substitute part

Natural Gas Pilot K13726
#20

Replacement parts diagram

Natural gas pilot

Part #K13726

The manufacturer no longer makes this part, and there's no substitute part

Cord K9541
#17

Optional forced air blower 42-70016 diagram

Cord

Part #K9541

The manufacturer no longer makes this part, and there's no substitute part

Pilot Orifice K13784
#21B

Replacement parts diagram

Pilot orifice

Part #K13784

The manufacturer no longer makes this part, and there's no substitute part

Cabinet T15952
#28A

Replacement parts diagram

Cabinet

Part #T15952

The manufacturer no longer makes this part, and there's no substitute part

Bracket Y11719
#18

Replacement parts diagram

Bracket

Part #Y11719

The manufacturer no longer makes this part, and there's no substitute part
