Tappan
Wall Oven/Microwave Combo

Model # 57-2709-00-07 Official Tappan wall oven - 5995238630

Here are the diagrams and repair parts for Official Tappan 57-2709-00-07 wall oven - 5995238630, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

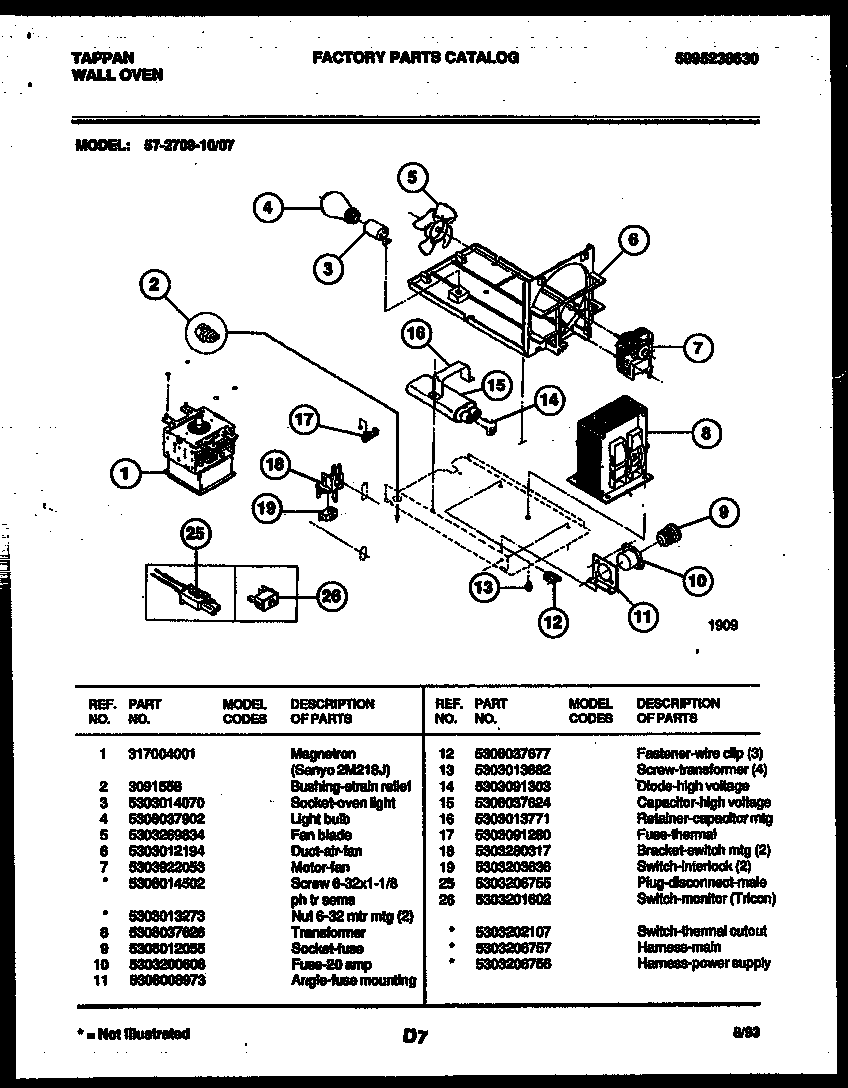

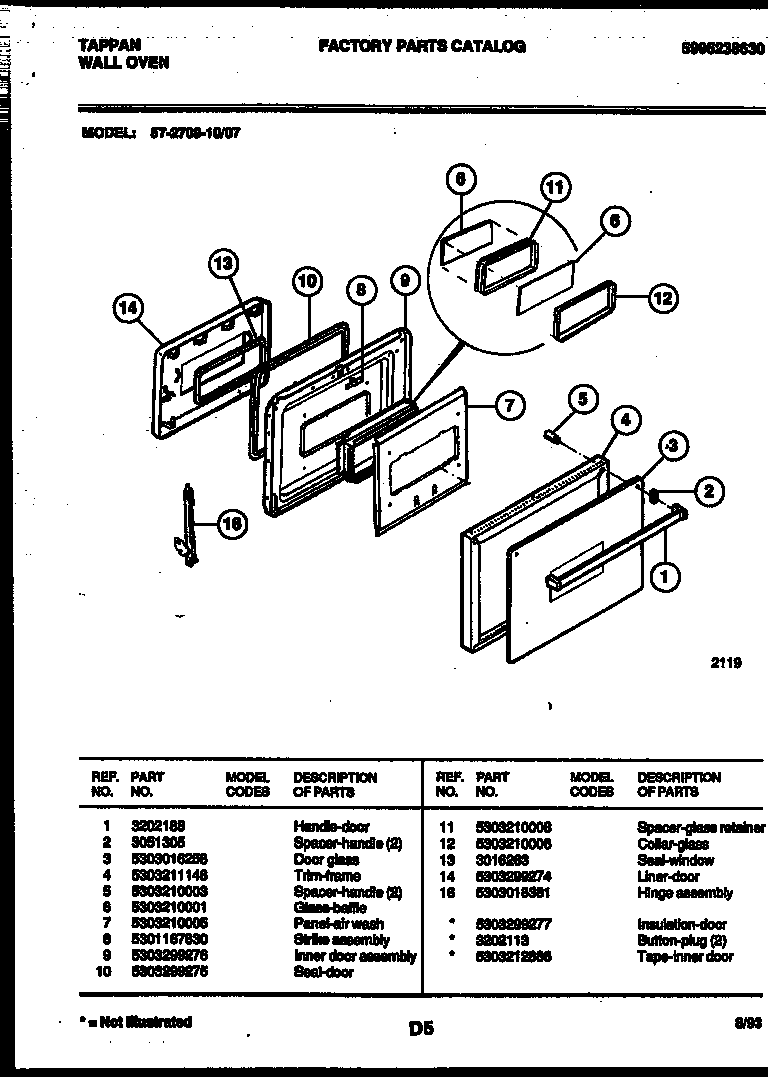

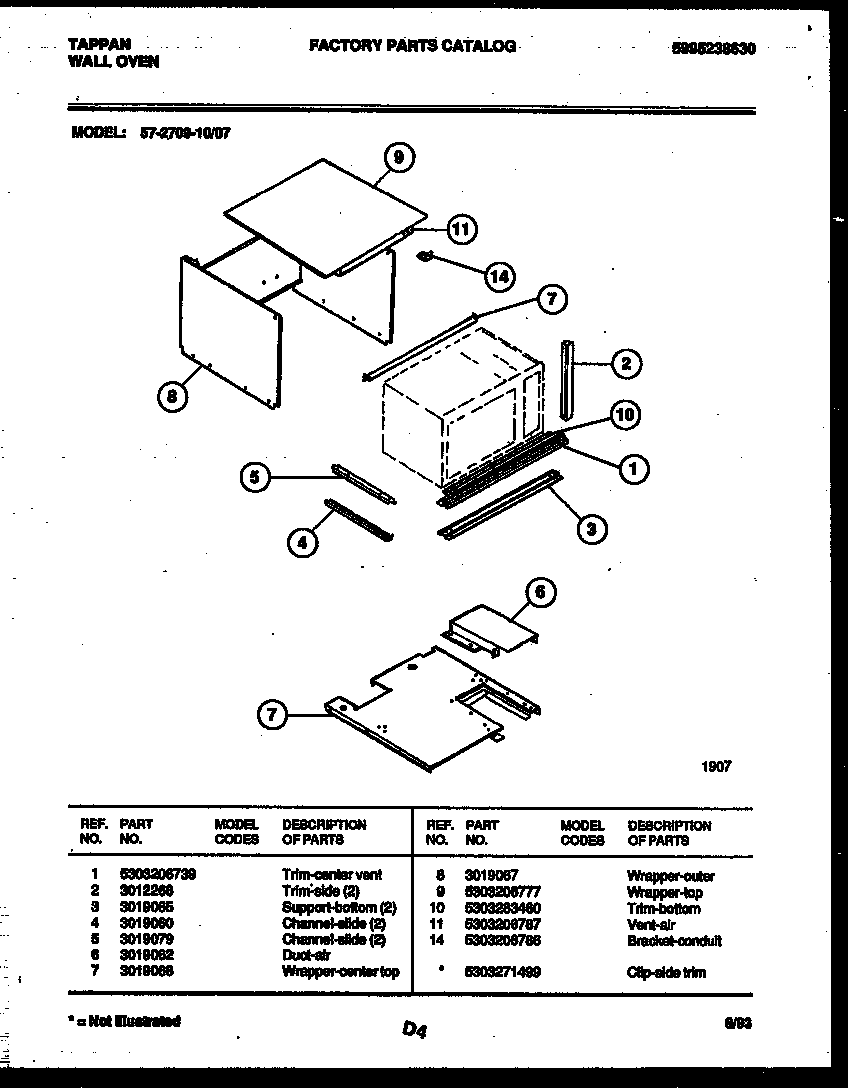

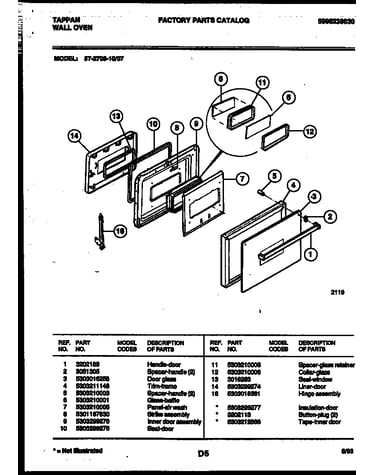

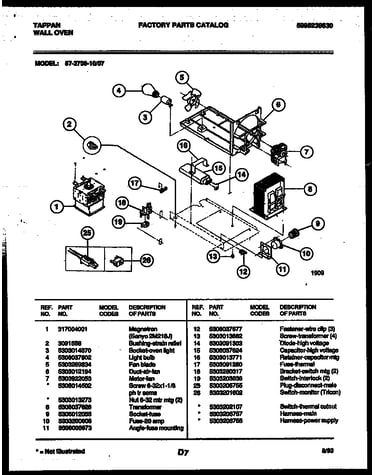

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |

Bulb 3201908
#4

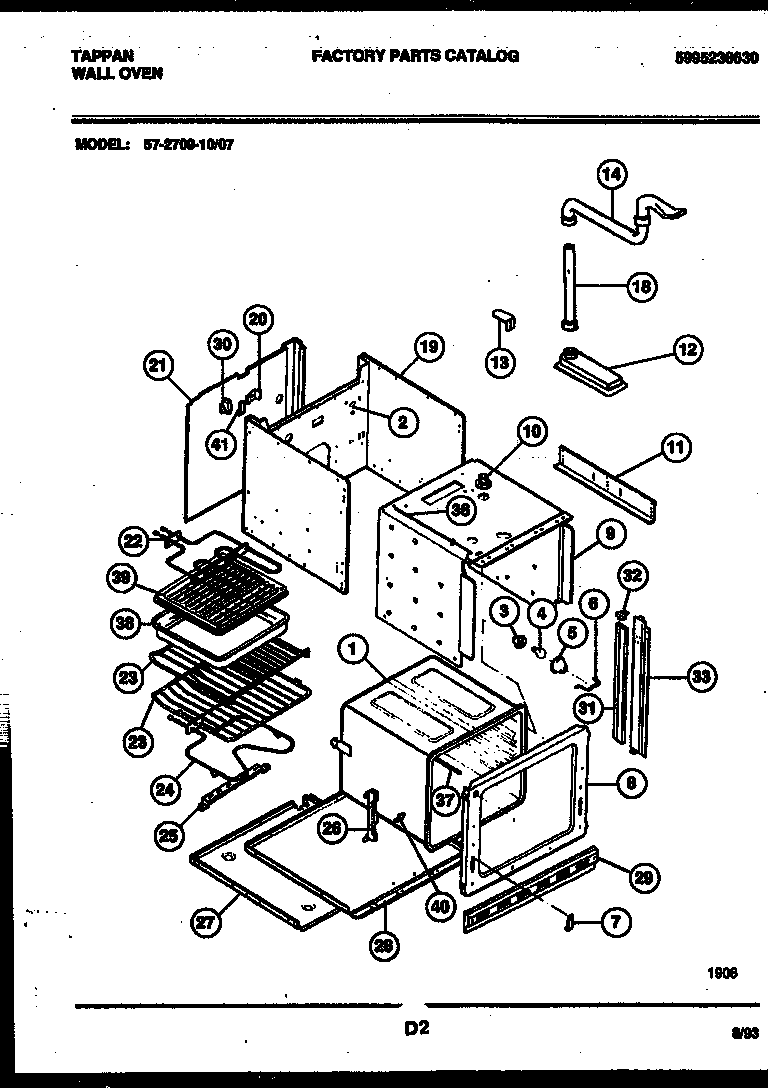

Lower body parts diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$14.76
12% OFF Phone Price : $16.76
In Stock
Block 5306563359
#9

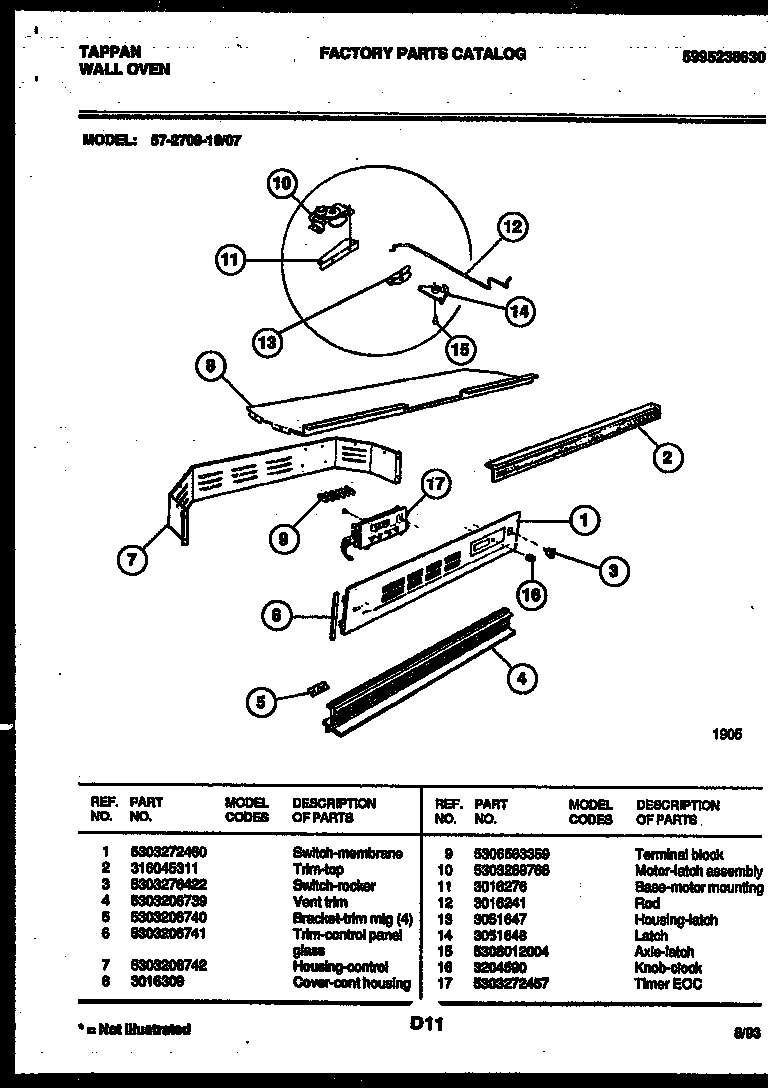

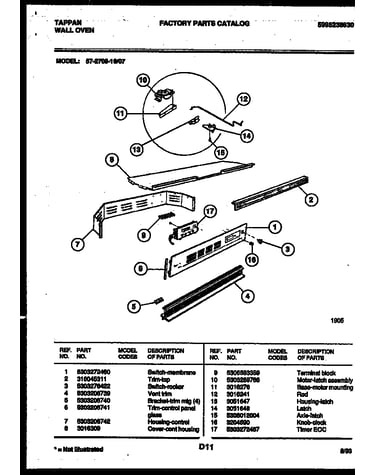

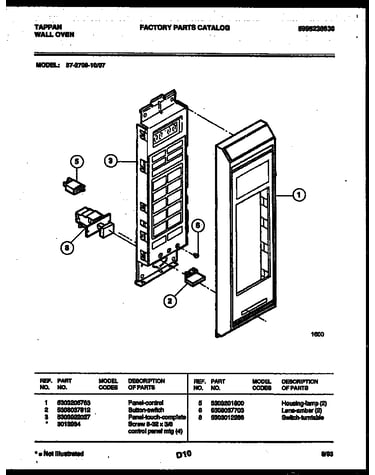

Control panel diagram

Block

Part #5306563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
BEST SELLER
$9.64
9% OFF Phone Price : $10.64
In Stock
Element 3202440
#24

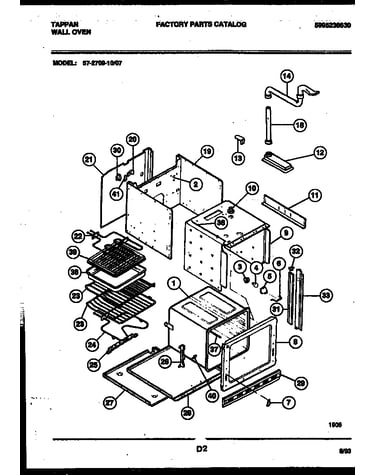

Lower body parts diagram

Element

Part #3202440

Replaced by #318255101

?
Manufacturer substitution
This part replaces 3202440. Substitute parts can look different from the original.
BEST SELLER
$136.96
8% OFF Phone Price : $148.96
In Stock
Insert Broil 3205234
#39

Lower body parts diagram

Insert broil

Part #3205234

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 3205234. Substitute parts can look different from the original.
$59.77
9% OFF Phone Price : $65.77
In Stock
Gibson Wall Oven Control Panel Assembly 5303206763
#1

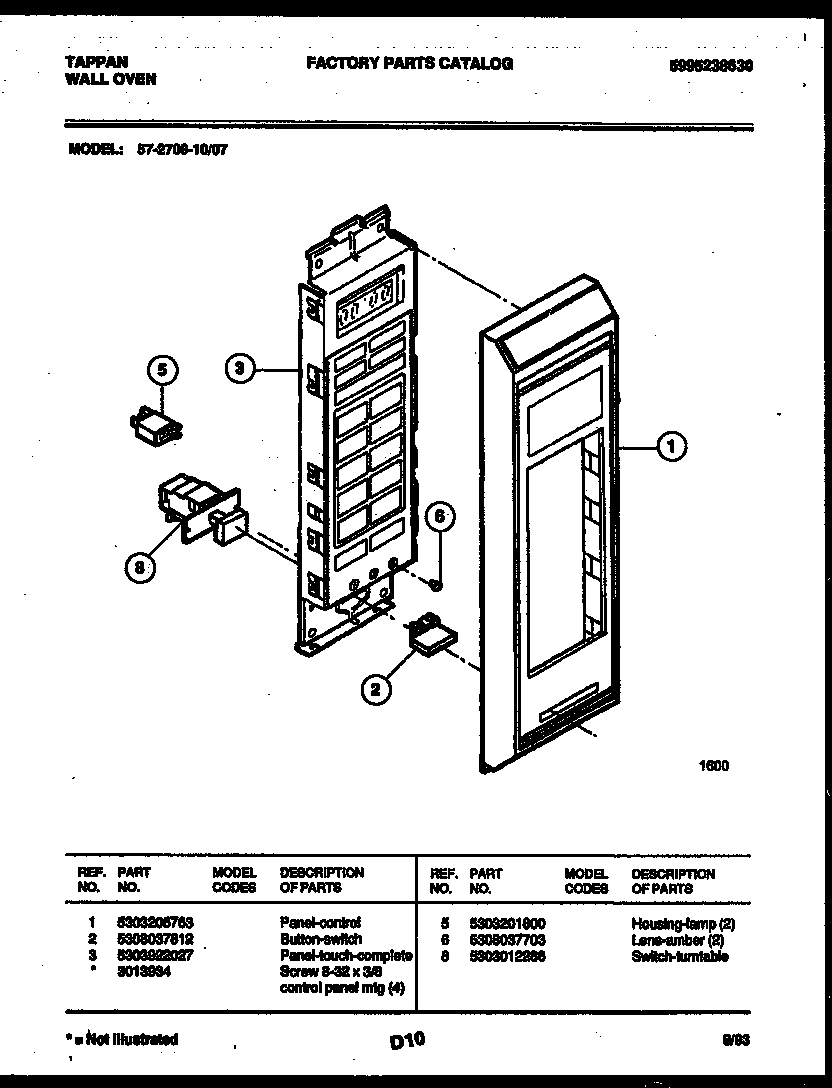

Control panel diagram

Gibson wall oven control panel assembly

Part #5303206763

In Stock
Gibson Motor 5303206759
#35

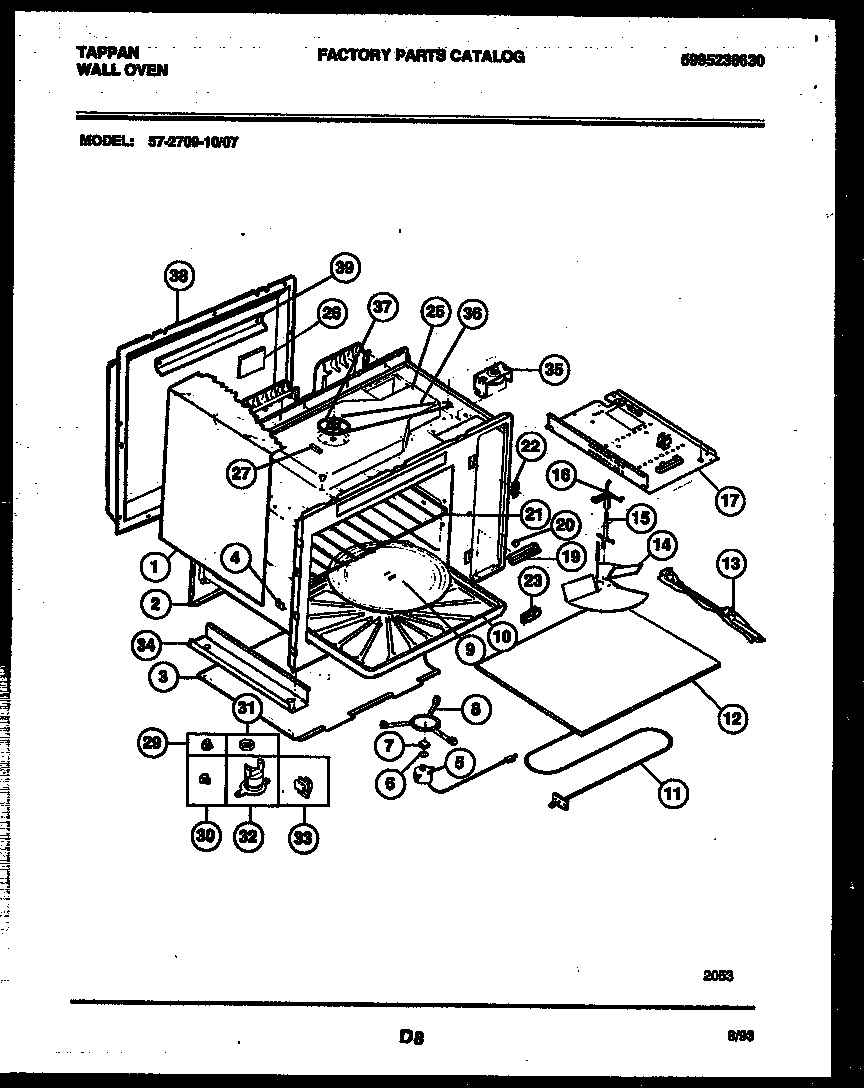

Wrapper and body parts diagram

Gibson motor

Part #5303206759

In Stock
Gibson Trim 3019049
#31

Lower body parts diagram

Gibson trim

Part #3019049

In Stock
Duct 3016324
#12

Lower body parts diagram

Duct

Part #3016324

In Stock
Shield 5303203692
#38

Wrapper and body parts diagram

Shield

Part #5303203692

In Stock
Screw 5308008925
#3

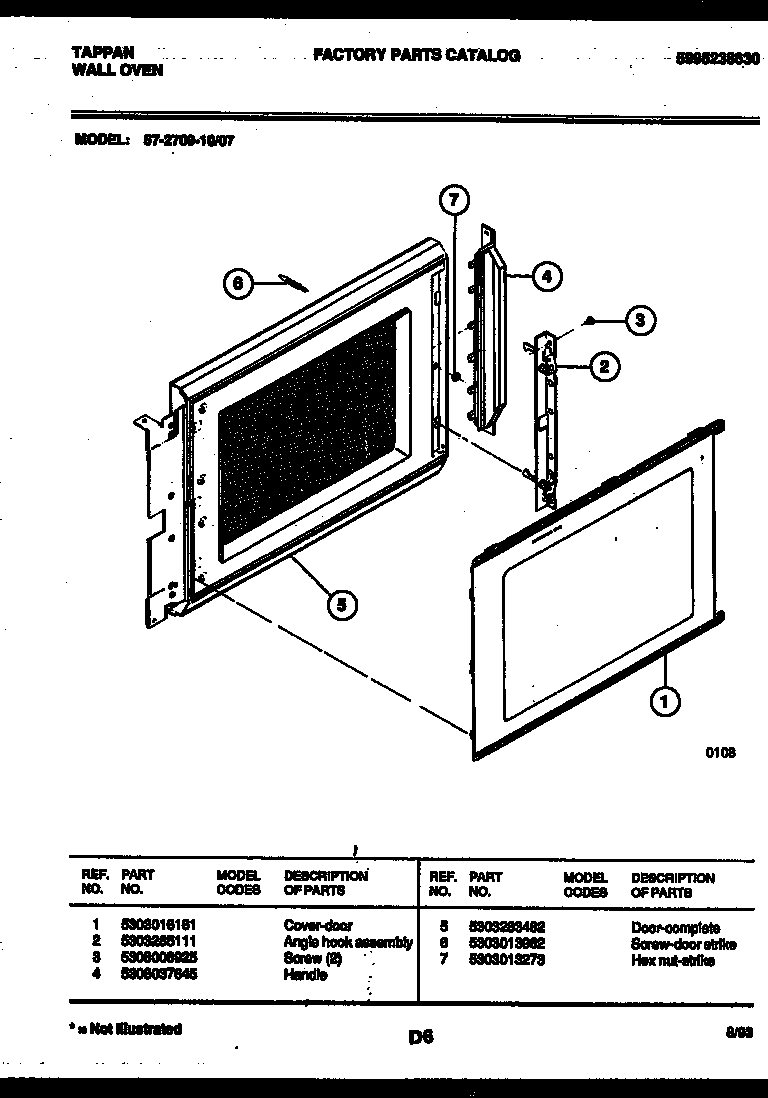

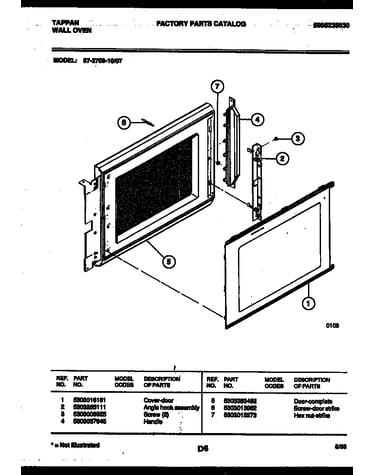

Upper oven door parts diagram

Screw

Part #5308008925

This item is not returnable
In Stock
