Haban
Gas Snowblower

Model # 4-24550 Official Haban gas snow thrower

Here are the diagrams and repair parts for Official Haban 4-24550 gas snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Bolt 7953
#8

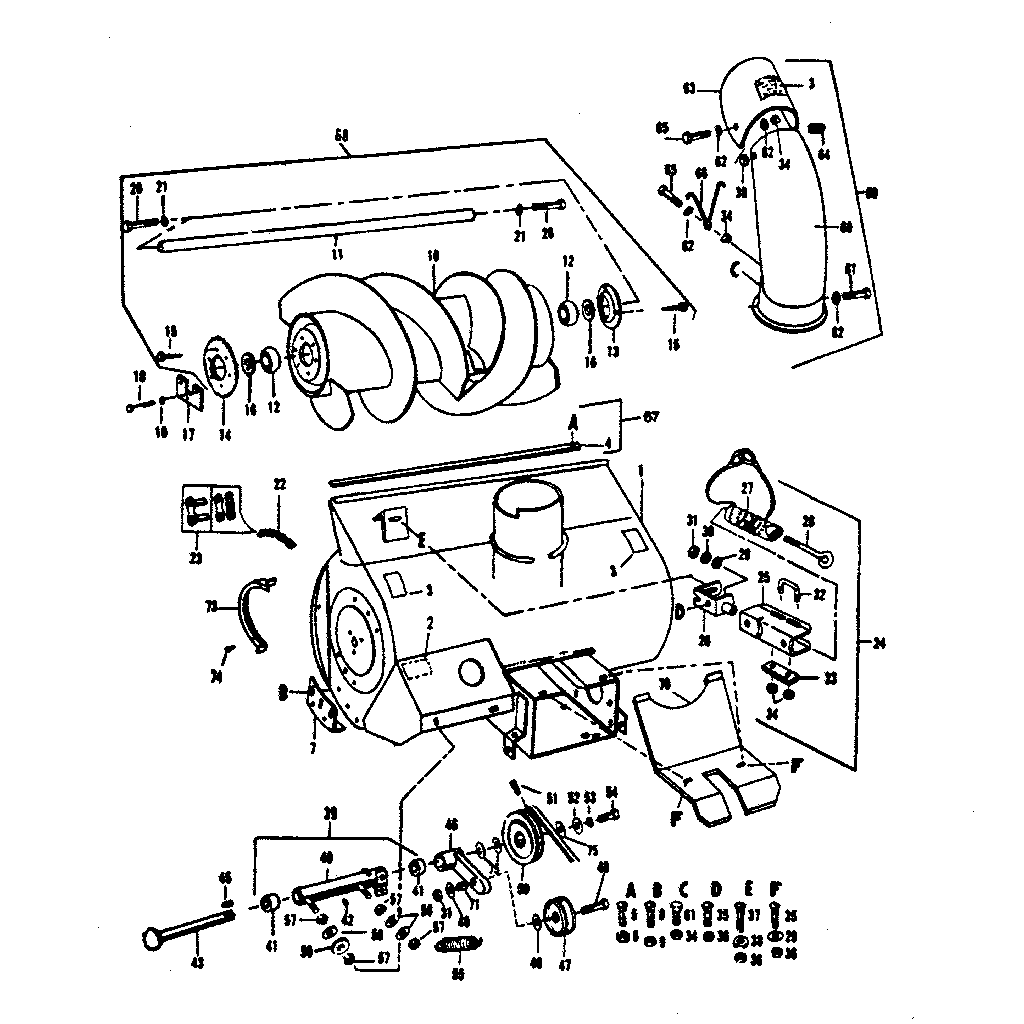

Auger housing assembly diagram

Bolt

Part #7953

The manufacturer no longer makes this part, and there's no substitute part

Pin 3341
#118

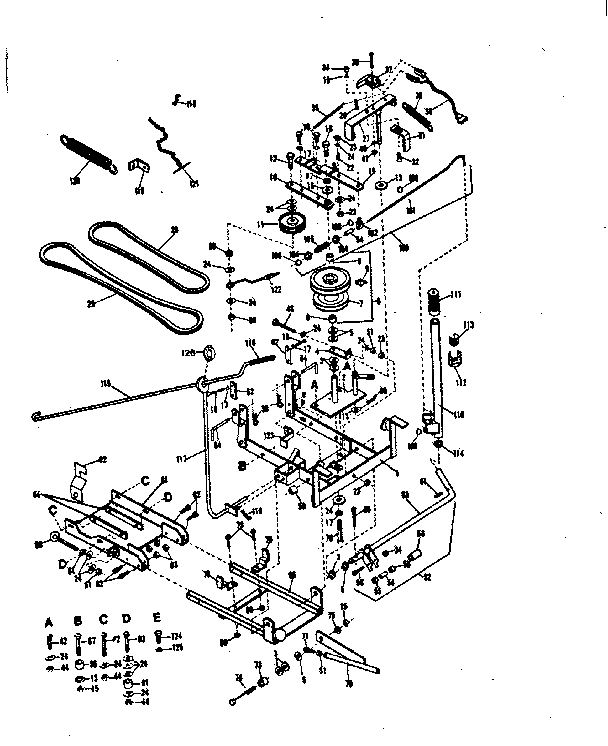

Pulley / lift bar assembly diagram

Pin

Part #3341

The manufacturer no longer makes this part, and there's no substitute part

Pulley 11496
Pulley

Part #11496

The manufacturer no longer makes this part, and there's no substitute part

Spring 3059
Spring

Part #3059

The manufacturer no longer makes this part, and there's no substitute part

Washer 4143
#16

Auger housing assembly diagram

Washer

Part #4143

The manufacturer no longer makes this part, and there's no substitute part

Murray Snowblower Chain Guard 3036
#73

Auger housing assembly diagram

Murray snowblower chain guard

Part #3036

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 3430
#30

Pulley / lift bar assembly diagram

Cotter pin

Part #3430

The manufacturer no longer makes this part, and there's no substitute part

Spring 3293
#36

Pulley / lift bar assembly diagram

Spring

Part #3293

The manufacturer no longer makes this part, and there's no substitute part

Spacer 5713
Spacer

Part #5713

The manufacturer no longer makes this part, and there's no substitute part

Ring Pin 5714
#108

Pulley / lift bar assembly diagram

Ring pin

Part #5714

The manufacturer no longer makes this part, and there's no substitute part
