Model # 22-675 Official Delta 15" planer

Here are the diagrams and repair parts for Official Delta 22-675 15" planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

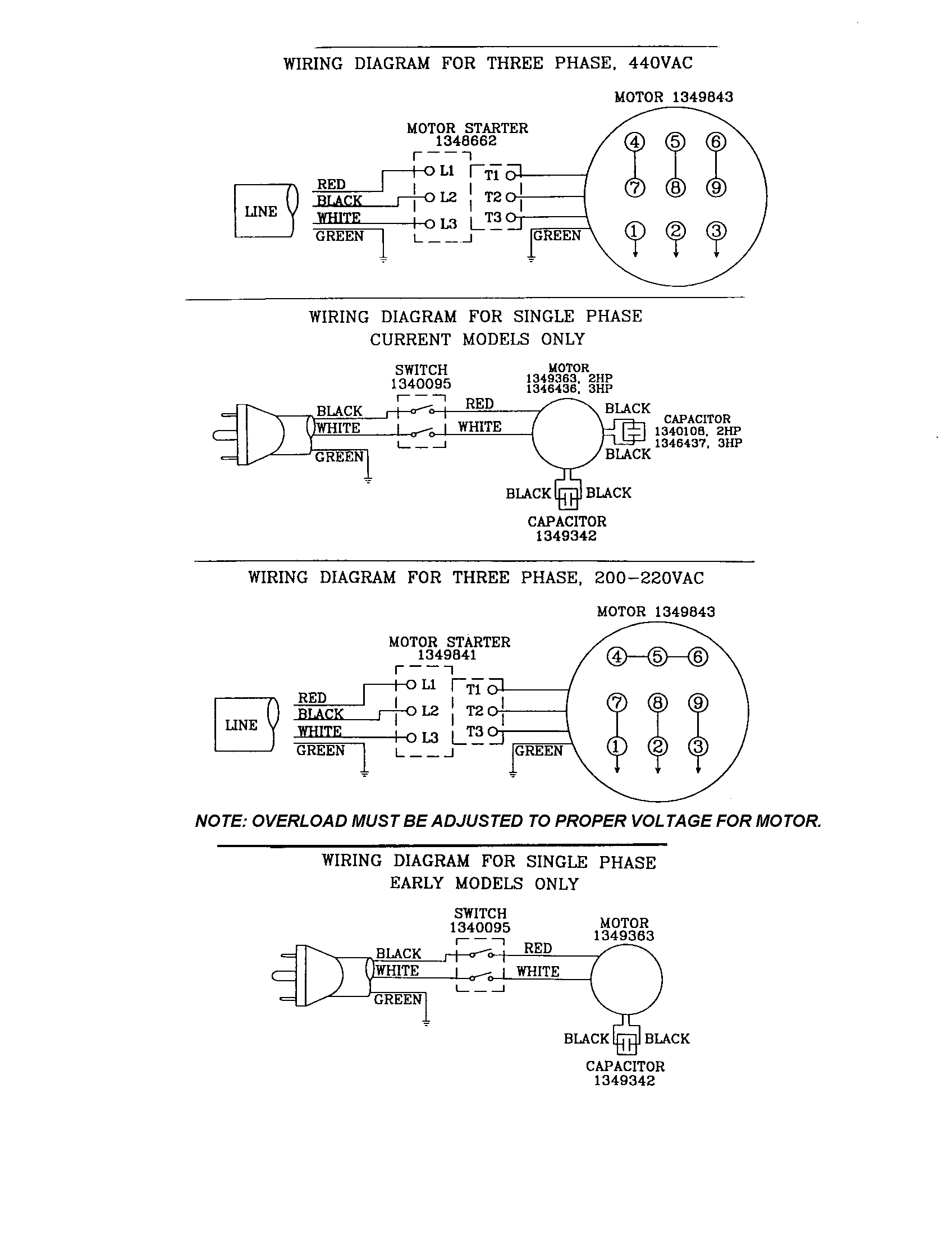

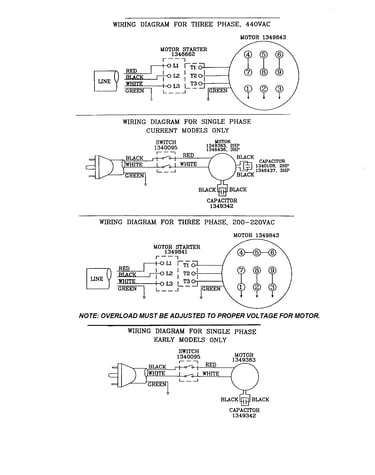

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Chain 1349175
#230

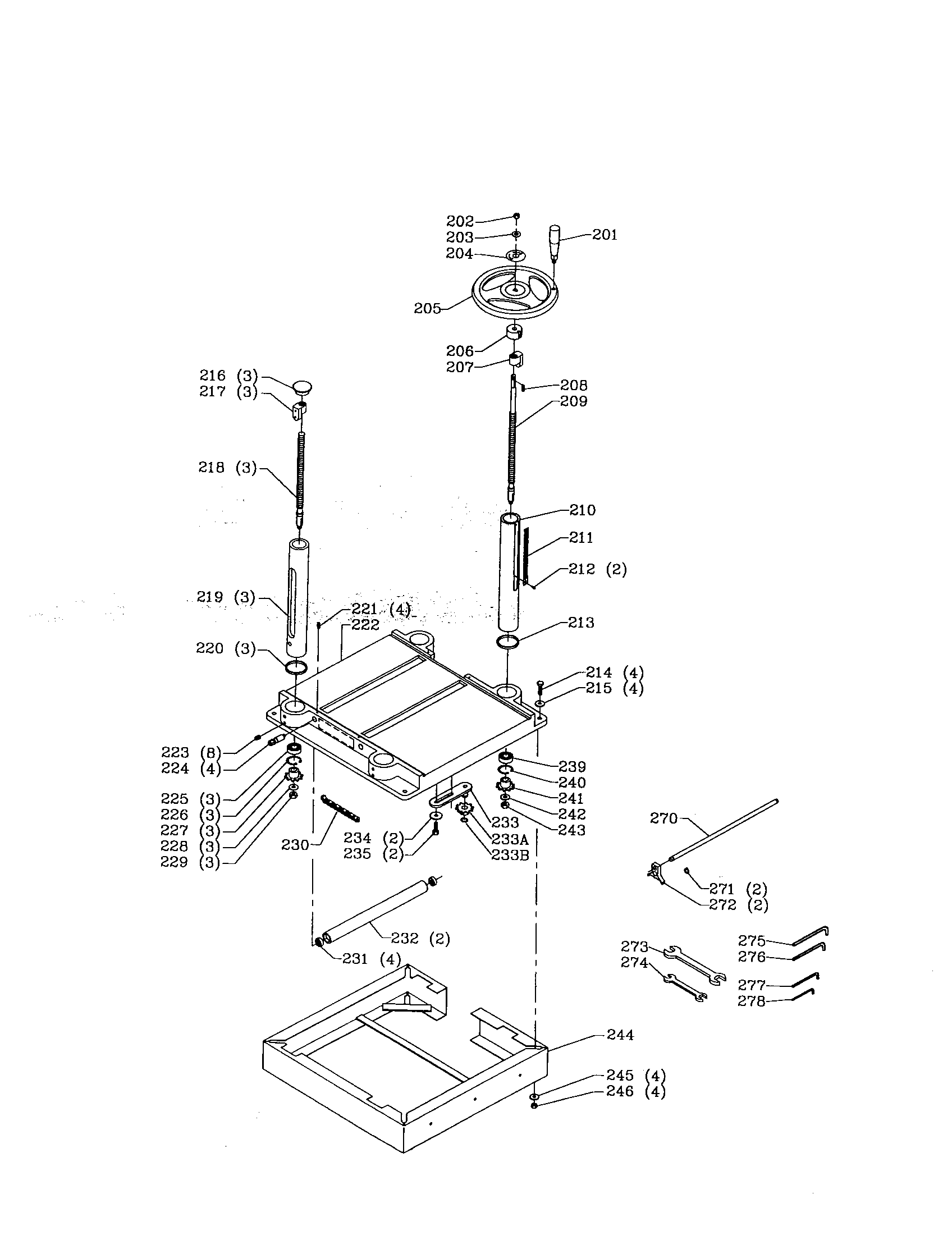

Handwheel/table diagram

Chain

Part #1349175

The manufacturer no longer makes this part, and there's no substitute part

Planer Outfeed Roller 1349339
#68

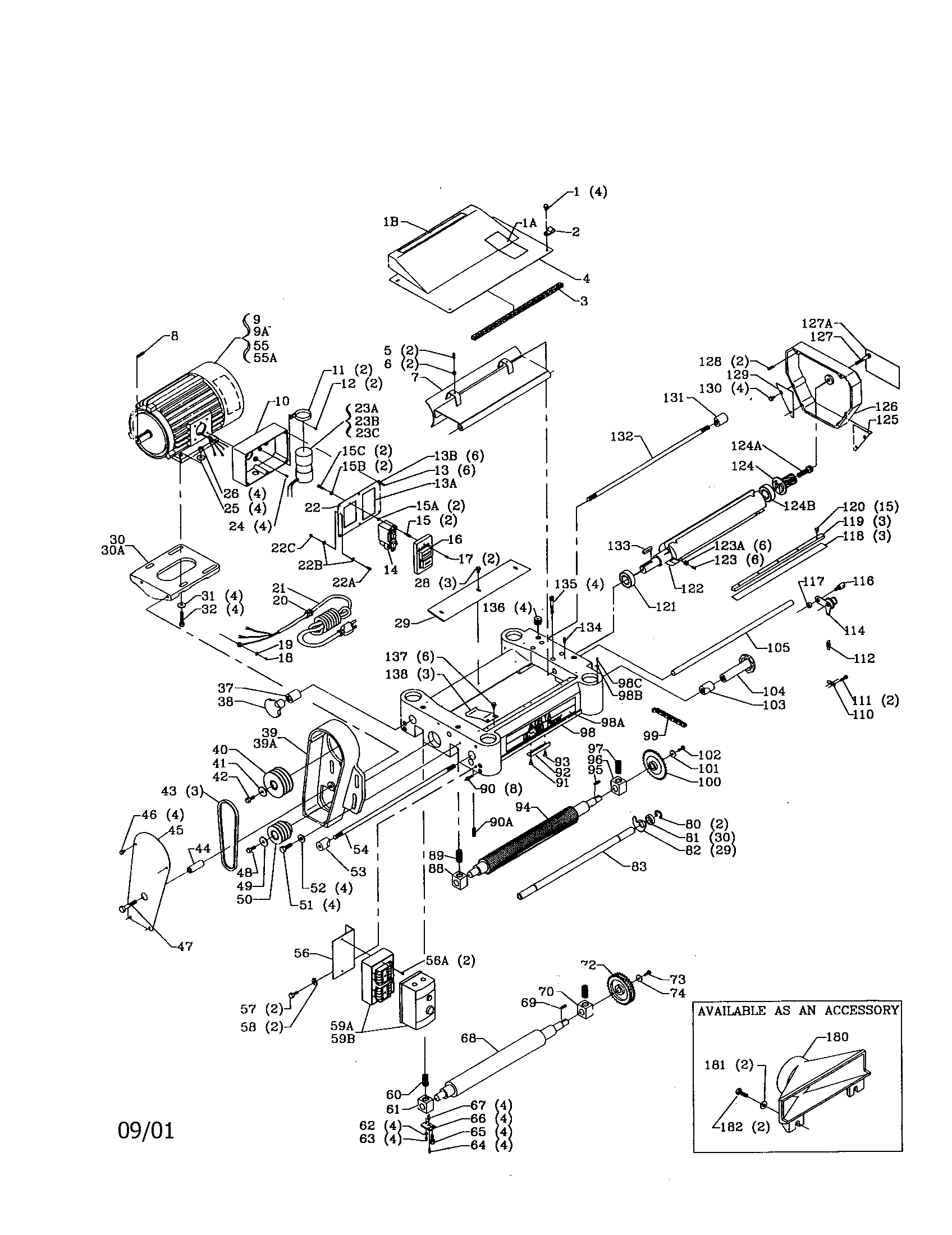

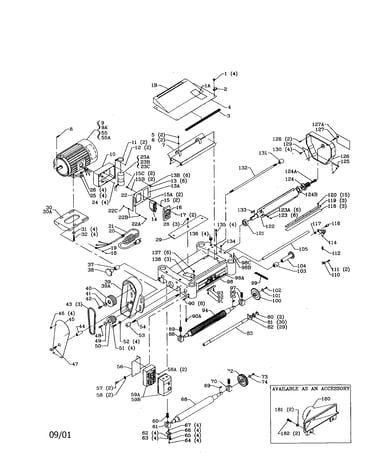

Motor diagram

Planer outfeed roller

Part #1349339

The manufacturer no longer makes this part, and there's no substitute part

Screw 1243336
Screw

Part #1243336

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 1349426
#317

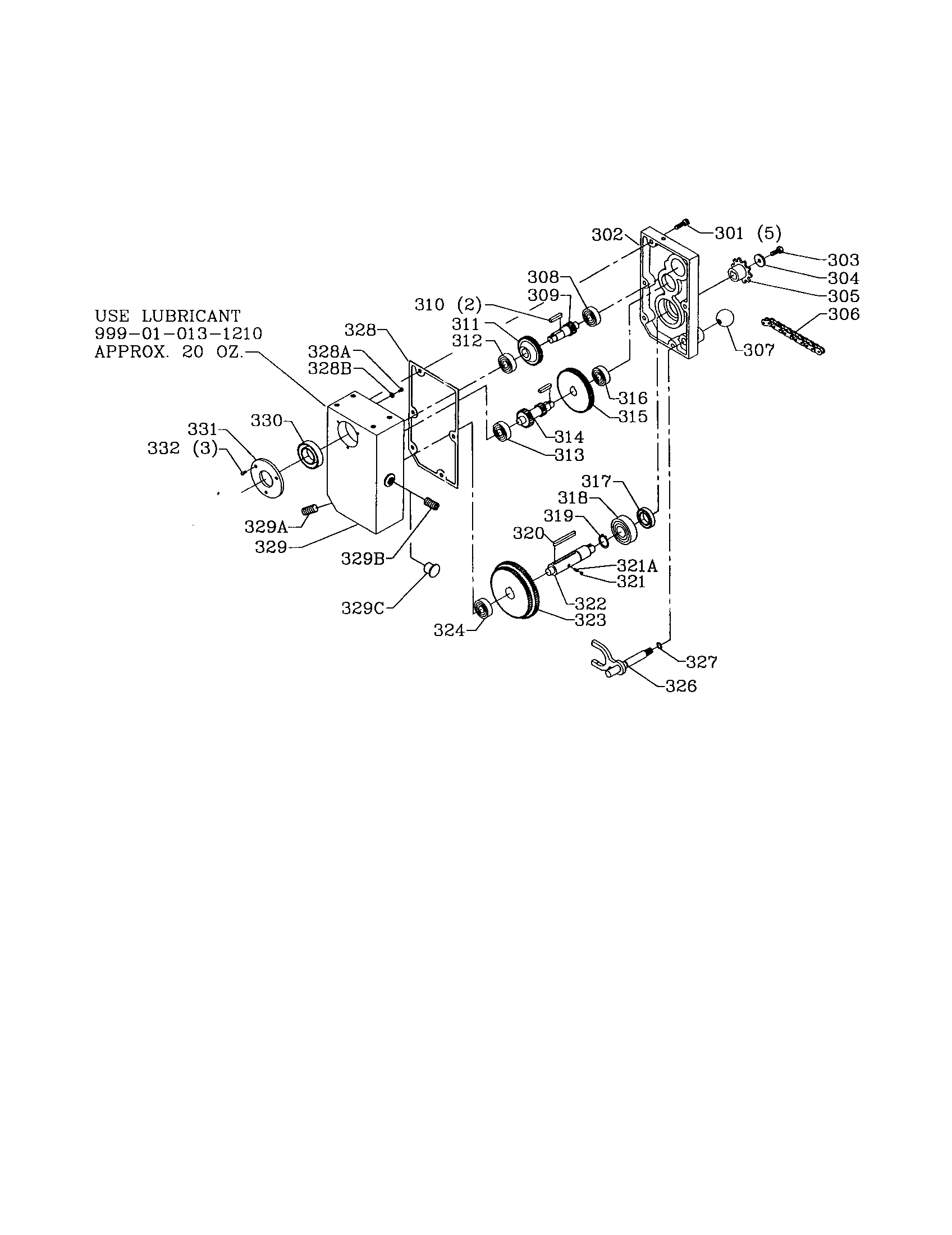

Gear box housing diagram

Oil seal

Part #1349426

The manufacturer no longer makes this part, and there's no substitute part

Screw 1246038
#221

Handwheel/table diagram

Screw

Part #1246038

The manufacturer no longer makes this part, and there's no substitute part

Bushing 1349336
Bushing

Part #1349336

The manufacturer no longer makes this part, and there's no substitute part

Planer Knife Set 22-677
#118

Motor diagram

Planer knife set

Part #22-677

The manufacturer no longer makes this part, and there's no substitute part

Screw 1313192
#24

Motor diagram

Screw

Part #1313192

The manufacturer no longer makes this part, and there's no substitute part

Roller 1349348
#94

Motor diagram

Roller

Part #1349348

The manufacturer no longer makes this part, and there's no substitute part

Screw 1246006
#135

Motor diagram

Screw

Part #1246006

The manufacturer no longer makes this part, and there's no substitute part
