Toro
Gas Walk-Behind Mower

Model # 20330C (310000001-310999999) Official Toro lawn mower - 2010

Here are the diagrams and repair parts for Official Toro 20330C-310000001-310999999 lawn mower - 2010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

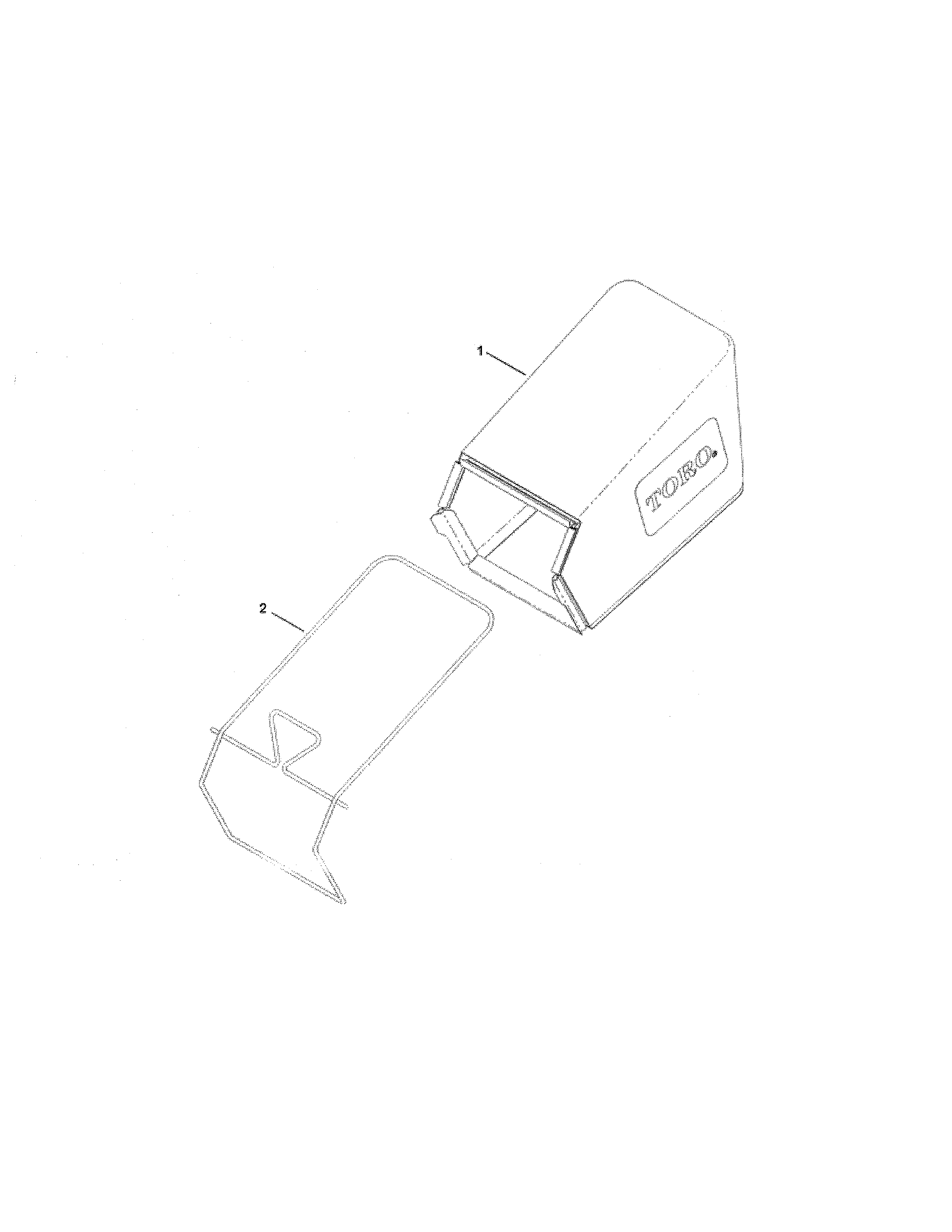

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 392 parts  |
Lawn Mower Recoil Starter Rope Guide (replaces 46-8080, 93-7383, 95-4457, 98-2684) 86-9671
#6

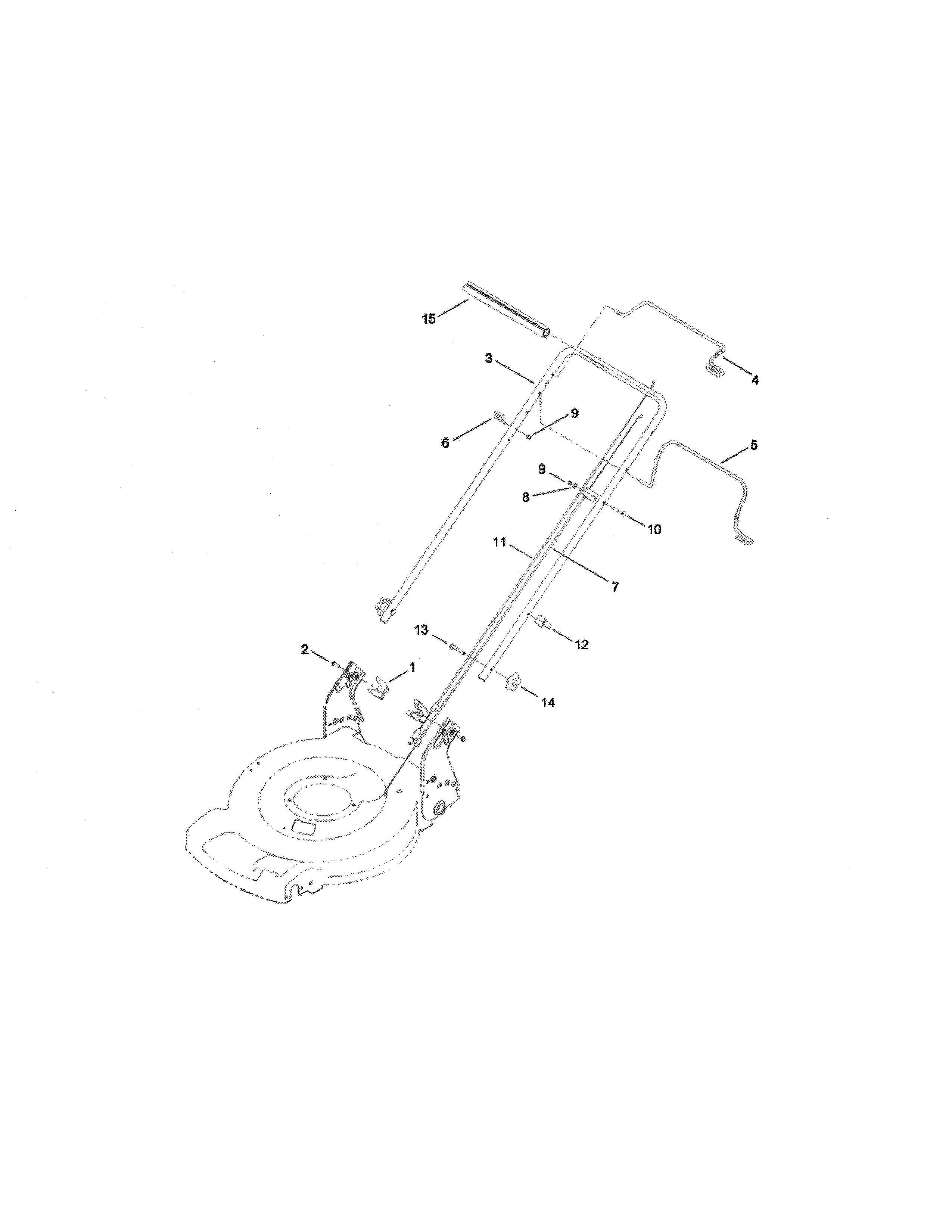

Handle diagram

Lawn mower recoil starter rope guide (replaces 46-8080, 93-7383, 95-4457, 98-2684)

Part #86-9671

This item is not returnable
$5.74 |
15% OFF Phone Price : $6.74
In Stock
Lawn-boy Lawn Mower Screw 95-1726
#8

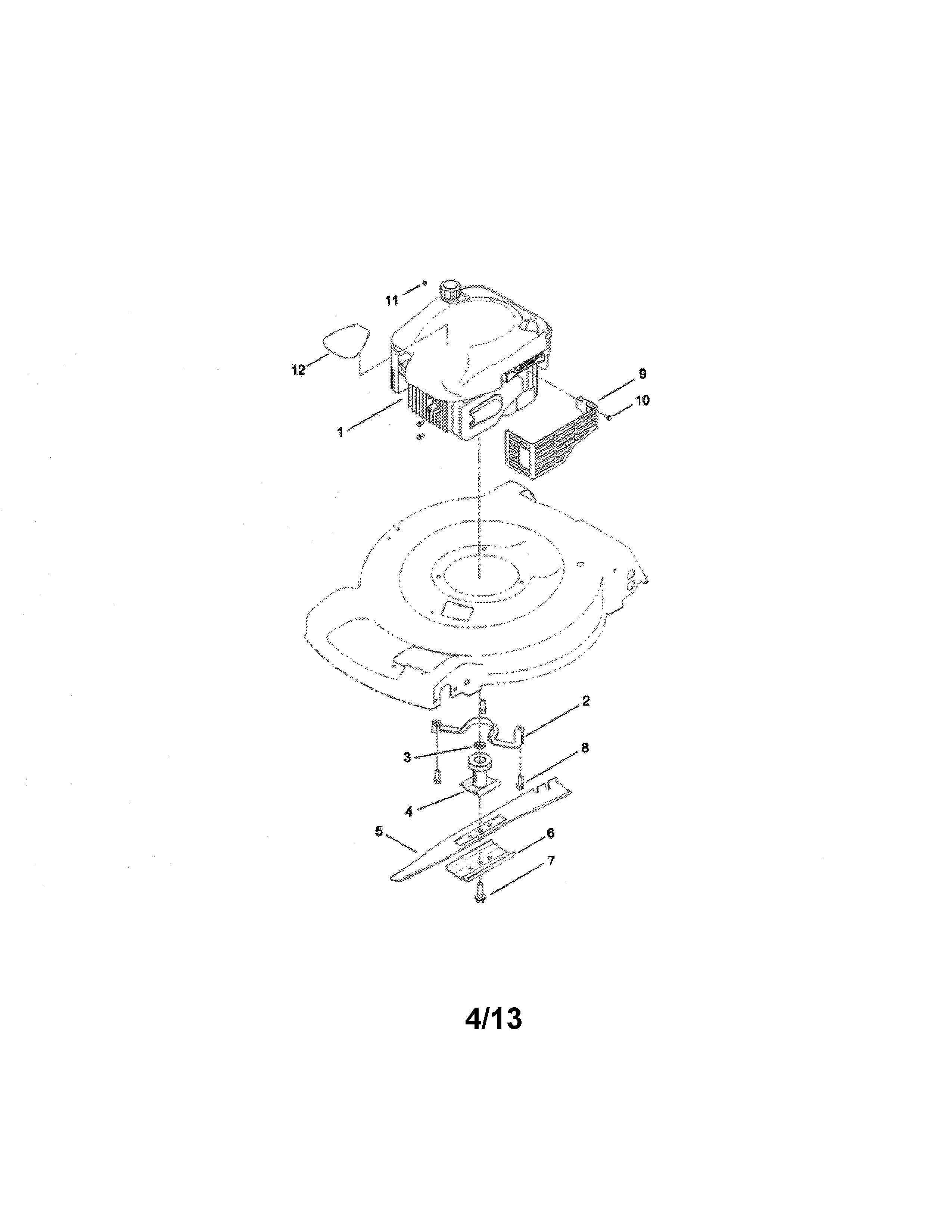

Engine & blade diagram

Lawn-boy lawn mower screw

Part #95-1726

This item is not returnable
$3.74
In Stock
Pan Head Screw 108-7476
#19

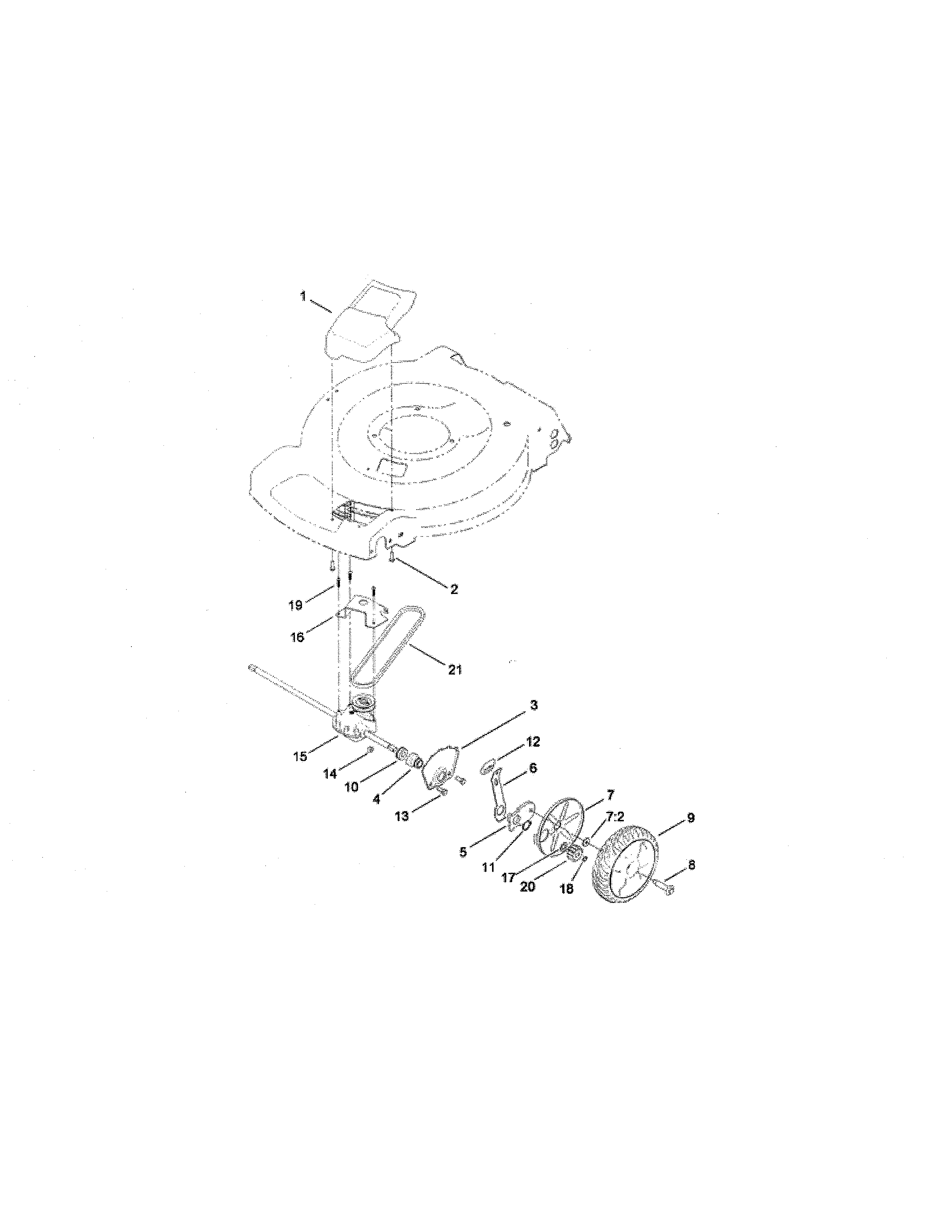

Transmission/front wheel/height-of-cut diagram

Pan head screw

Part #108-7476

This item is not returnable
$2.16
In Stock
Foam Seal 117-5924
#28

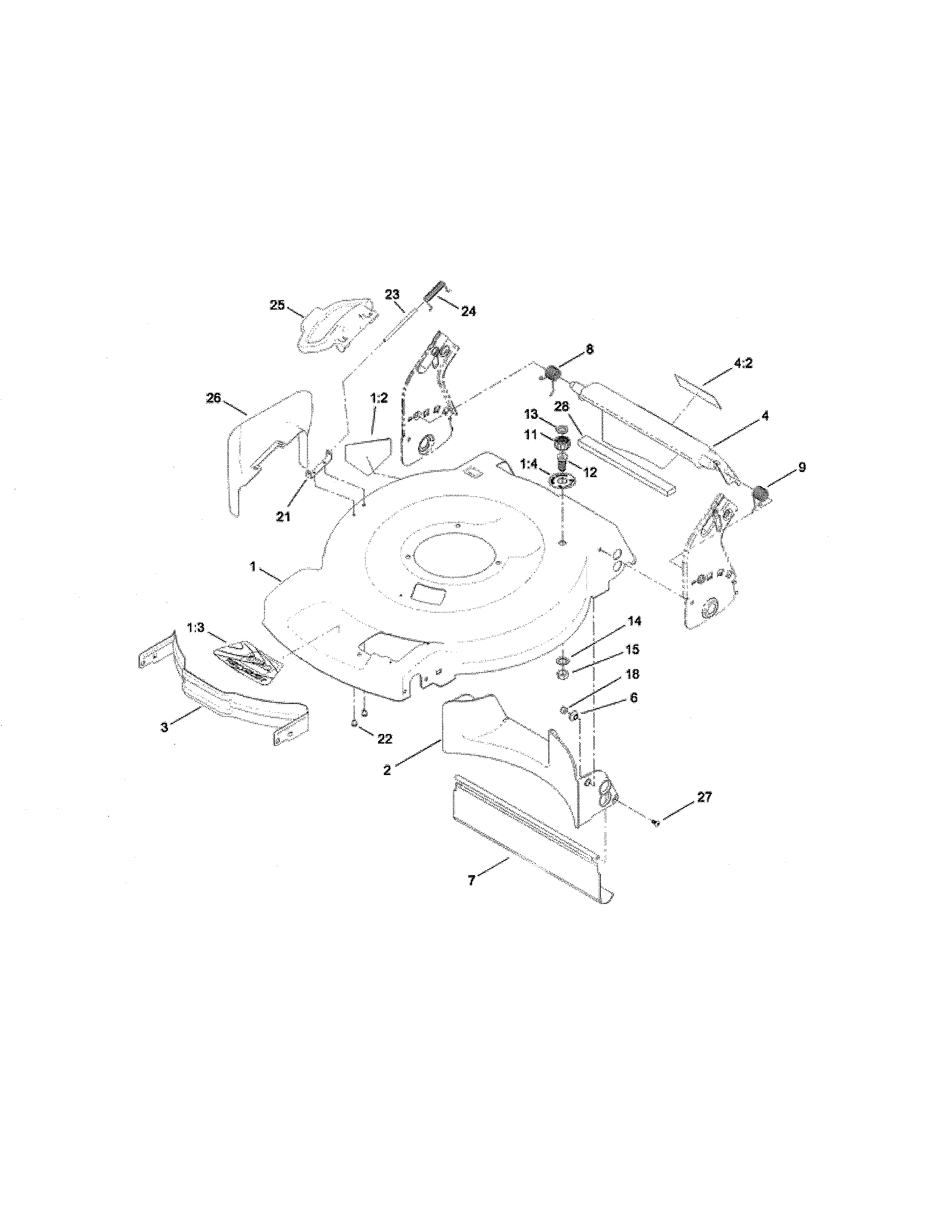

Housing & rear door diagram

Foam seal

Part #117-5924

This item is not returnable
$4.74
In Stock
Cap Screw 322-7
#7

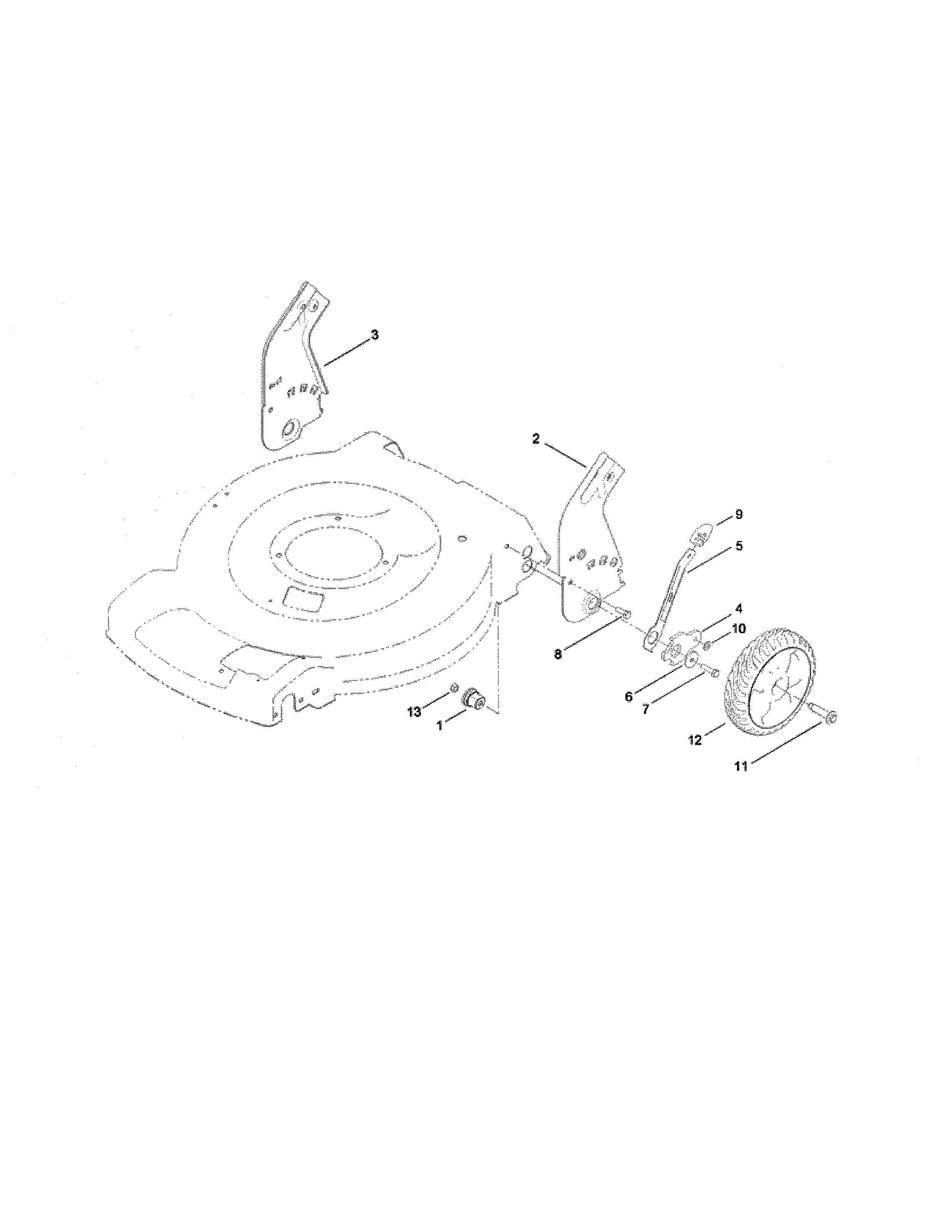

Rear wheel/height-of-cut diagram

Cap screw

Part #322-7

This item is not returnable
$2.16
In Stock
Lawn Mower Blade Adapter With Pulley 106-3987
#4

Engine & blade diagram

Lawn mower blade adapter with pulley

Part #106-3987

Get free shipping with Automatic Reorder

$32.53
In Stock
Screw 46-8091
Screw

Part #46-8091

$7.51
In Stock
Washer 105-3048
#6

Rear wheel/height-of-cut diagram

Washer

Part #105-3048

This item is not returnable
$2.16
In Stock
Spring Arm 105-1809
#6

Transmission/front wheel/height-of-cut diagram

Spring arm

Part #105-1809

$22.03
In Stock
Retainer 104-8699
#10

Transmission/front wheel/height-of-cut diagram

Retainer

Part #104-8699

This item is not returnable
$6.03
In Stock
