Model # 153334290 Official Kenmore energy efficient 5 gas water heater
Here are the diagrams and repair parts for Official Kenmore 153334290 energy efficient 5 gas water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153334290 Water Heaters
#8

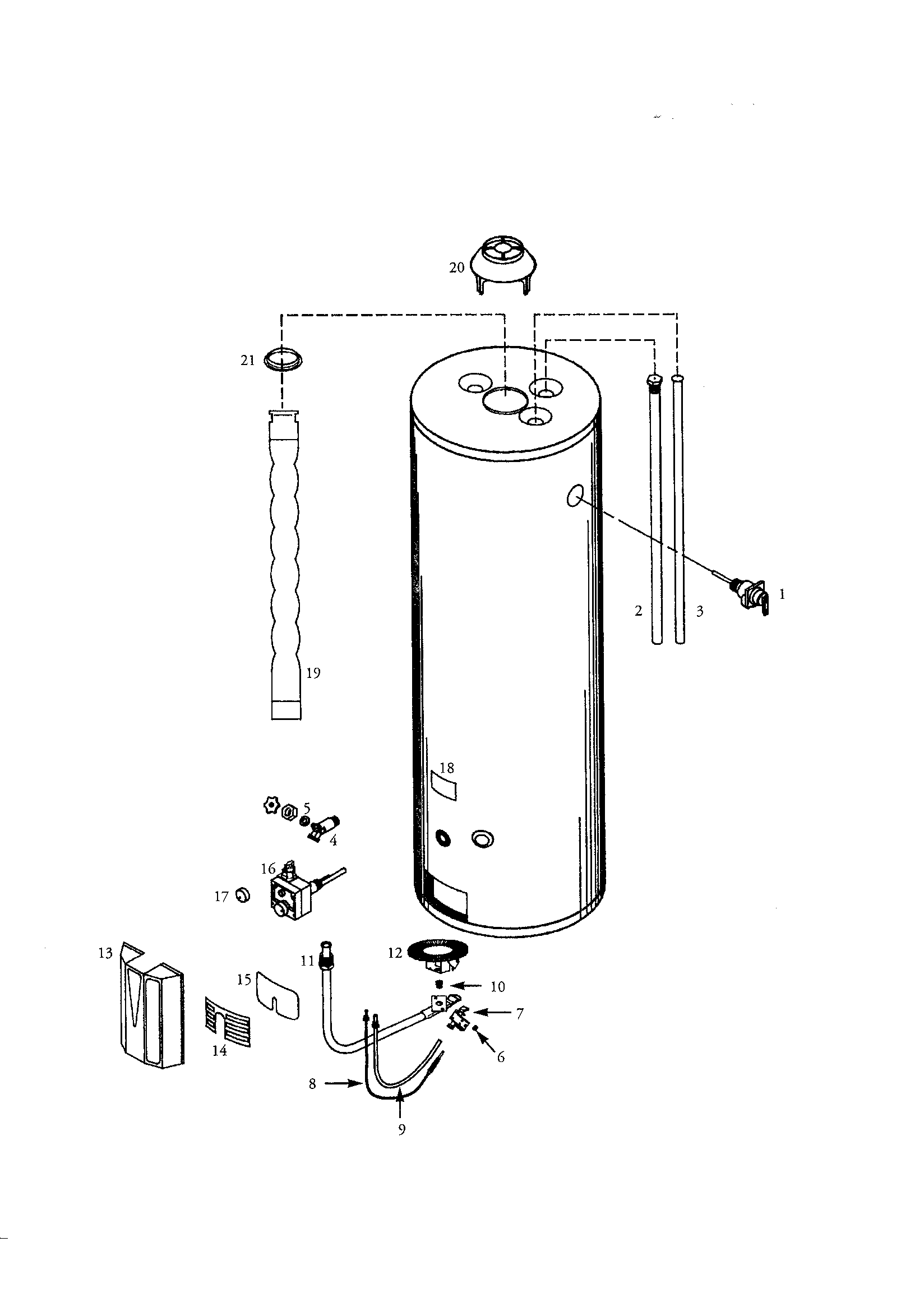

Energy efficient 40 gallon short diagram
Thermocouple
Part #33900
Replaced by #H06E-36
?
Manufacturer substitution
This part replaces 33900. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
Back Order
#12
Energy efficient 40 gallon short diagram
Burner
Part #9002411
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Mag erad
Part #23600
Replaced by #23600
?
Manufacturer substitution
This part replaces 23600. Substitute parts can look different from the original.
$35.19
In Stock
#17
Energy efficient 40 gallon short diagram
Water heater gas control valve knob
Part #F145-1280
The manufacturer no longer makes this part, and there's no substitute part
#21
Energy efficient 40 gallon short diagram
Ring
Part #9000275
Replaced by #100108369
?
Manufacturer substitution
This part replaces 9000275. Substitute parts can look different from the original.
$27.78
In Stock
#3
Energy efficient 40 gallon short diagram
Dip tube
Part #9000907
Replaced by #9001644
?
Manufacturer substitution
This part replaces 9000907. Substitute parts can look different from the original.
$7.99
In Stock
#9
Energy efficient 40 gallon short diagram
Water heater pilot tube assembly (replaces std317025, std317255)
Part #9000278
Replaced by #100108370
?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
#7
Energy efficient 40 gallon short diagram
Pilot
Part #9000284
Replaced by #100109070
?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
#2
Energy efficient 40 gallon short diagram
Anode rod
Part #9000707
Replaced by #100108571
?
Manufacturer substitution
This part replaces 9000707. Substitute parts can look different from the original.
$90.00
In Stock
#5
Energy efficient 40 gallon short diagram
Kenmore elite water heater washer (replaces 0540042)
Part #9001584
Replaced by #100108603
?
Manufacturer substitution
This part replaces 9001584. Substitute parts can look different from the original.
$24.44
In Stock
