Model # AJT10DGV1 Official GE 2-stage room air conditioner

Here are the diagrams and repair parts for Official GE AJT10DGV1 2-stage room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

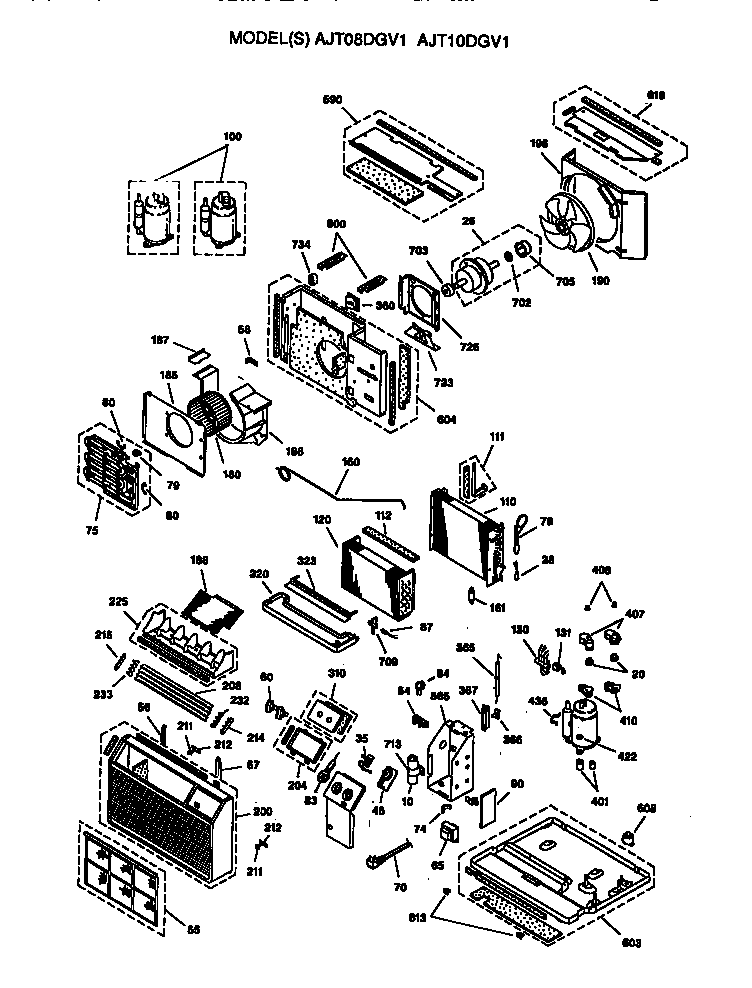

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Room Air Conditioner Air Filter (replaces Wj85x0158) WJ85X158

#55

All parts diagram

Room air conditioner air filter (replaces wj85x0158)

Part #WJ85X158

$84.76 |
7% OFF Phone Price : $90.76
In Stock
Room Air Conditioner Rotary Switch WP28X56

#80

All parts diagram

Room air conditioner rotary switch

Part #WP28X56

$88.34 |
6% OFF Phone Price : $94.34
In Stock
Uc/installat 49-7328

#9999

All parts diagram

Uc/installat

Part #49-7328

Replaced by #49-7327

?
Manufacturer substitution
This part replaces 49-7328. Substitute parts can look different from the original.
$8.49
In Stock
Pan Base WJ89X127

#603

All parts diagram

Pan base

Part #WJ89X127

The manufacturer no longer makes this part, and there's no substitute part

Strainer WJ56X86

#161

All parts diagram

Strainer

Part #WJ56X86

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon WJ7X925

#310

All parts diagram

Escutcheon

Part #WJ7X925

The manufacturer no longer makes this part, and there's no substitute part

Terminal Gasket WJ43X453

#43

All parts diagram

Terminal gasket

Part #WJ43X453

The manufacturer no longer makes this part, and there's no substitute part

Scroll To WJ76X313

#187

All parts diagram

Scroll to

Part #WJ76X313

The manufacturer no longer makes this part, and there's no substitute part

Pan Base WJ89X128

#603

All parts diagram

Pan base

Part #WJ89X128

The manufacturer no longer makes this part, and there's no substitute part

Evaporator WJ87X301

#120

All parts diagram

Evaporator

Part #WJ87X301

The manufacturer no longer makes this part, and there's no substitute part
