Model # JKP76G*01 Official GE combination oven/microwave

Here are the diagrams and repair parts for Official GE JKP76G01 combination oven/microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Range Oven Light Bulb WX12X1510
Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Magnetron WB27X5142
#1428B

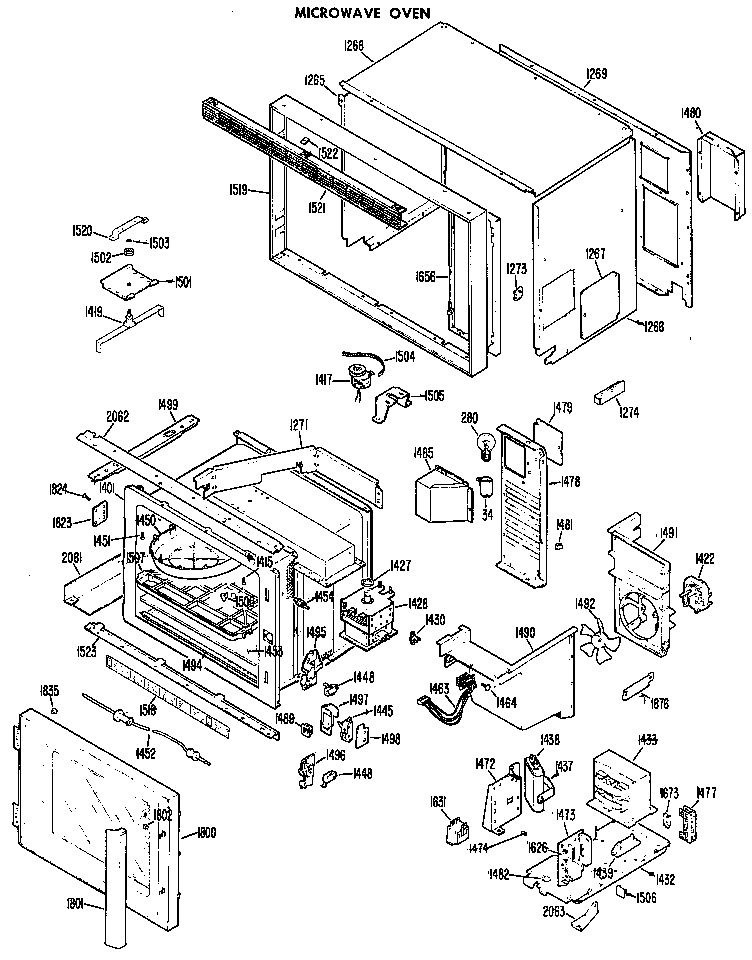

Microwave oven diagram

Magnetron

Part #WB27X5142

The manufacturer no longer makes this part, and there's no substitute part

Range Bake Element (replaces Wb44x0200, Wb44x160) WB44X200
#650

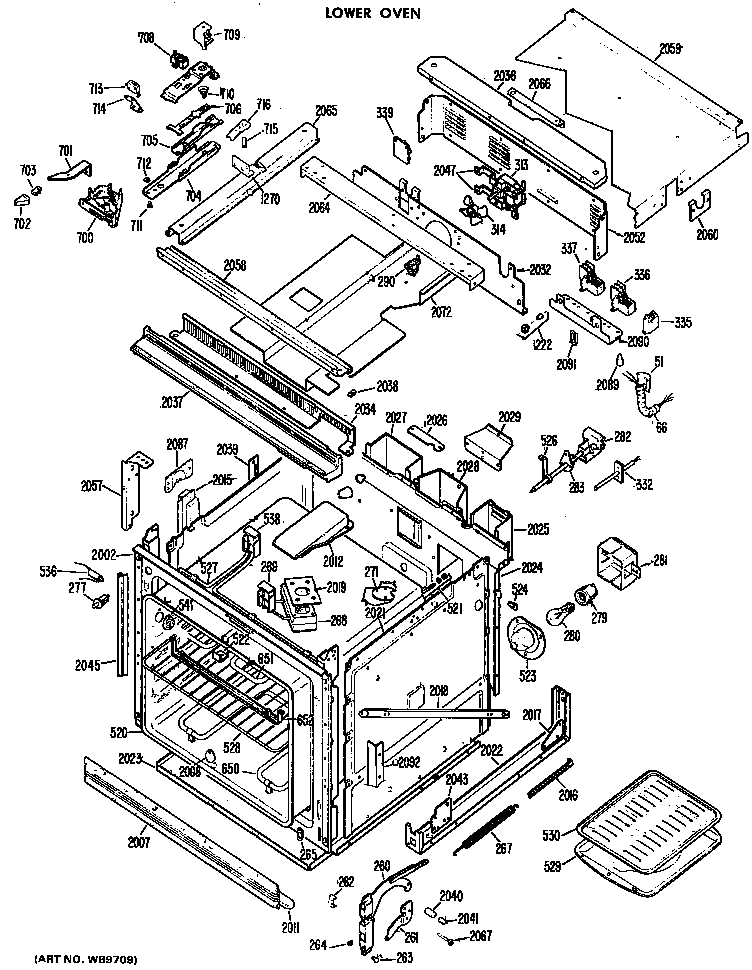

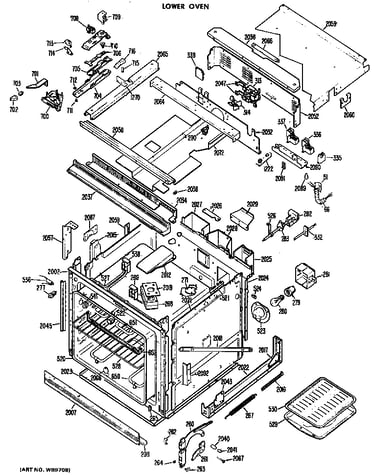

Lower oven diagram

Range bake element (replaces wb44x0200, wb44x160)

Part #WB44X200

BEST SELLER
$50.40 |
11% OFF Phone Price : $56.40
Back Order
Lamp Cover WB36X389

#NI

All parts diagram

Lamp cover

Part #WB36X389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Broil Element Support WB2X1452
#652

Lower oven diagram

Range broil element support

Part #WB2X1452

$26.02 |
19% OFF Phone Price : $32.02
In Stock
Washer WB1X119
#362

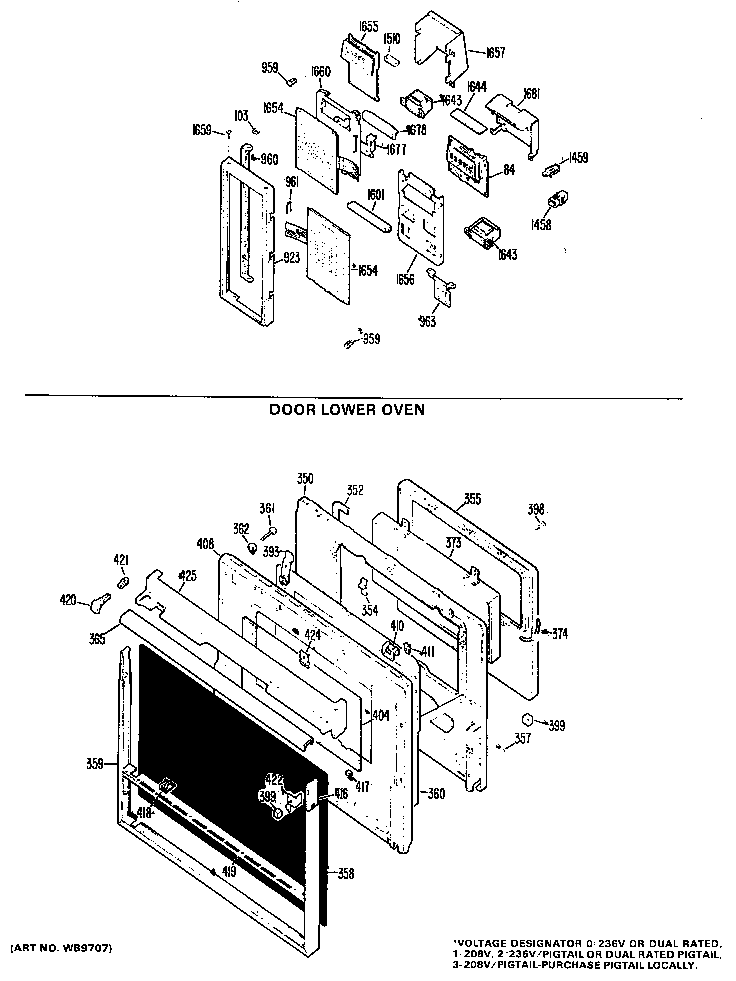

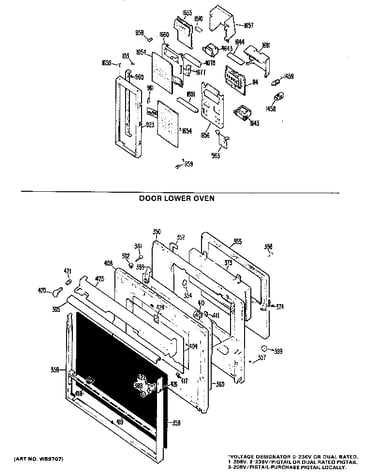

Door lower oven diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Range Oven Door Gasket WB2X3138
#352

Door lower oven diagram

Range oven door gasket

Part #WB2X3138

$120.27 |
9% OFF Phone Price : $132.27
In Stock
Range Wire Harness Connector Kit WB17X5060
#1459

Door lower oven diagram

Range wire harness connector kit

Part #WB17X5060

$33.29 |
15% OFF Phone Price : $39.29
In Stock
Screw WB1X558
#357

Door lower oven diagram

Screw

Part #WB1X558

Replaced by #WB1X558D

?
Manufacturer substitution
This part replaces WB1X558. Substitute parts can look different from the original.
$18.83 |
10% OFF Phone Price : $20.83
In Stock
Rivet WB1X5627
#1415

Microwave oven diagram

Rivet

Part #WB1X5627

Replaced by #WB1X1173

?
Manufacturer substitution
This part replaces WB1X5627. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
