Here are the diagrams and repair parts for Official Whirlpool WDF111PABW0 undercounter dishwasher, as well as links to manuals and error code tables, if available.

Installation guide

By Schematic

By Part

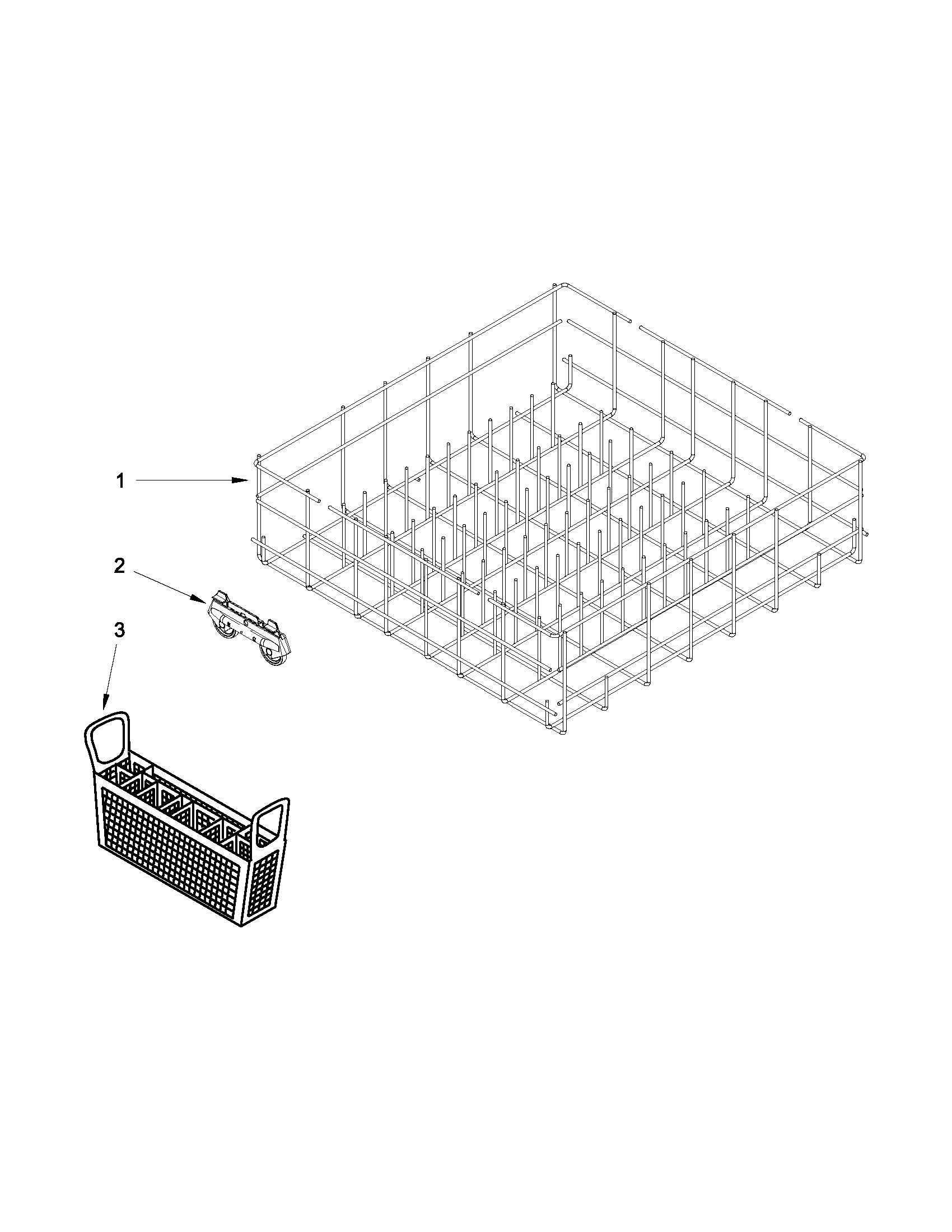

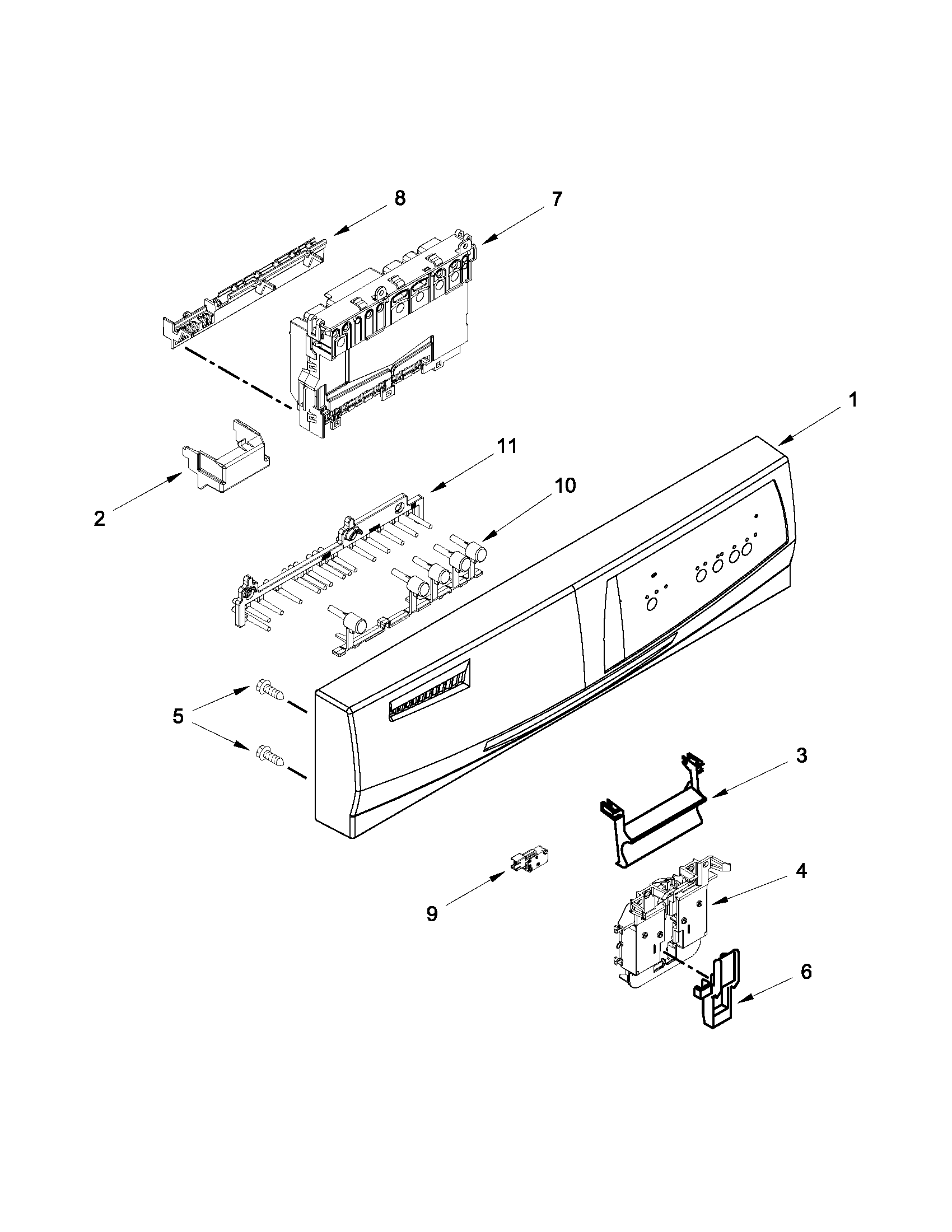

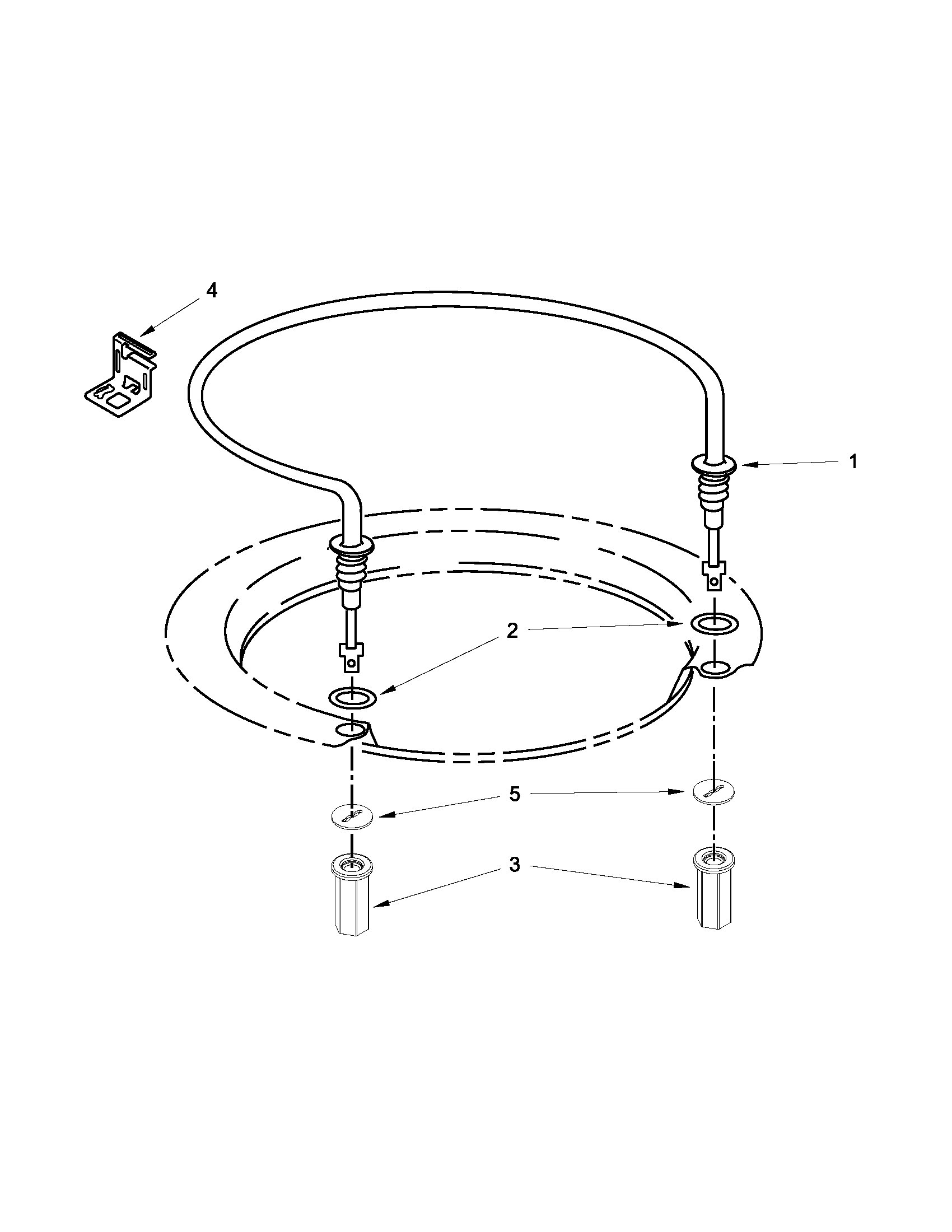

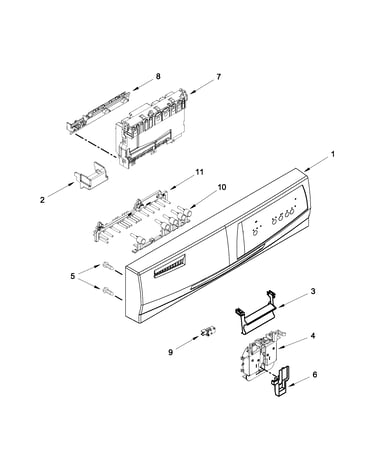

SELECT DIAGRAM

Browse Parts forWDF111PABW0 Undercounter Dishwasher

#8

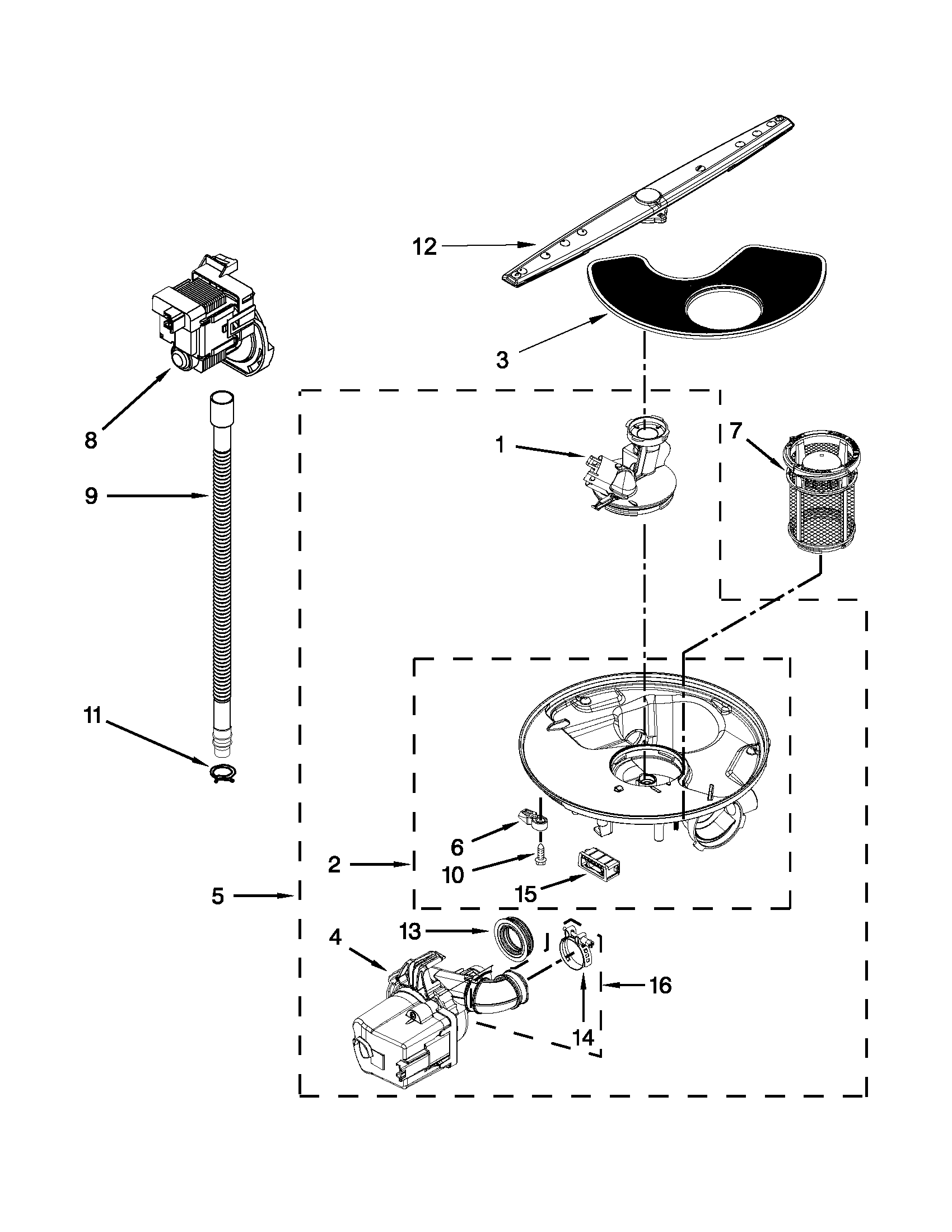

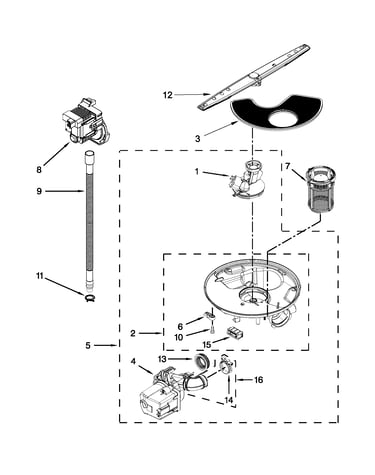

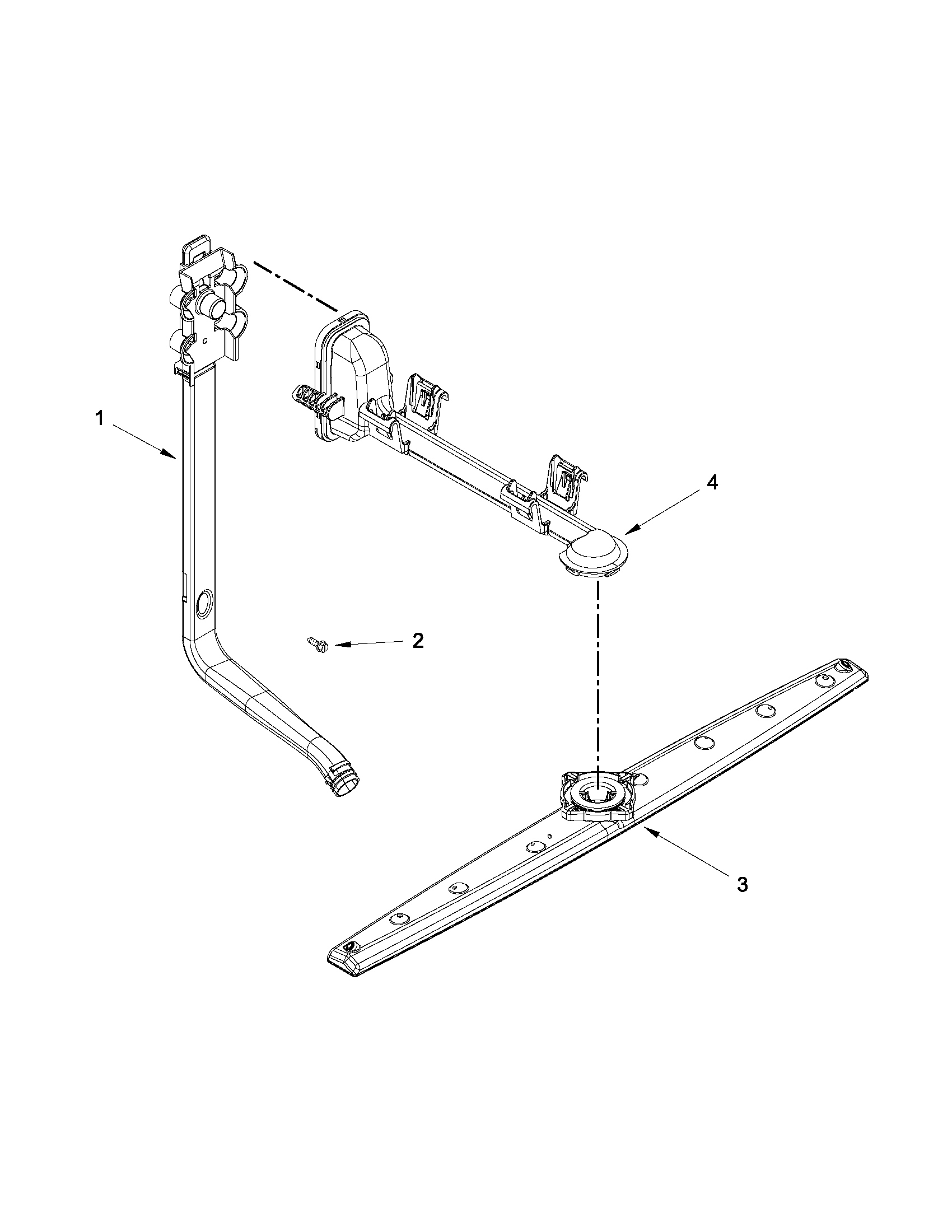

Pump, washarm and motor parts diagram
Dishwasher drain pump
Part #8558995
Replaced by #WPW10348269
?
Manufacturer substitution
This part replaces 8558995. Substitute parts can look different from the original.
4.4 (60)
$51.40 |
10% OFF Phone Price : $57.40
In Stock
Qty
#13
Pump, washarm and motor parts diagram
Dishwasher pump grommet
Part #W10538166
Replaced by #WPW10538166
?
Manufacturer substitution
This part replaces W10538166. Substitute parts can look different from the original.
3.6 (13)
$18.73 |
10% OFF Phone Price : $20.73
In Stock
Qty
#7

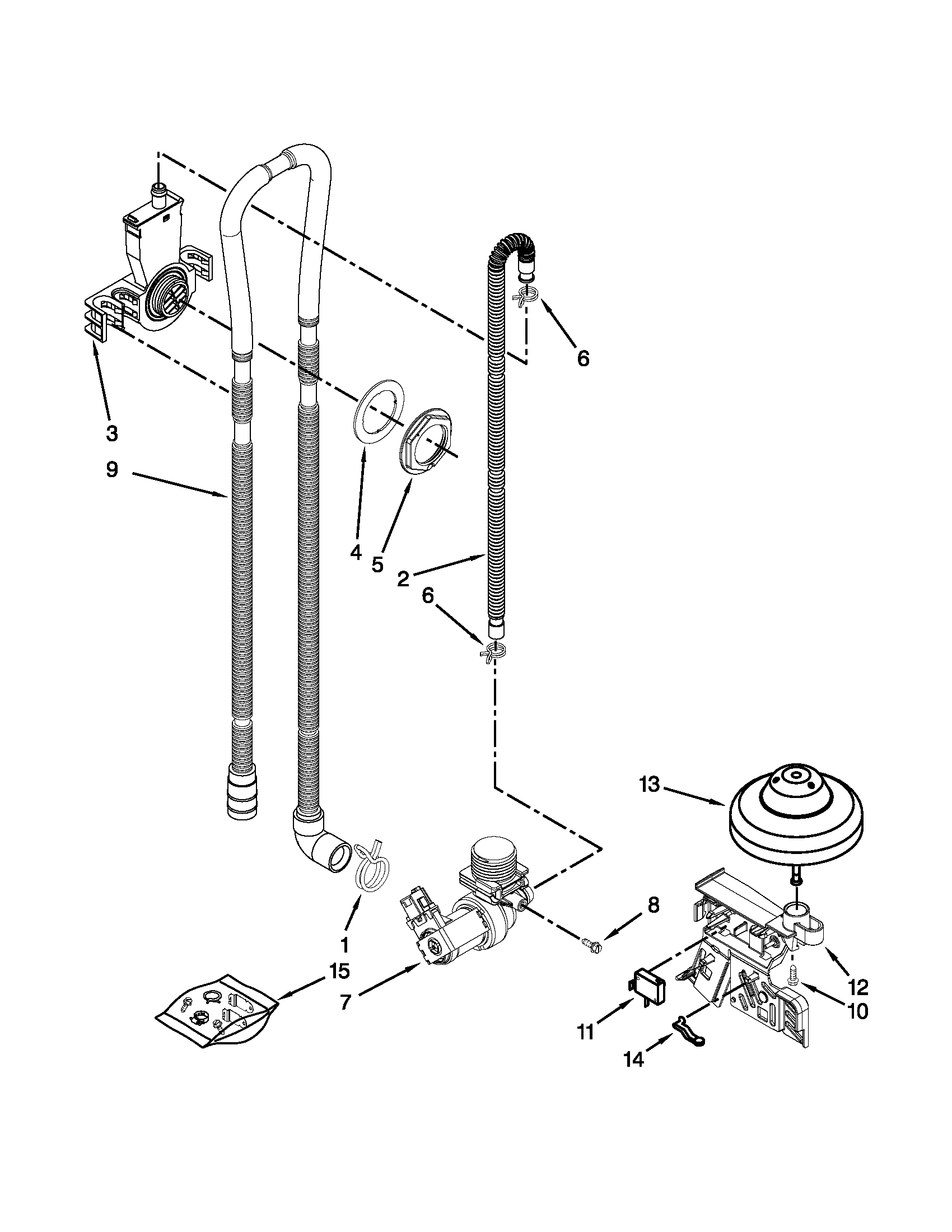

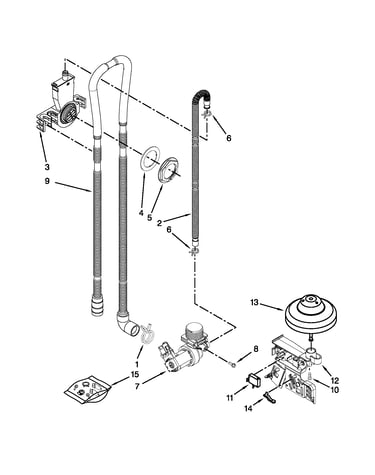

Fill, drain and overfill parts diagram
Dishwasher water inlet valve
Part #W10195047
Replaced by #W11175771
?
Manufacturer substitution
This part replaces W10195047. Substitute parts can look different from the original.
4 (8)
$42.95 |
12% OFF Phone Price : $48.95
In Stock
Qty
#4

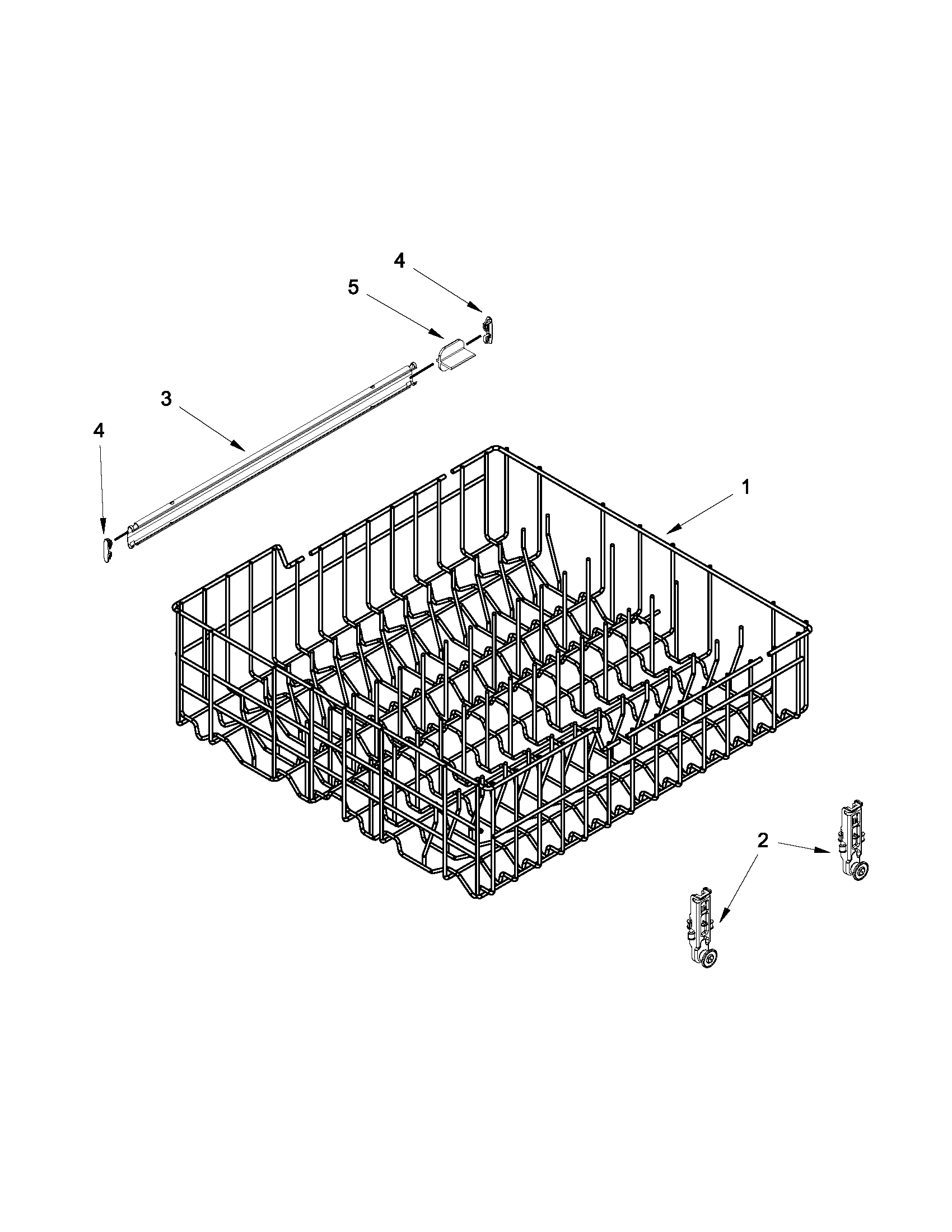

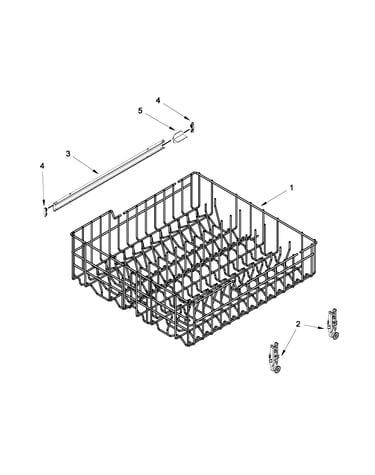

Upper rack and track parts diagram
Dishwasher dishrack slide rail stop, upper
Part #8565925
Replaced by #WP8565925
?
Manufacturer substitution
This part replaces 8565925. Substitute parts can look different from the original.
4.4 (57)
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Qty
#9
Fill, drain and overfill parts diagram
Dishwasher drain hose
Part #W10418848
Replaced by #WPW10545278
?
Manufacturer substitution
This part replaces W10418848. Substitute parts can look different from the original.
4.7 (7)
$41.15 |
13% OFF Phone Price : $47.15
In Stock
Qty
#16
Pump, washarm and motor parts diagram
Dishwasher circulation pump-to-sump hose
Part #W10445975
4.2 (13)
$56.44 |
10% OFF Phone Price : $62.44
In Stock
Qty
#7
Pump, washarm and motor parts diagram
Dishwasher filter
Part #W10465379
Replaced by #W10872845
?
Manufacturer substitution
This part replaces W10465379. Substitute parts can look different from the original.
4.4 (30)
$40.36 |
13% OFF Phone Price : $46.36
In Stock
Qty
#2
Fill, drain and overfill parts diagram
Dishwasher water inlet tubing
Part #8531412
Replaced by #W10878507
?
Manufacturer substitution
This part replaces 8531412. Substitute parts can look different from the original.
5 (1)
$49.86 |
11% OFF Phone Price : $55.86
In Stock
Qty
#8

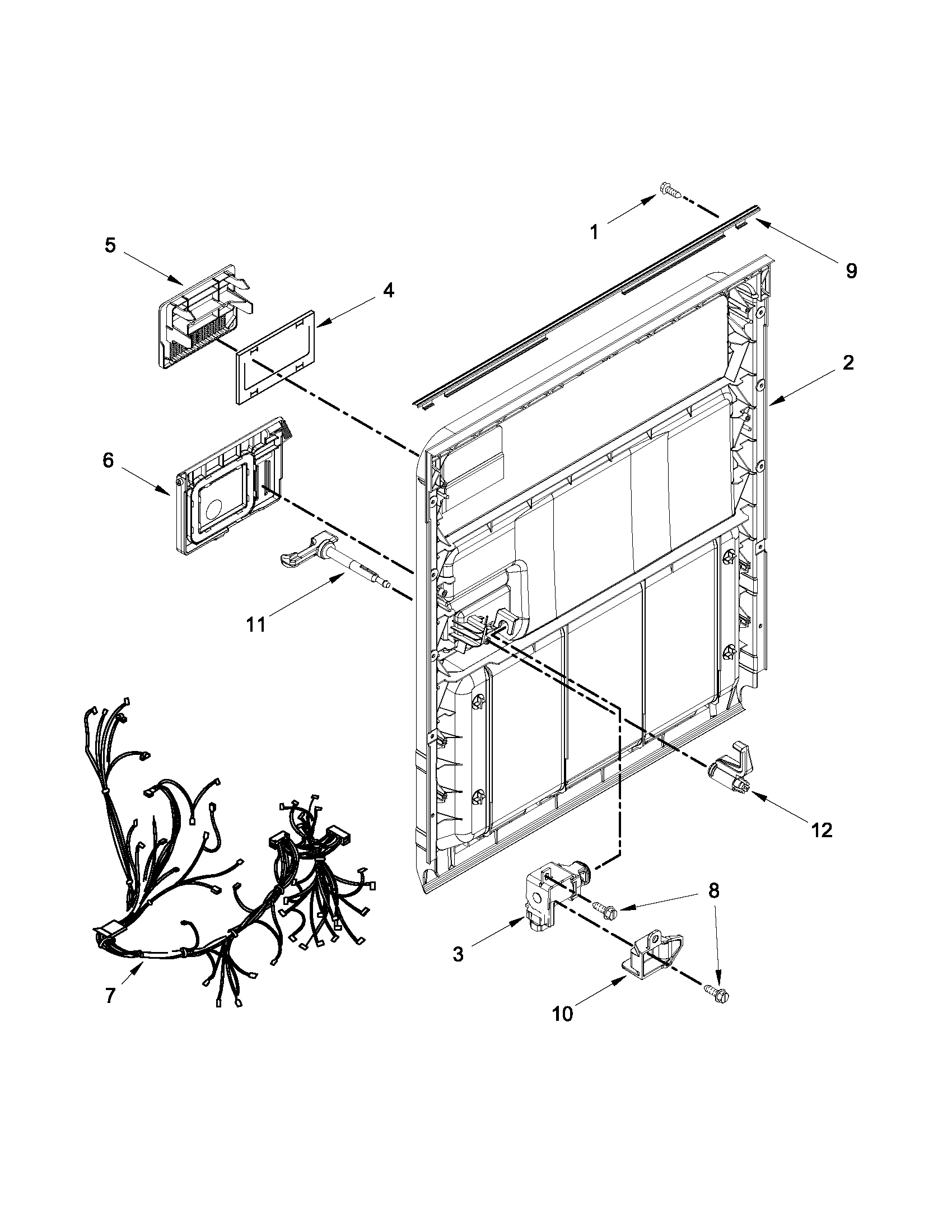

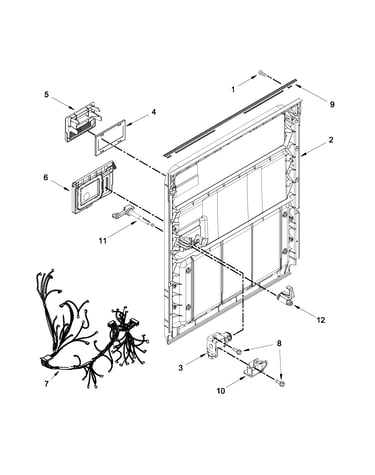

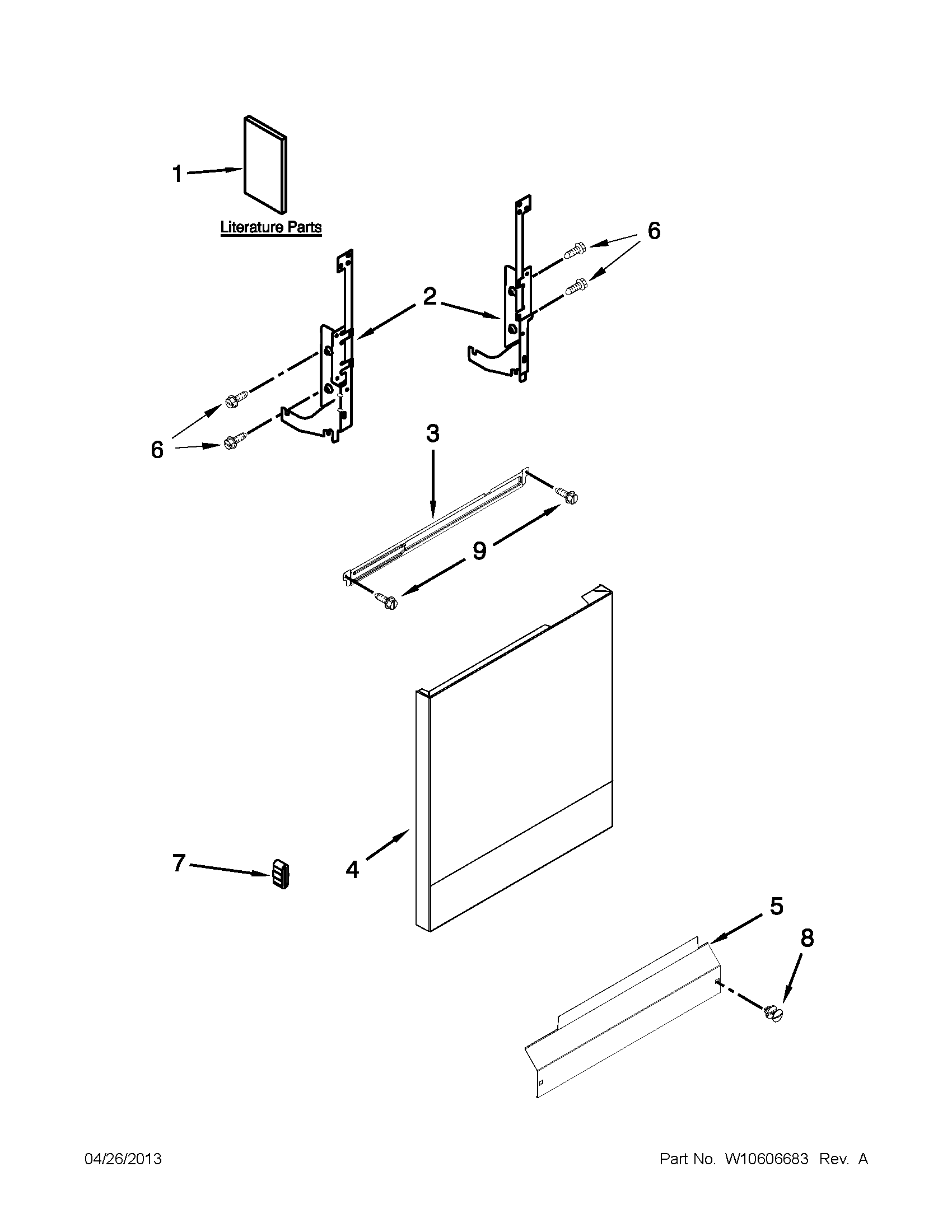

Door and panel parts diagram
Dishwasher retainer clip
Part #W10503548
Replaced by #WPW10503548
?
Manufacturer substitution
This part replaces W10503548. Substitute parts can look different from the original.
3.5 (6)
$16.68 |
11% OFF Phone Price : $18.68
In Stock
Qty
#6

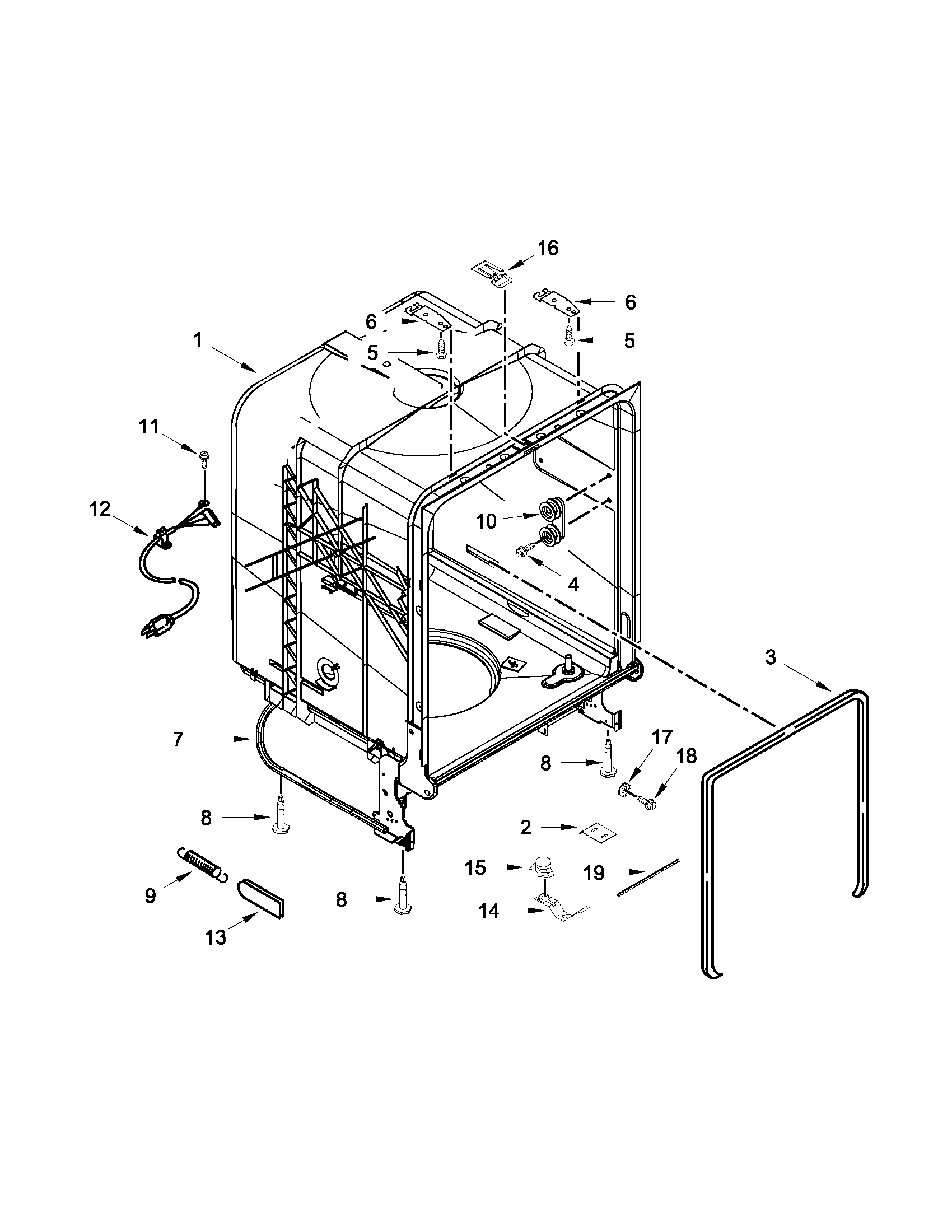

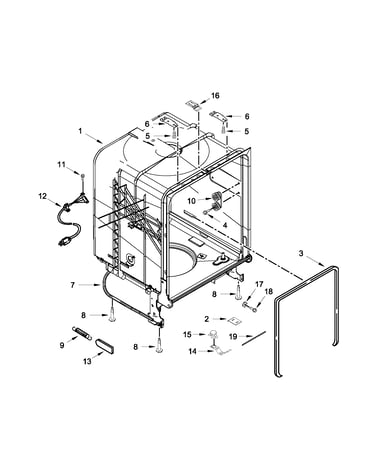

Tub and frame parts diagram
Dishwasher mounting bracket
Part #8269145
Replaced by #WP8269145
?
Manufacturer substitution
This part replaces 8269145. Substitute parts can look different from the original.
4.6 (5)
$13.45 |
13% OFF Phone Price : $15.45
In Stock
Qty
