Bosch
Dishwasher

Model # SHE3ARL5UC/07 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE3ARL5UC-07 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Dishwasher Water Inlet Valve (replaces 622058) 00622058
#521

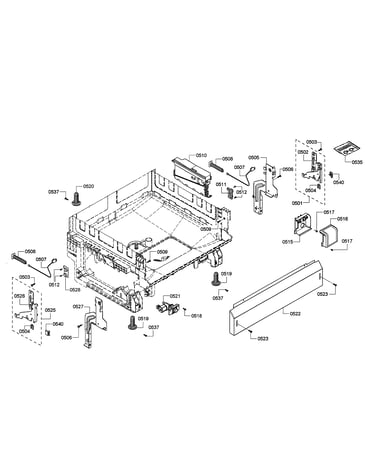

Base diagram

Dishwasher water inlet valve (replaces 622058)

Part #00622058

BEST SELLER
$41.61 |
13% OFF Phone Price : $47.61
In Stock
Dishwasher Drain Pump (replaces 611332) 00611332
#412

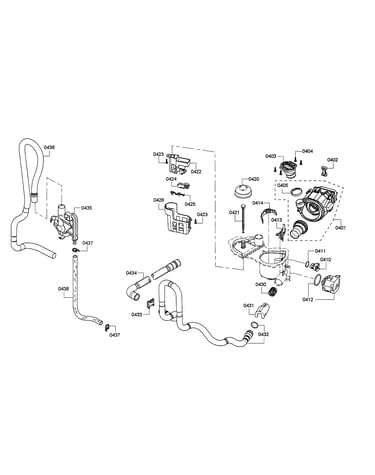

Water inlet/heat & drain pump diagram

Dishwasher drain pump (replaces 611332)

Part #00611332

BEST SELLER
$52.59 |
10% OFF Phone Price : $58.59
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#405

Water inlet/heat & drain pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Detergent Dispenser Assembly (replaces 645208) 00645208
#215

Door/dispenser diagram

Dishwasher detergent dispenser assembly (replaces 645208)

Part #00645208

BEST SELLER
$80.03 |
7% OFF Phone Price : $86.03
In Stock
Dishwasher Circulation Pump With Heater (replaces 00655250) 00705174
#401

Water inlet/heat & drain pump diagram

Dishwasher circulation pump with heater (replaces 00655250)

Part #00705174

BEST SELLER
$245.69 |
5% OFF Phone Price : $257.69
In Stock
Sealing 00611568
#411

Water inlet/heat & drain pump diagram

Sealing

Part #00611568

Replaced by #00611323

?
Manufacturer substitution
This part replaces 00611568. Substitute parts can look different from the original.
BEST SELLER
$38.75 |
13% OFF Phone Price : $44.75
In Stock
Sensor 00611567
#410

Water inlet/heat & drain pump diagram

Sensor

Part #00611567

Replaced by #00611323

?
Manufacturer substitution
This part replaces 00611567. Substitute parts can look different from the original.
BEST SELLER
$38.75 |
13% OFF Phone Price : $44.75
In Stock
Dishwasher Electronic Control Board (replaces 705047) 00705047
#510

Base diagram

Dishwasher electronic control board (replaces 705047)

Part #00705047

BEST SELLER
$290.03 |
$12.00 OFF Phone Price : $302.03
In Stock
Dishwasher Drain Hose (replaces 668108) 00668108
#434

Water inlet/heat & drain pump diagram

Dishwasher drain hose (replaces 668108)

Part #00668108

$37.99 |
14% OFF Phone Price : $43.99
In Stock
Dishwasher Dishrack Roller (replaces 00165313, 611666) 00611666
#605

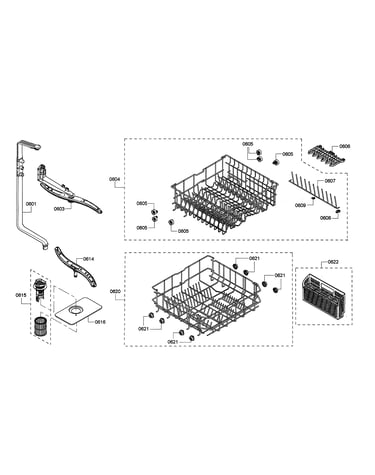

Spray arm/racks diagram

Dishwasher dishrack roller (replaces 00165313, 611666)

Part #00611666

$9.09 |
10% OFF Phone Price : $10.09
In Stock
