Model # FFGF3019LWF Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire FFGF3019LWF gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

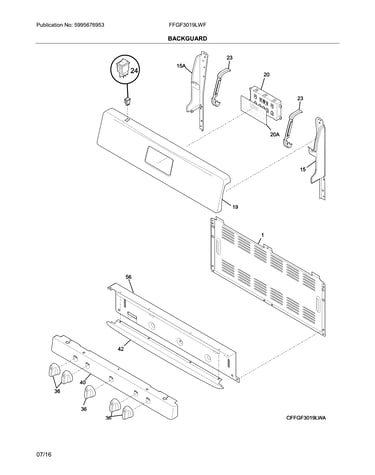

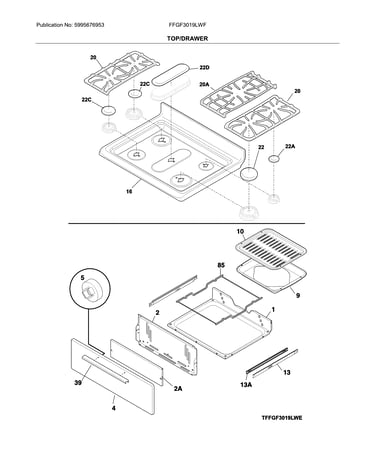

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Range Oven Igniter 316489408
#19

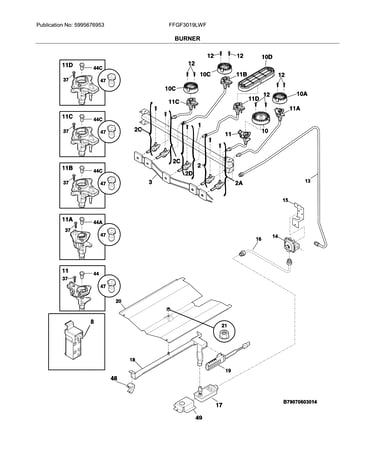

Burner diagram

Range oven igniter

Part #316489408

Replaced by #5304509706

?
Manufacturer substitution
This part replaces 316489408. Substitute parts can look different from the original.
BEST SELLER
$120.14 |
9% OFF Phone Price : $132.14
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

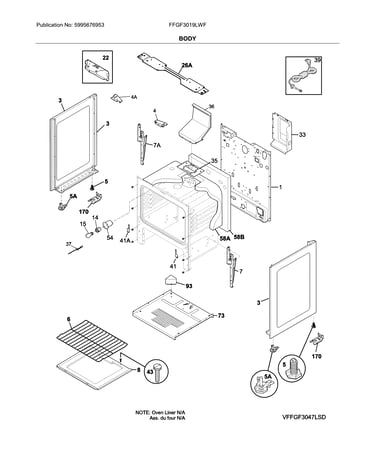

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Igniter Switch And Harness Assembly (replaces 316219025) 316580615
#3

Burner diagram

Range igniter switch and harness assembly (replaces 316219025)

Part #316580615

BEST SELLER
$60.48 |
9% OFF Phone Price : $66.48
In Stock
Range Oven Temperature Sensor 316233903
#37

Body diagram

Range oven temperature sensor

Part #316233903

Replaced by #316217008

?
Manufacturer substitution
This part replaces 316233903. Substitute parts can look different from the original.
BEST SELLER
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Oven Door Inner Glass 316237100
#8

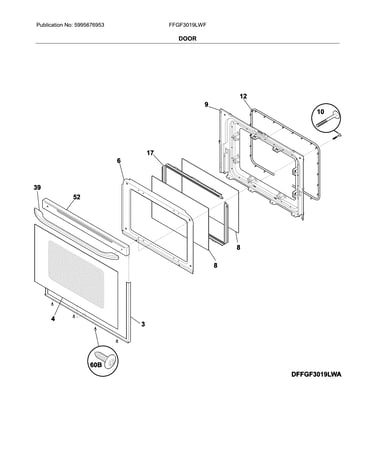

Door diagram

Range oven door inner glass

Part #316237100

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316237100. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Screw (replaces 316518100, 7316540900) 316540900
#12

Burner diagram

Range screw (replaces 316518100, 7316540900)

Part #316540900

BEST SELLER
$15.36 |
12% OFF Phone Price : $17.36
In Stock
Range Spark Module 316262404
#8

Burner diagram

Range spark module

Part #316262404

Replaced by #5304508269

?
Manufacturer substitution
This part replaces 316262404. Substitute parts can look different from the original.
BEST SELLER
$65.12 |
8% OFF Phone Price : $71.12
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 316449302) 316536602
#11B

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449302)

Part #316536602

BEST SELLER
$79.89 |
7% OFF Phone Price : $85.89
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10C

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
