Kenmore
Upright Freezer

Model # 757721920 Official Kenmore upright freezer

Here are the diagrams and repair parts for Official Kenmore 757721920 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Drier 11673
#2

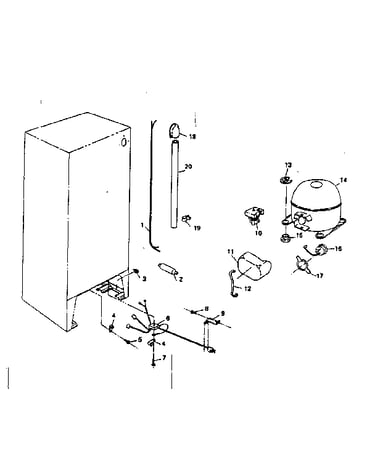

Unit parts diagram

Drier

Part #11673

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 11673. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Support 10440
#29

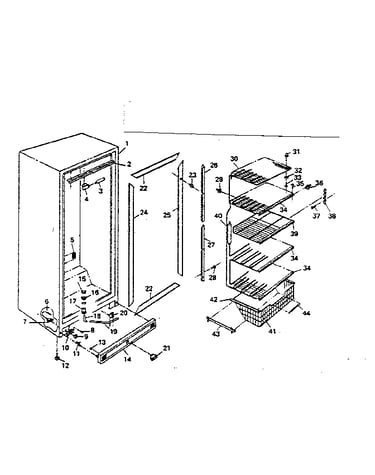

Cabinet parts diagram

Support

Part #10440

The manufacturer no longer makes this part, and there's no substitute part

Roller 6165
#42

Cabinet parts diagram

Roller

Part #6165

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10938-301
#30

Cabinet parts diagram

Shelf

Part #10938-301

The manufacturer no longer makes this part, and there's no substitute part

Support 14704
#36

Cabinet parts diagram

Support

Part #14704

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 11568-1
#5

Cabinet parts diagram

Escutcheon

Part #11568-1

The manufacturer no longer makes this part, and there's no substitute part

Grommet 12299
#16

Cabinet parts diagram

Grommet

Part #12299

The manufacturer no longer makes this part, and there's no substitute part

Heat Exchange 16130
#1

Unit parts diagram

Heat exchange

Part #16130

The manufacturer no longer makes this part, and there's no substitute part

Holder 13787
#4

Cabinet parts diagram

Holder

Part #13787

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 95037
#26

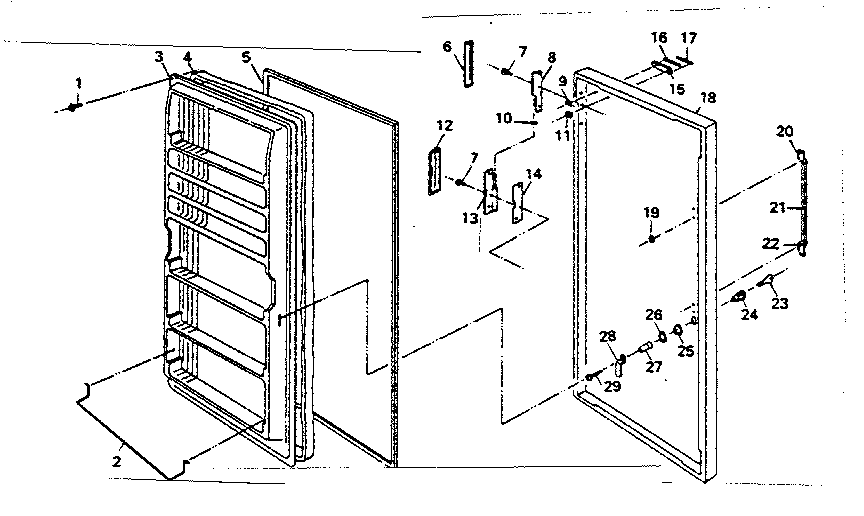

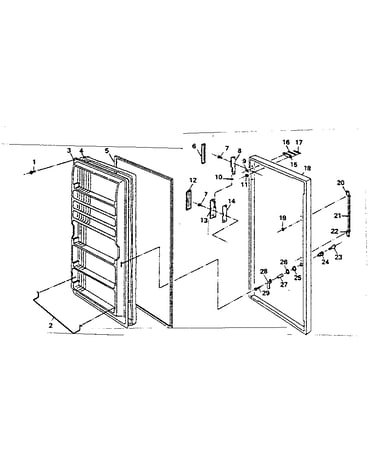

Door parts diagram

Lock nut

Part #95037

The manufacturer no longer makes this part, and there's no substitute part
