Model # UVW8361SL1SS Official GE range hood

Here are the diagrams and repair parts for Official GE UVW8361SL1SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

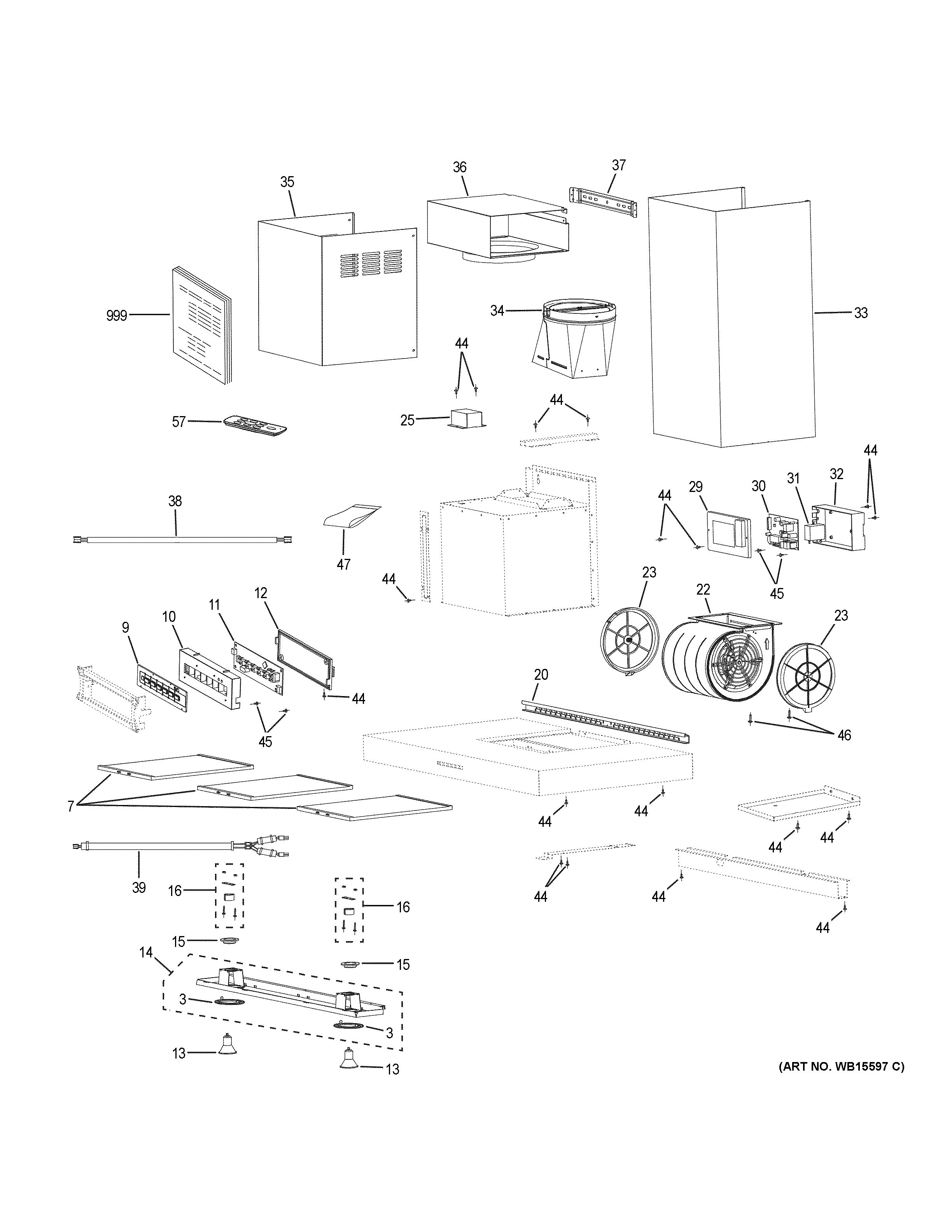

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Screw St3.5 WH02X27219
#45

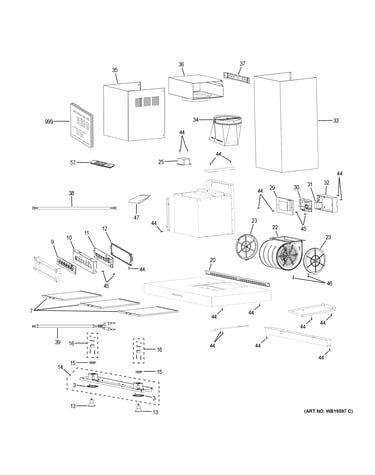

Range hood diagram

Screw st3.5

Part #WH02X27219

This item is not returnable
$7.14
In Stock
Blower Motor WB26X30510
#22

Range hood diagram

Blower motor

Part #WB26X30510

$248.84
In Stock
Transition D WB34X30571
#34

Range hood diagram

Transition d

Part #WB34X30571

$50.40
In Stock
Grease Filte WB02X30551
#7

Range hood diagram

Grease filte

Part #WB02X30551

$51.32 |
10% OFF Phone Price : $57.32
In Stock
Bezel WB02X30557
#3

Range hood diagram

Bezel

Part #WB02X30557

$62.53
In Stock
Led Lamp WB25X30548
#13

Range hood diagram

Led lamp

Part #WB25X30548

$55.59 |
10% OFF Phone Price : $61.59
In Stock
Junction Box WB02X30540
#25

Range hood diagram

Junction box

Part #WB02X30540

$29.33 |
17% OFF Phone Price : $35.33
In Stock
Power Board WB02X30524
#32

Range hood diagram

Power board

Part #WB02X30524

$11.29
In Stock
Ui Harness WB18X30542
#38

Range hood diagram

Ui harness

Part #WB18X30542

$25.51
In Stock
Capacitor WB27X30535
#31

Range hood diagram

Capacitor

Part #WB27X30535

$37.58
In Stock
