Crosley
Gas Range

Model # GC3177WUA Official Crosley gas freestanding range

Here are the diagrams and repair parts for Official Crosley GC3177WUA gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

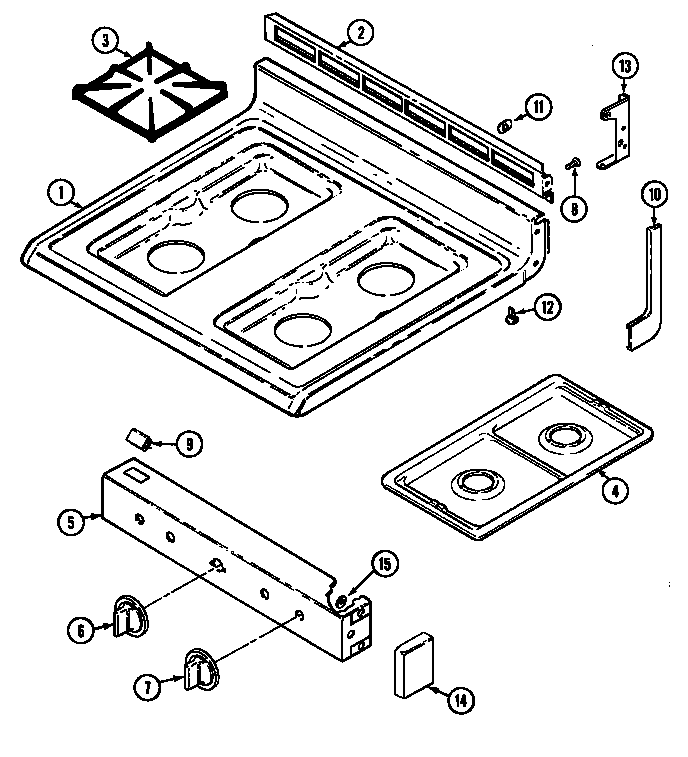

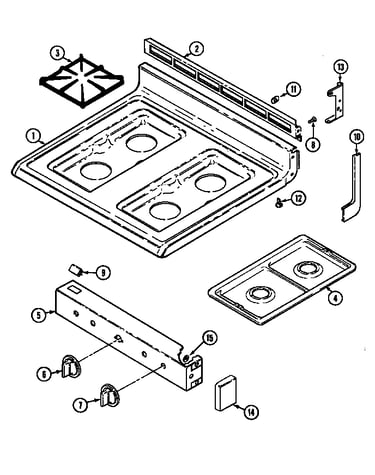

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Spark Module 7431P027-60
#15A

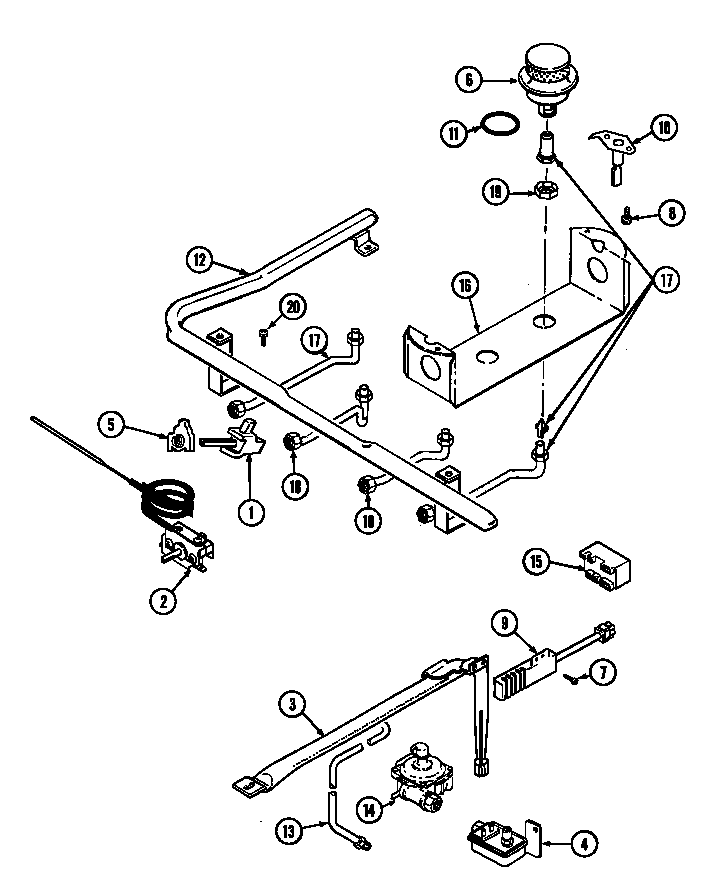

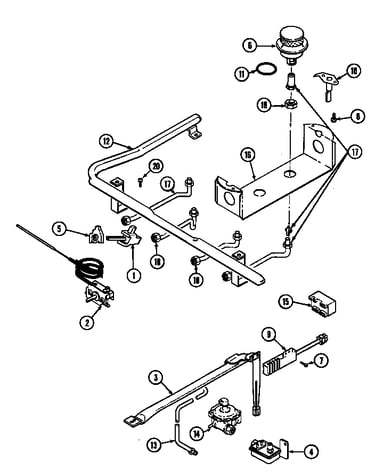

Gas controls diagram

Spark module

Part #7431P027-60

Replaced by #12001596

?
Manufacturer substitution
This part replaces 7431P027-60. Substitute parts can look different from the original.
$70.36 |
8% OFF Phone Price : $76.36
In Stock
Oven Rack 7801P047-60
#13

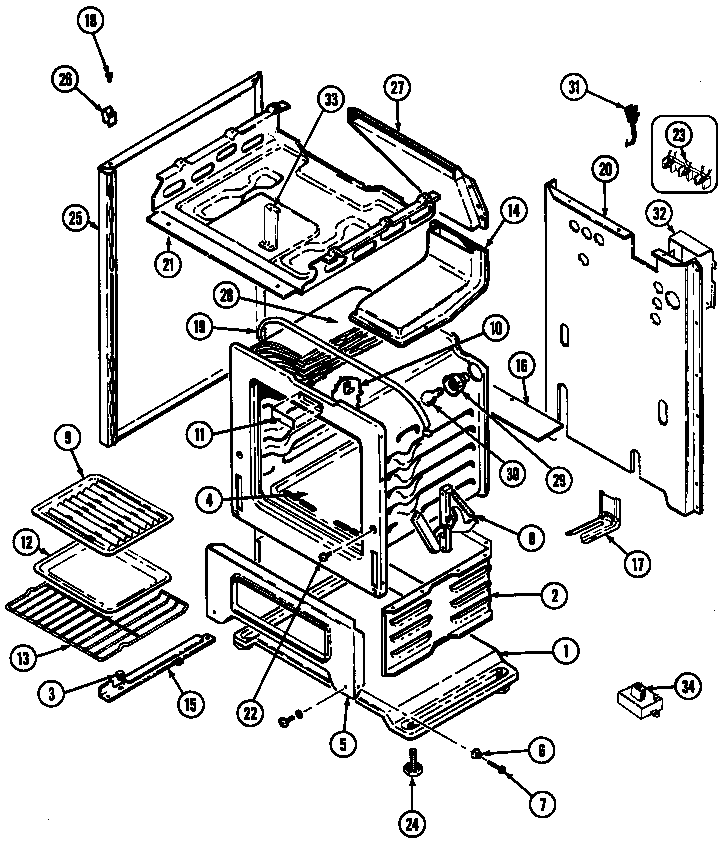

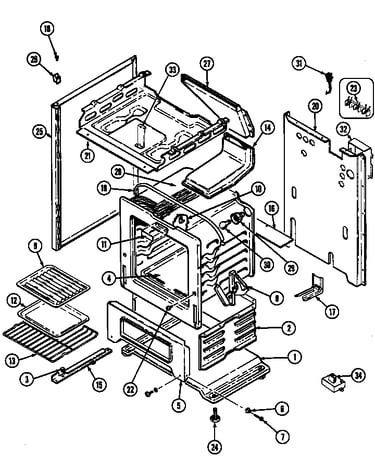

Oven diagram

Oven rack

Part #7801P047-60

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 7801P047-60. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
"bracket, Ant" 3801F218-51
#17

Oven diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw 7101P282-60
#22

Oven diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P328-60
#7

Gas controls diagram

Screw

Part #7101P328-60

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 7101P328-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P315-60
#8

Gas controls diagram

Screw

Part #7101P315-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P315-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Receptacle 7407P088-60
#29

Oven diagram

Receptacle

Part #7407P088-60

Replaced by #WP7407P182-60

?
Manufacturer substitution
This part replaces 7407P088-60. Substitute parts can look different from the original.
$42.19 |
12% OFF Phone Price : $48.19
In Stock
Screw, Switc 7101P148-60
#2A

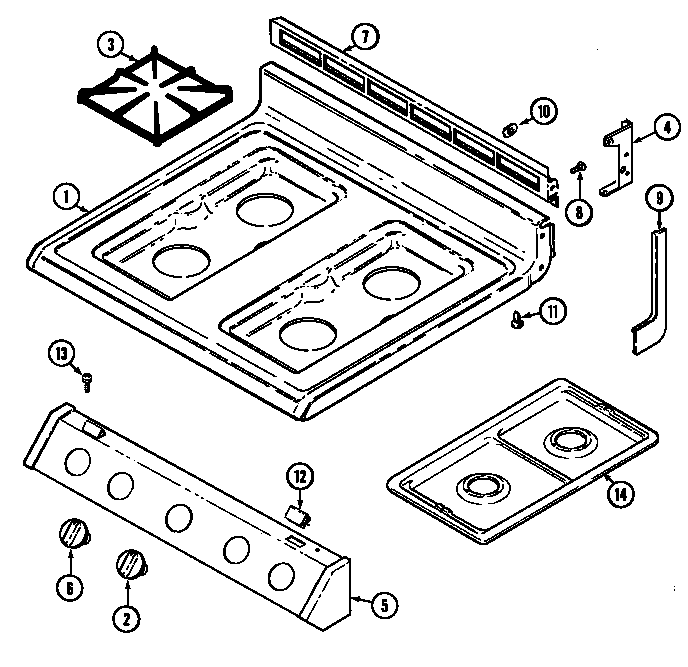

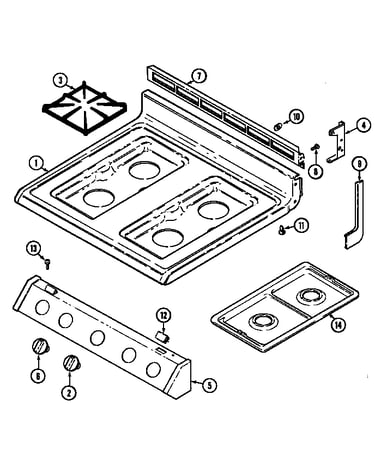

Control panel diagram

Screw, switc

Part #7101P148-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P148-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P061-60
#20B

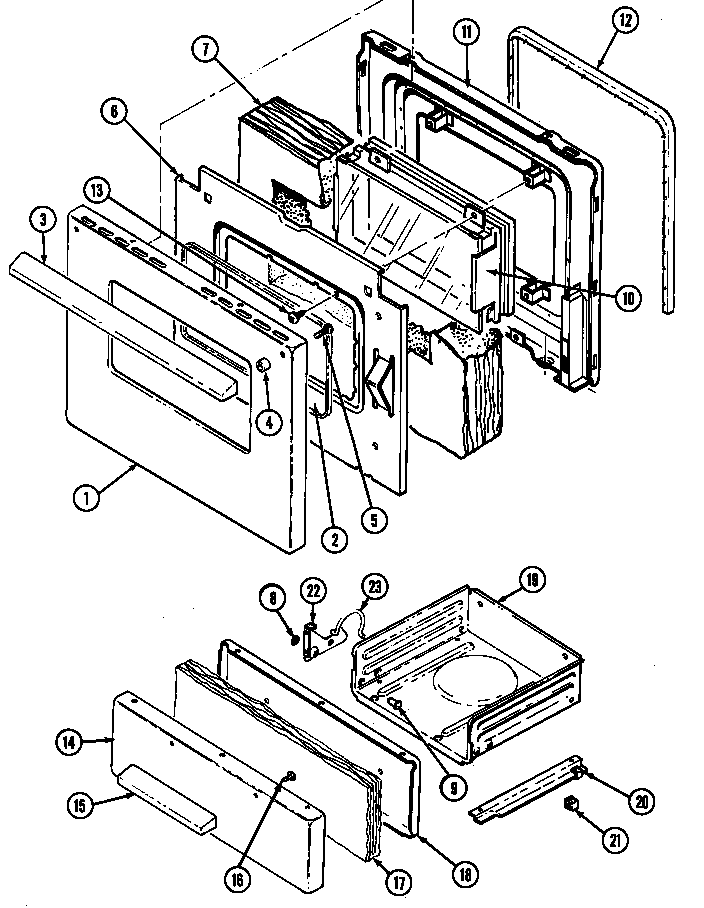

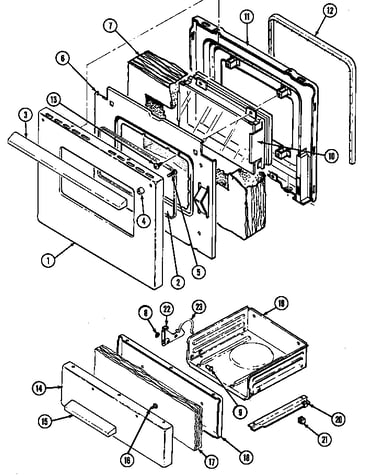

Door/drawer diagram

Screw

Part #7101P061-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Thermostat Clip 7112P004-60
#10

Oven diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
