Model # B1HA042A58 Official York heat pump

Here are the diagrams and repair parts for Official York B1HA042A58 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

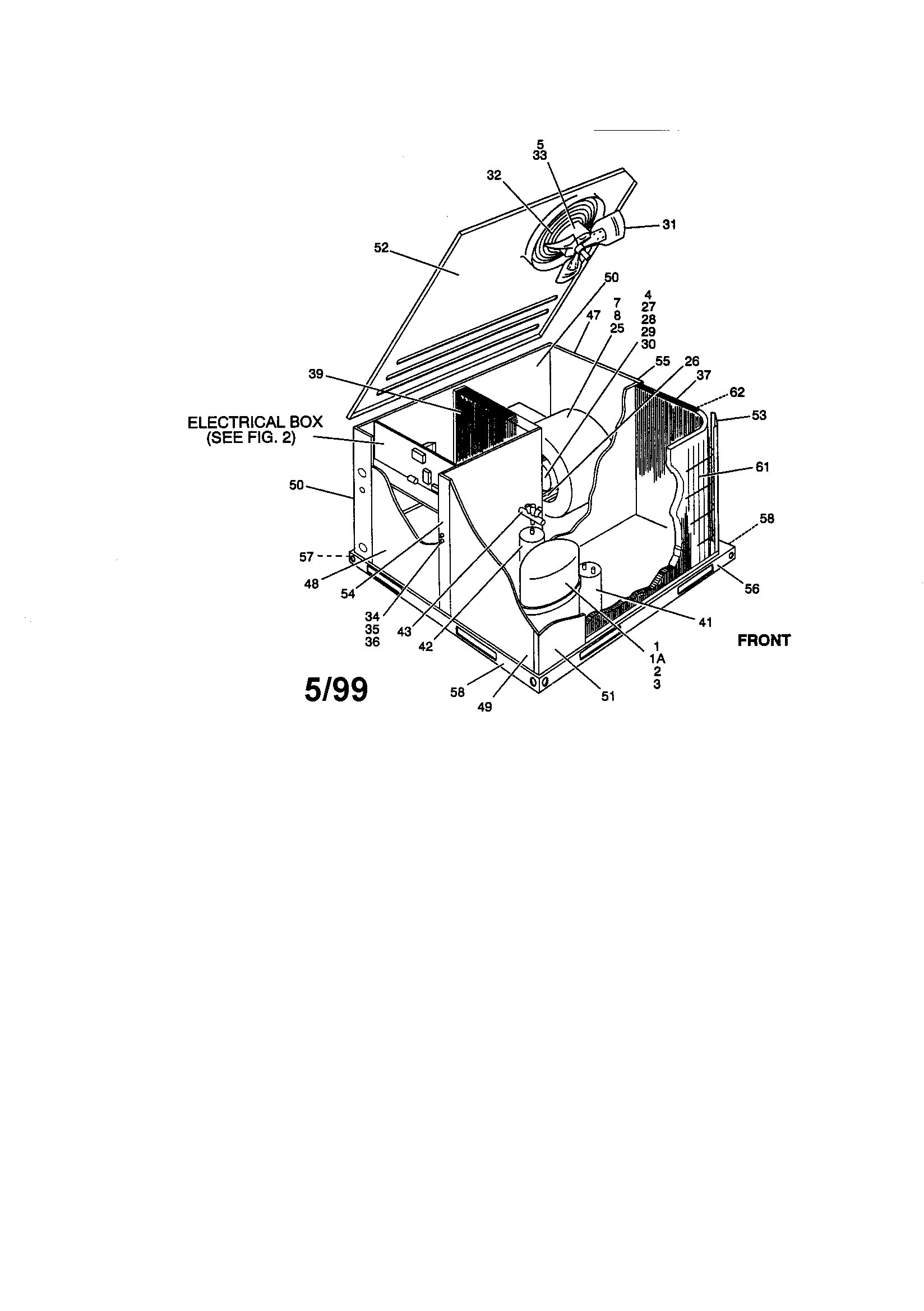

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Capacitor 024-20043-000

#10

All parts diagram

Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Central Air Conditioner Electronic Control Board 031-01264-002

#6

All parts diagram

Central air conditioner electronic control board

Part #031-01264-002

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel 026-32088-003

#26

All parts diagram

Blower wheel

Part #026-32088-003

The manufacturer no longer makes this part, and there's no substitute part

Header (evap) (unit Style A) 373-18493-060

#39B

All parts diagram

Header (evap) (unit style a)

Part #373-18493-060

The manufacturer no longer makes this part, and there's no substitute part

Circuit Breaker 024-24055-000

#21

All parts diagram

Circuit breaker

Part #024-24055-000

The manufacturer no longer makes this part, and there's no substitute part

Post (right Side, Center) 073-16328-001

#55

All parts diagram

Post (right side, center)

Part #073-16328-001

The manufacturer no longer makes this part, and there's no substitute part

Panel Access (compressor) 073-16330-001

#49

All parts diagram

Panel access (compressor)

Part #073-16330-001

The manufacturer no longer makes this part, and there's no substitute part

Transformer 025-27729-000

#20

All parts diagram

Transformer

Part #025-27729-000

The manufacturer no longer makes this part, and there's no substitute part

Rail, Base (front) 073-14854-000

#56

All parts diagram

Rail, base (front)

Part #073-14854-000

The manufacturer no longer makes this part, and there's no substitute part

Cntrl-def 031-01268-000

#16

All parts diagram

Cntrl-def

Part #031-01268-000

The manufacturer no longer makes this part, and there's no substitute part
