Kenmore
Household Fan

Model # 75863952 Official Kenmore attic ventilator

Here are the diagrams and repair parts for Official Kenmore 75863952 attic ventilator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

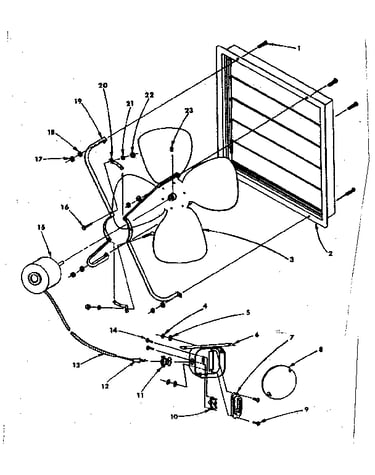

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Kenmore Owner's Manual 18481

#NI

All parts diagram

Kenmore owner's manual

Part #18481

The manufacturer no longer makes this part, and there's no substitute part

Flt Wshr 120385
#21

Functional replacement parts diagram

Flt wshr

Part #120385

The manufacturer no longer makes this part, and there's no substitute part

Screw 132760
#9

Functional replacement parts diagram

Screw

Part #132760

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 10028-01
#3

Functional replacement parts diagram

Fan blade

Part #10028-01

The manufacturer no longer makes this part, and there's no substitute part

Nut 120375
#17

Functional replacement parts diagram

Nut

Part #120375

The manufacturer no longer makes this part, and there's no substitute part

Screw 18469
#23

Functional replacement parts diagram

Screw

Part #18469

The manufacturer no longer makes this part, and there's no substitute part

Bushing 18354
#12

Functional replacement parts diagram

Bushing

Part #18354

The manufacturer no longer makes this part, and there's no substitute part

Wall Shutter 16638
#2

Functional replacement parts diagram

Wall shutter

Part #16638

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 120380
#18

Functional replacement parts diagram

Lock washer

Part #120380

The manufacturer no longer makes this part, and there's no substitute part

Switch 18413
#10

Functional replacement parts diagram

Switch

Part #18413

The manufacturer no longer makes this part, and there's no substitute part
