Electrolux
Gas Cooktop

Model # E30GC70FSS3 Official Electrolux gas cooktop

Here are the diagrams and repair parts for Official Electrolux E30GC70FSS3 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

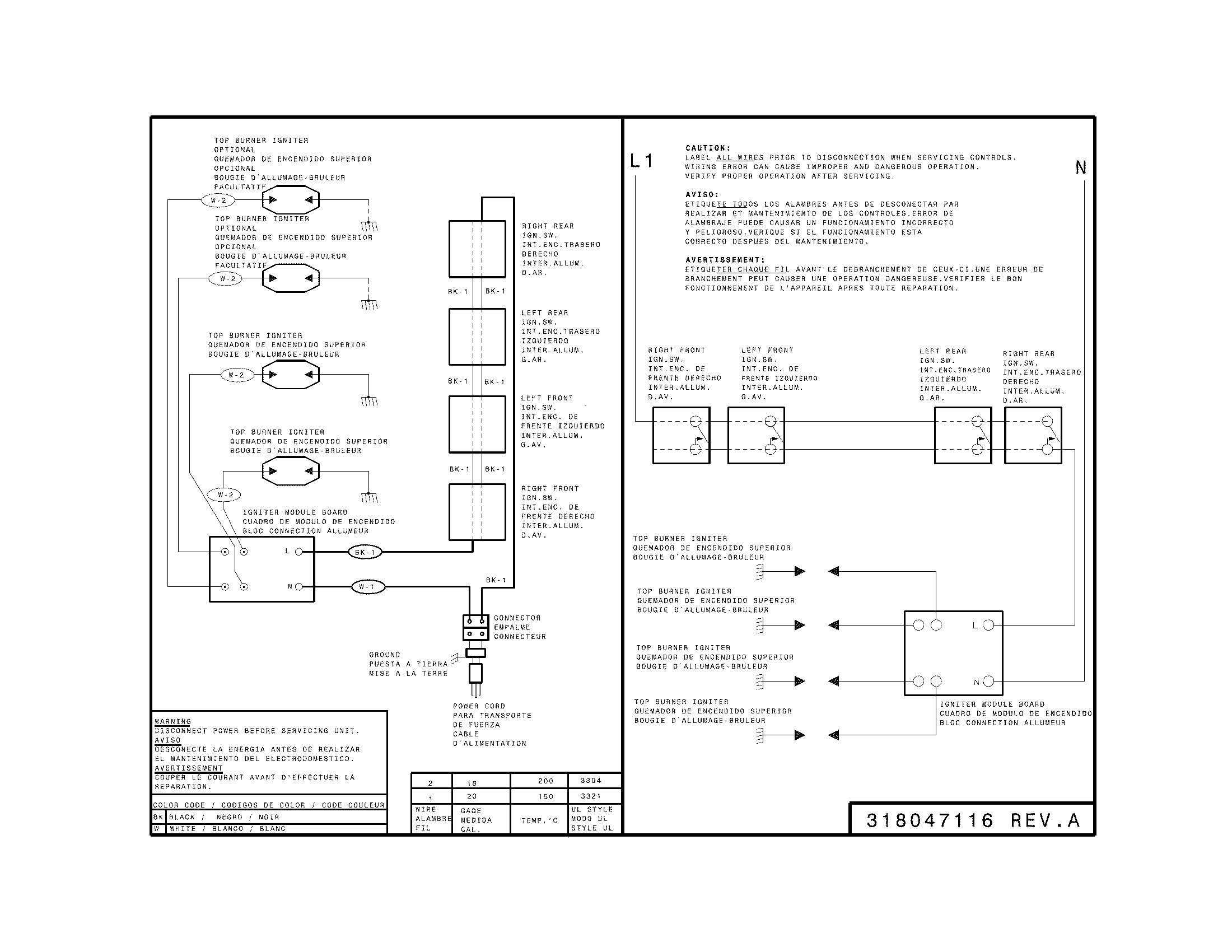

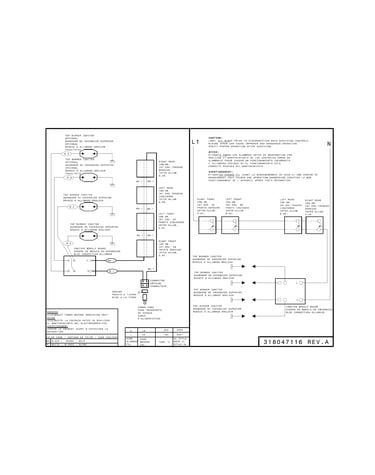

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Range Screw 5304472956
#4

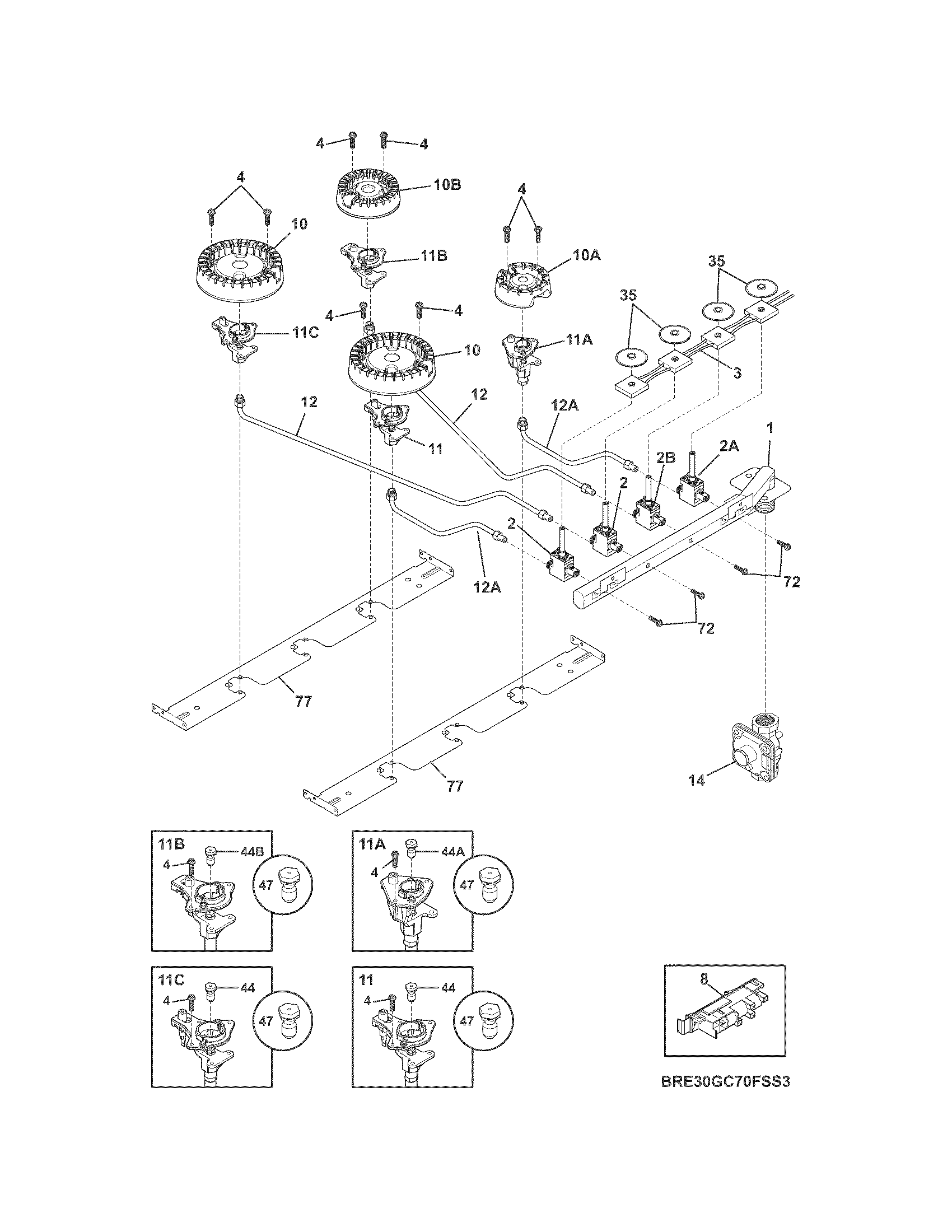

Burner diagram

Range screw

Part #5304472956

Replaced by #316240600

?
Manufacturer substitution
This part replaces 5304472956. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10B

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$41.85 |
13% OFF Phone Price : $47.85
In Stock
Range Surface Burner Head (replaces 7316438400) 316438400
#10

Burner diagram

Range surface burner head (replaces 7316438400)

Part #316438400

BEST SELLER
$59.89 |
9% OFF Phone Price : $65.89
In Stock
Tappan Range Surface Burner Orifice (replaces 7316527504) 316527504
#44A

Burner diagram

Tappan range surface burner orifice (replaces 7316527504)

Part #316527504

BEST SELLER
$19.44 |
9% OFF Phone Price : $21.44
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 7316540700) 316540700
#11B

Burner diagram

Range surface burner igniter and orifice holder (replaces 7316540700)

Part #316540700

BEST SELLER
$78.91 |
7% OFF Phone Price : $84.91
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 7316540800) 316540800
#11A

Burner diagram

Range surface burner igniter and orifice holder (replaces 7316540800)

Part #316540800

$66.17 |
8% OFF Phone Price : $72.17
In Stock
Cooktop Knob Grommet 807164301
#35

Burner diagram

Cooktop knob grommet

Part #807164301

$16.06
In Stock
Cooktop Igniter Orifice 316543202
#11C

Burner diagram

Cooktop igniter orifice

Part #316543202

$62.07
In Stock
Cooktop Burner Valve, 9,500- To 12,500-btu 316271301
#2B

Burner diagram

Cooktop burner valve, 9,500- to 12,500-btu

Part #316271301

$115.99 |
9% OFF Phone Price : $127.99
In Stock
Screw 5303305528
#NI

Burner diagram

Screw

Part #5303305528

Replaced by #5303323137

?
Manufacturer substitution
This part replaces 5303305528. Substitute parts can look different from the original.
$10.97
In Stock
