Model # 738675000 Official Sears molded acrylic bathtub with whirlpool

Here are the diagrams and repair parts for Official Sears 738675000 molded acrylic bathtub with whirlpool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

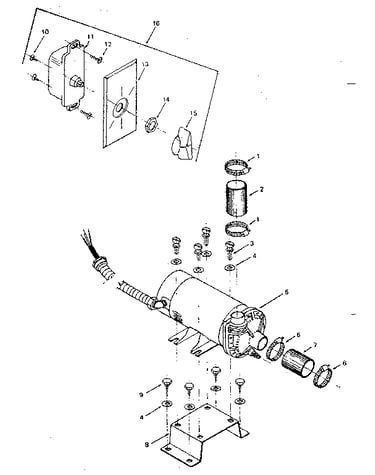

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Hex Nut W50
#5

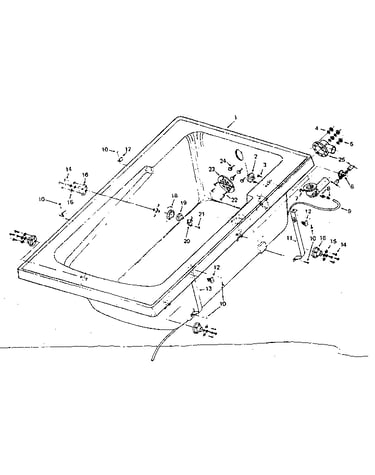

Tub and air control diagram

Hex nut

Part #W50

The manufacturer no longer makes this part, and there's no substitute part

Knob W28
#2D

Tub and air control diagram

Knob

Part #W28

The manufacturer no longer makes this part, and there's no substitute part

Elbow Tube P8588
#11

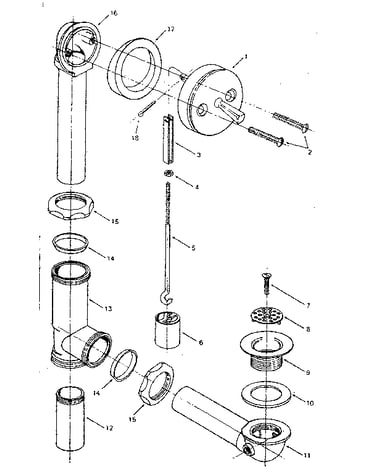

Drain diagram

Elbow tube

Part #P8588

The manufacturer no longer makes this part, and there's no substitute part

Drain Spud P8366
#9

Drain diagram

Drain spud

Part #P8366

The manufacturer no longer makes this part, and there's no substitute part

Flange Gold W5
#18B

Tub and air control diagram

Flange gold

Part #W5

The manufacturer no longer makes this part, and there's no substitute part

Inlet Screen W22
#23C

Tub and air control diagram

Inlet screen

Part #W22

The manufacturer no longer makes this part, and there's no substitute part

Apron White 6772-01
#2

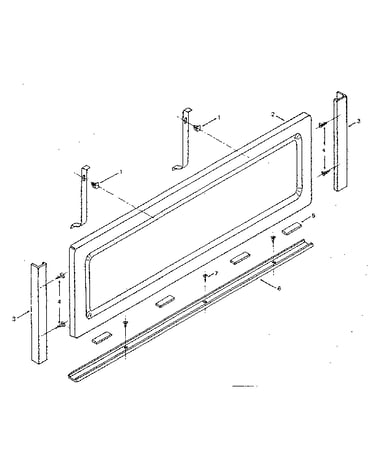

Service apron diagram

Apron white

Part #6772-01

The manufacturer no longer makes this part, and there's no substitute part

Tub Bone 6771-04
#1C

Tub and air control diagram

Tub bone

Part #6771-04

The manufacturer no longer makes this part, and there's no substitute part

Pvc Pipe W72
#23

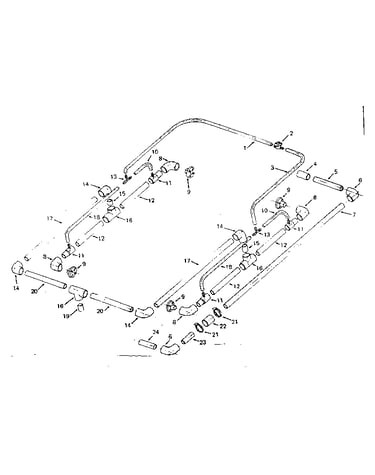

Unit pvc pipe diagram

Pvc pipe

Part #W72

The manufacturer no longer makes this part, and there's no substitute part

Pvc Elbow W83
Pvc elbow

Part #W83

The manufacturer no longer makes this part, and there's no substitute part
